Sealco 110171 Spring Brake Control Valve | Protected Reservoir | 4-Port Delivery

Optimize your trailer’s safety and air system efficiency with the Sealco 110171 Spring Brake Control Valve. This "Protected Reservoir" style valve is specifically designed to manage the application and release of spring brakes while ensuring that the air reservoir is protected from total pressure loss in the event of a supply line failure.

A key design feature of the 110171 is its parallel port configuration, where the control and supply ports are aligned parallel to the reservoir ports, allowing for cleaner plumbing and easier installation in tight chassis spaces.

Product Specifications

• Brand: Sealco

• Part Number: 110171

• Valve Type: Protected Reservoir Spring Brake Control

• Material: High-strength die-cast housing

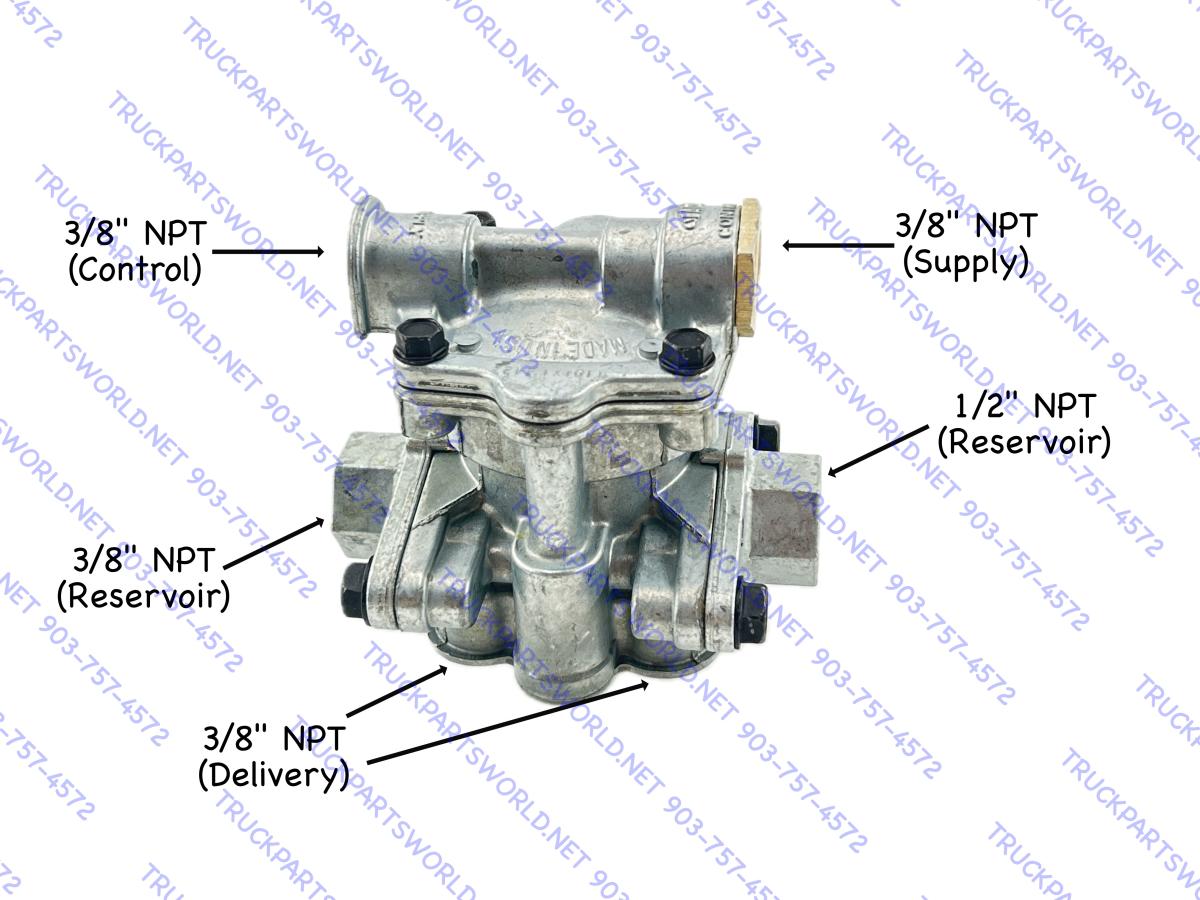

• Port Sizes:

  • Supply: 3/8" NPT

  • Control: 3/8" NPT

  • Reservoir (Dual): 3/8" NPT & 1/2" NPT

  • Delivery (x4): 3/8" NPT

Key Features & Benefits

• Parallel Porting: Simplifies air line routing by keeping supply and control lines aligned with reservoir connections.

• Integrated Protection: Maintains air pressure in the trailer reservoir even if the supply line is compromised, preventing immediate, uncontrolled wheel lock-up.

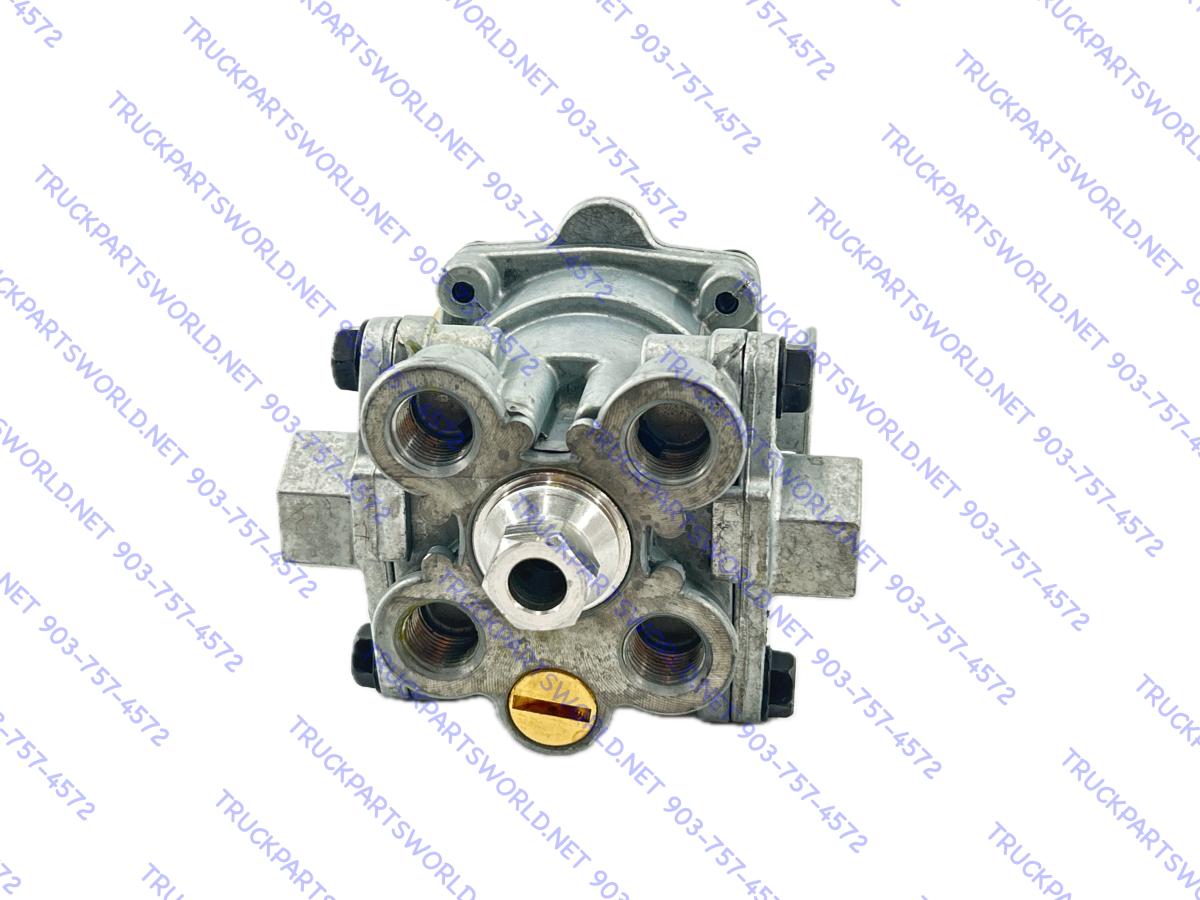

• Four Delivery Ports: Provides ample connection points for multi-axle spring brake configurations without the need for extra "T" fittings.

• Genuine Sealco Reliability: Trusted by OEMs nationwide for its robust internal valving and resistance to road contaminants.

Industry Cross Reference

The 110171 is a direct replacement for the following manufacturer part numbers:
