Catalog     Air Brake & Wheel

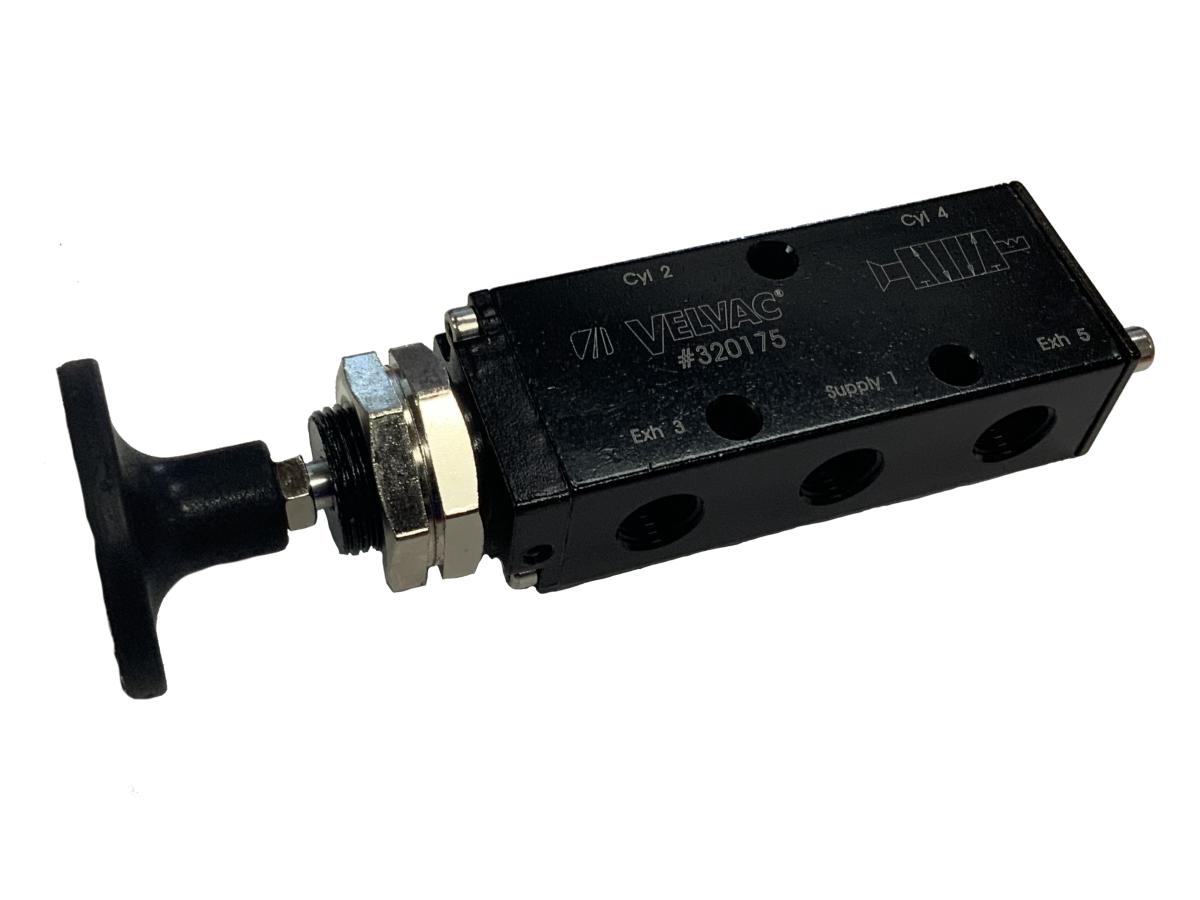

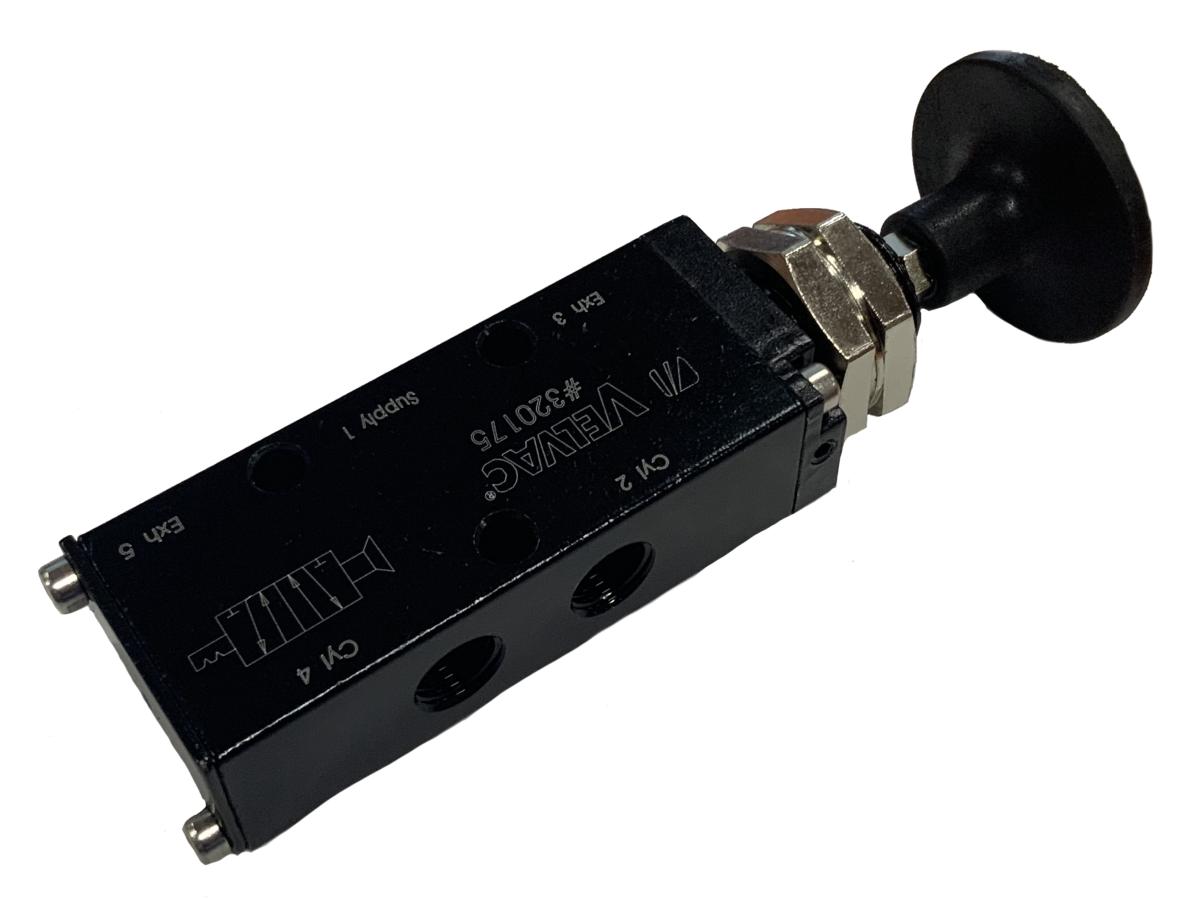

Four-Way Push/Pull Valve
Four-Way Push/Pull Valve
Four-Way Push/Pull Valve
Four-Way Push/Pull Valve

Four-Way Push/Pull Valve

$70.27

Sku: 320175

Category: Air Brake & Wheel, Air valves, Dash Control Valves, Push-Pull

Brand: Velvac

Tags: optronics marker light

2-Position Valve
Item Overview:
  • Nitrile seals for long cycle life.
  • High impact knobs.
  • Balanced spool design.
  • Operating temperature range from -40?F to +180?F.
  • Stainless steel hardware.
  • Aluminum shaft with delrin detent ring provides easy identification of valve position.
  • Threaded aluminum mounting boss for 1" diameter through hole mounting (nuts included).
  • (3) 9/32" diameter body mounting holes.
  • (5) 1/4" - 18 FPT ports.
  • Normal operating pressure 100 psi.
  • Includes two faceplates: Pull to Open/Push to ClosePull to Raise/Push to Lower.
Four-Way Push/Pull Valves
Category:
Air Cylinder Control Valves
Note: Applications for valves
