Automann 201.3014 M22 x 1.5 Two-Piece Flanged Cap Nut

One assembled Automann 201.3014 two-piece flanged cap nut for hub-pilot wheel studs.

M22 x 1.5 thread, 33 mm hex, 31 mm height and 48 mm flange outside diameter. AISI 1045H steel body and AISI 4140 steel collar with Teflon coating.

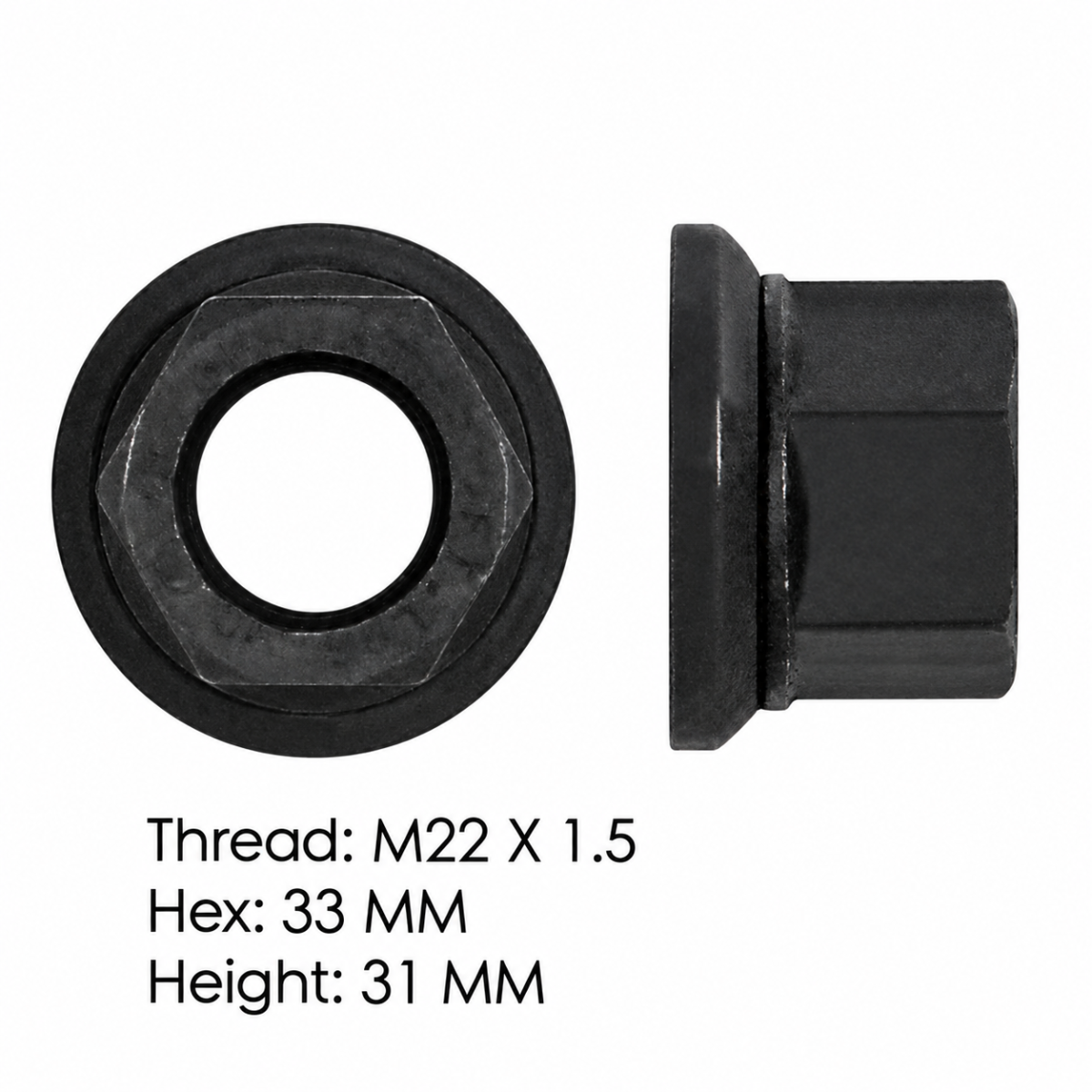

The manufacturer photo shows top and side views of one nut. This listing includes one assembled nut.

References for the 201.3014 nuts: Budd 106333; Euclid E6000; Euclid E6000A; Euclid E6000BK; Euclid E9019; Euclid E9318; Euclid E6000ABK; Ford W300530; Freightliner MF39702; Gunite W1338; Hendrickson 58640; Hendrickson 58640000; IHC 1649492C2; Meritor R006000; Meritor 08205578; Meritor R006000A; Meritor R00600A; Meritor R930089; Mack 181AM5002; Mack 500471861; Mack 5010097347; Peterbilt 0304924; Peterbilt TFZA017R; Spicer 51-1003; Spicer 511037; Spicer 511033; Volvo 8084014; Webb 179935.
