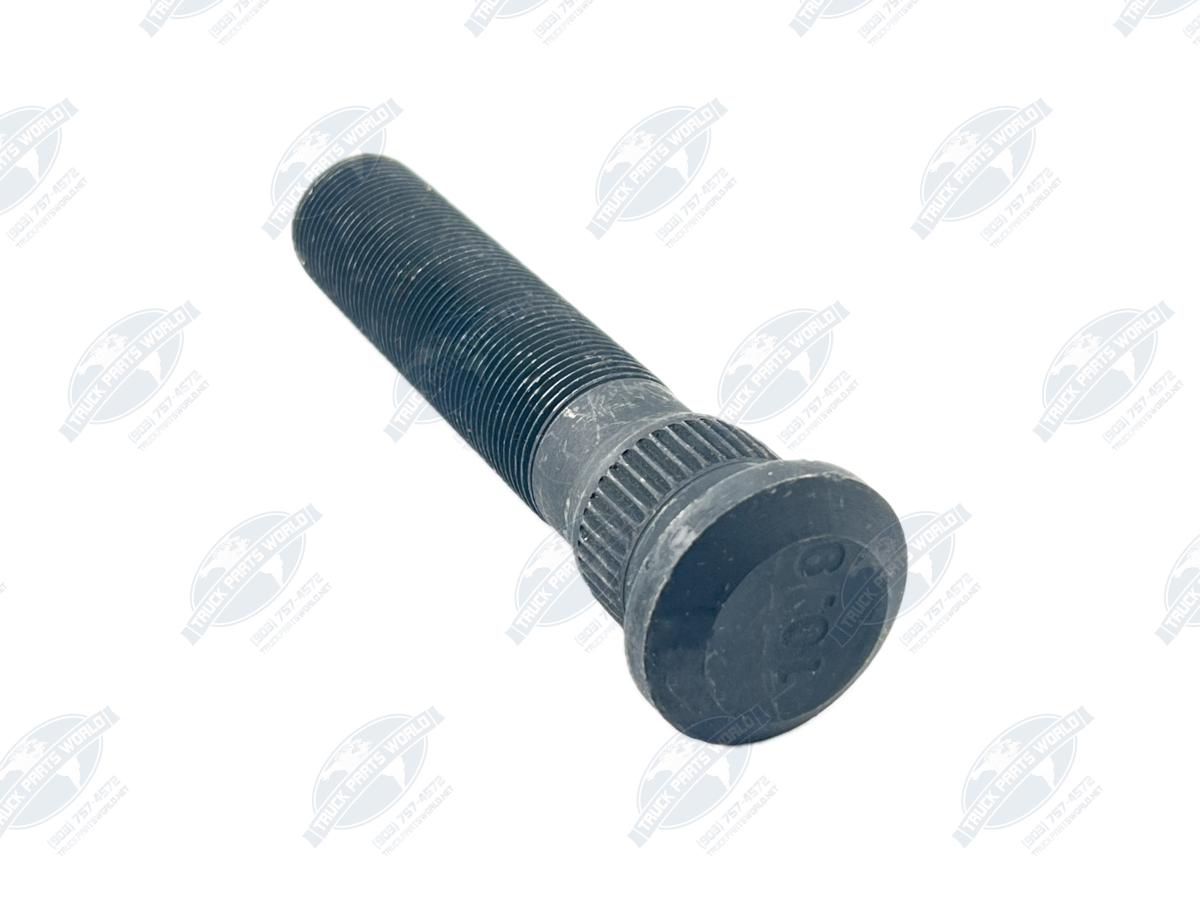

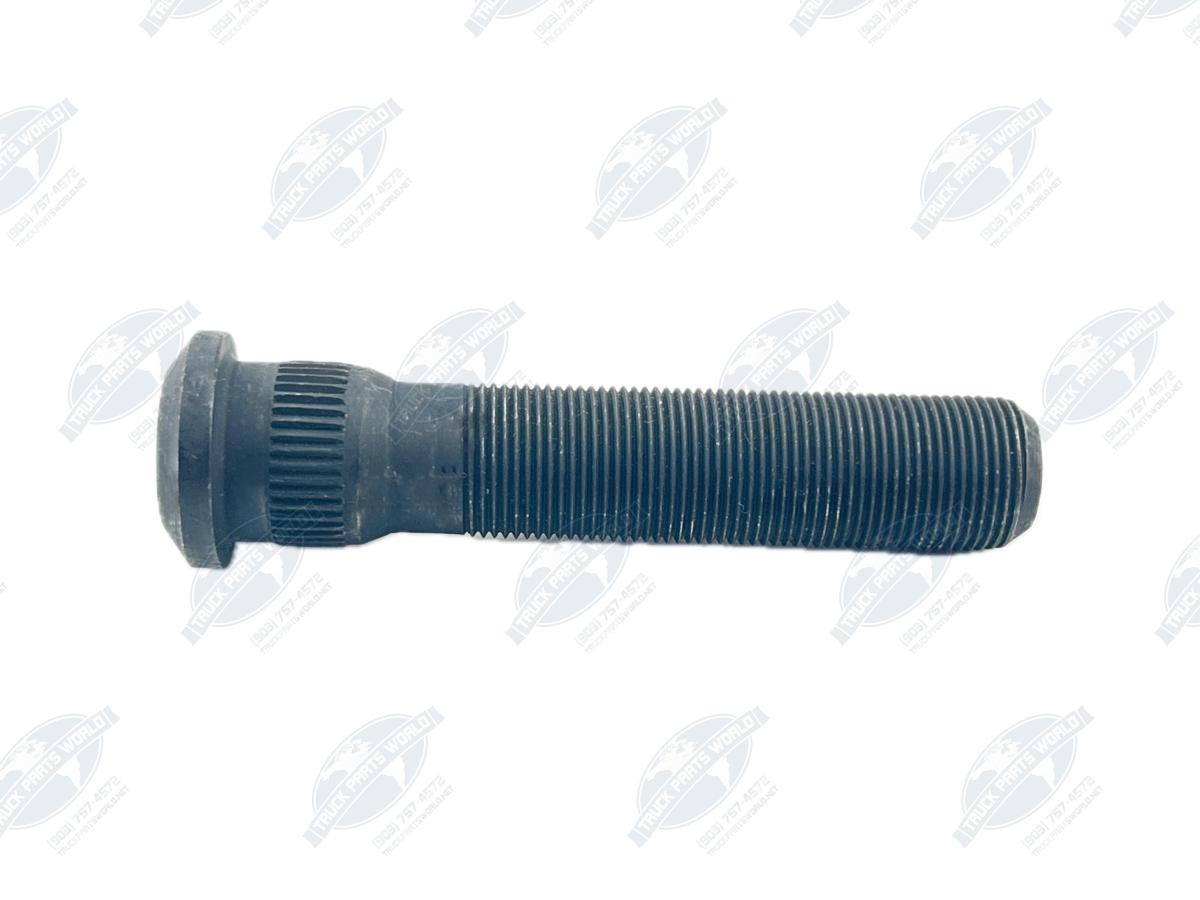

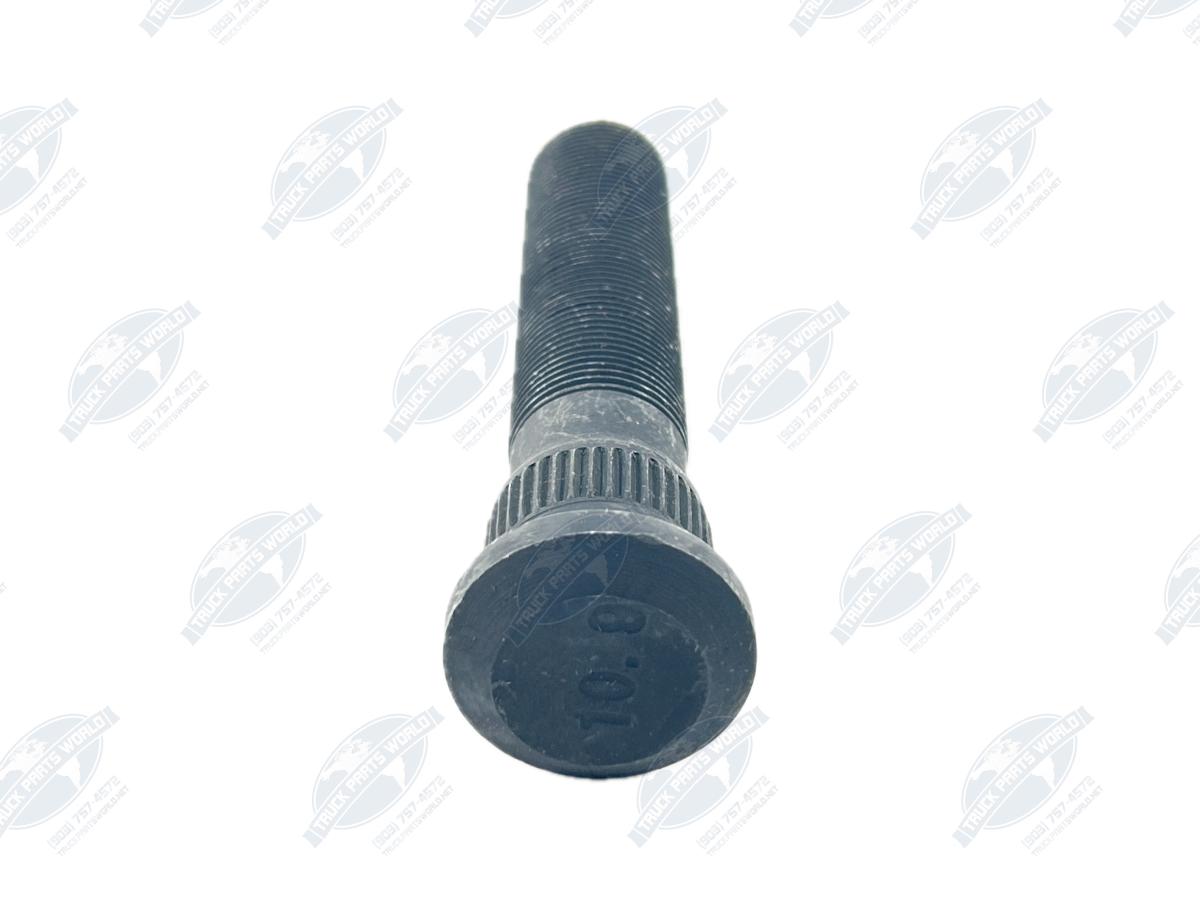

The Dayton 13-1567 Hub Pilot Wheel Stud is a high-strength replacement part designed for heavy-duty hub assemblies. Engineered from Grade 8 carbon steel, these studs meet rigorous SAE automotive industry standards for safety and performance. While versatile enough for universal applications, this specific stud configuration is frequently used in Gunite hub assemblies and other compatible wheel ends requiring a 4.00" length.
Key Features:
Durable Construction: Manufactured from carbon steel to meet SAE standards for superior strength and hardness.
Corrosion Resistant: Subjected to extensive salt spray testing to ensure long-term durability against rust.
Tensile Tested: Proof-load tested to industry standards to guarantee reliability under heavy fleet loads.
Trustworthy Quality: Backed by a team of professional engineers and quality control specialists in the United States.
| Attribute | Value |
| Part Number | 13-1567 |
| Applications | Universal / Gunite |
| Type | Metric Serrated Wheel Studs |
| Thread Size | M22 x 1.5 |
| Length (A) | 4.000" (101.6 mm) |
| Wheel Thread Length (D) | 3.000" (69.85 mm) |
| Body Diameter | 0.975" (24.77 mm) |
| Serration Length | 0.500" |
| Shoulder Length | 0.71" |
| Material | Grade 8 Carbon Steel |
| Finish | Black |
This part is a direct replacement for the following part numbers:
Euclid: E-8981
Gunite: W1164, W1400
Ford: F1HZ1107B, W300085
GMC: 15579213
IHC / Navistar: 2010358C1, 1652874C2, 18003616
Meritor: 20X2214, R008981
Midland: CW81803
Peterbilt: SZAW021R
PACCAR: W657
VMRS: 018-003-009
