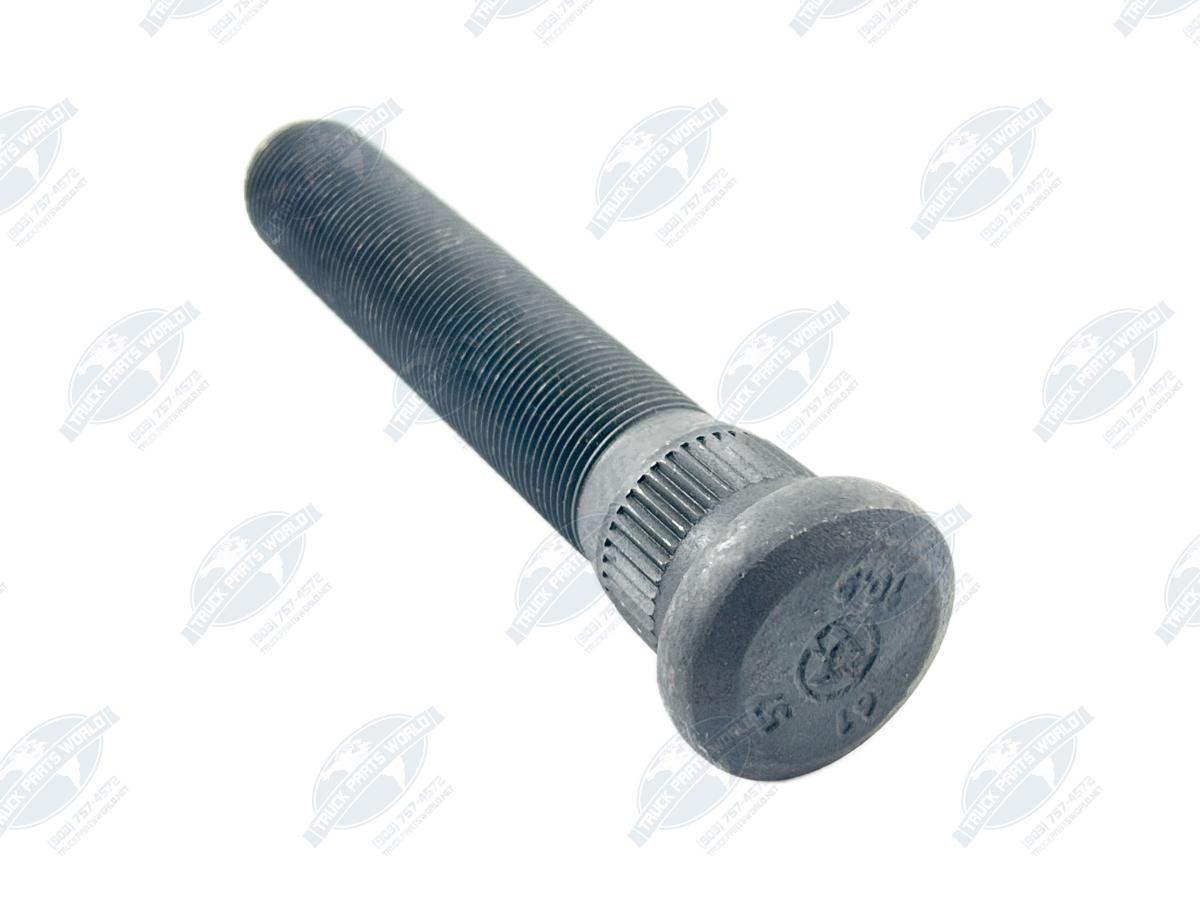

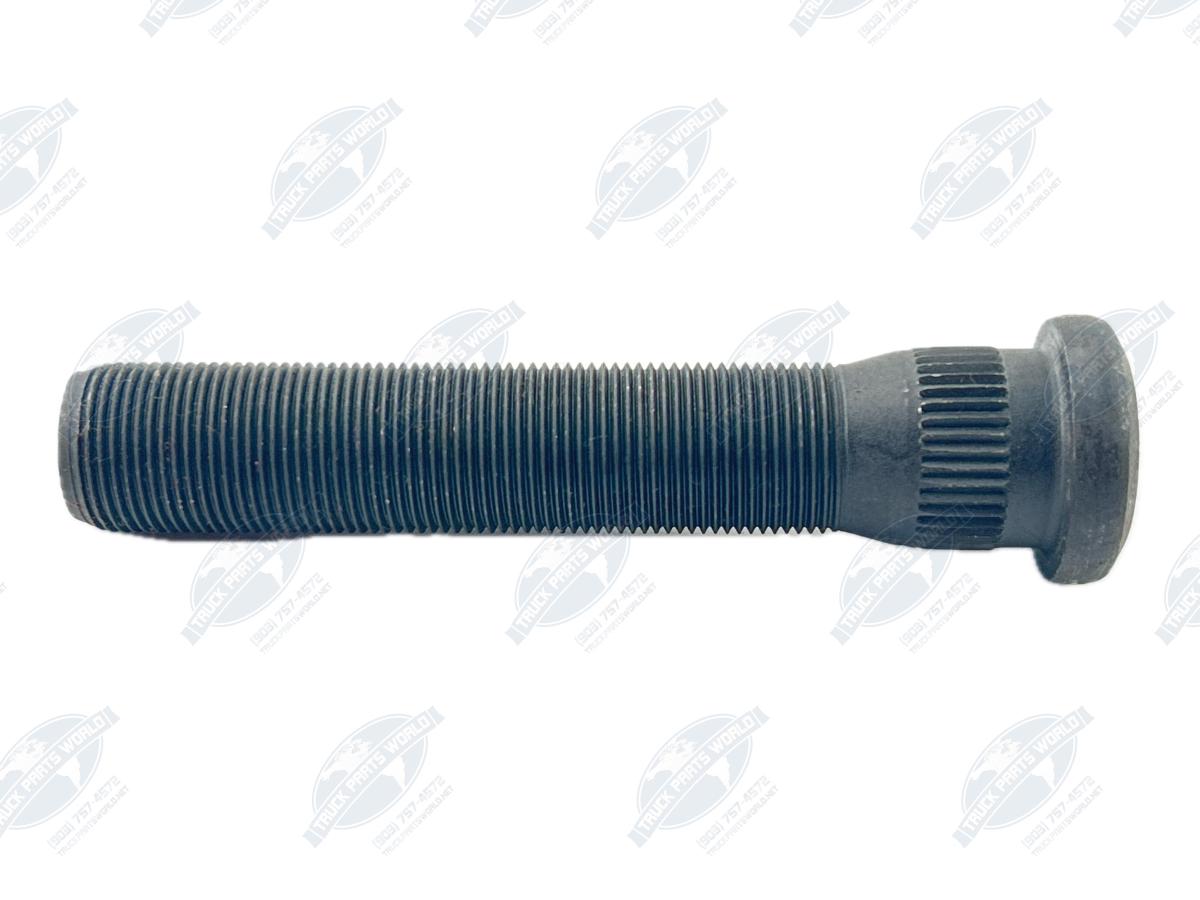

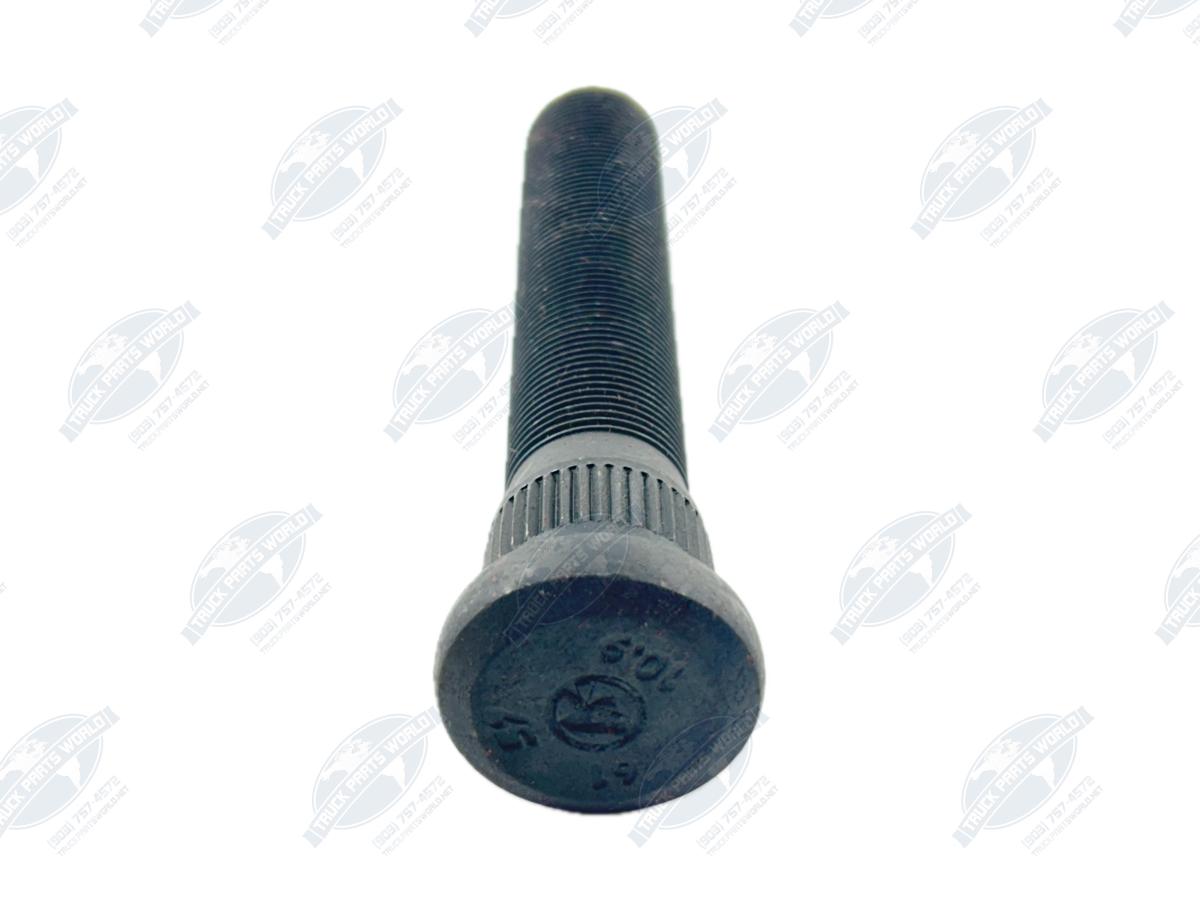

The Dayton 13-1572 Hub Pilot Wheel Stud is engineered for heavy-duty applications requiring a robust 0.975" body diameter. Manufactured from Grade 8 carbon steel, this stud is built to withstand the rigorous torque and load demands of commercial fleets. It is a direct replacement for Webb 101160 and Euclid E6034 applications, often found on specific trailer hubs and heavy-duty wheel ends.
Key Features:
Heavy-Duty Body: Features a larger 0.975" body diameter for specific hub fitments (Webb/Gunite).
Durable Construction: Grade 8 carbon steel meets SAE automotive industry standards for strength and hardness.
Corrosion Resistant: Black oil finish and extensive testing ensure durability against rust and seizing.
Precision Fit: CNC-machined M22 x 1.5 threads and serrations guarantee a secure interference fit.
| Attribute | Value |
| Part Number | 13-1572 |
| Applications | Universal / Webb / Gunite |
| Type | Metric Serrated Wheel Studs |
| Thread Size | M22 x 1.5 |
| Length (Under Head) | 4.750" (120.65 mm) |
| Wheel Thread Length | 3.750" |
| Body Diameter | 0.975" |
| Serration Length | 0.380" |
| Serration Diameter | ~1.01" |
| Material | Grade 8 Carbon Steel |
| Finish | Black |
| Packaging | 5 Wheel Studs per Bag |
This part is a direct replacement for the following part numbers:
Conmet: 10001400
Euclid: E-6034
Gunite: W1325
Meritor: R006034
Peterbilt: SZAW029R
Webb: 101160
Automann: 201.6157
VMRS: 018-003-009
