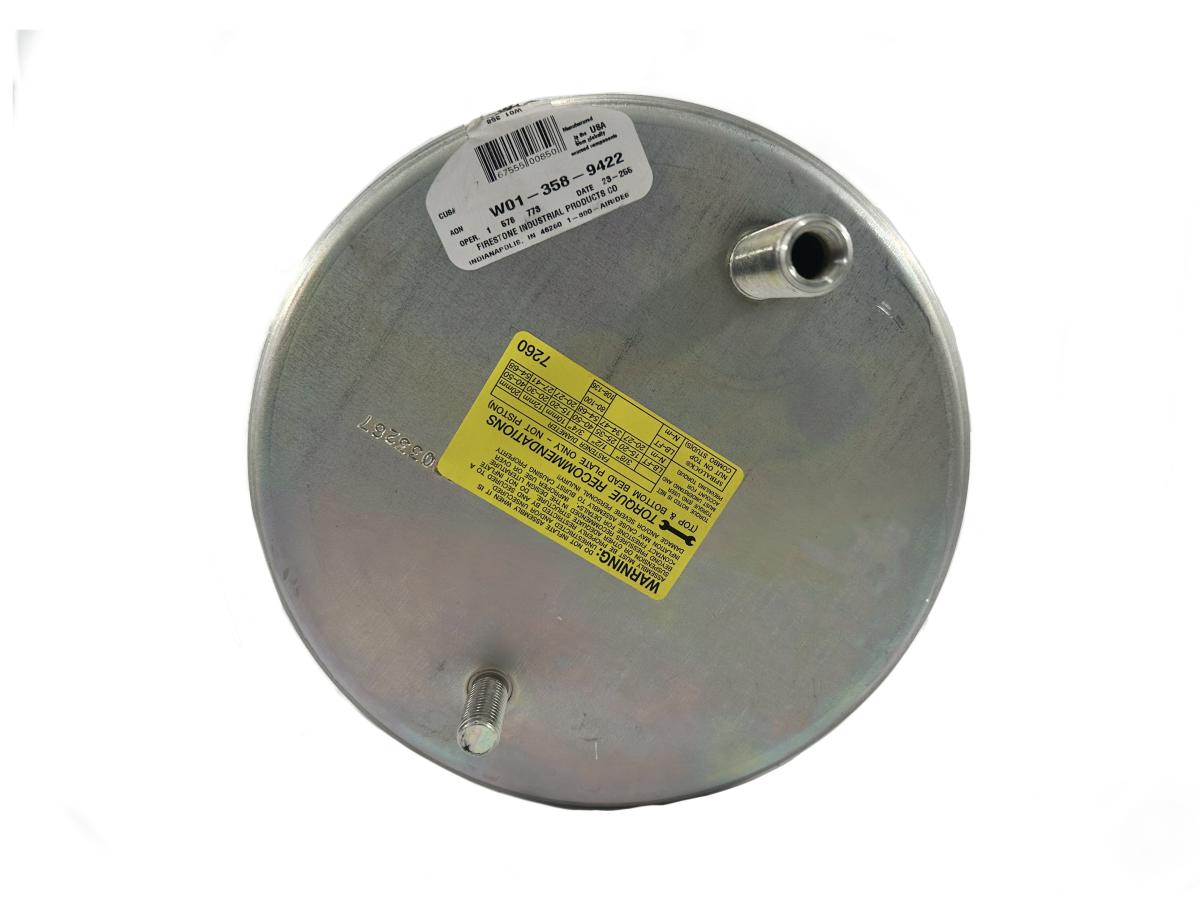

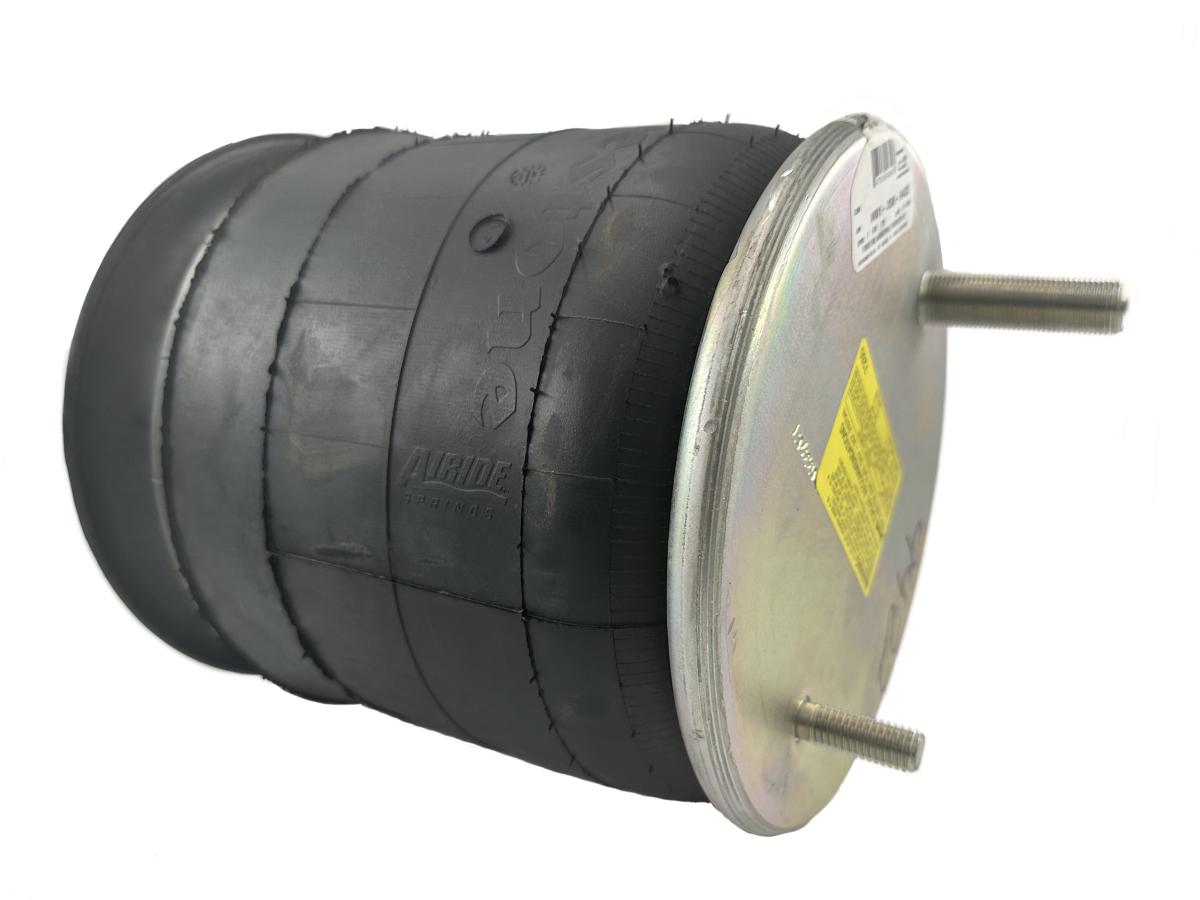

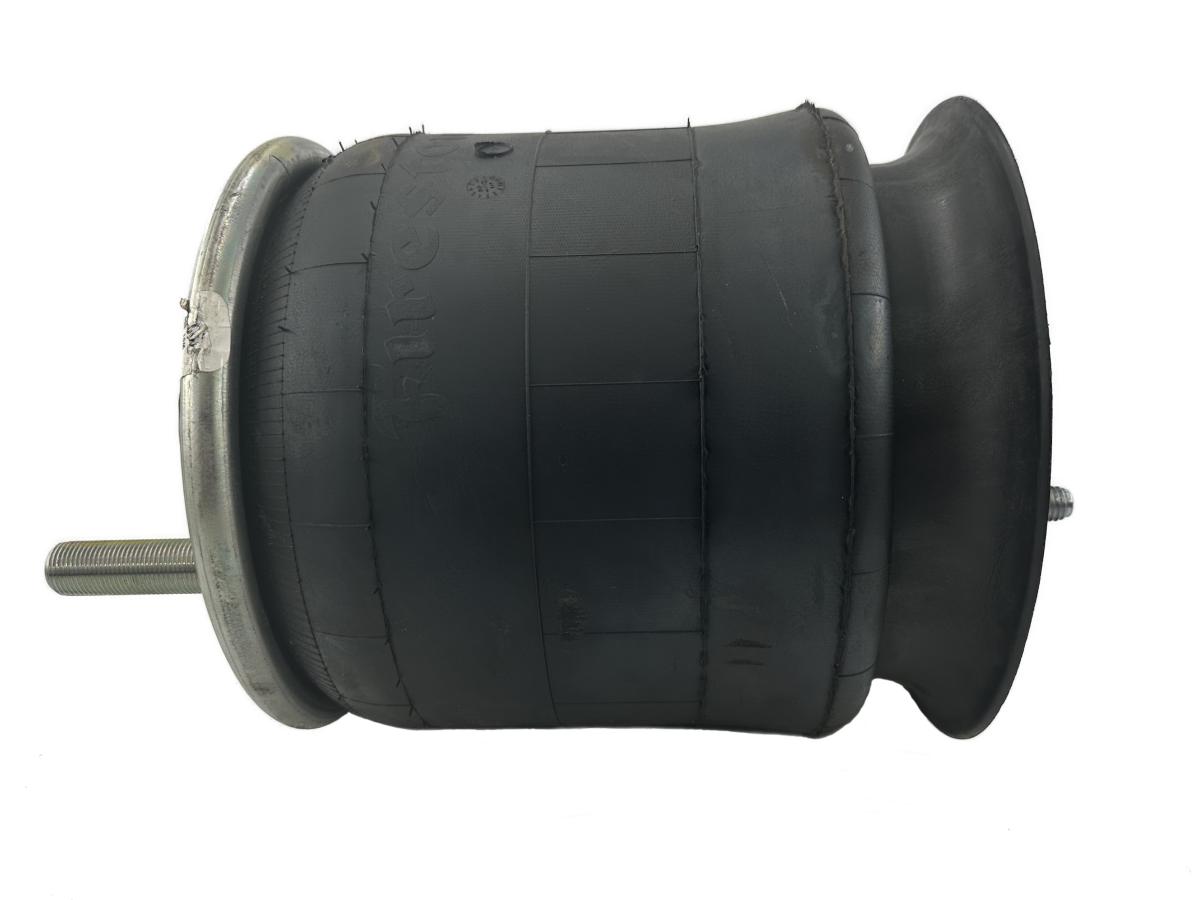

This Firestone air spring is designed for use with Kenworth AG100 Airglide trucks. It is a reliable and high-quality replacement part, ensuring optimal performance and durability. The OE/OEM part numbers for this air spring include TAS9422, 64255, HDV9422, W01-358-9422, 1R11-028, 10-99422, TR9422, 1R11028, and 566.ER9422. Made specifically for use with Kenworth trucks, this air spring is a crucial component for maintaining the proper pressure and ensuring smooth operation. It is easy to install and is a cost-effective solution for replacing worn or damaged air springs. Buy with confidence knowing that this Firestone air spring is a top-quality product that will keep your truck running smoothly for years to come.
| Automann Bellows# |
1DK20D |
| Firestone Bellows# |
1T15L-1.5, 1T15KW-1.5 |
| Goodyear Bellows# |
566-22-3-021 |
| Contitech Bellows# |
9 9-12 |
| Triangle Bellows# |
6368 |
| Load (Lbs) @80 PSI |
5100 |
| Load (Lbs) @100 PSI |
6400 |
| Natural Freq. (CPM) |
80 |
| Design Height (In) |
8 |
| Bottom Plate Type |
Plastic |
| Top Plate Hole/Stud Qty |
2 |

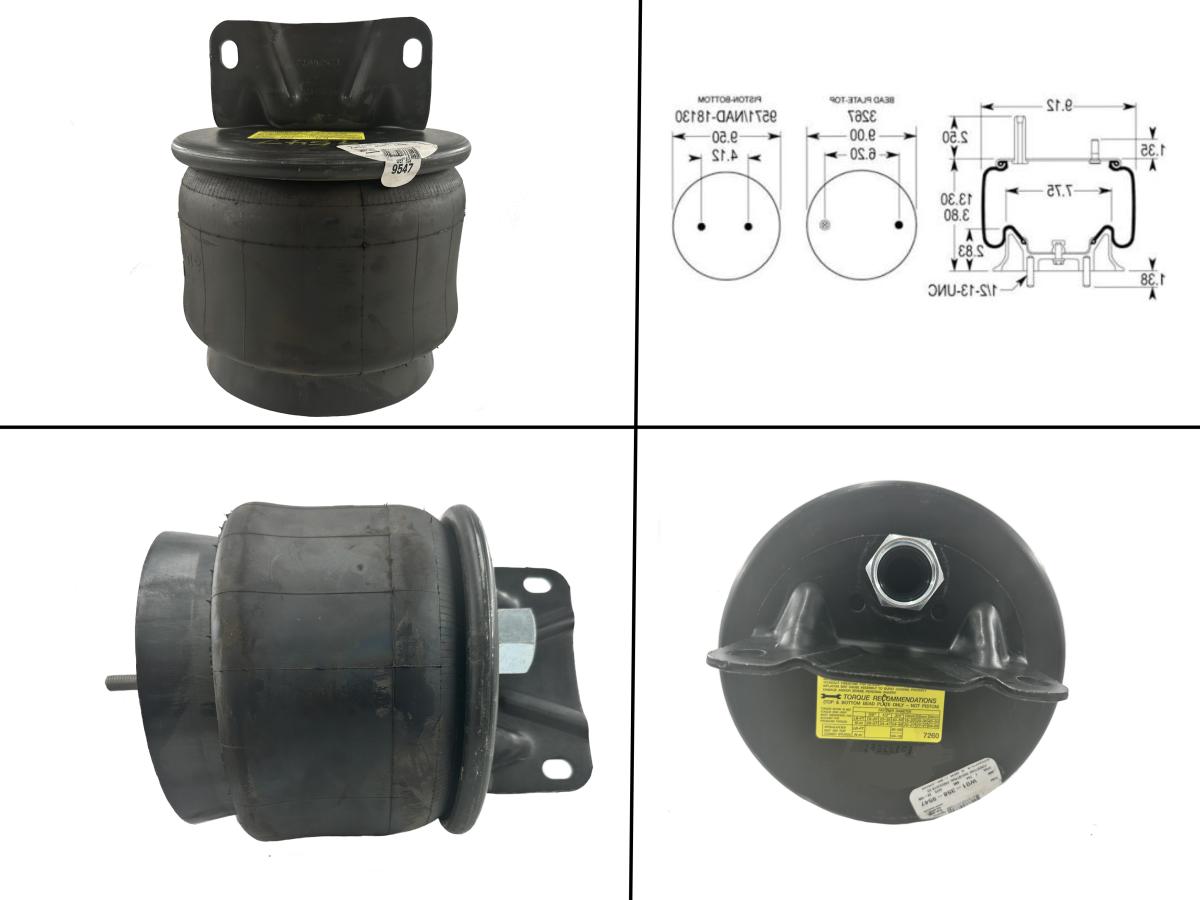

| Top Plate Dia. (A) |
9.00 |
| Top Plate C to C Dia. (B) |
6.20 |
| Bottom Plate Hole/Stud Qty |
2 |
| Bottom Plate Dia. (C) |
9.53 |
| Bottom Plate C to C Dia. (D) |
4.09" |
| Bottom Part # |
|
| Bumper |
No |
| Bracket |
N/A |
| Min. Height |
3.9 |
| Max. Height |
14.4 |
| Max. Dia. |
11.4 |
