Centramatic 800-820 Super Single Wheel Balancers | 22.5 & 24.5 Aluminum

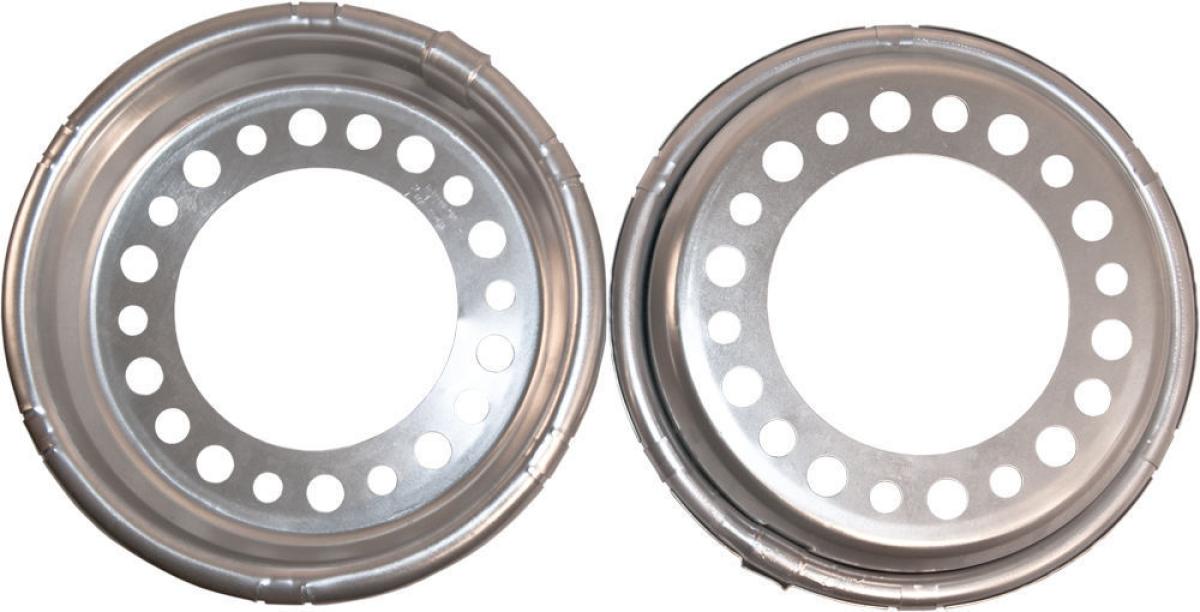

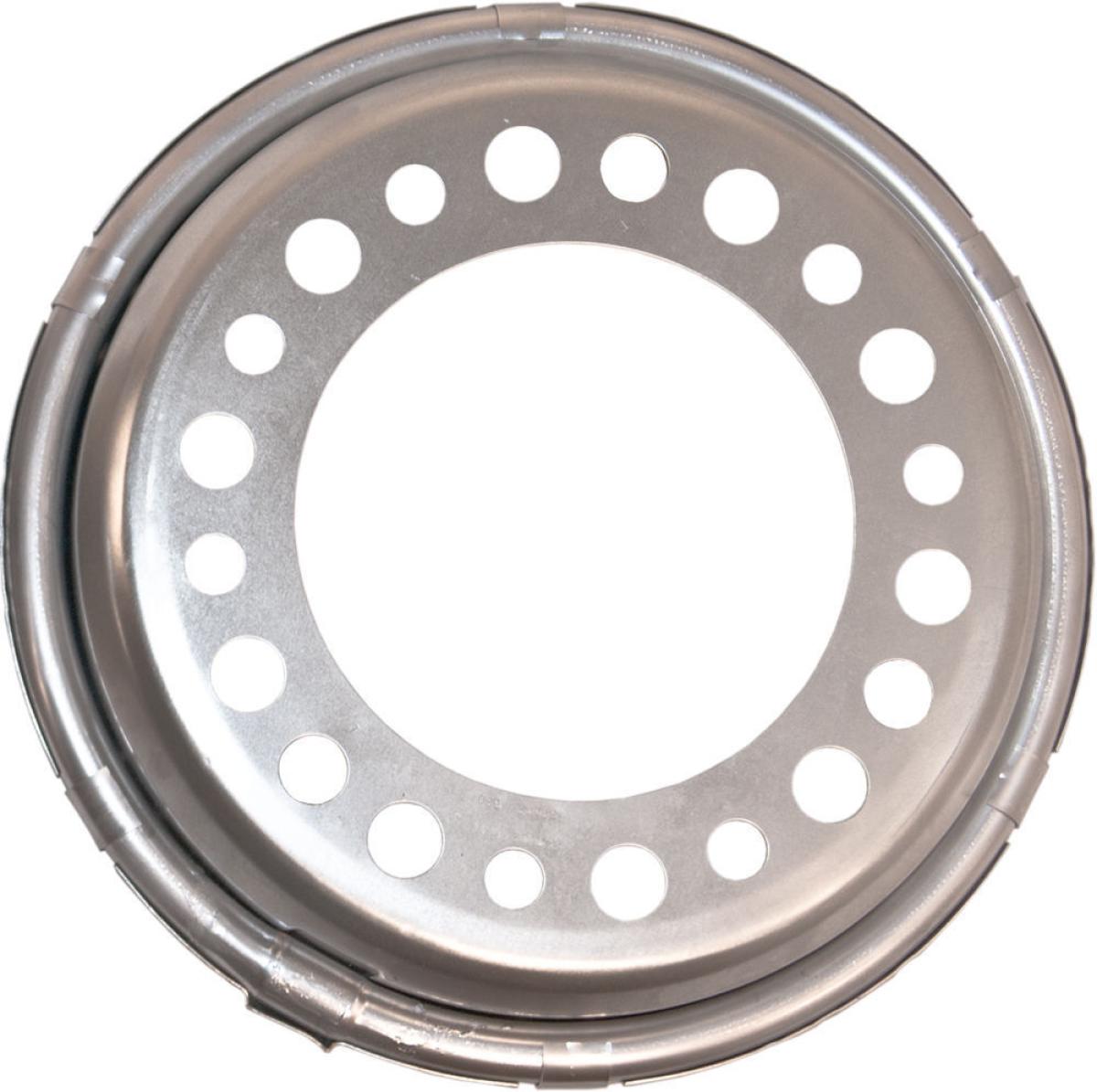

Centramatic Super Single Wheel Balancers (Pair) – P/N 800-820

Fits: 22.5" & 24.5" Wheels | Super Single Drives | 2011 & Older | Aluminum Rims

Protect your expensive Super Single tires with this pair of Centramatic continuous balancers. Specifically engineered for pre-2012 heavy-duty trucks, buses, and motorhomes, this model is the professional's choice for smoothing out the ride on wide-base singles.

Quick Specs

• Model #: 800-820

• Application: Super Single Drives (Wide Base)

• Wheel Material: Aluminum Rims ONLY (8.25" Width)

• Year Compatibility: 2011 & Older

• Brake Compatibility: 16.5" Drum or Disc

• Bolt Pattern: 10-Hole, 11.25" Bolt Circle

• Wheel Size: 22.5" – 24.5"

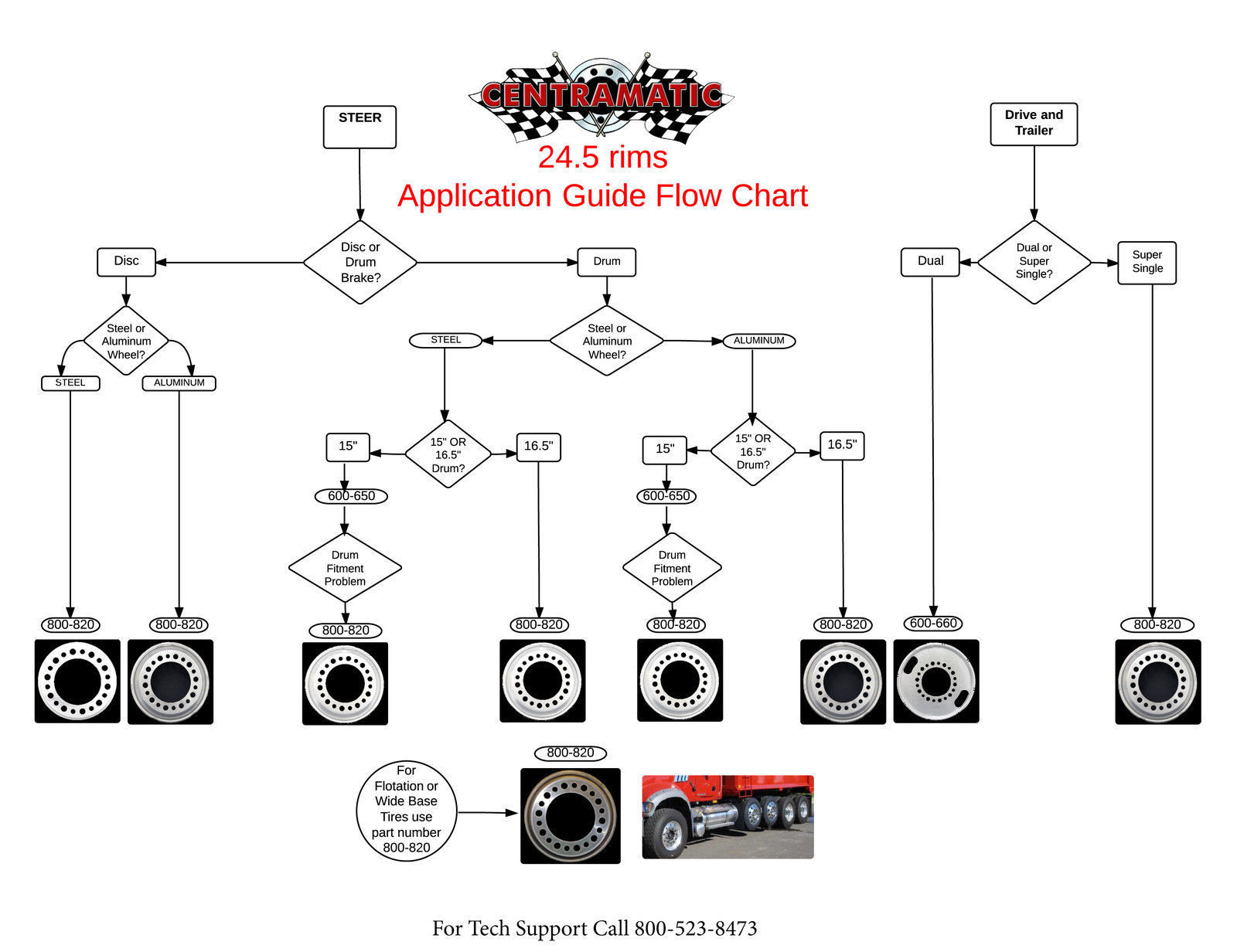

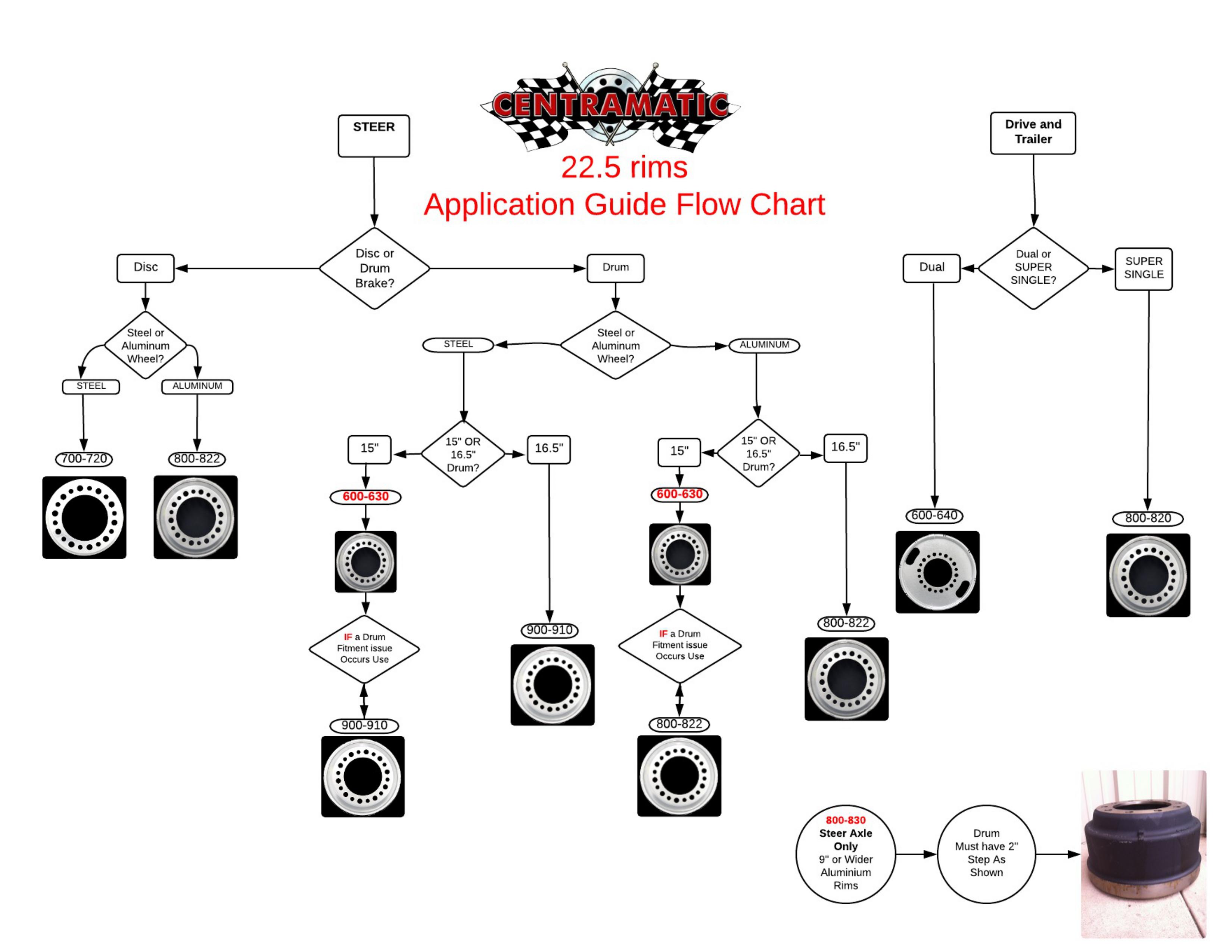

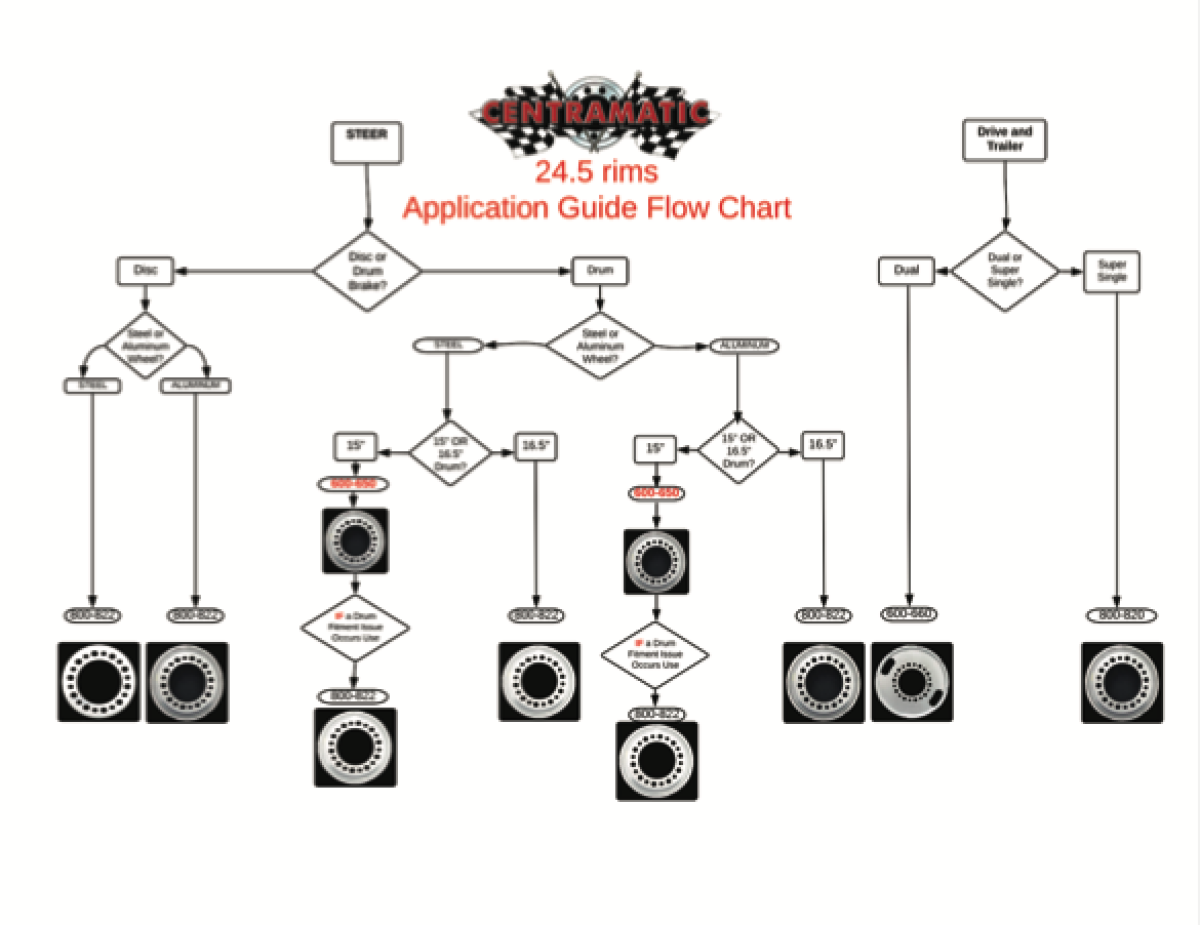

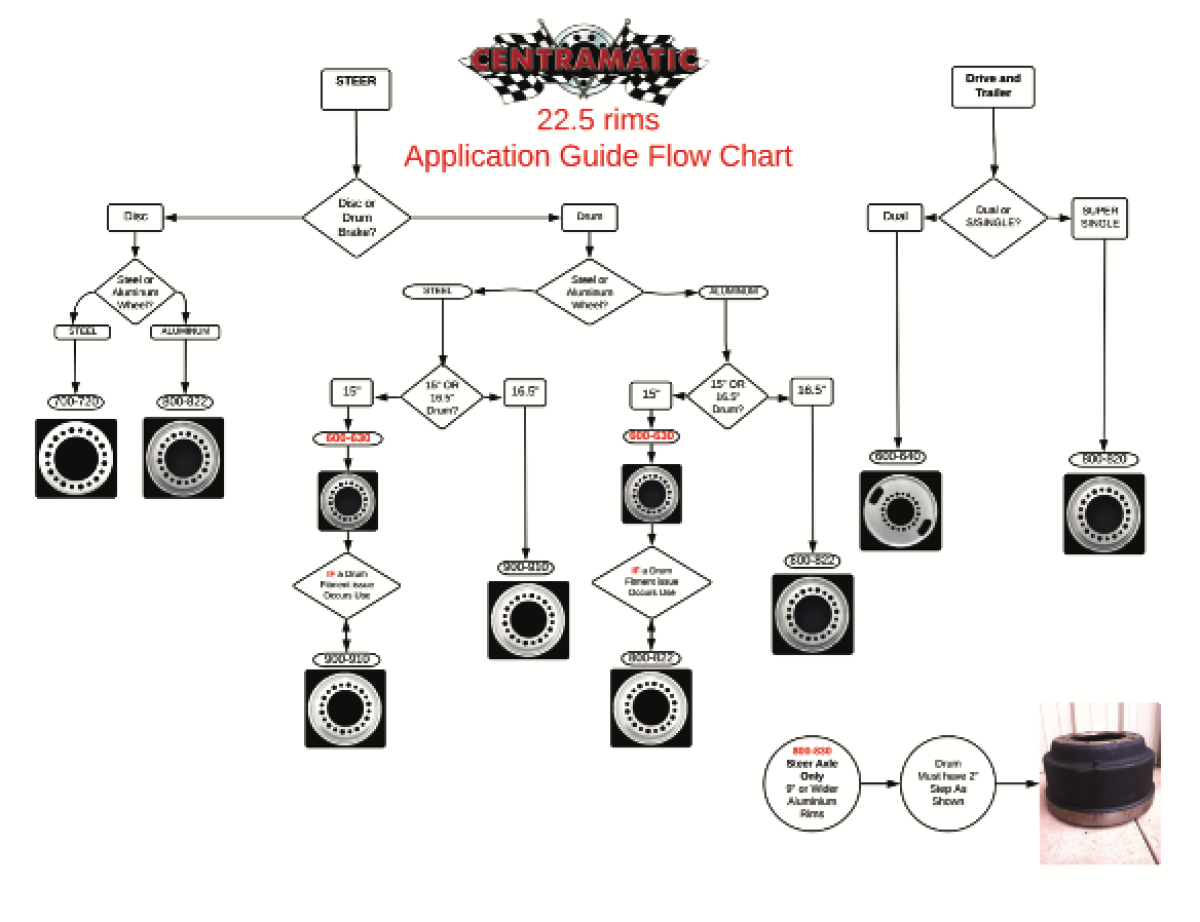

Note: Please reference the Application Guide in the third photo to ensure exact fitment for your specific vehicle setup.

Why Professionals Use Centramatic

• Massive Tire Savings: Extends the life of your Super Singles by 25%–50%.

• Eliminate Vibration: Provides a dramatically smoother ride and reduces driver fatigue.

• Continuous Balancing: Automatically adjusts to heavy spots, mud, or snow buildup while you drive.

• Reduce Heat: Lowers tire operating temperatures by 8%–10%, critical for preserving the casing on wide-base tires.

• Maintenance Free: No lead weights, no beads, and no pre-balancing required.

The Technology Inside

The 800-820 uses a dual-media system inside a permanently sealed ring:

1. Durametal: A hardened alloy 10x harder than lead shot that provides the primary balancing mass.

2. Synthetic Dampening Fluid: A proprietary oil that lubricates the media and absorbs road shock.

3. Automatic Equilibrium: Weights shift via centrifugal force at 20–22 mph, moving opposite the heavy points to balance the entire assembly (tire, wheel, hub, and drum).

Installation & Fitment

• Mounting: Simply remove the wheel, place the balancer on the studs (using the bolt holes as guides), and reinstall the wheel.

• Placement: These are designed for Steer or Drive axles depending on your specific Super Single configuration.

• Conditioning: These balancers can help "true out" slightly cupped tires, though they cannot replace rubber on severely damaged tires.

• Alignment: Centramatics balance the rotating mass but cannot correct mechanical alignment issues or worn front-end parts.

5-Year Manufacturer Warranty

Centramatics are built for the long haul—tested up to 1.4 million miles. Your purchase is covered by a 5-Year Limited Warranty from F&F Industries (Centramatic), covering defects in materials and workmanship.

(Note: Warranty requires registration. Returns for warranty must be prepaid and include a Return Authorization Number.)
