$221.00

Sku: 800-822

Category: Centramatic Wheel Balancers

Brand: Centramatic

Tags: 10 hole, 11.25", 22.5, 22.5"-24.5", 24.5, 800-822, axle, Centramatic, Steer, wheel, Wheel Balancer

Centramatic Steer Axle Wheel Balancers (Pair) – P/N 800-822

Fits: 22.5" & 24.5" Aluminum Wheels | 2012-Newer Models | 11.25" Bolt Circle

Eliminate steering wheel "shimmy" and maximize the life of your steer tires. This pair of Centramatic continuous balancers is specifically engineered for modern heavy-duty trucks (2012 and newer) running aluminum wheels.

Quick Specs

  • Model #: 800-822

  • Vehicle Type: Heavy Duty Trucks

  • Axle: Steer

  • Wheel Material: Aluminum (Specifically for 2012-Newer)

  • Wheel Size: Fits both 22.5" and 24.5"

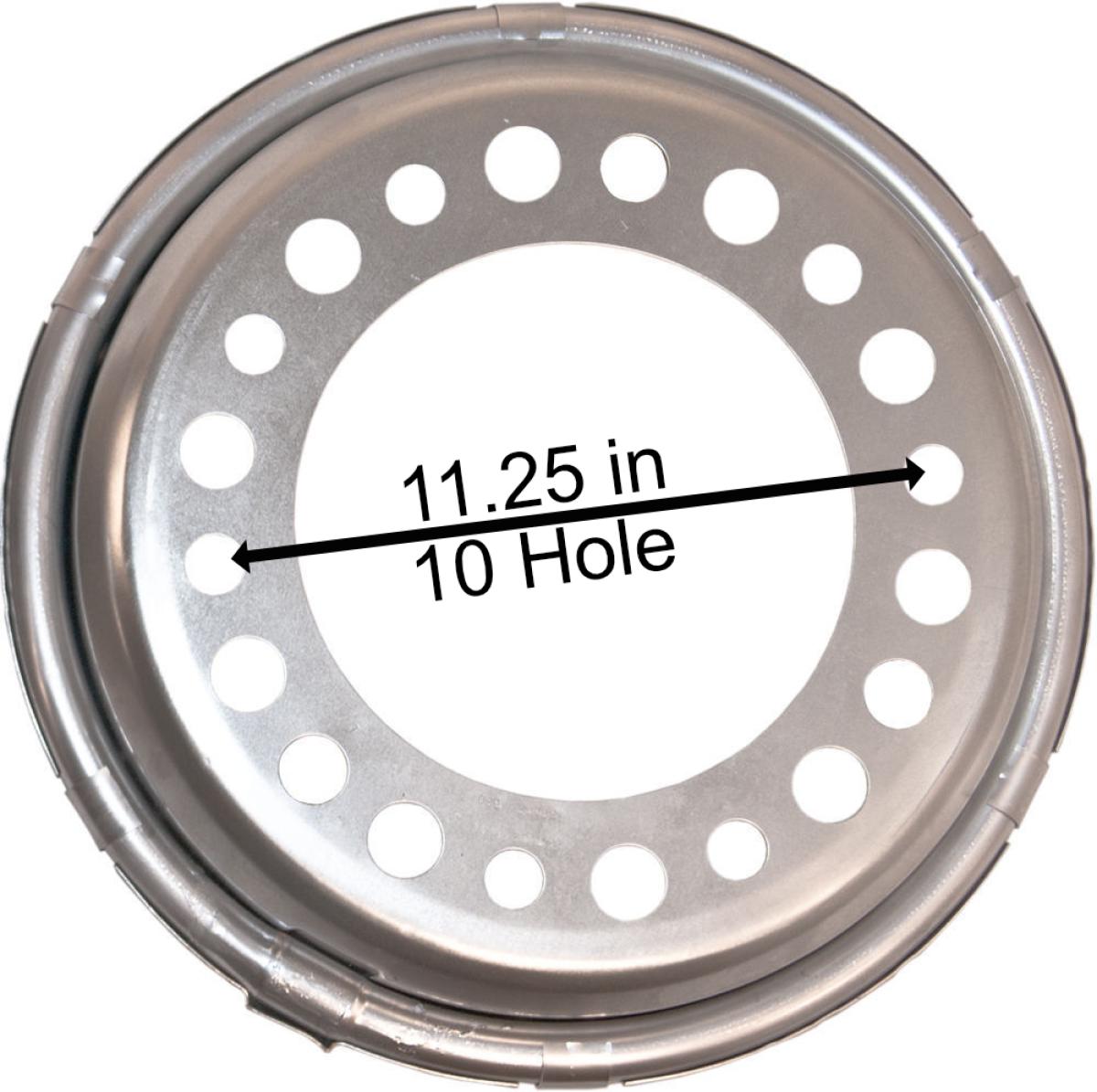

  • Bolt Pattern: 10-Hole, 11.25" Bolt Circle

Why Choose Centramatic?

  • Save on Tires: Increases tire life by 25% to 50%.

  • Constant Balance: Unlike lead weights, these move as you drive to compensate for mud, ice, or tire flat spots.

  • Driver Comfort: Dramatically reduces cab vibration and steering wheel shake.

  • Cooler Operation: Lowers tire operating temperatures by 8%–10%, reducing the risk of blowouts.

  • Maintenance Free: No pre-balancing required. Just install and drive.

The Technology: How It Works

The 800-822 uses a combination of Durametal (a hardened alloy 10x harder than lead) and proprietary synthetic dampening fluid.

  • As the wheel spins, centrifugal force moves these weights to the exact point of imbalance.

  • It balances the entire assembly: the tire, the wheel, the hub, and even the brake drum.

  • Activation begins at 20-22 mph, ensuring your ride is smooth long before you reach highway speeds.

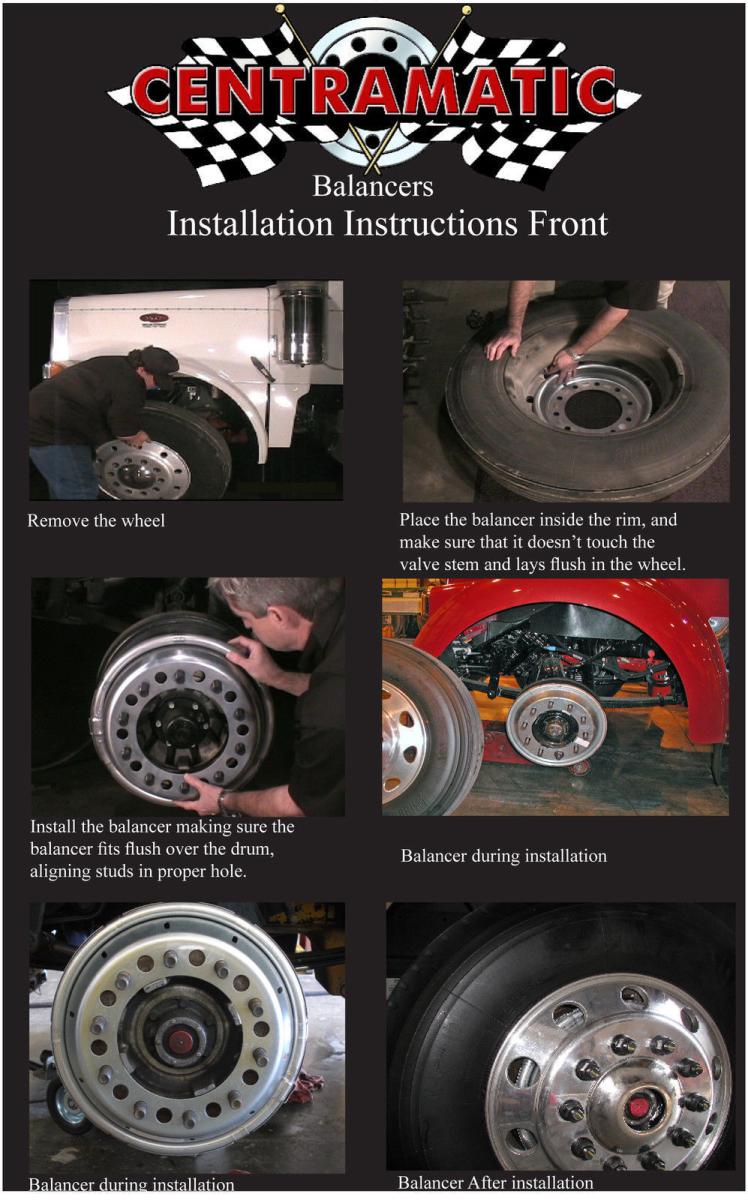

Installation & Fitment Tips

  • Simple Install: These mount directly between the hub and the wheel. Use your existing bolt holes as guides.

  • Compatibility Check: Ensure your truck uses an 11.25" bolt circle and 10-hole pattern. This model is optimized for the offsets found on 2012 and newer aluminum wheels.

  • Check Your Beads: If you still experience vibration, check for "out of round" mounting or improperly seated beads. Centramatics balance the weight but cannot fix a tire that isn't seated straight on the rim.

Manufacturer Warranty

These balancers are built to last—some units have surpassed 1.4 million miles in the field. Your purchase is backed by a 5-Year Limited Manufacturer Warranty from F&F Industries (Centramatic), covering defects in materials and workmanship.

Note: Warranty requires registration and does not cover damage from misuse, accidents, or improper installation.
