F350 F450 Pick-up Chassis (2005 & Newer) Wheel Balancers

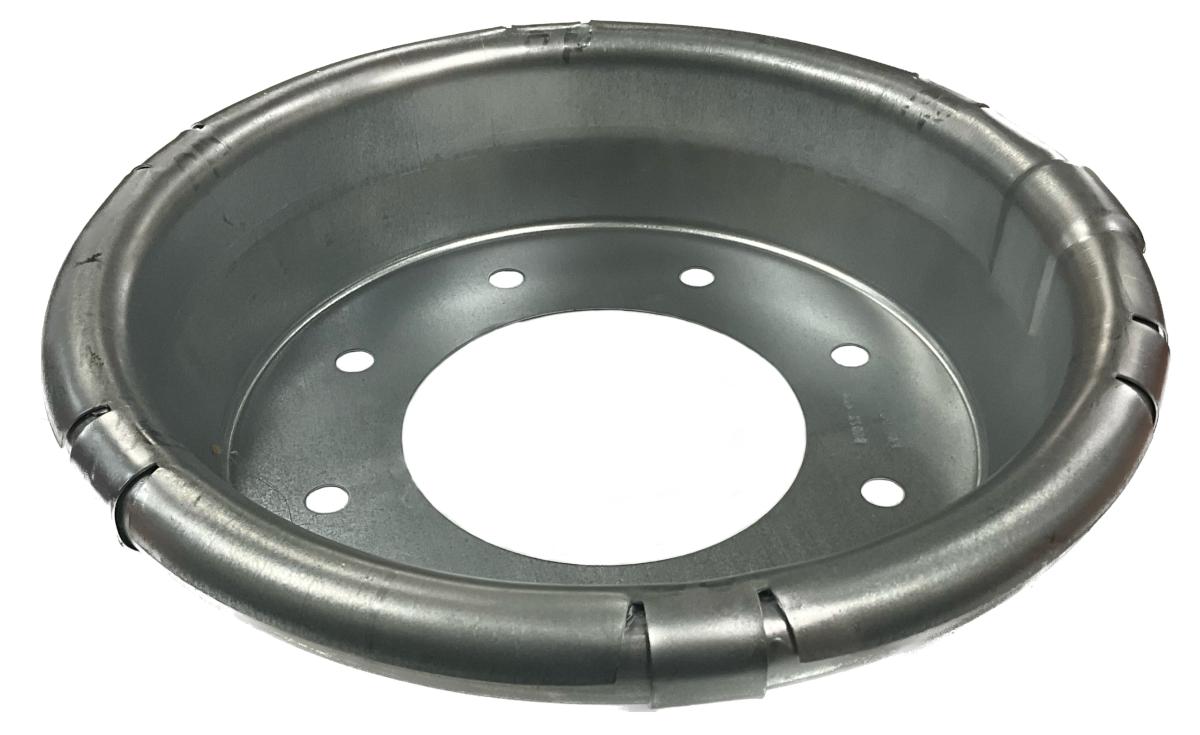

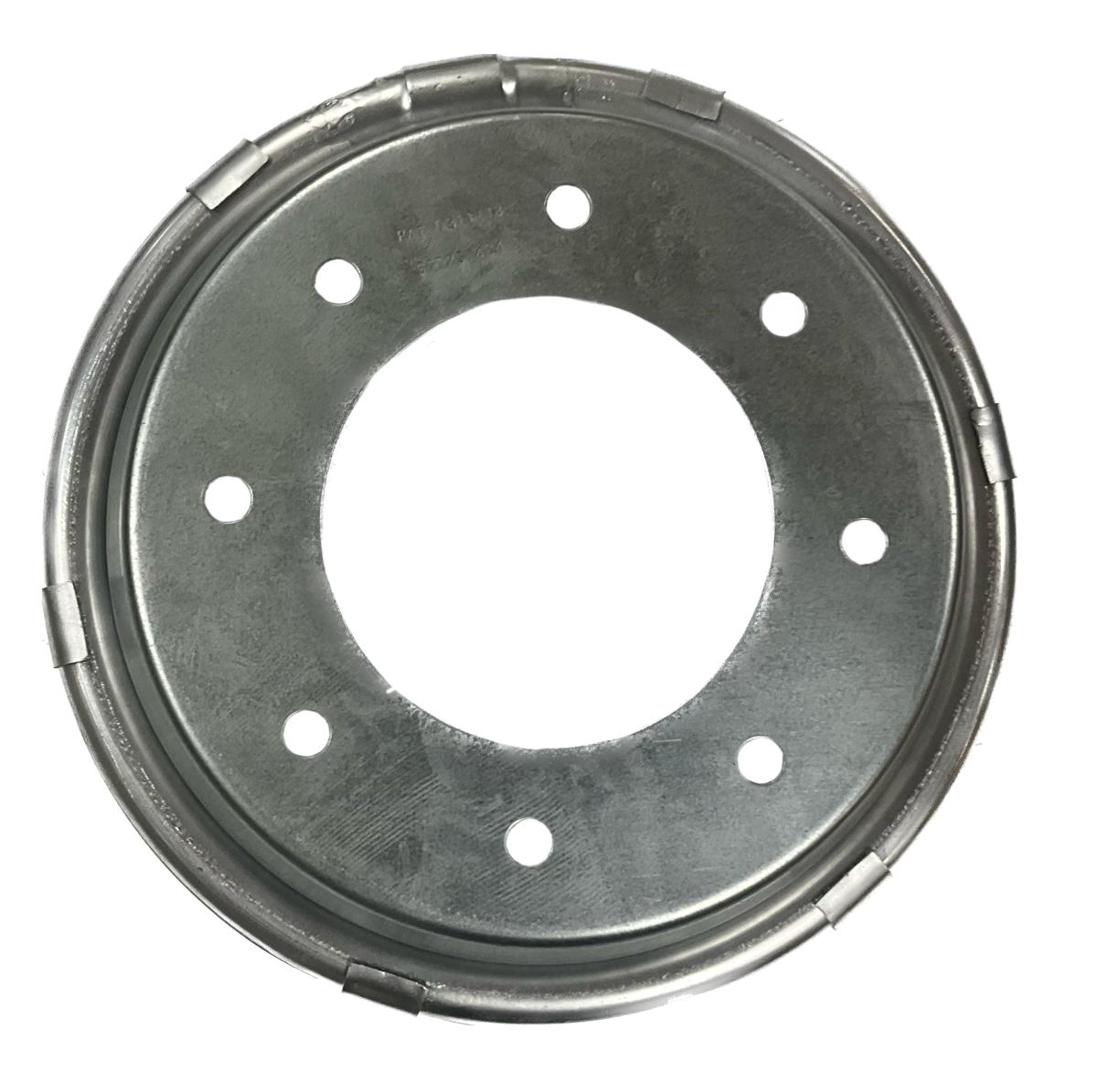

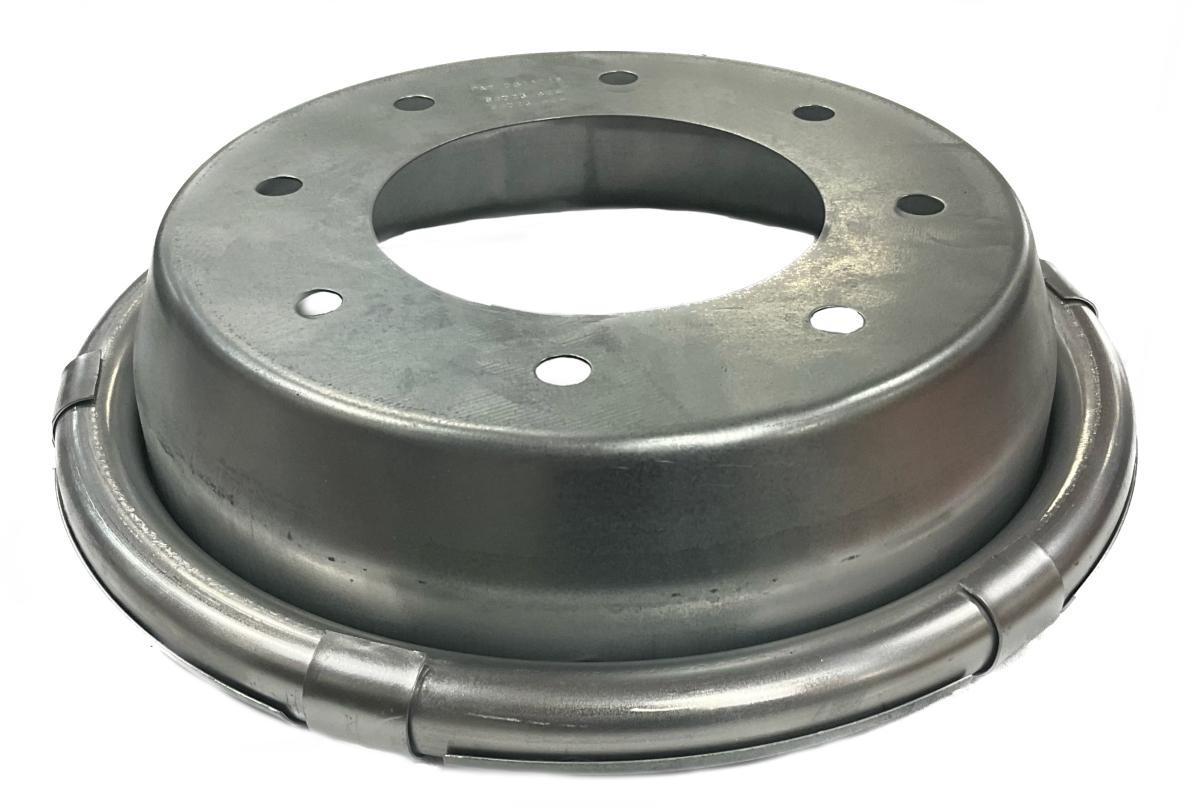

Centramatic Steer Axle Wheel Balancers (Pair) – P/N 400-424

Fits: 17"–19.5" Wheels | 2005 & Newer Ford F-350/F-450 | 8-Hole 200mm BC

Eliminate steering wheel "shimmy" and front-end vibration with the Centramatic 400-424. These balancers are precision-designed for the specific 200mm (7 5/8") bolt circle found on newer heavy-duty Ford trucks, providing a permanent solution that stabilizes your steering for a smoother, safer ride.

Technical Specifications

• Model #: 400-424

• Vehicle Type: Light Duty Trucks (Ford F-350/F-450), Bus, Motorhome

• Axle Compatibility: Steer Axle (Front)

• Wheel Size: 17 in. to 19.5 in.

• Bolt Pattern: 8-Hole

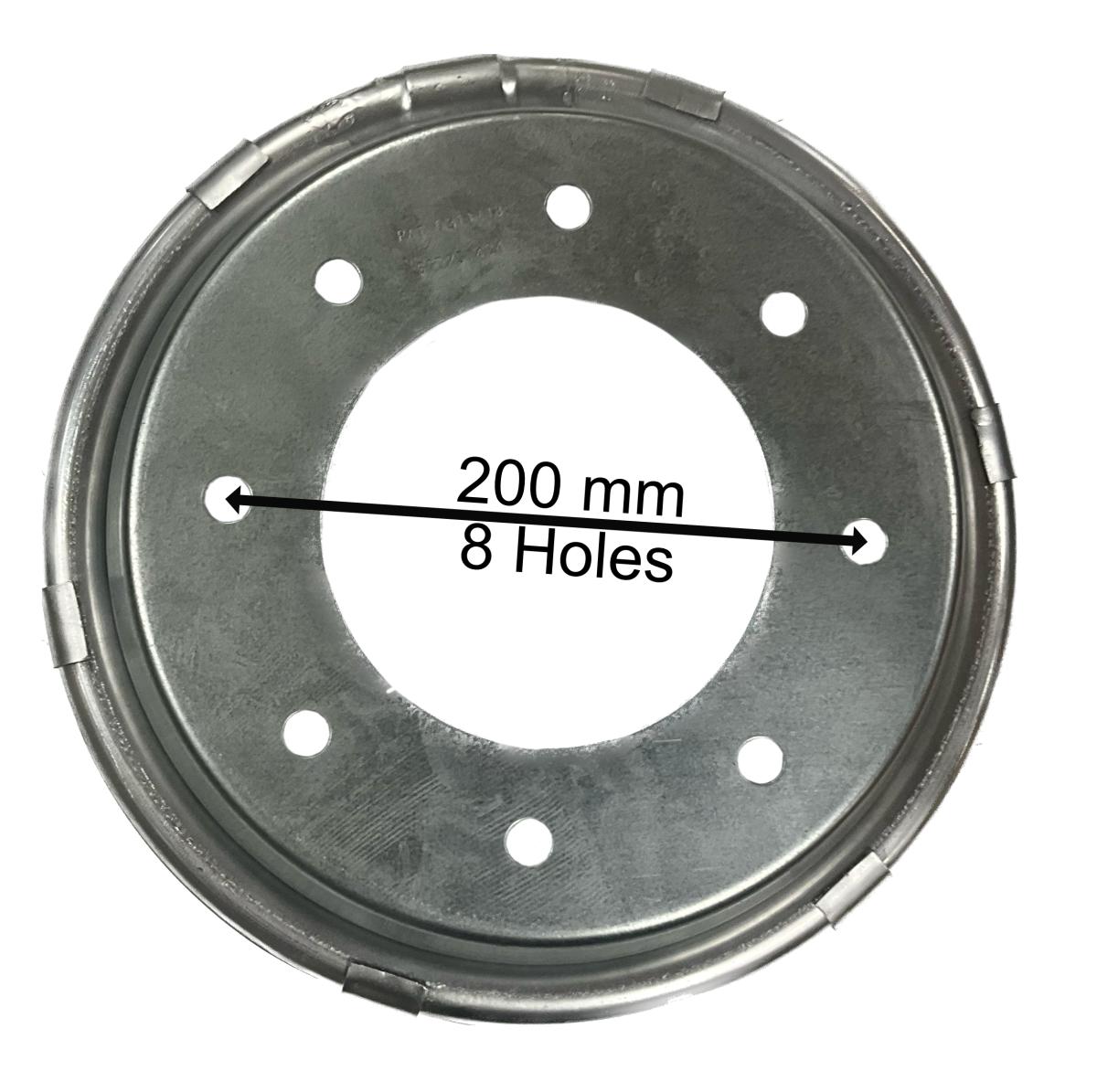

• Bolt Circle: Dual Fitment — 200mm & 7 5/8 in.

• Quantity: Set of 2

• ⚠️ Fitment Note: Due to variances between vehicle models, we may not be able to fit all applications. Please verify clearance before installation.

The "On-Board" Advantage

Centramatic's patented technology features a permanently sealed ring filled with hardened durametal alloy and proprietary synthetic fluid. As you drive, centrifugal force automatically shifts this media to the exact point needed to bring the assembly into perfect equilibrium.

• Smoother Highway Ride: Virtually eliminates steering wheel shake and cab vibration at highway speeds, significantly reducing driver fatigue.

• Maximum Tire Life: Proven to increase tire longevity by 25%–50%—essential for the expensive commercial-grade tires used on Super Duty trucks.

• Lower Operating Temps: Keeps tires 8%–10% cooler, preserving the tire casing and reducing rolling resistance.

• Self-Adjusting: Automatically compensates for mud, snow, or rocks stuck in your tread, and adjusts as the tire wears over time.

Installation & Build Quality

• Maintenance-Free: A sealed, self-contained system with zero upkeep required—just install and drive.

• Easy Setup: No pre-balancing required. These mount directly between the hub and the wheel using your existing lugs.

• Speed Activated: The balancing media shifts into the correct position at ~20–22 mph, providing stability long before you reach highway speeds.

• Made in the USA: Built in Texas and backed by a 5-Year / Unlimited Mileage Warranty.
