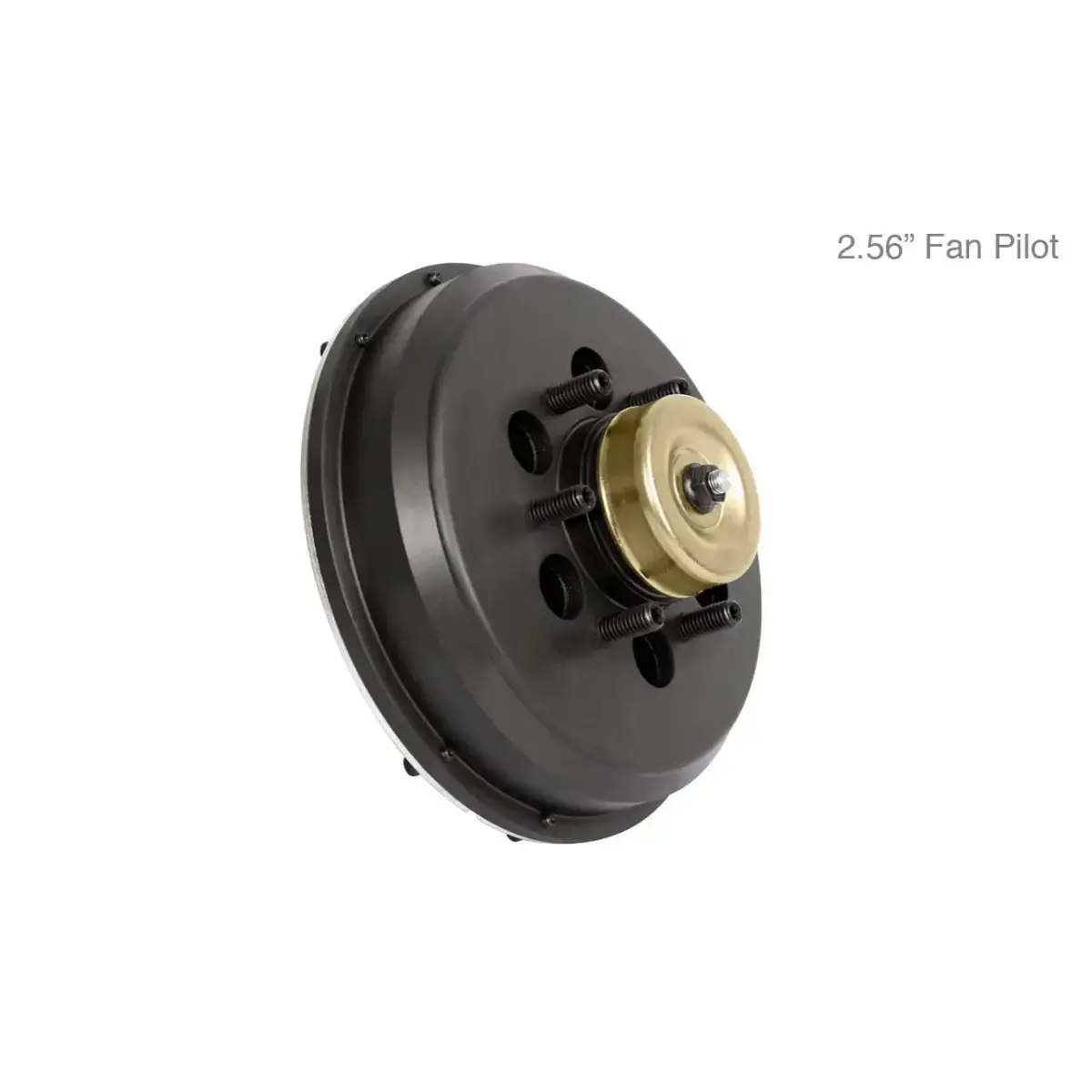

Kit Masters 8901N Kysor-Style Fan Clutch

Kit Masters 8901N rear-air Kysor-style fan clutch for compatible K22, K26, K30 and K32 applications. Dimensions: 2.56-inch fan pilot, 3.5-inch fan bolt circle and 3.5-inch drive bolt circle. Features dual seals and AutoLock protection. Kit Masters requires replacement of pulley bearings during installation to maintain warranty coverage. Verify the air connection and mounting dimensions before ordering.

Cross-reference numbers

• 10900980001
• 1090-09800-01
• 10900950001
• 1090-09500-01
• 85111808
• 3915592
• 3415013
• 2602141c91
• 2514343C91
• 2509380c91
• 8801x
• 10900960001B
• 1090-09600-01B
• 10900965001B
• 1090-09650-01B
• 10900965001
• 1090-09650-01
• 10900960001
• 1090-09600-01
• 10900850001
• 1090-08500-01
• 9908500
• 85134489
• 85114233
• 85108716
• 65140701
• 6514-070-1
• 2501022c91
• KYS10900950001
• KYS1090-09500-01
• 10900950001B
• 1090-09500-01B
• 9908501
• KYS10900960001
• KYS1090-09600-01
• 9908504
• 9908503
• f8hz8a627ua
• f8hz-8a627-ua
• 8901N24KM
• 8901N-24KM
• KMN208901N
• KM N20 8901N
• ABPN208901N
• ABP N20 8901N
• FLT8901N
• 10900980001B
• 1090-09800-01B
• 10900965001RF
• 1090-09650-01RF
• 8901NKM
• 8801NKM
• FC9908504
• KMI8901N
• 3443-8901N
• 010033269

Source: Kit Masters replacement list.
