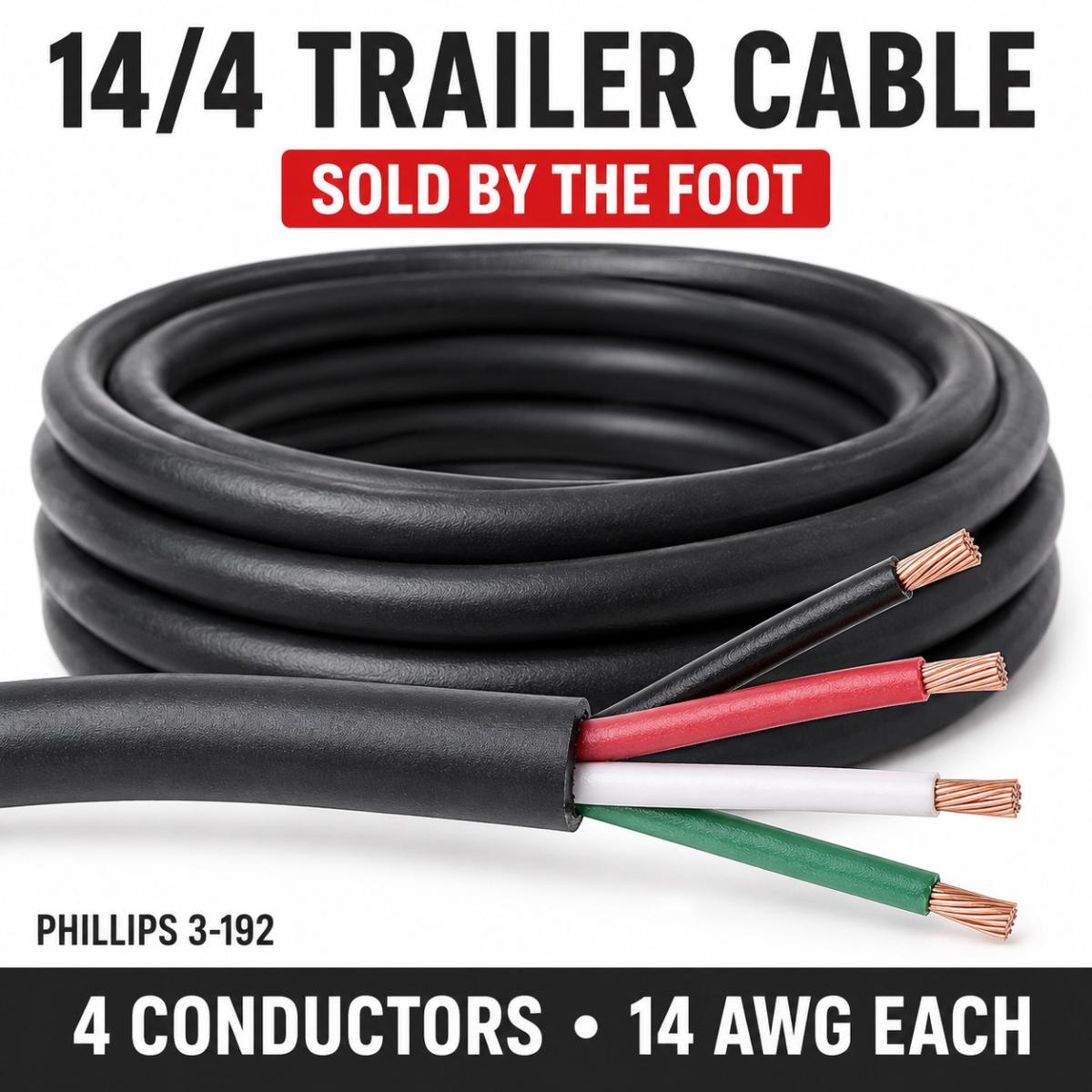

Phillips 3-192 14/4 Trailer Cable – 14 Gauge 4-Conductor Wire Sold by the Foot

The Phillips 3-192 14/4 Trailer Cable provides a clean, protected solution for trailer lighting and other compatible low-voltage wiring applications.

Inside the flexible black PVC outer jacket are four separate 14-gauge stranded copper conductors. Each conductor is color-coded to make circuit identification easier during installation, troubleshooting and repairs.

The round jacketed construction keeps the conductors together while helping protect them from abrasion and exposure encountered in general mobile-equipment applications.

SOLD BY THE FOOT

The displayed price is for one foot of cable. Select the total quantity of feet you need, and your order will be shipped as one continuous piece.

ORDERING EXAMPLES

Quantity 1 = One 1-foot length
Quantity 2 = One continuous 2-foot length
Quantity 10 = One continuous 10-foot length
Quantity 25 = One continuous 25-foot length

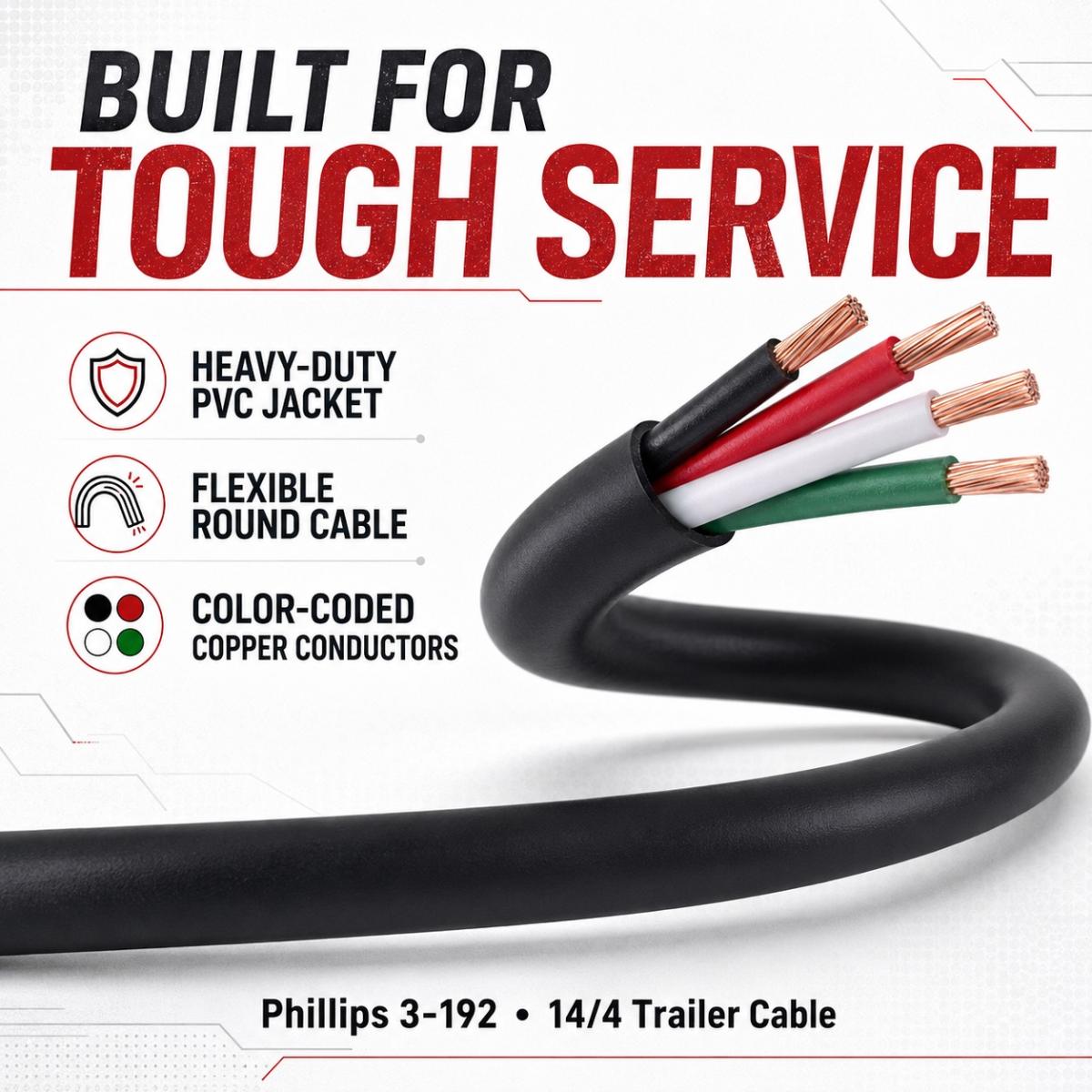

FEATURES AND BENEFITS

• Four individual 14-gauge conductors
• Stranded copper construction
• Heavy-duty black PVC outer jacket
• Flexible round cable design
• Color-coded conductors for easier identification
• Designed for systems operating at 60 volts or less
• Conductors meet SAE J1128 specifications
• RoHS compliant
• Cut to your requested length
• Shipped as one continuous piece

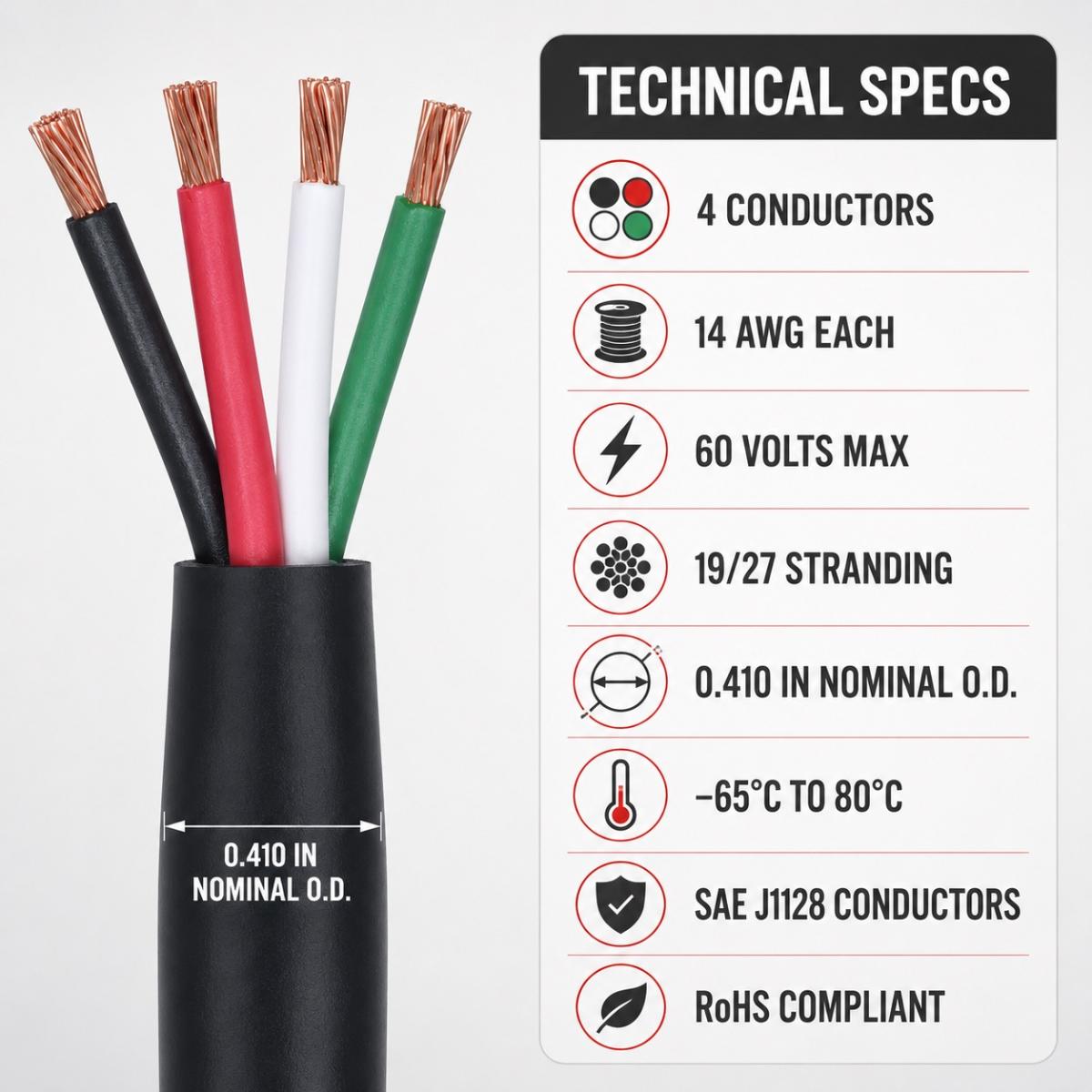

TECHNICAL SPECIFICATIONS

Brand: Phillips Industries
Manufacturer Part Number: 3-192
Product Type: Jacketed trailer cable
Cable Size: 14/4
Number of Conductors: 4
Wire Gauge: 14 AWG each
Conductor Material: Stranded copper
Conductor Colors: Black, red, white and green
Stranding: 19/27
Outer Jacket: Black PVC
Cable Shape: Round
Nominal Outside Diameter: 0.410 inch
Maximum Voltage: 60V
Temperature Rating: -65°C to 80°C (-85°F to 176°F)
Compliance: SAE J1128 conductors and RoHS compliant
Unit of Sale: One foot

RECOMMENDED APPLICATIONS

• Truck and trailer lighting
• General trailer wiring and rewiring
• Agricultural tractors and equipment
• Buses and commercial vehicles
• Light-duty boats and boat trailers
• Compatible low-voltage mobile equipment
• General-service electrical wiring

WHAT YOU RECEIVE

One continuous length of Phillips 3-192 14/4 trailer cable equal to the quantity purchased.

This product includes bulk cable only. Electrical plugs, connectors, terminals and installation hardware are not included.

Please verify the required wire gauge, conductor count, voltage and total length before ordering.
