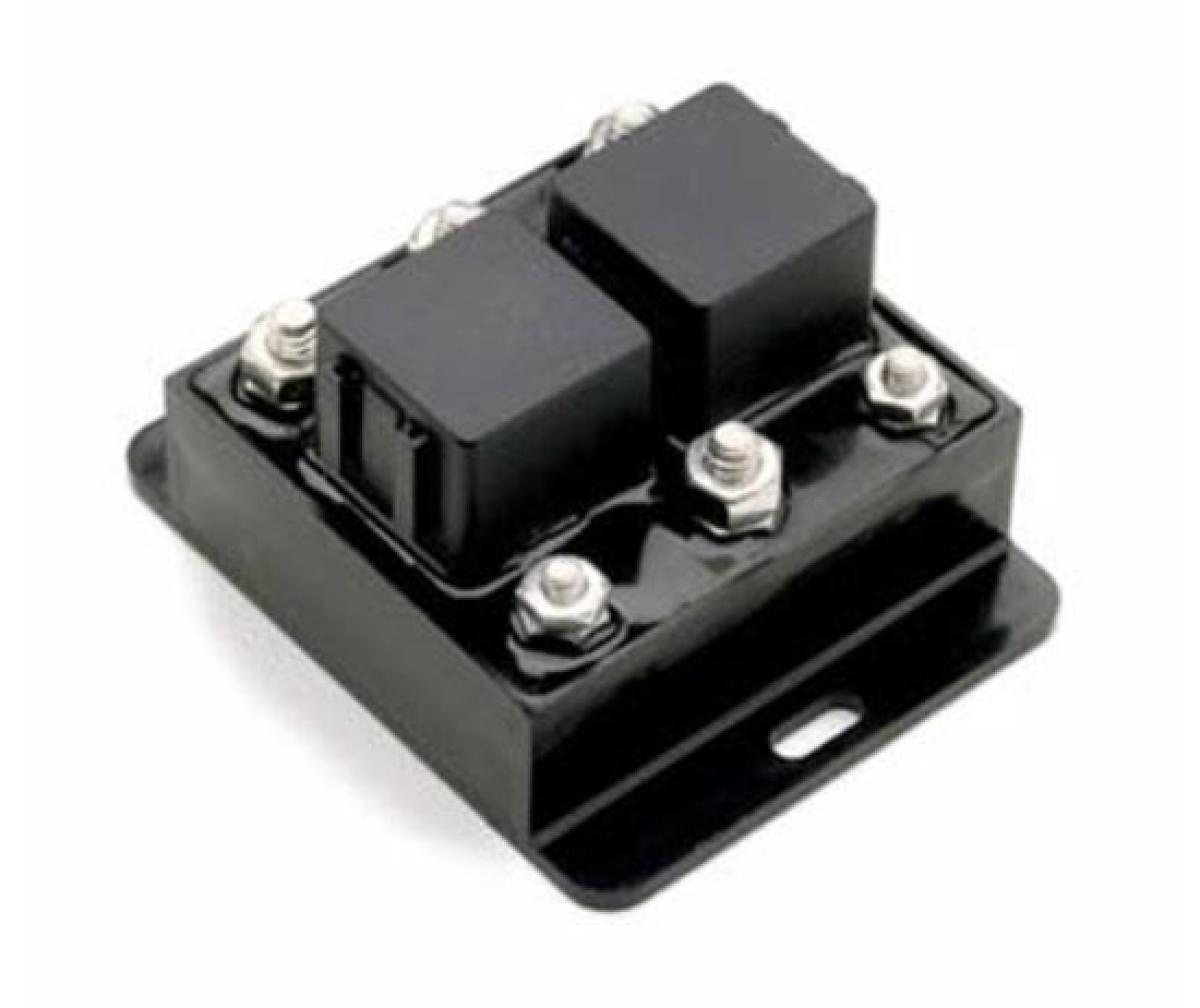

Reversing module carries a heavy load and is suitable for intermittent or continuous operation at 12V DC. Ideal for tarp or lift applications as well as for hoists, hatches, winches/windlasses, snowplows, intake/exhaust fans, vehicle outriggers and many other direction reversing applications.
- Twin Motor Forward & Reverse Relay Module
- Dynamic braking when switch turned OFF
- Heavy load current, dielectric strength 500V RMS
- Studs are securely protected in epoxy
- Low profile module (less than 50mm high)
- Fully sealed for harsh environment,
- Rust and moisture resistant plastic housing,
- Tin plated brass studs, vibration resistance: 10-55Hz
- For intermittent operation use switch:
Mom On/Off/Mom On
- For continuous use switch: ON-OFF-ON
- Ideal for tarp, hoist, winch, fans and other
motor reversing applications
- Automatically reverses direction of motors
