Cole Hersee M750 Battery Selector Switch
Cole Hersee M750 Battery Selector Switch
Cole Hersee M750 Battery Selector Switch
Cole Hersee M750 Battery Selector Switch
Cole Hersee M750 Battery Selector Switch
Cole Hersee M750 Battery Selector Switch

Cole Hersee M750 Battery Selector Switch

$106.00

Sku: m750bp

Category: Electrical

Brand: Cole Hersee

Tags: battery disconnect switch, battery master disconnect switch, battery selector switch, BATTERY SWITCH, cole hersee, cole hersee m750, m750, master disconnect switch, switch

BATTERY SELECTOR / MASTER DISCONNECT SWITCHES For any vehicle that needs to use two batteries where one battery is used for starting the engine, while the other is used to power auxiliary loads. This is a common situation in trucks, boats, RVs, police and rescue vehicles, and in ambulances and fire equipment.
A selector switch allows use of the first battery, the second bat- tery, or both batteries simultaneously. This provides back-up starting power in an emergency. Either or both batteries can be selected for energizing.

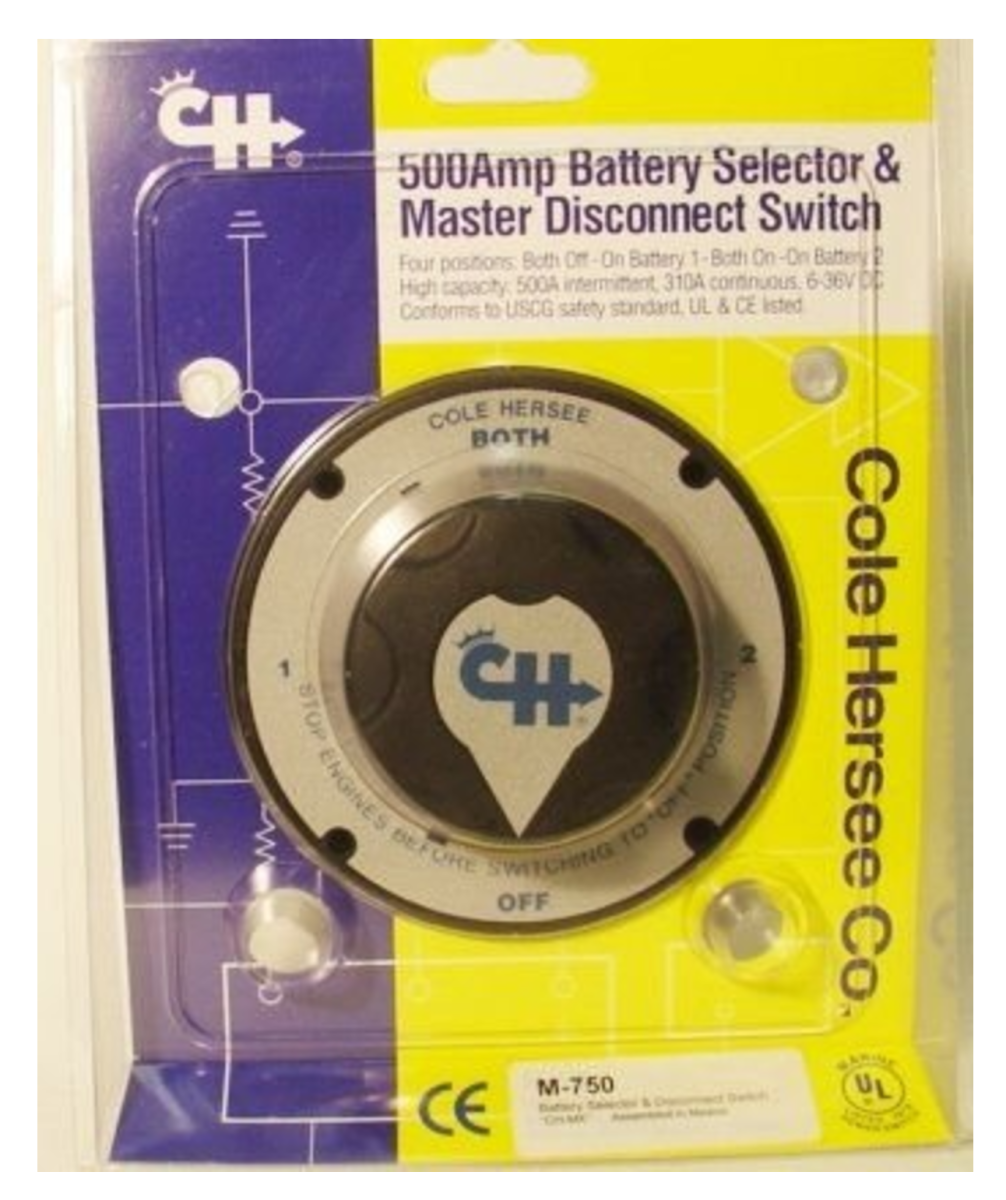

These switches combine the functions of Battery Selector and Master Disconnect Switches to give four battery power options: ? ? ? ? ? ? ? ? ? ? ? ? Power cut off at the source, ?Power On, Battery 1, Power On, Battery 2 and Power On, both Batteries.
Battery selector switches provide a positive battery disconnect, which has many advantages:
  • It gives a reliable shutdown of power during maintenance.
  • The version with the key protects against theft of the vehicle, when unattended.
  • It helps protect against electrical fires, when the vehicle is not in use, and minimizes battery drain.
Electrical Ratings Labeled UL 707B. Rating: 500A intermittent, 310A continuous, 6-36V DC Electrical ratings on UL labels are conservative. Use with either alternators or generators. Make before break design permits operation through the three On positions with the engines running. Engines should always be shut down before turning to Off. Wiring instructions are included.

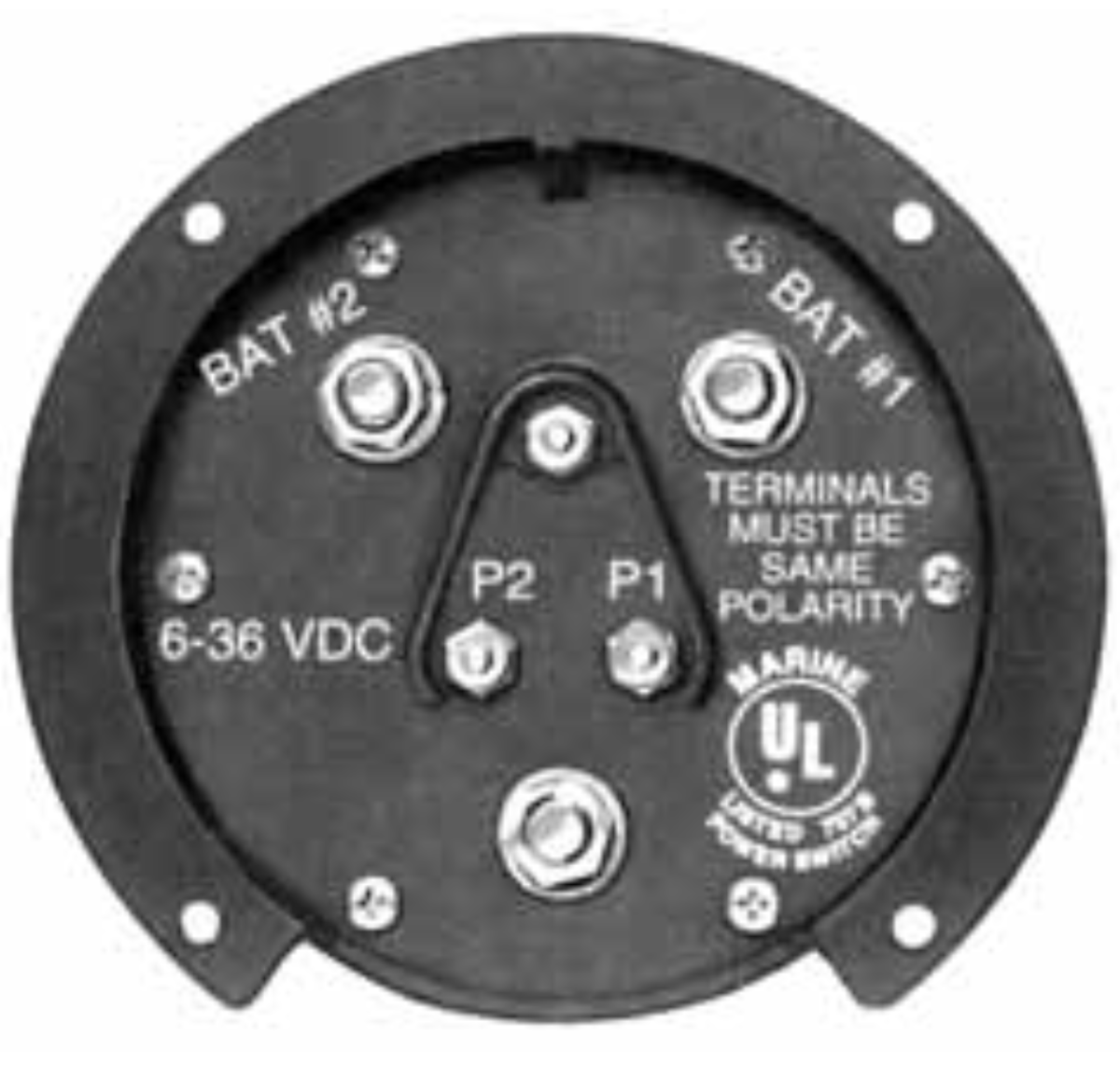

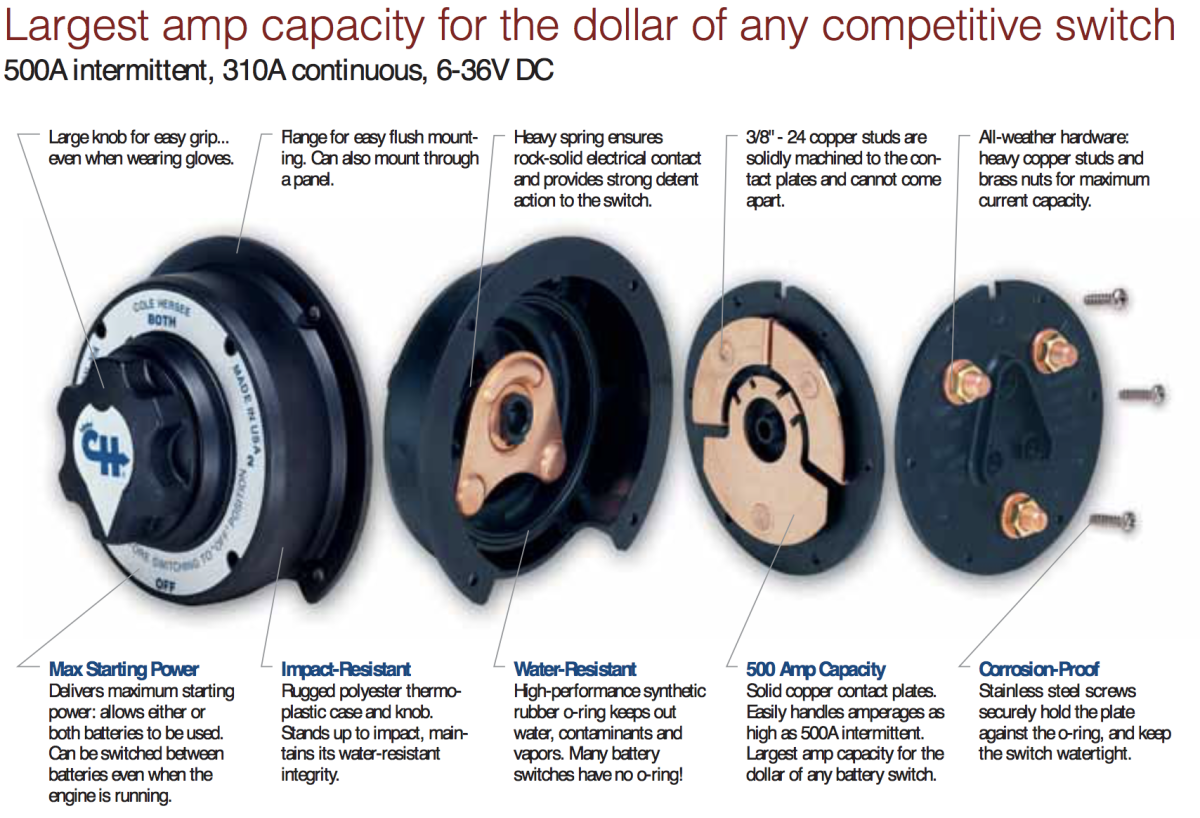

Heavy-Duty Construction Vaporproof, weather-, dust- and corrosion-resistant. Durable, fracture-resistant high temperature plastic case, knob and insu- lator. Switches conform to USCG section 183.410 for ignition protection. Resistant to impact, and temperature extremes. Heavy duty copper stud terminals, with brass hexnuts. Can be surface mounted, or installed through a 3 5/16" diameter hole in the panel (use label No. 563. See Section F4.) Dimensions: Flange: 6" (152.4mm) diameter, overall height 2 5/8" (66.7mm). Terminals: 3 copper studs, 3/8" (9.5mm) diameter.
