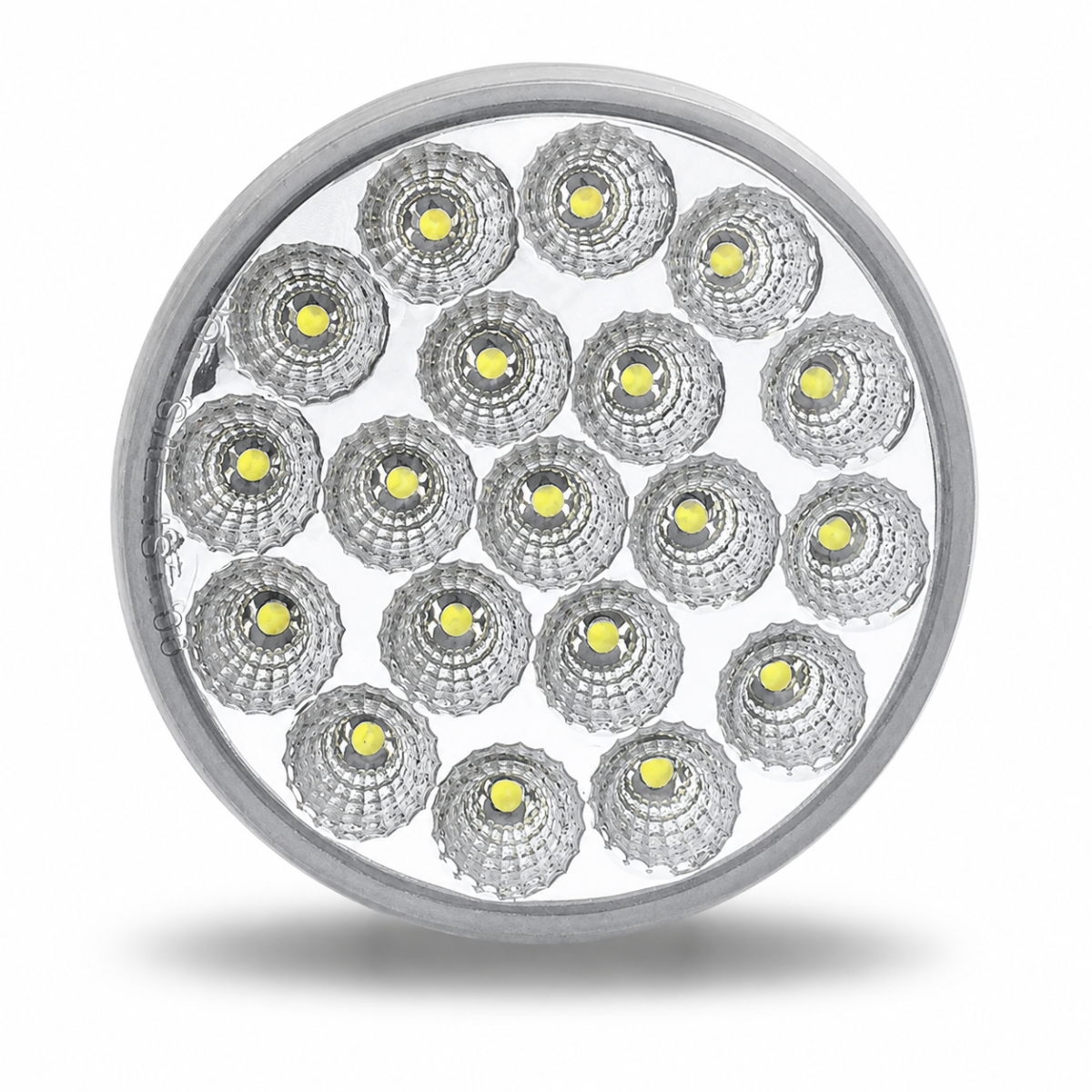

TRUX TLED-4X40 4" Dual Revolution Red/White LED Stop, Turn, Tail & Backup Light

The TRUX TLED-4X40 combines red stop, turn and tail lighting with a bright white backup light in one compact 4-inch round housing. TRUX Dual Revolution technology allows the same 19 LED diodes to switch between red and white, providing two lighting functions without requiring a second light.

Designed for heavy-duty trucks, trailers and custom rear lighting installations, this light features a clear, crack-resistant polycarbonate lens and an IP67 waterproof rating for dependable performance in demanding road conditions.

Product Features

• Red stop, turn and tail functions
• Bright white backup or reverse function
• TRUX Dual Revolution technology
• 19 high-visibility LED diodes
• Clear polycarbonate lens
• 4-inch round grommet-mount design
• IP67 waterproof rating
• 12-volt operation
• DOT compliant for backup/auxiliary use
• Three-year manufacturer warranty
• Sold individually

Product Specifications

• Brand: TRUX Accessories
• Part Number: TLED-4X40
• UPC: 848379071708
• Light Type: Stop, Turn, Tail and Backup
• LED Colors: Red and White
• Lens Color: Clear
• Number of Diodes: 19
• Operating Voltage: 12V
• Stop/Turn/Tail Amperage: 270 mA
• Backup Amperage: 220 mA
• Outside Diameter: 4 5/16"
• Overall Depth: 1"
• Lens Material: Polycarbonate
• Waterproof Rating: IP67
• Mounting Style: Round grommet mount
• Manufacturer Warranty: 3 years
• Quantity: One light

Installation

Connect a standard three-prong pigtail to operate the red stop, turn and tail functions. The additional yellow wire with male bullet plug operates the white backup function.

Package Includes

• One TRUX TLED-4X40 LED light
• One backup/auxiliary wire with male bullet plug

Please Note

The mounting grommet and standard three-prong pigtail are not included. Compare the product dimensions, mounting opening and electrical connections with your application before ordering.
