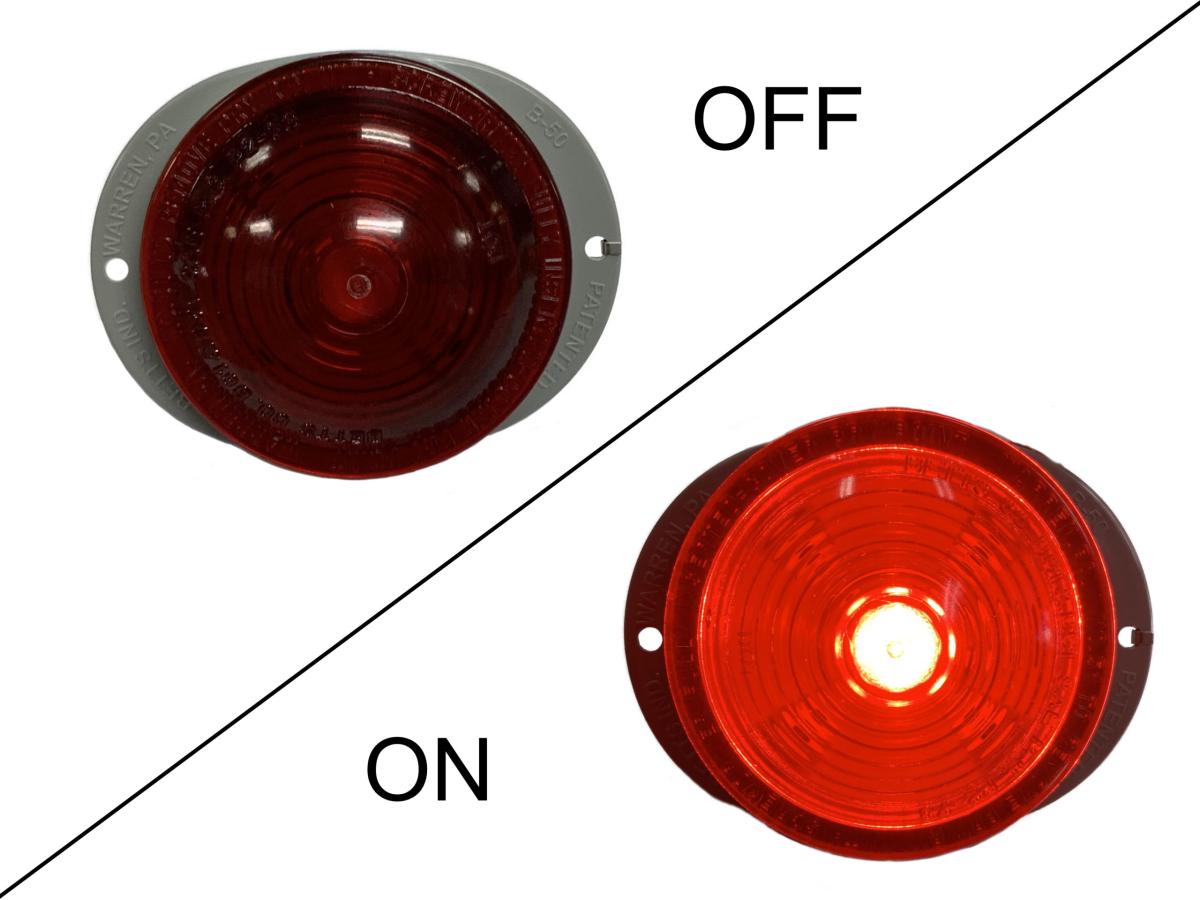

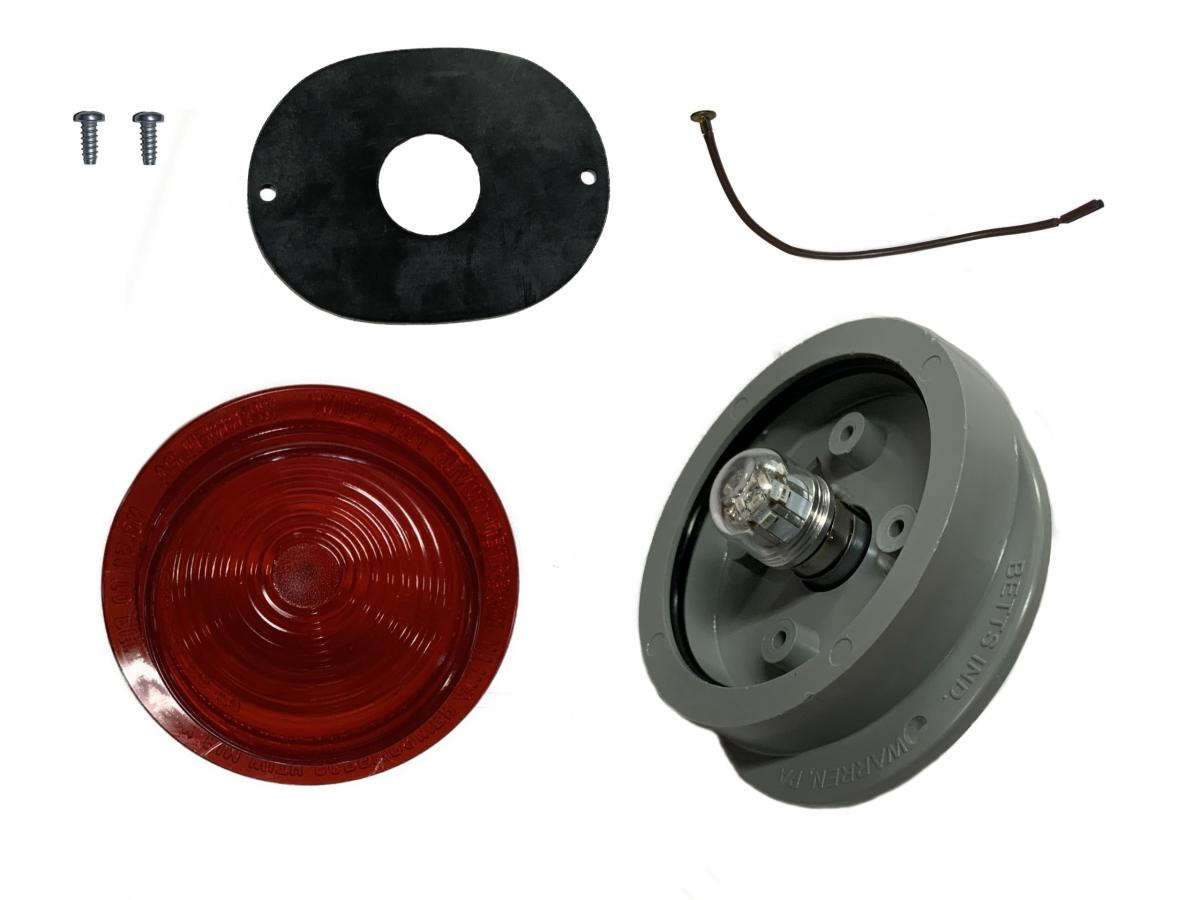

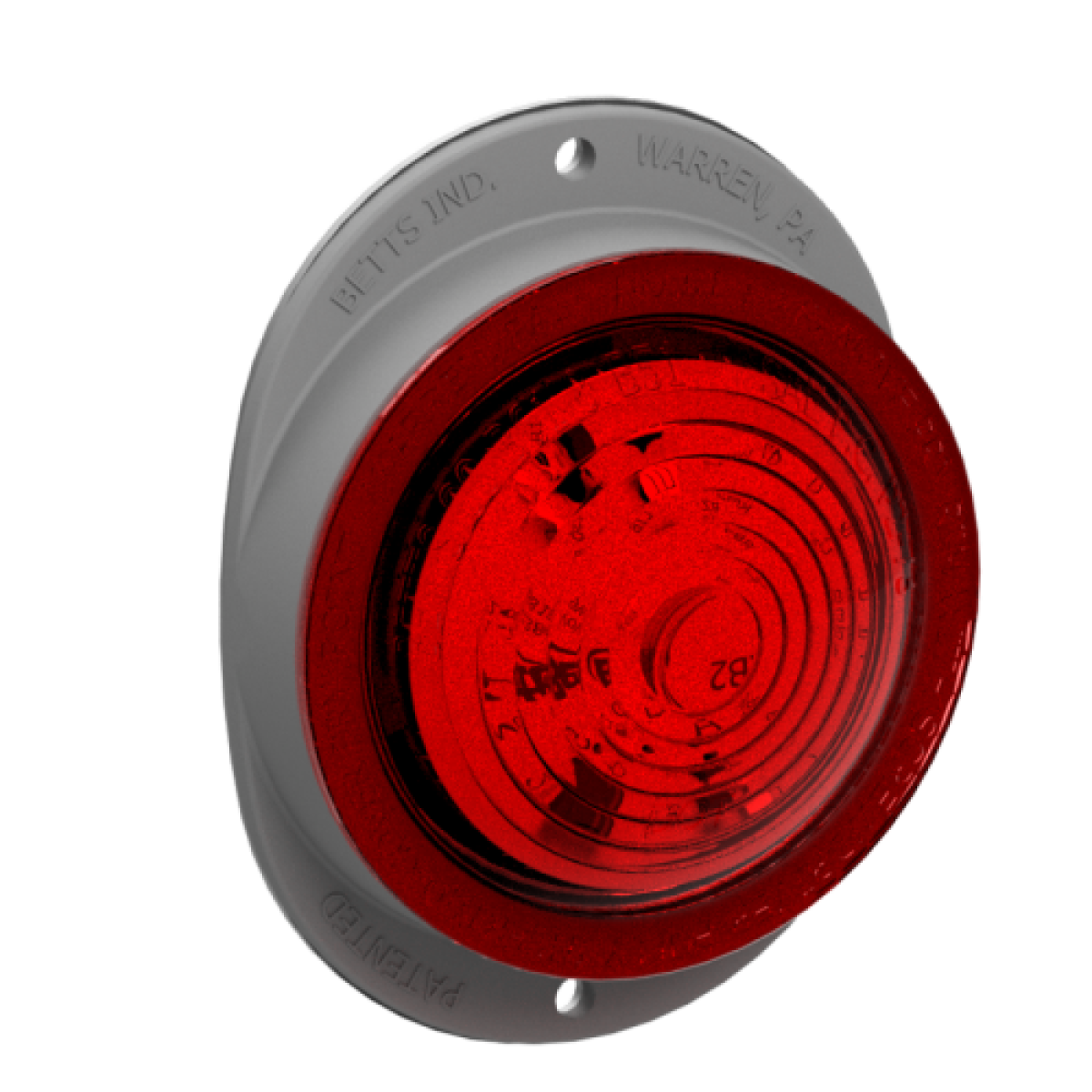

he 50 Series Assemblies include a Lite Ranger™ LED Lamp insert mated to a 50 Series housing. The housing is made from reinforced PBT engineered thermoplastic for high strength and impact resistance and offers unsurpassed protection to the lamp assembly. The exclusive Snap Seal™ O-ring locks out moisture and corrosion while providing convenient access to the inside of the housing. The spacious 50 Series housing, which also functions as a junction box for the wiring and plug connections, requires a 1.25” diameter mounting hole with two flange screws. A gray housing is standard but black is also available. The Lite Ranger™ LED Lamp insert is a robust, fully sealed unit made from impact resistant polycarbonate plastic.
- Designed to meet all FMVSS 108 requirements (49CFR§571.108).
- SAE DOT Lighting Codes: P2PC
- Supports System Voltages of 12Vdc and 24Vdc
- Reverse Polarity Protected

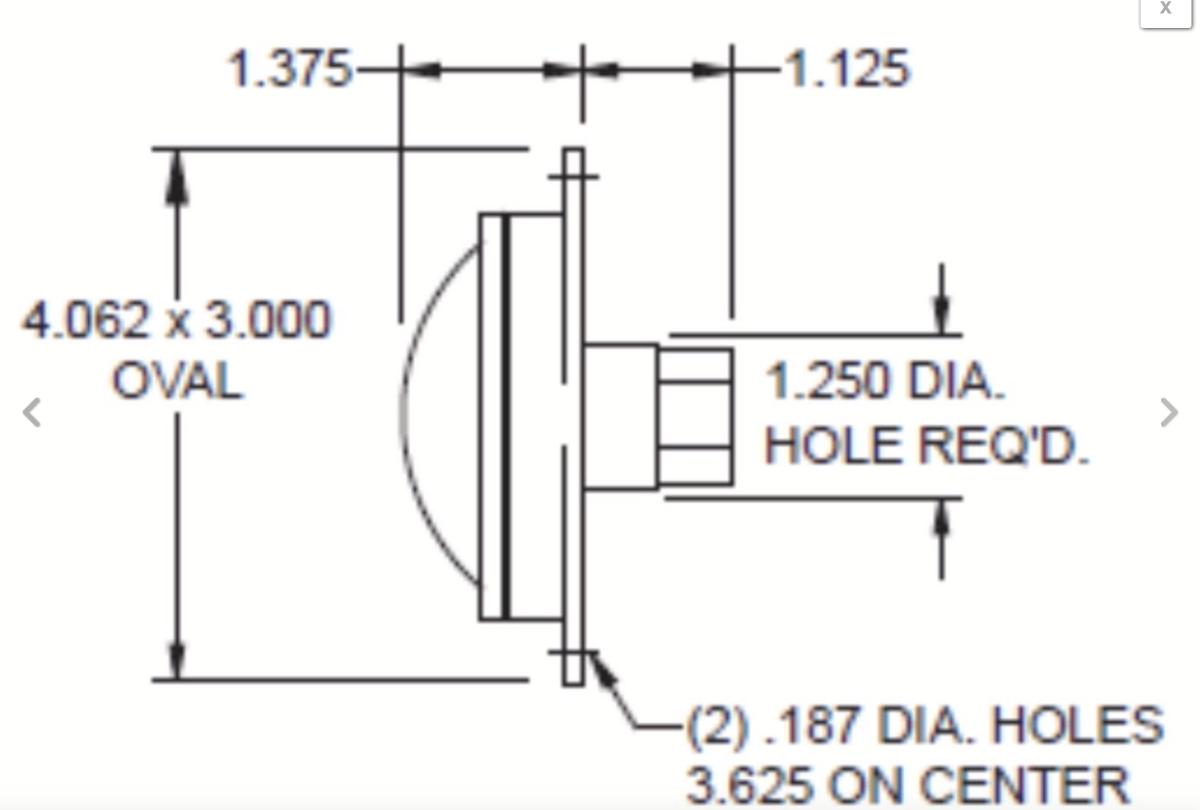

- Requires a ø1.25 inch mounting hole with two flange screws or rivets
- Gray PBT housing standard (black is available)
- Pigtail with multiple connector options or blunt cut cable connections
- Covered by Betts’ 5-Year Limited Warranty
50 Series Parts List
