$163.84

Sku: V88

Category: Air Toggle Valves, Manual/Mechanical-Actuated

Brand: Apsco

Tags: 2 Position, 4 way valve, air valve, apsco, dual, v-88, v88

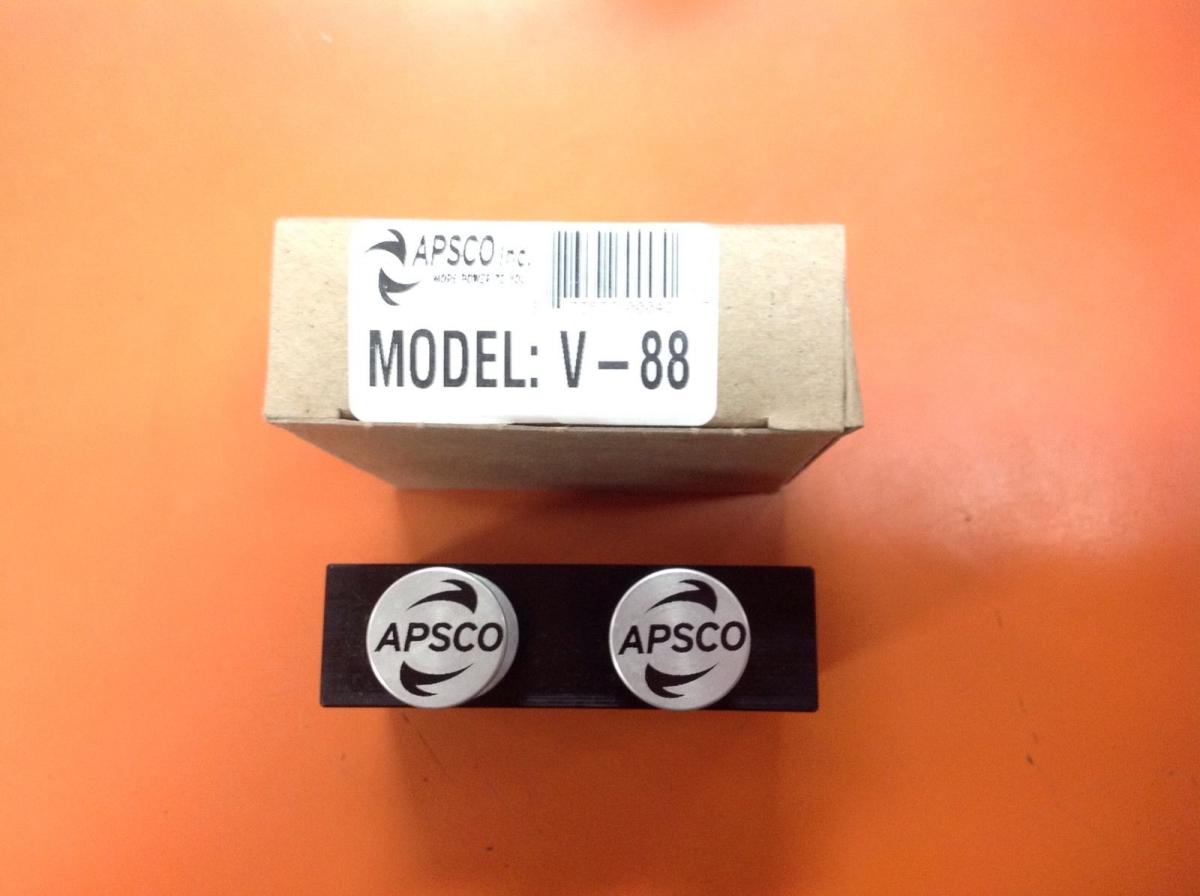

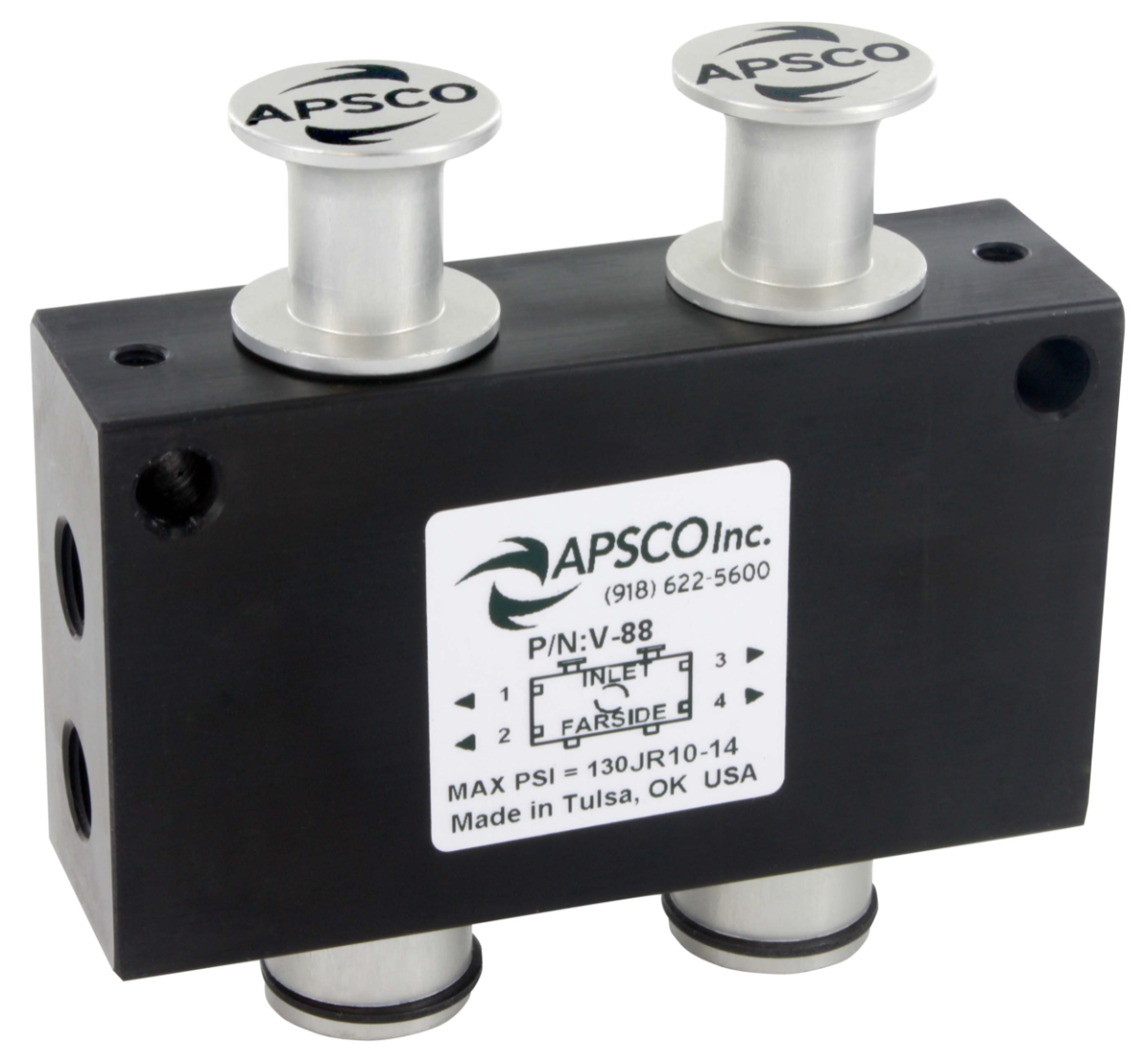

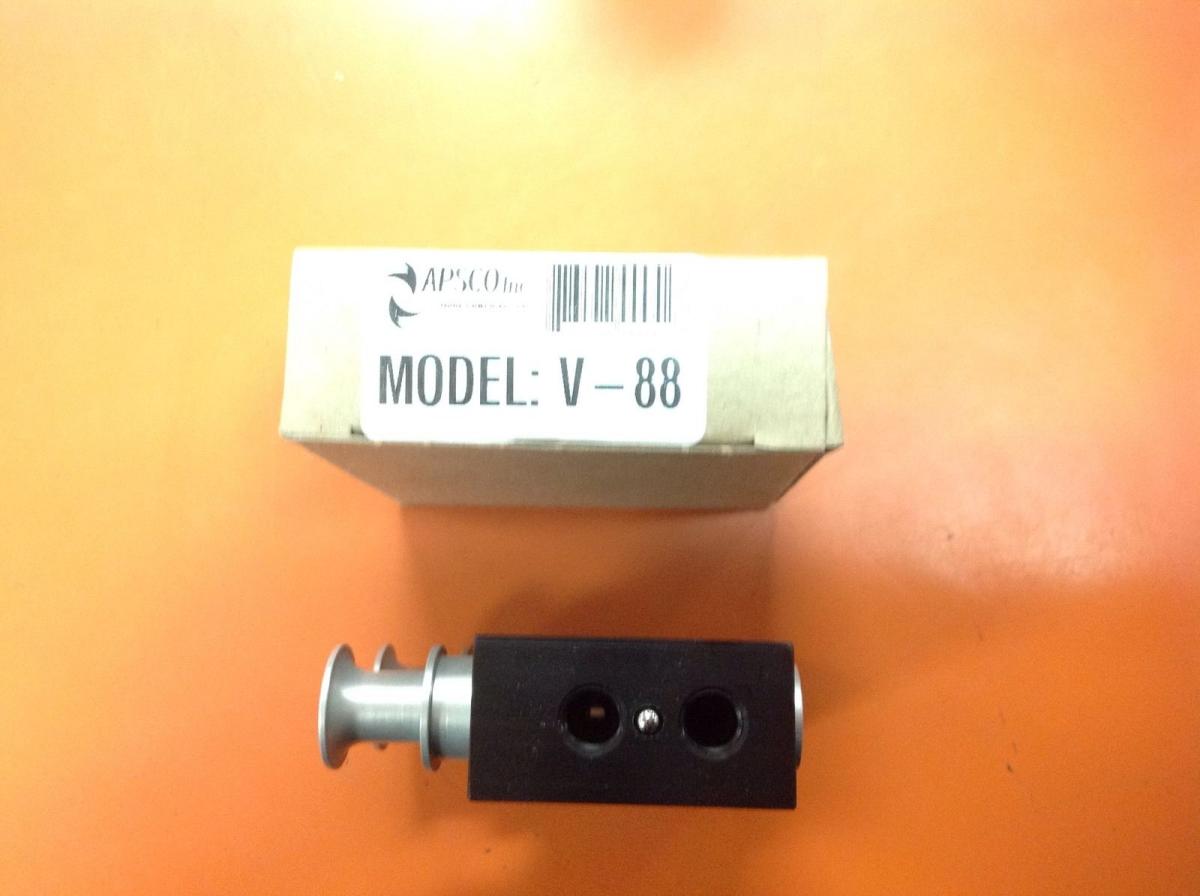

This Apsco V-88 is a heavy-duty, 2-position push-pull valve designed for reliable pneumatic control. Featuring a dual spool configuration, it is the industry standard for operating double-acting cylinders in mobile and industrial applications.

Product Specifications

Feature Specification
Part Number V-88 (V88)
Operation Push / Pull
Valve Type 4-Way, Dual Spool
Positions 2-Position
Port Size 1/8" NPT
Max Pressure 130 PSI
Cylinder Compatibility Double Acting (D.A.)

Mounting & Dimensions

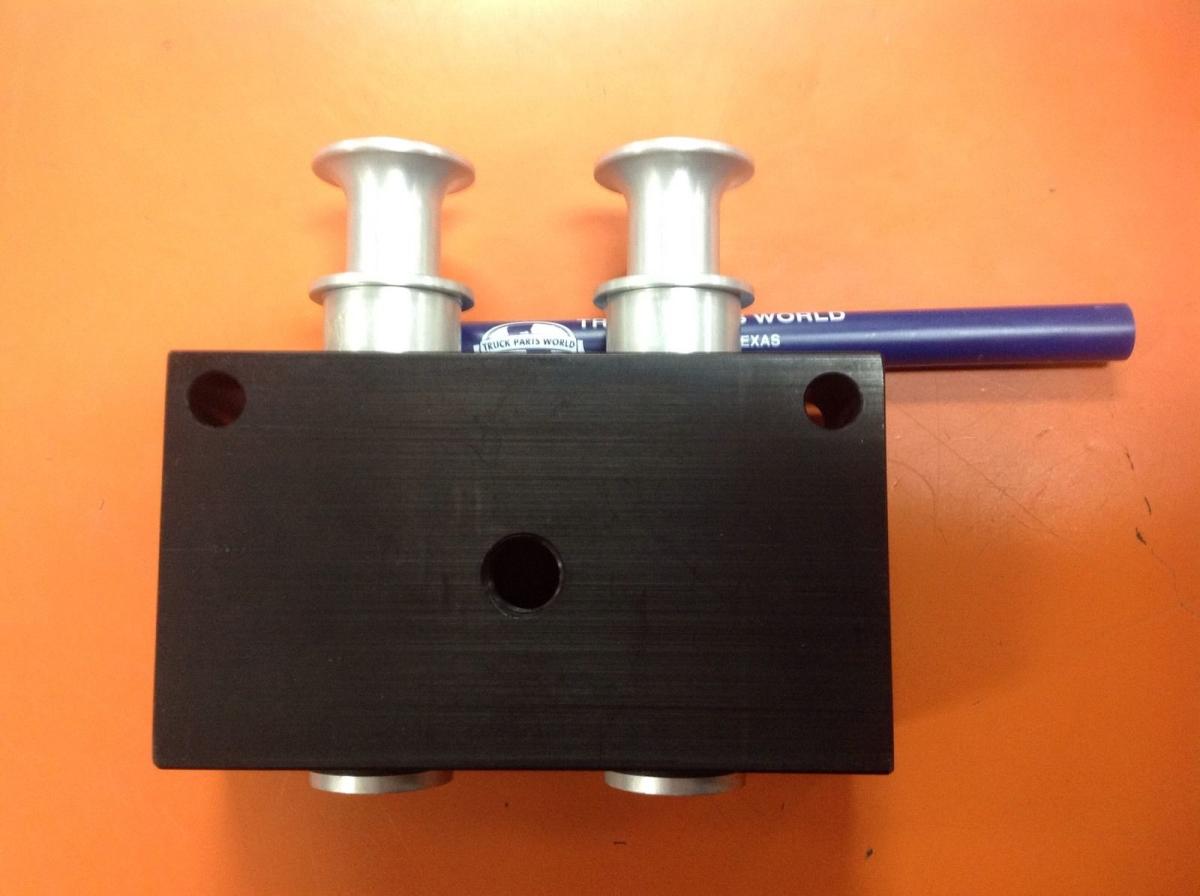

The V-88 offers flexible installation options with a dual-axis mounting pattern to fit tight spaces:

  • Vertical Mounting: (2) 10-32 UNF Threaded holes.

  • Horizontal Mounting: (2) Thru-holes for bolt-through installation.

  • Height: 3.50"

  • Width: 2.00"

  • Depth: 1.00"

Key Applications

Ideally suited for managing Double Acting Cylinders where precise manual control is required. Common uses include:

  • Tailgate locks and chutes.

  • PTO engagement systems.

  • Pneumatic hoists and lift gates.

Cross-Reference & Identification

  • Brand: Apsco

  • Model Variants: V88, V-88

  • Functional Equivalent: 4-Way Dual Spool Air Control Valve

Note: Ensure all airline fittings are sealed with appropriate thread sealant to maintain the 130 PSI rating during operation.
