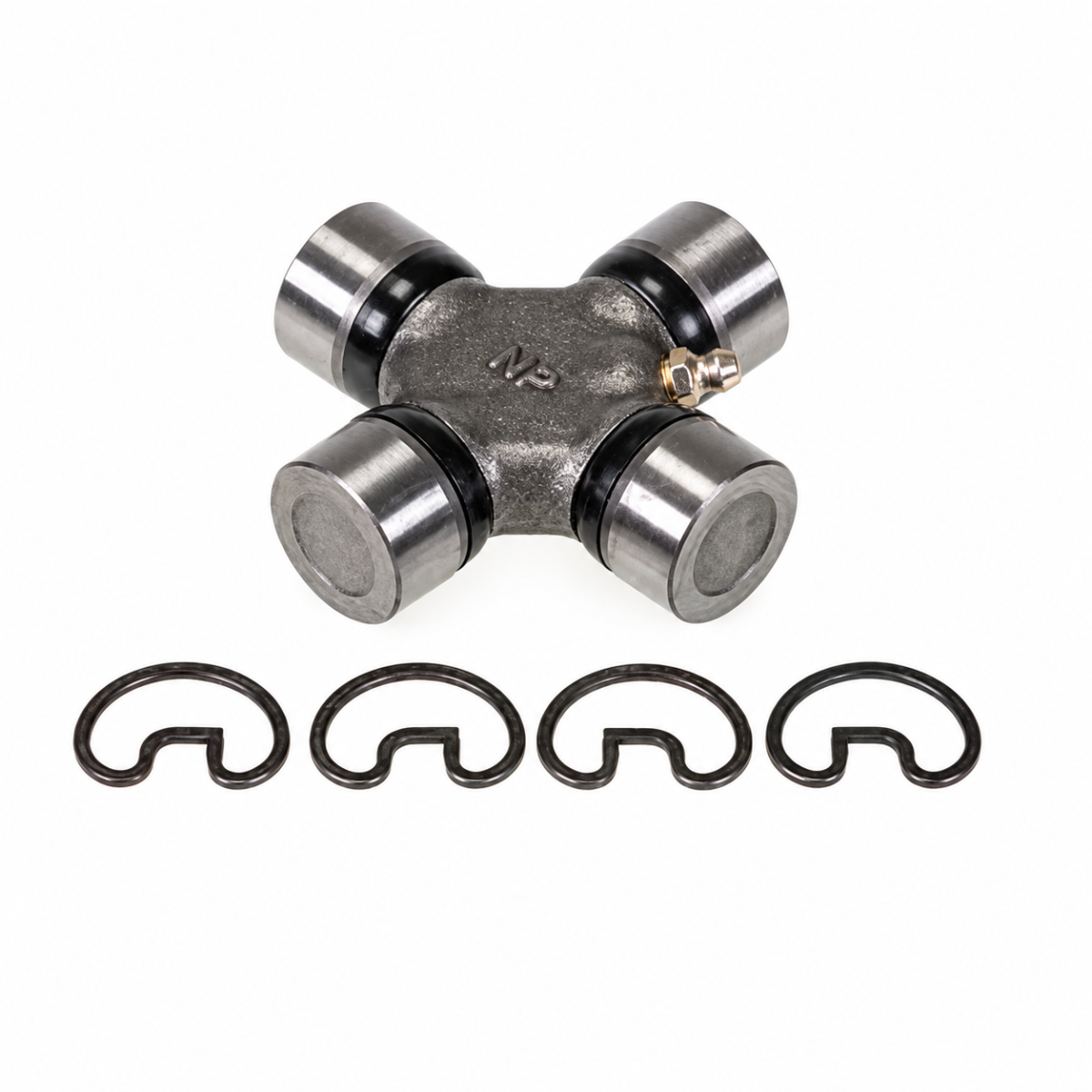

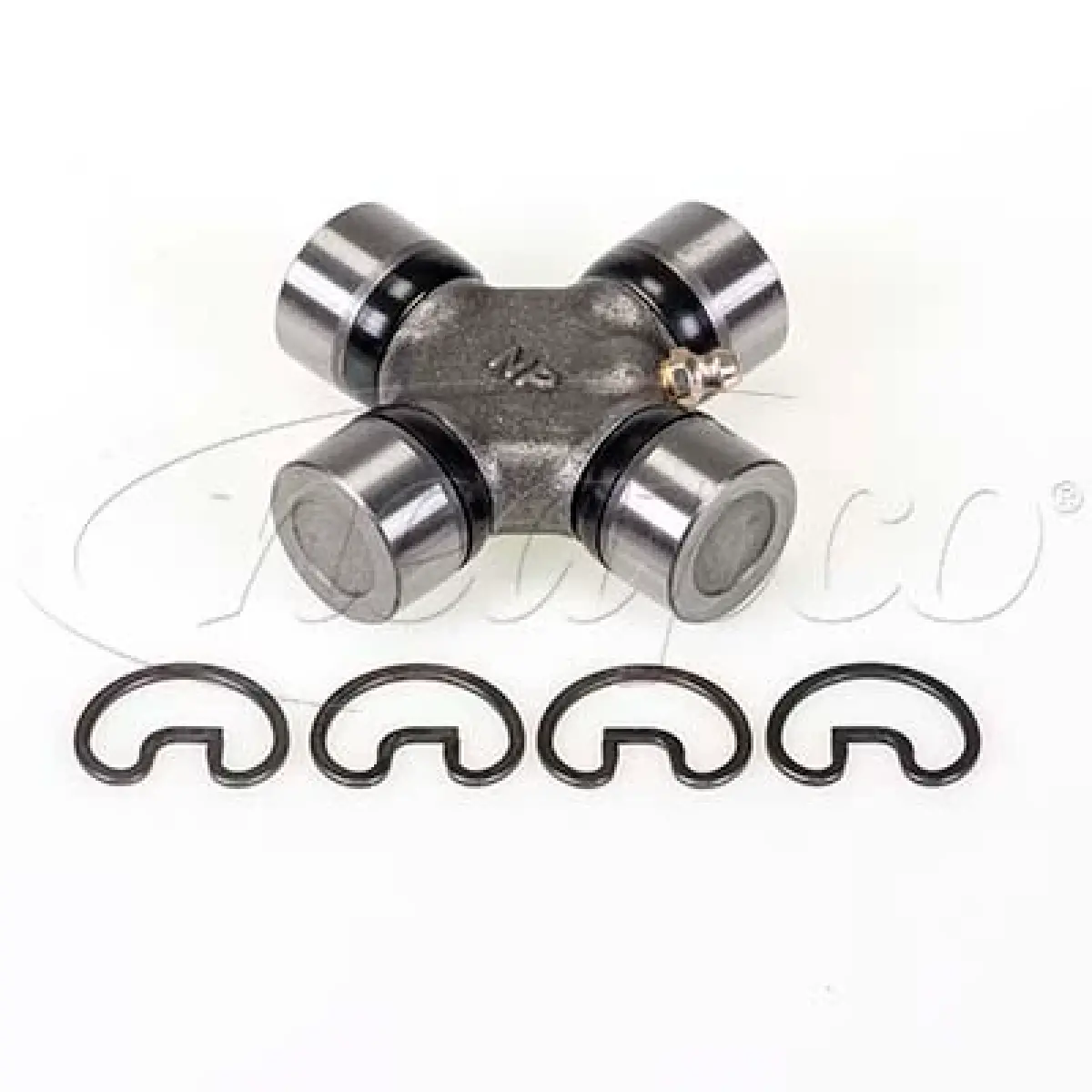

Neapco 1-0153 1310 Series Universal Joint

Genuine Neapco 1-0153 universal joint for the 1310 driveline series. Sold as one universal-joint kit.

• Round bearing caps with outside snap-ring retention (ROUND-OSR).
• Bearing cap diameter: 1.062 inches on both axes.
• Lock-up dimension: 3.219 inches on both axes.
• One grease fitting in the cross.

Neapco lists bearing strap kits 1-0022 (0.250-28 bolts) or 1-0024 (0.312-24 bolts), and U-bolt kit 1-0089, as associated hardware. These hardware kits are sold separately.

Match the series, bearing cap diameter and lock-up dimensions to your existing joint before ordering.
