ATRO SK70380 Torque Rod Bushing Kit – 4-Pack, 2-3/4″ OD, 4-3/8″ C-C

ATRO SK70380 Torque Rod Bushing Kit – 4-Pack – 2-3/4" OD, 4-3/8" C-C

Kit Part Number: SK70380
Individual Bushing Part Number: TS38000
Brand: ATRO
Product Type: Torque Rod Bushing Kit
Quantity: 4 Bushings
Condition: New

PRODUCT DESCRIPTION

The ATRO SK70380 is a four-piece torque rod bushing kit for select heavy-duty truck and suspension applications. This complete set includes four ATRO TS38000 premium polyurethane straddle-mount bushings.

Each bushing features ATRO’s rotating pin design, allowing the pin to be positioned for different clocking requirements. The durable polyurethane construction is designed to provide dependable suspension support in demanding commercial vehicle applications.

With four bushings included, this kit supplies the commonly listed quantity required for one vehicle, depending on its suspension configuration.

PACKAGE INCLUDES

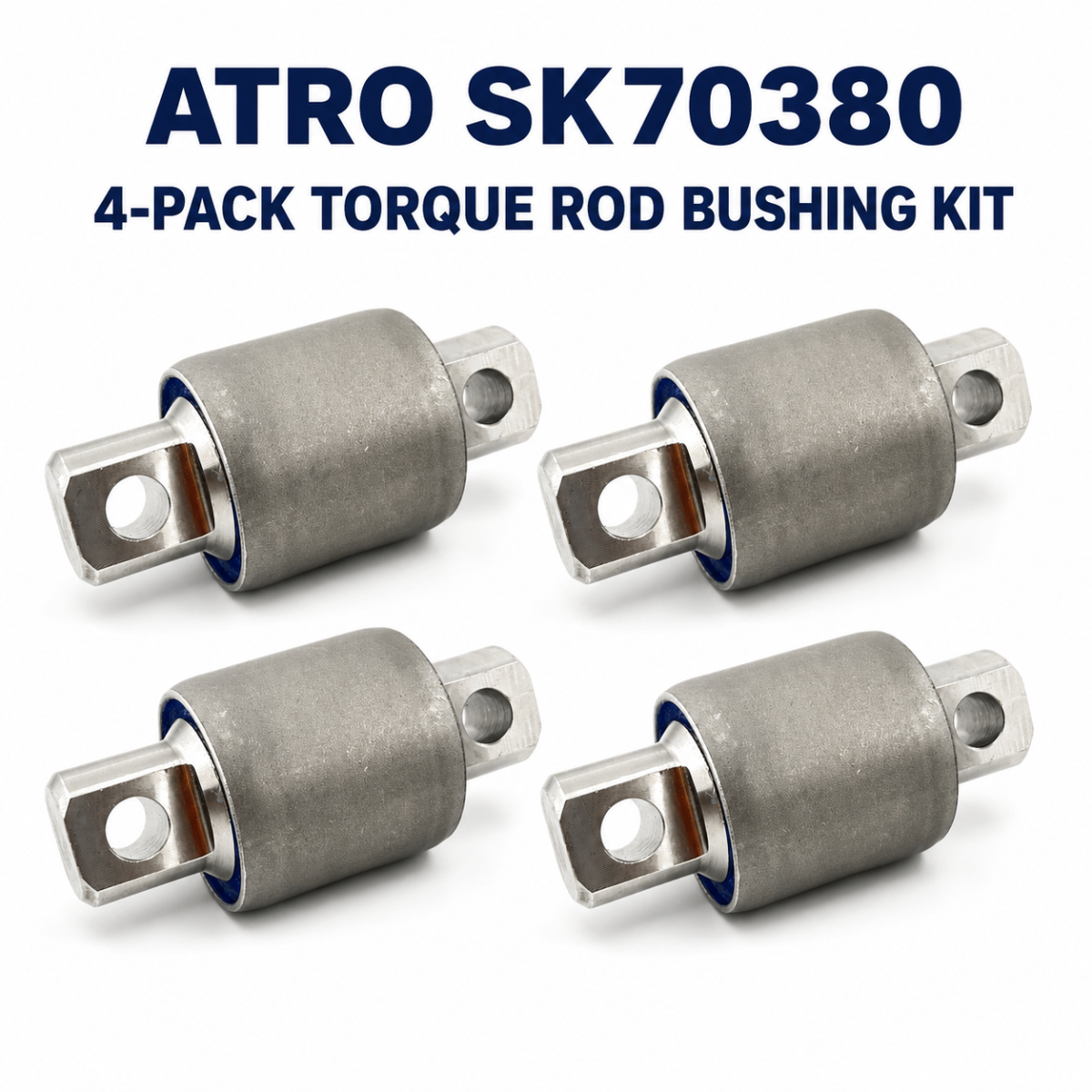

• 4 ATRO TS38000 torque rod bushings
• Sold together under kit part number SK70380
• Installation and removal tools are not included

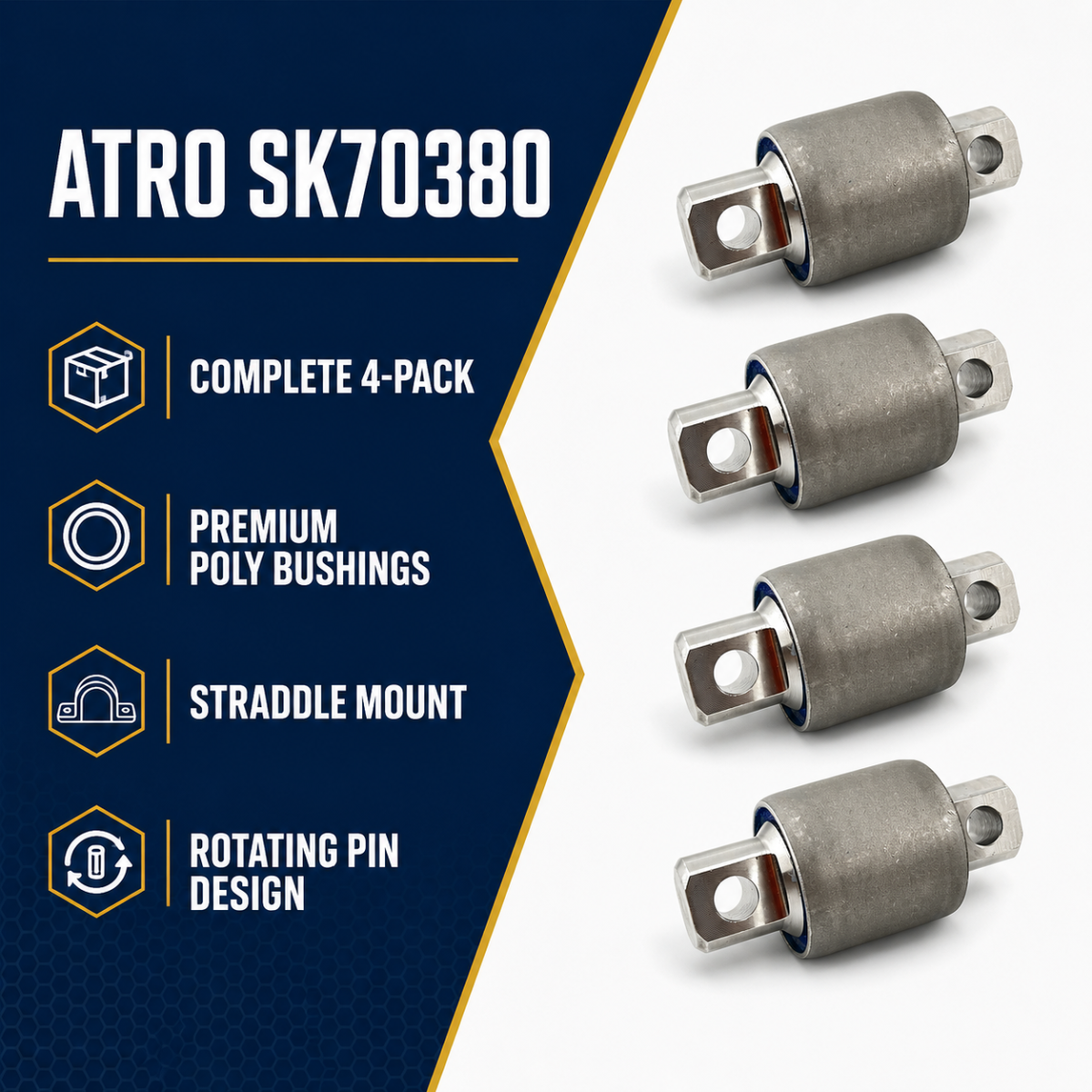

PRODUCT FEATURES

• Complete four-bushing package
• Premium polyurethane construction
• Heavy-duty straddle-mount design
• Rotating pin supports multiple clocking positions
• Designed for torque rod and suspension applications
• Helps maintain suspension alignment and stability
• Replacement option for discontinued ATRO TS38095 when specifications match
• Suitable for select heavy-duty commercial trucks

KIT SPECIFICATIONS

Brand: ATRO
Kit Part Number: SK70380
Individual Bushing Part Number: TS38000
Description: Four-Pack Torque Rod Bushing Kit
Quantity Included: 4 Bushings
Bushing Type: Premium Polyurethane
Mounting Type: Straddle Mount / Type 2

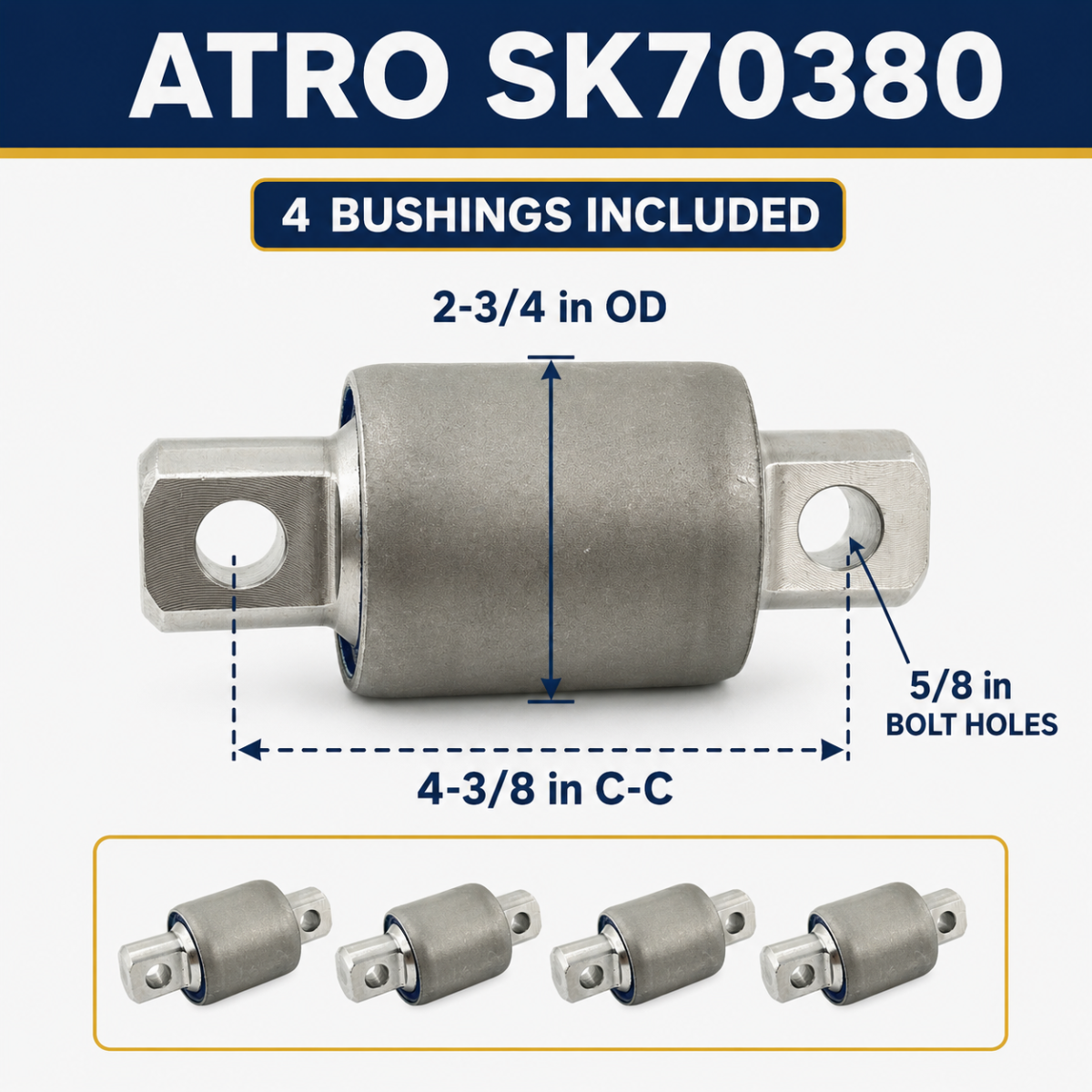

Outside Diameter: 2.750" (2-3/4")
Bolt Hole Diameter: 5/8"
Center-to-Center Measurement: 4.375" (4-3/8")
OEM Reference: Hendrickson 44695-000 / 44695000
Approximate Weight Per Bushing: 4.08 lbs
Approximate Total Product Weight: 16.32 lbs

CROSS-REFERENCE NUMBERS

The following references apply to the individual TS38000 bushing included in this four-pack:

ATRO TS38095, Automann TRB6820UB, Automann TRB6820, BATCO 44097, Dayton Parts 321-132U, Dayton Parts 321-132, Dayton Parts 321-500, Dyco D422S, Dyco D423, Dyco DT1675, Dyco DT1471, Energy Suspension 90.7023, Euclid E-4664, Euclid E-2226, Euclid E-7639, Euclid E-14641, Flagg C879, Flagg C879UB, Freightliner IPC936420, GAFF GAFF13520, GAFF GAFF83520, GMC/Chevrolet N8800599, GMC/Chevrolet N8888164, GMC/Chevrolet N8884777, Hendrickson 44695-000L, Hendrickson 44695-000, Hendrickson 44695000

COMMON APPLICATIONS

The bushings contained in the ATRO SK70380 kit are used in select torque rod and suspension configurations for:

• Autocar
• Freightliner
• Hendrickson
• International/Navistar
• Kenworth
• Mack
• Meritor
• Peterbilt
• Volvo/White

POSSIBLE SUSPENSION APPLICATIONS

• Freightliner Rear FAS Airliner II
• Hendrickson HA Series
• Hendrickson HN Series
• Hendrickson RS, RT, RTE, RT2 and RTE2 Series
• Hendrickson Primaax configurations
• International Corporate 3-1/2" rear suspension
• International Z 3-1/2" air-spring suspension
• Kenworth AG100 Airglide
• Kenworth Big 6 and KW6
• Kenworth Glide Ride Tandem
• Mack SS34-38 Camelback
• Mack ST34 Tapered
• Mack Twin-Y
• Mack MaxLite applications
• Meritor Air Link 460–520
• Peterbilt 4-Spring Tandem Glide Ride
• Peterbilt Air Trac
• Volvo/White Corporate Air Ride
• Volvo VN and VT rear suspension

INSTALLATION INFORMATION

Recommended Installation Tool: ATRO PT59-59100
Recommended Removal Tool: ATRO PT00-52100
Tools Included: No

FITMENT NOTICE

Heavy-duty truck applications can vary by vehicle model, production date, axle and suspension configuration. Some cross-reference numbers may represent near-cross or application references rather than exact replacements.

Before ordering, compare the original bushings with the TS38000 specifications: 2-3/4" outside diameter, 5/8" bolt holes, 4-3/8" center-to-center measurement and straddle-mount configuration
