The ATRO EQ53-35158 is a heavy-duty fabricated equalizer beam designed for Hutchens H9700 and H9600 series four-spring trailer suspensions.This kit is a performance upgrade over standard rubber-bushed beams, featuring ATRO’s signature polyurethane bushing for increased service life, improved axle alignment, and better resistance to chemical and environmental wear.
Polyurethane Technology: Includes the EQ53-35601 bushing, which is chemically resistant to grease, oil, road salt, and cleaning solvents.
Improved Ride Quality: Reduces vibrations and suspension "walk," leading to more even tire wear and less stress on other suspension components.
Zero Maintenance: Unlike rubber, ATRO polyurethane does not require lubrication and will not rot or crack over time.
Full Hardware Kit: This part number includes the necessary mounting hardware for a complete, hassle-free installation.
| Attribute | Specification |

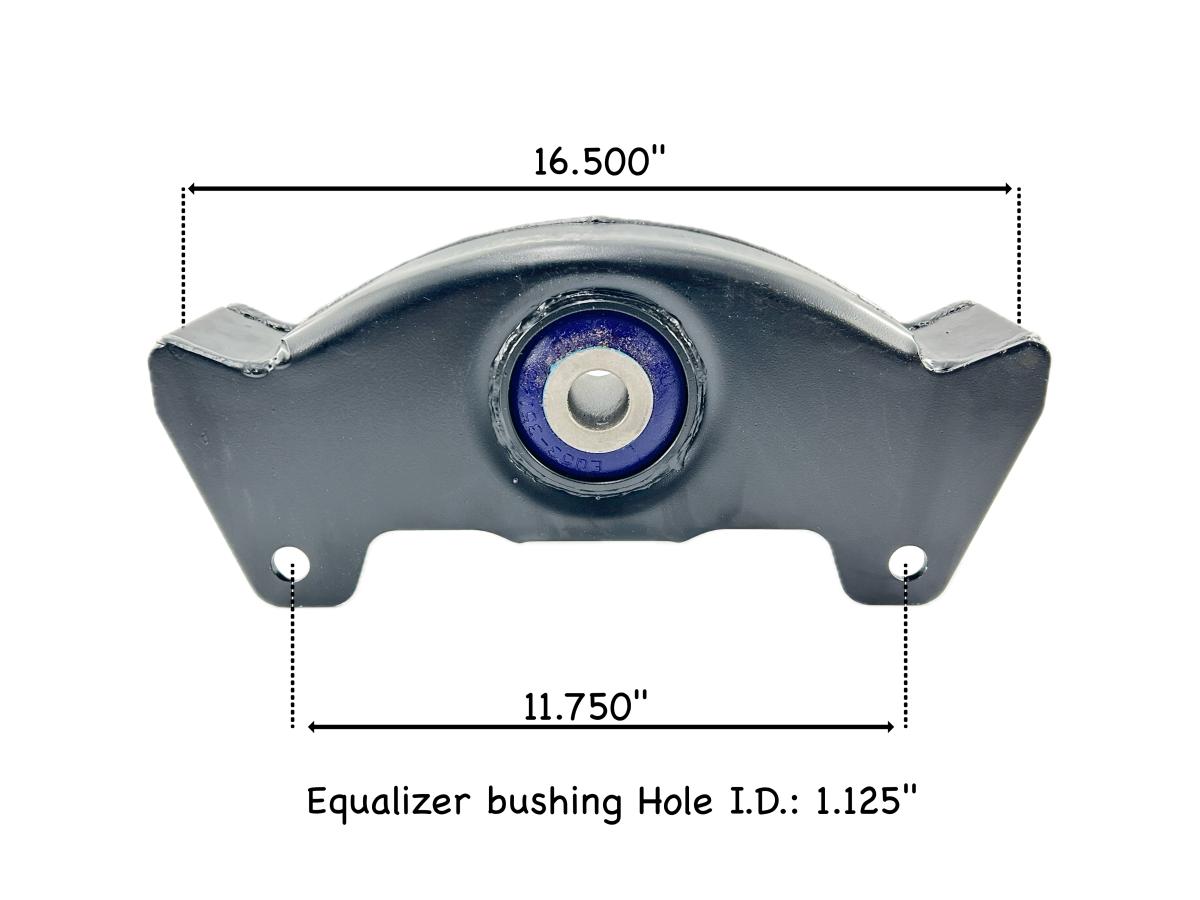

| Overall Length | 16 1/2" |
| Center-to-Center (C-C) | 11.75" |
| Bushing Bolt Hole | 1 1/8" |
| Shipping Weight | 24.5 lbs |
| Quantity Per Vehicle | 2 |
| UPC Code | 751354027211 |

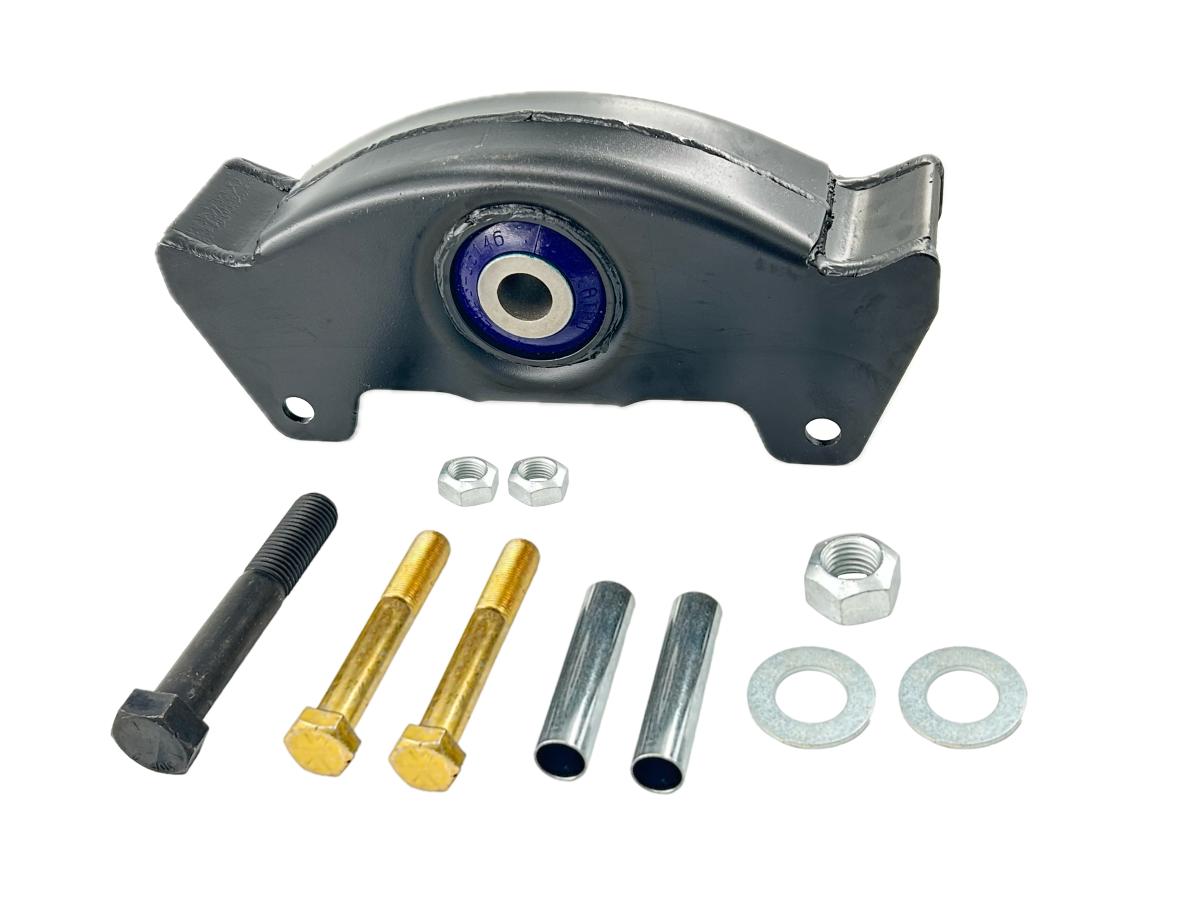

(1) Fabricated Equalizer Beam (Pre-installed with EQ53-35601 Bushing)
(1) 1 1/8" Bolt & Locknut (Center Bolt)
(2) 5/8" Bolts & Locknuts
(2) Flat Washers
(2) Spacer Sleeves
The EQ53-35158 is a direct premium replacement for the following parts:
Hutchens: 16158-01, 16158-01R
Dayton Parts: 338-886, 338-886U
Automann: EQ019, EQ019UB
Euclid/Meritor: E-7532, E-9567, R307532
Flagg: H220
Newstar: S-28536
Application Note: Fits Hutchens H9700 and H9600 Trailer Four-Spring suspensions (typically with 42 1/2" to 49" axle spacing).
