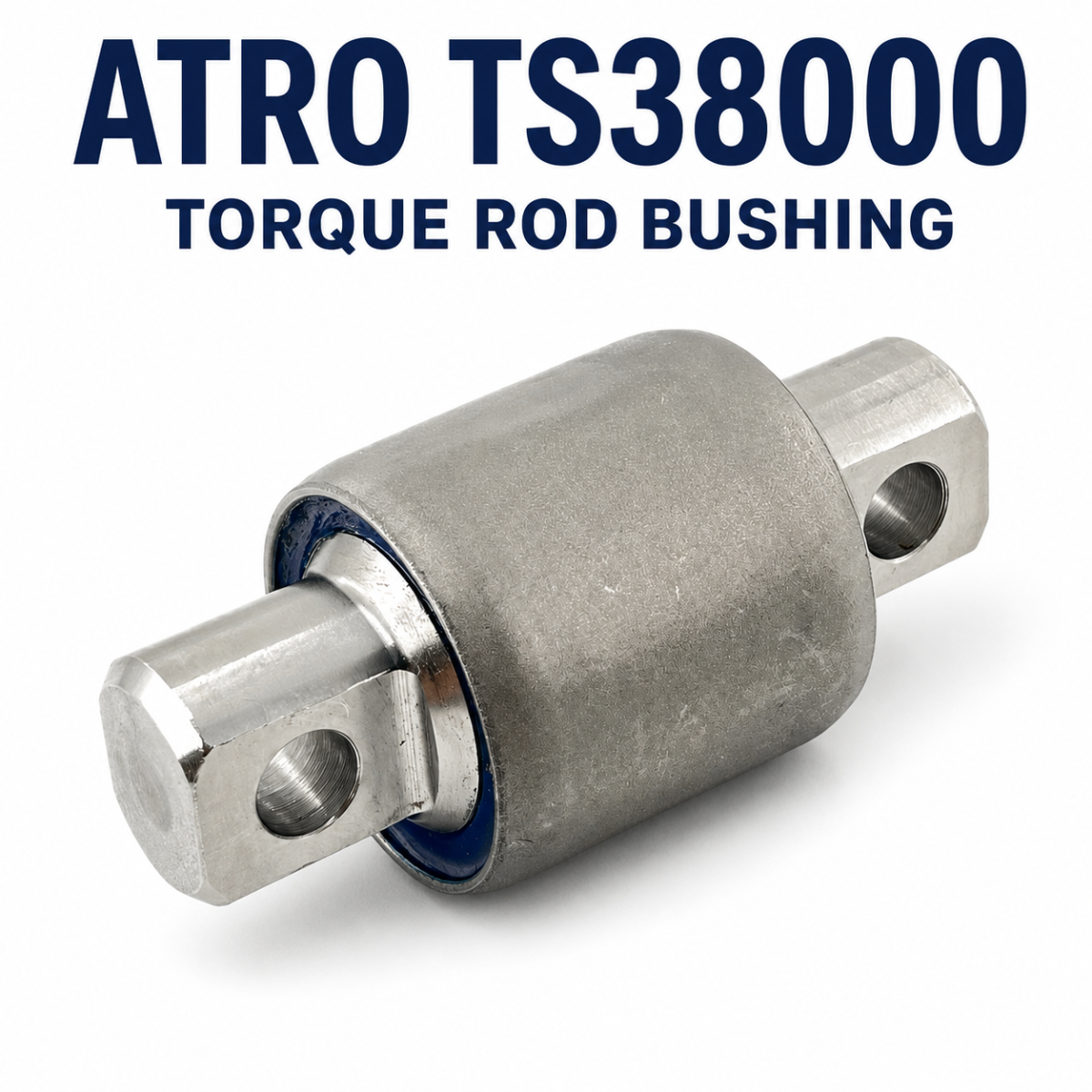

ATRO TS38000 Premium Poly Torque Rod Bushing – 2-3/4" OD, 4-3/8" C-C

ATRO TS38000 Premium Poly Torque Rod Bushing – 2-3/4" OD, 4-3/8" C-C

Part Number: TS38000
Brand: ATRO
Product Type: Torque Rod Bushing
Condition: New
UPC: 751354036480

PRODUCT DESCRIPTION

The ATRO TS38000 is a premium polyurethane torque rod bushing designed for select heavy-duty truck and suspension applications. Its durable straddle-mount construction provides dependable support in demanding commercial vehicle suspension systems.

This bushing features ATRO’s rotating pin design, which allows the pin to be positioned for different clocking requirements. The TS38000 may also be used in place of the discontinued ATRO TS38095 when the dimensions, mounting configuration and application requirements match.

Each order includes one ATRO TS38000 torque rod bushing.

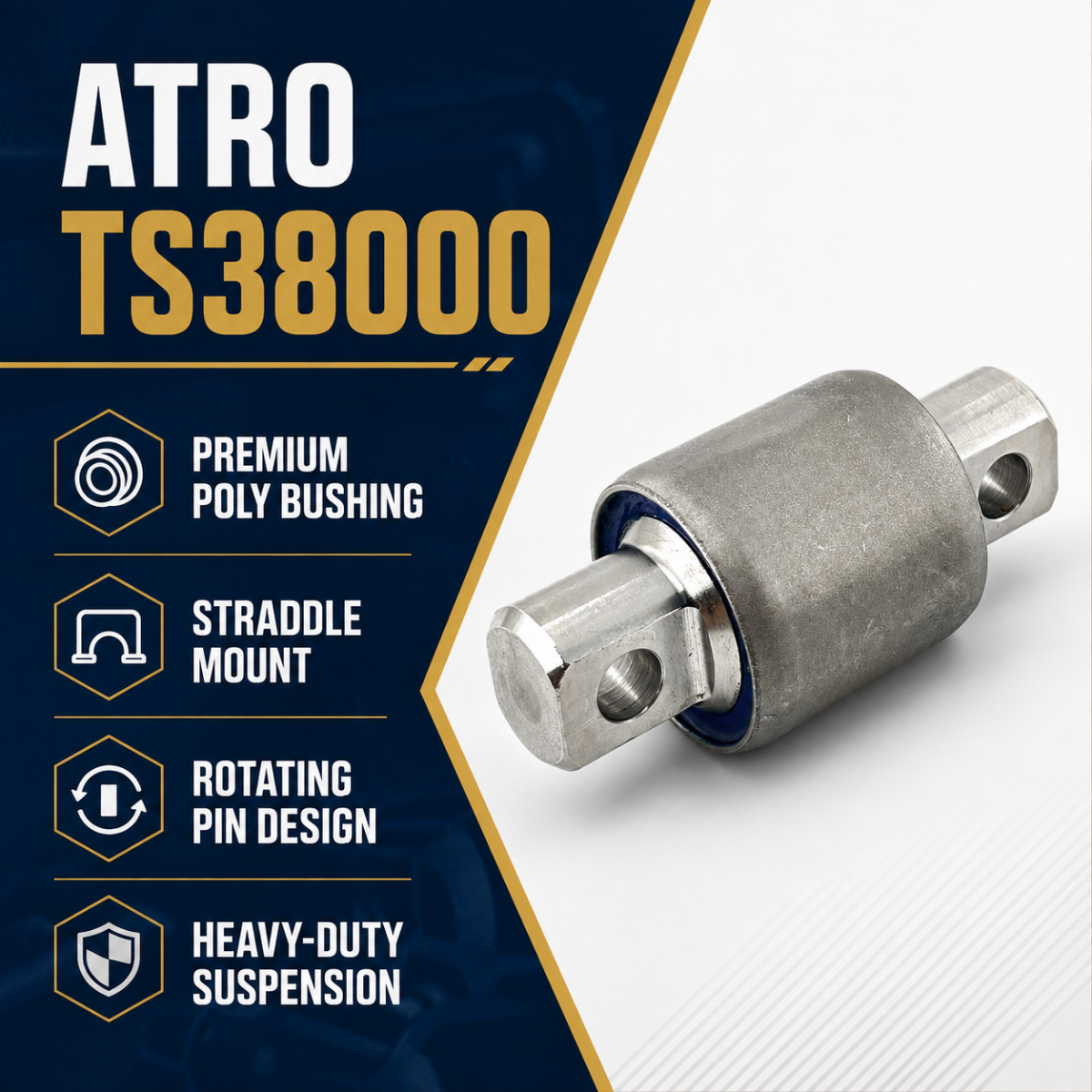

PRODUCT FEATURES

• Premium polyurethane bushing construction
• Heavy-duty straddle-mount design
• Rotating pin supports multiple clocking positions
• Designed for torque rod and suspension applications
• Helps maintain suspension alignment and stability
• Replacement option for discontinued ATRO TS38095
• Suitable for select heavy-duty truck applications

SPECIFICATIONS

Brand: ATRO
Part Number: TS38000
Description: Torque Rod Bushing
Bushing Type: Premium Polyurethane
Mounting Type: Straddle Mount / Type 2
Outside Diameter: 2.750" (2-3/4")
Bolt Hole Diameter: 5/8"
Center-to-Center Measurement: 4.375" (4-3/8")
OEM Reference: Hendrickson 44695-000 / 44695000
Suggested Quantity Per Vehicle: 4, depending on suspension configuration
Approximate Shipping Weight: 4.08 lbs
UPC: 751354036480
Quantity Included: 1 Bushing

CROSS-REFERENCE NUMBERS

Exact or identified replacement references:

ATRO TS38095, Dayton Parts 321-132U, GAFF GAFF13520, GAFF GAFF83520, Hendrickson 44695-000L, Hendrickson 44695-000, Hendrickson 44695000

Additional industry and application references:

Automann TRB6820UB, Automann TRB6820, BATCO 44097, Dayton Parts 321-132, Dayton Parts 321-500, Dyco D422S, Dyco D423, Dyco DT1675, Dyco DT1471, Energy Suspension 90.7023, Euclid E-4664, Euclid E-2226, Euclid E-7639, Euclid E-14641, Flagg C879, Flagg C879UB, Freightliner IPC936420, GMC/Chevrolet N8800599, GMC/Chevrolet N8888164, GMC/Chevrolet N8884777

COMMON APPLICATIONS

The ATRO TS38000 is used in select suspension and torque rod configurations for the following heavy-duty vehicle and suspension brands:

• Autocar
• Freightliner
• Hendrickson
• International/Navistar
• Kenworth
• Mack
• Meritor
• Peterbilt
• Volvo/White

POSSIBLE SUSPENSION APPLICATIONS

• Freightliner Rear FAS Airliner II
• Hendrickson HA Series
• Hendrickson HN Series
• Hendrickson RS, RT, RTE, RT2 and RTE2 Series
• Hendrickson Primaax configurations
• International Corporate 3-1/2" rear suspension
• International Z 3-1/2" air-spring suspension
• Kenworth AG100 Airglide
• Kenworth Big 6 and KW6
• Kenworth Glide Ride Tandem
• Mack SS34-38 Camelback
• Mack ST34 Tapered
• Mack Twin-Y
• Mack MaxLite applications
• Meritor Air Link 460–520
• Peterbilt 4-Spring Tandem Glide Ride
• Peterbilt Air Trac
• Volvo/White Corporate Air Ride
• Volvo VN and VT rear suspension

INSTALLATION INFORMATION

Recommended Installation Tool: ATRO PT59-59100
Recommended Removal Tool: ATRO PT00-52100
Installation and Removal Tools Included: No

FITMENT NOTICE

Heavy-duty truck applications can vary according to the vehicle model, production date, axle and suspension configuration. Some cross-reference numbers may represent near-cross or application references rather than exact replacements.

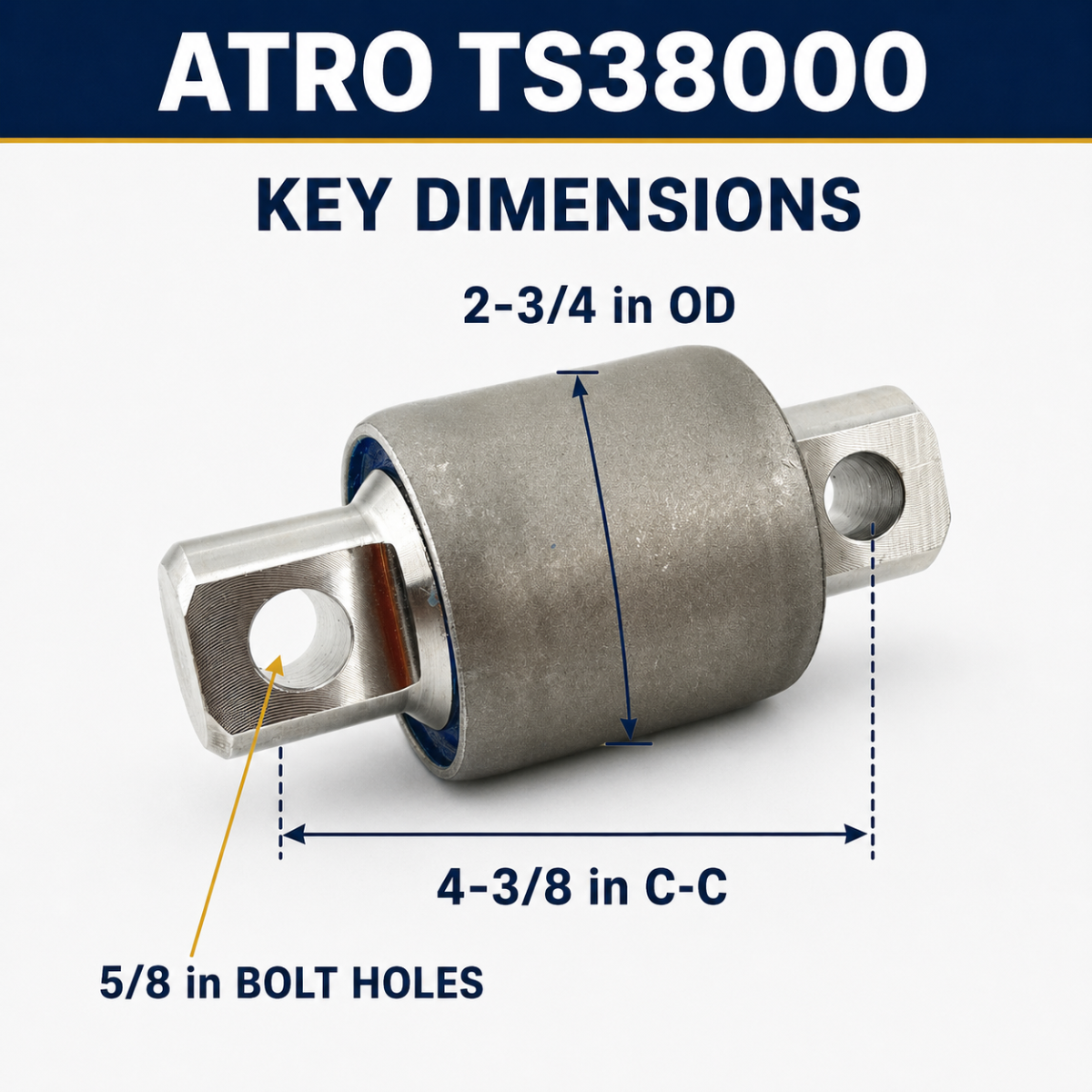

Before ordering, compare the TS38000 part number, 2-3/4" outside diameter, 5/8" bolt holes, 4-3/8" center-to-center measurement and straddle-mount configuration with the original bushing.
