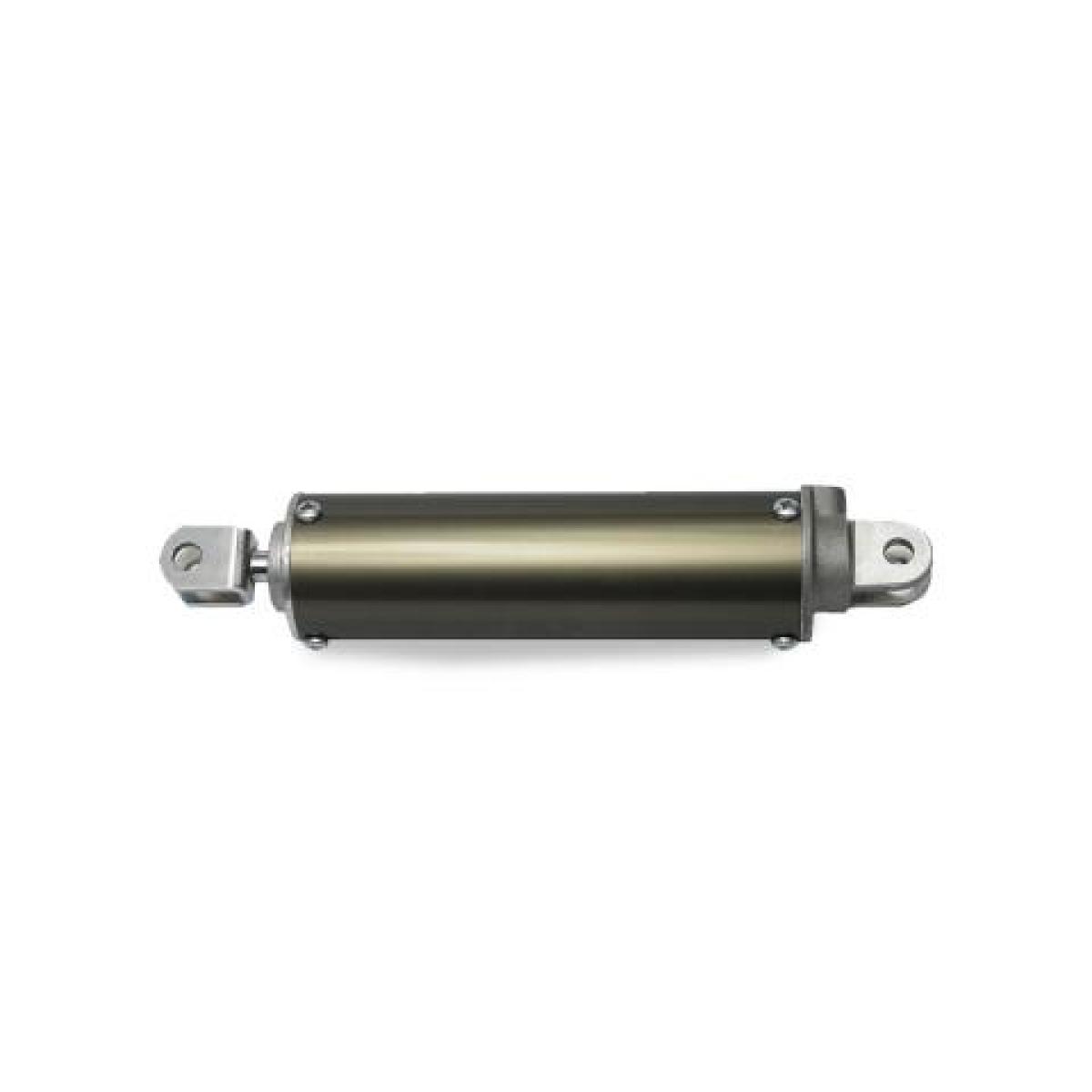

Fifth Wheel Air Cylinders same as XA-2524-R

Fifth Wheel Air Cylinders same as XA-2524-R

$99.41

Sku: XA2524R

Category: Fifth Wheel, Trailer

Brand: Velvac

Tags: XA-2524-R

2-1/2" Bore, 6-3/4" Stroke
Item Overview:
  • Cast aluminum front and rear cover with 1/4" FTP port
  • Mounting hole for 17/32" clevis, front and rear
  • 100 psi operating pressure
  • Gold anodized tube for corrosion resistance
Stroke: 6-3/4"
Style: Fifth Wheel Cylinders
Diameter: 2-1/2"
Retracted Length: 12-5/8"
Replaces Part No.: Holland XA-2524-R
Extended Length: 19-13/32
