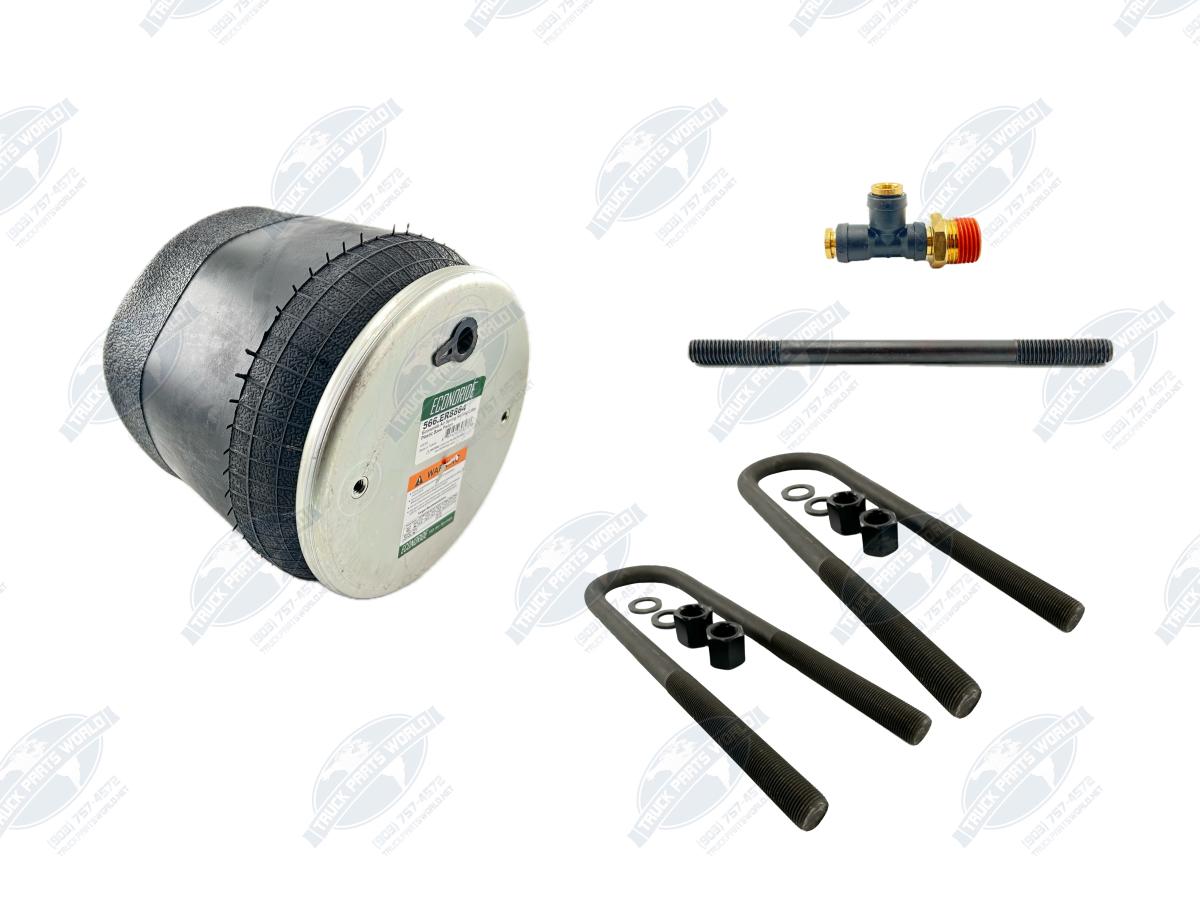

This is for a Single Side Suspension Refresh Kit designed for heavy-duty applications on Kenworth (AG200 / AG400) and Peterbilt trucks. This kit provides the air spring, mounting stud, air fitting, and U-bolts needed to repair one side of the vehicle.
Durable Construction: The components in this kit are engineered from quality materials for reliable performance and long service life.

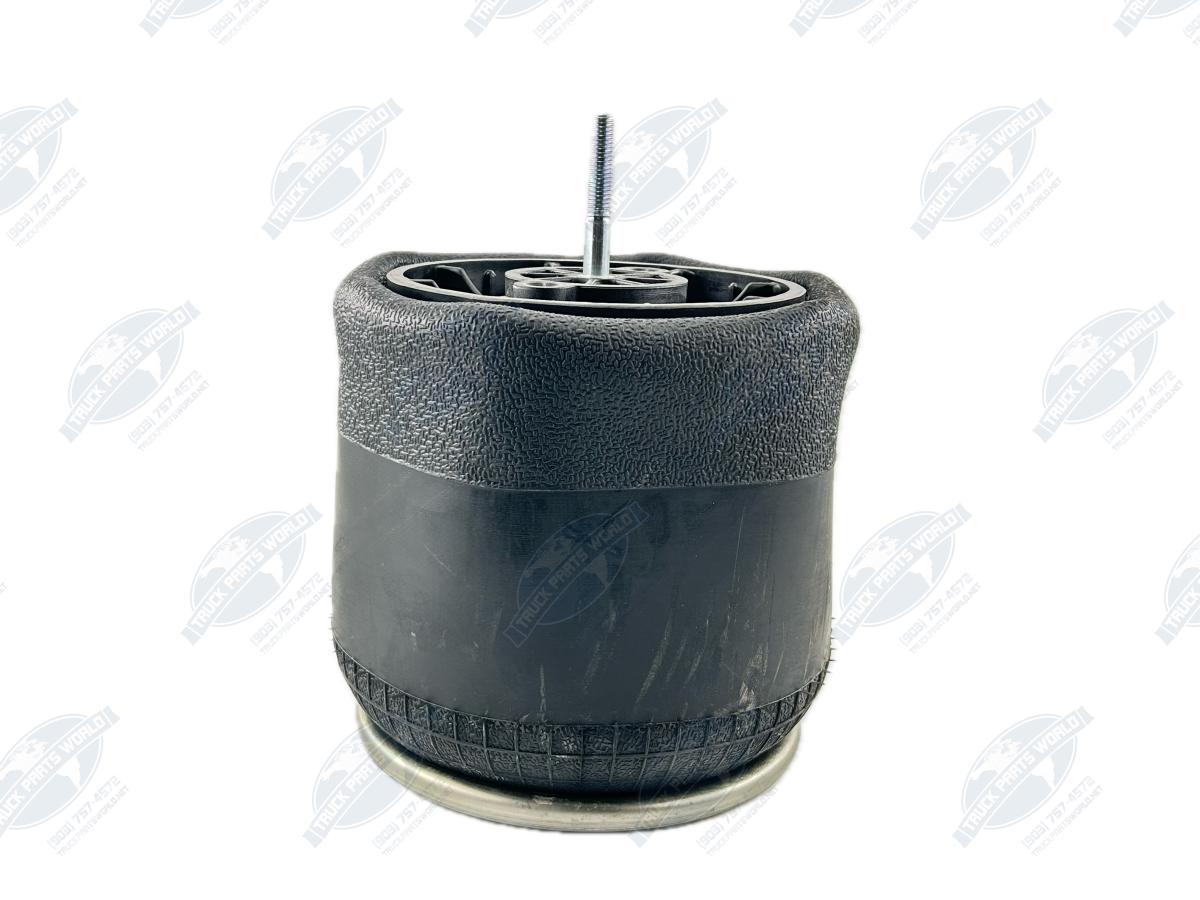

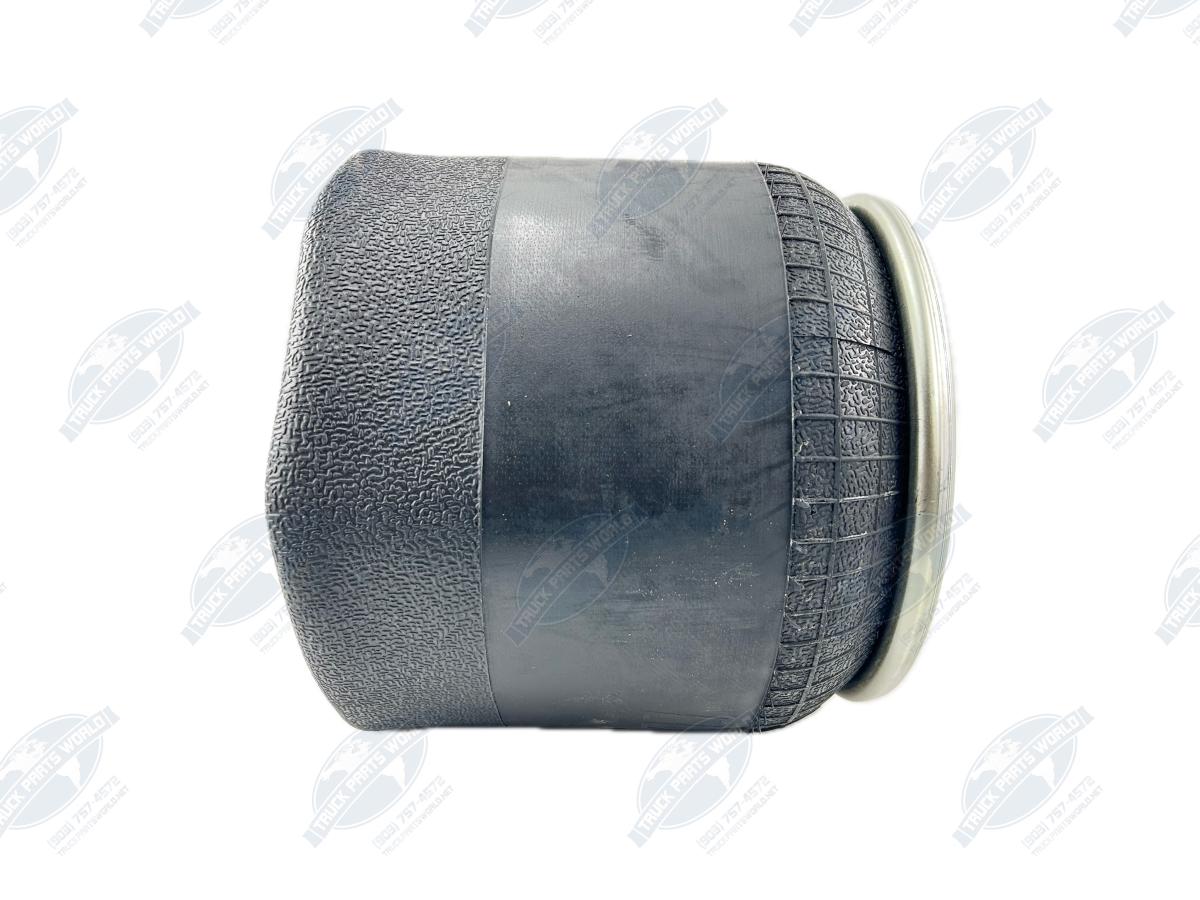

| Type | Rolling Lobe |
|---|---|
| Design Height | 16.00" |
| Min / Max Height | 7.80" / 25.20" |
| Load @ 100 PSI | 7100 lbs |

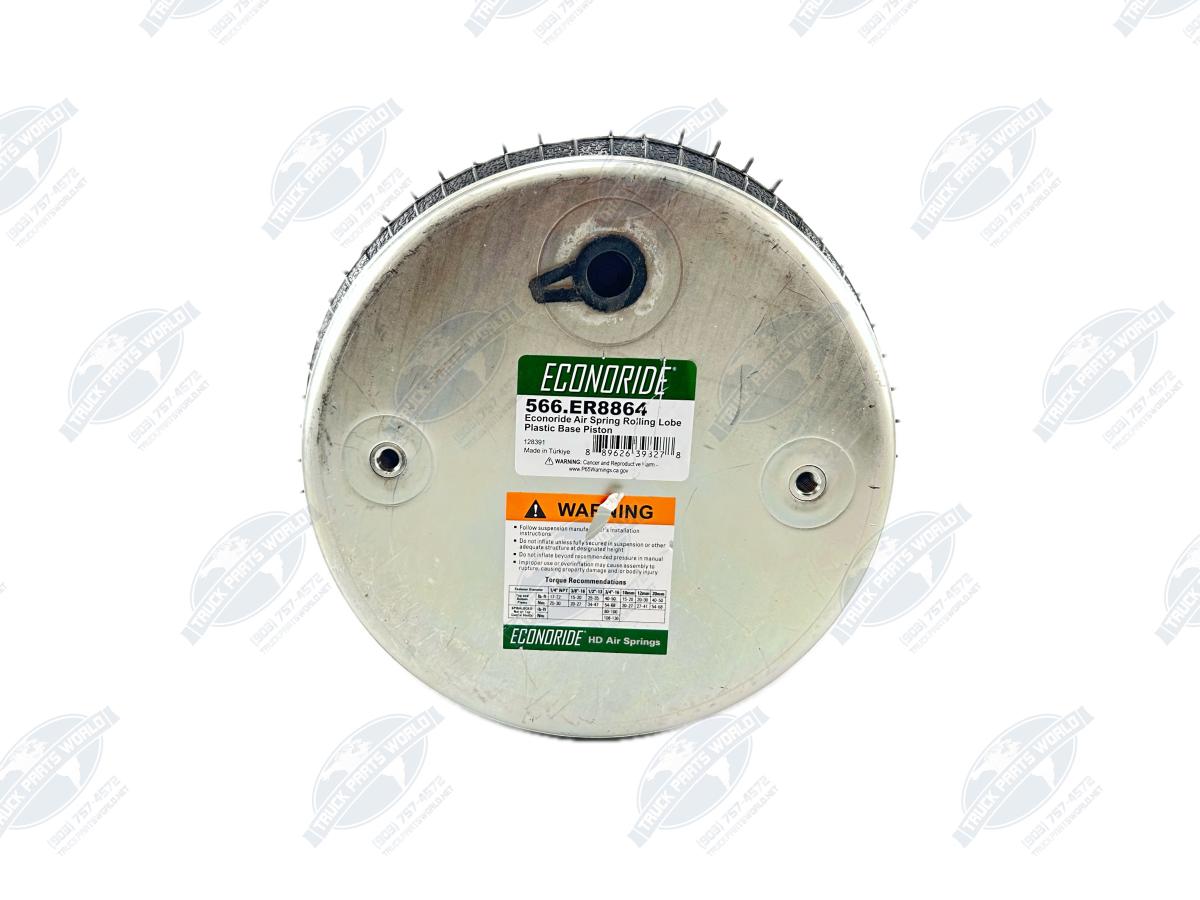

| Top Plate | 9.00" Dia | 3 Studs | 6.20" C to C |

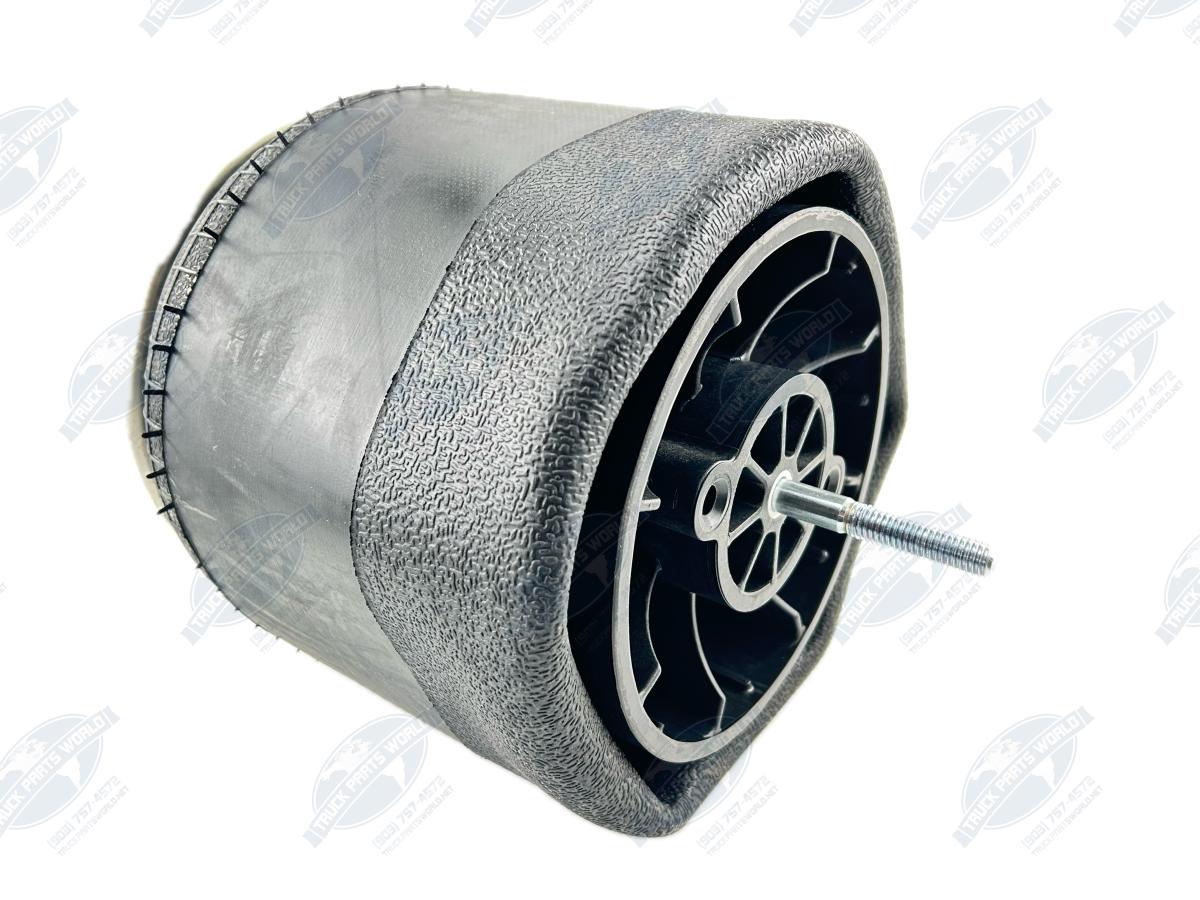

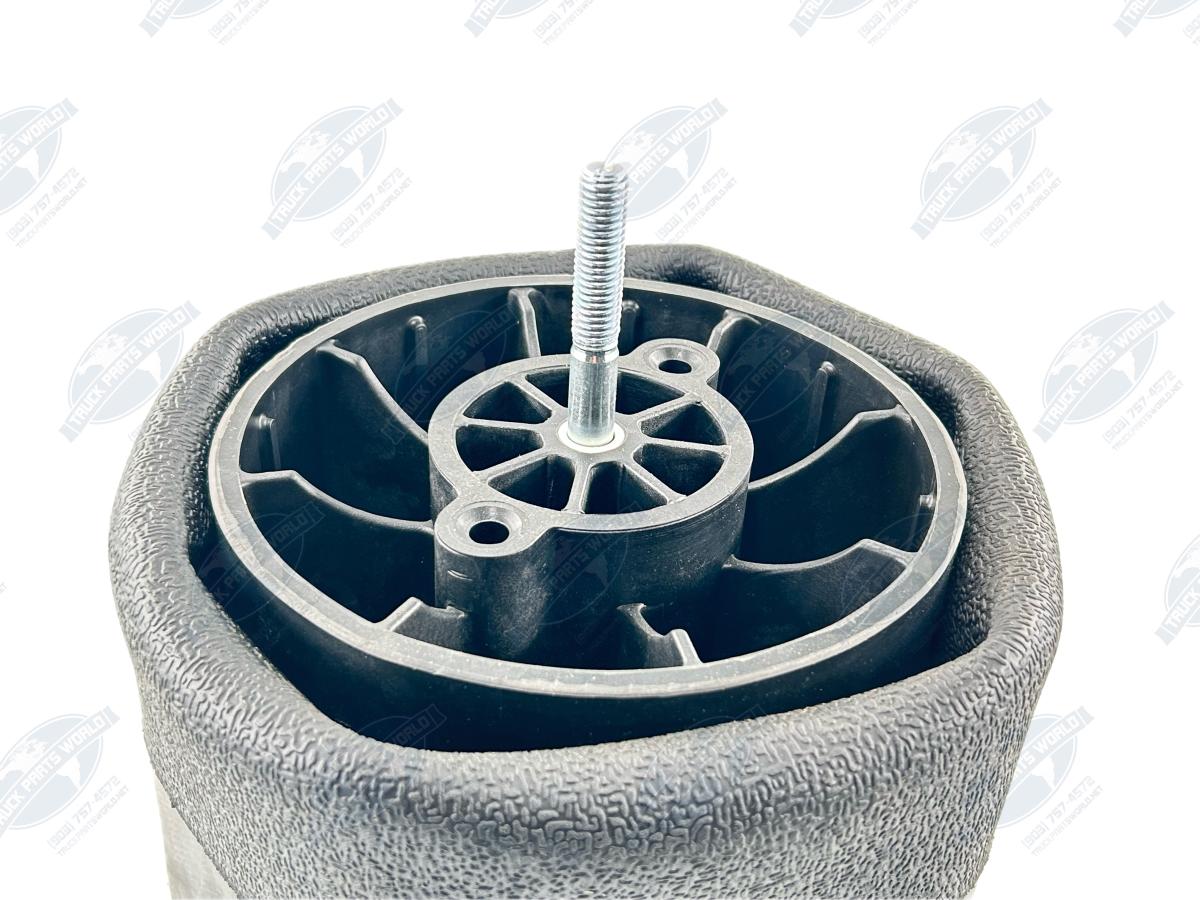

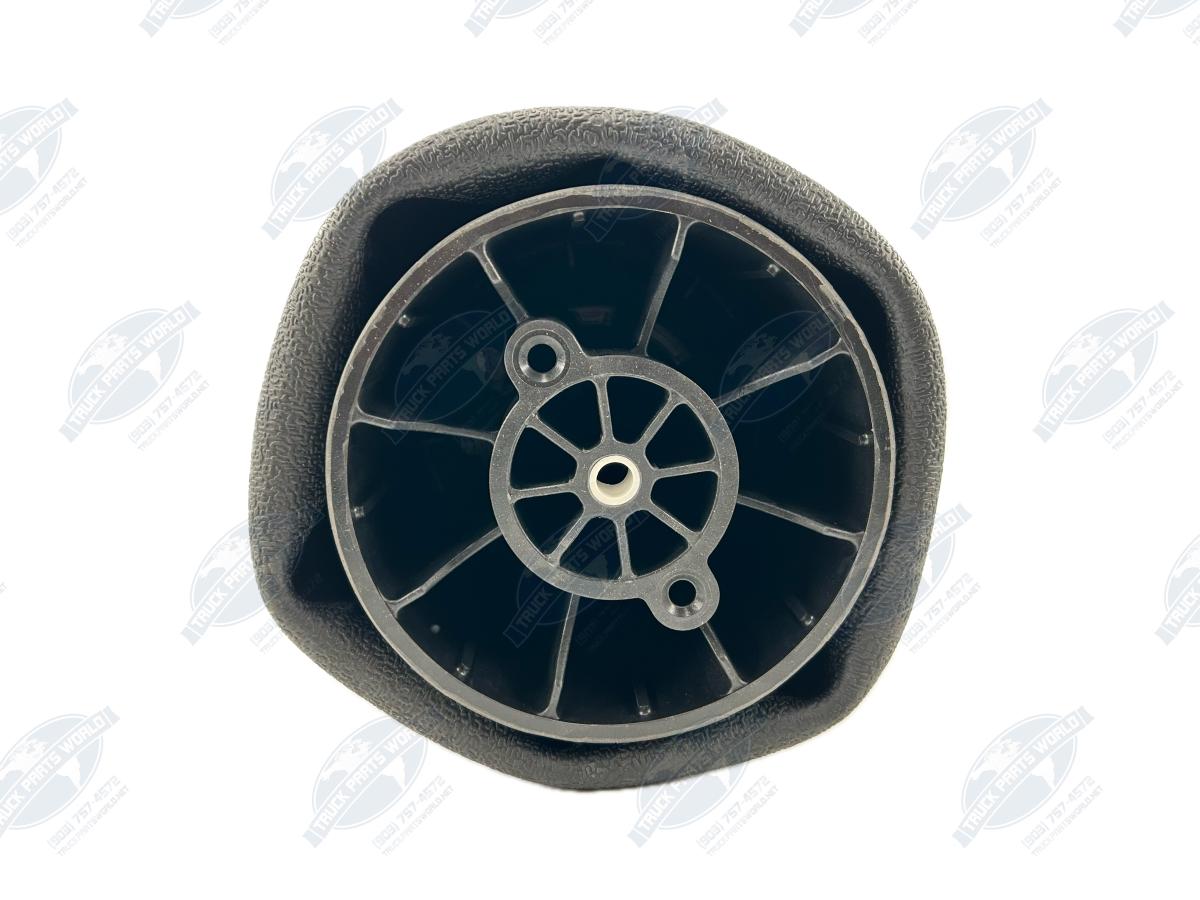

| Bottom Plate | 8.07" Dia | 1 Stud | Plastic Type |

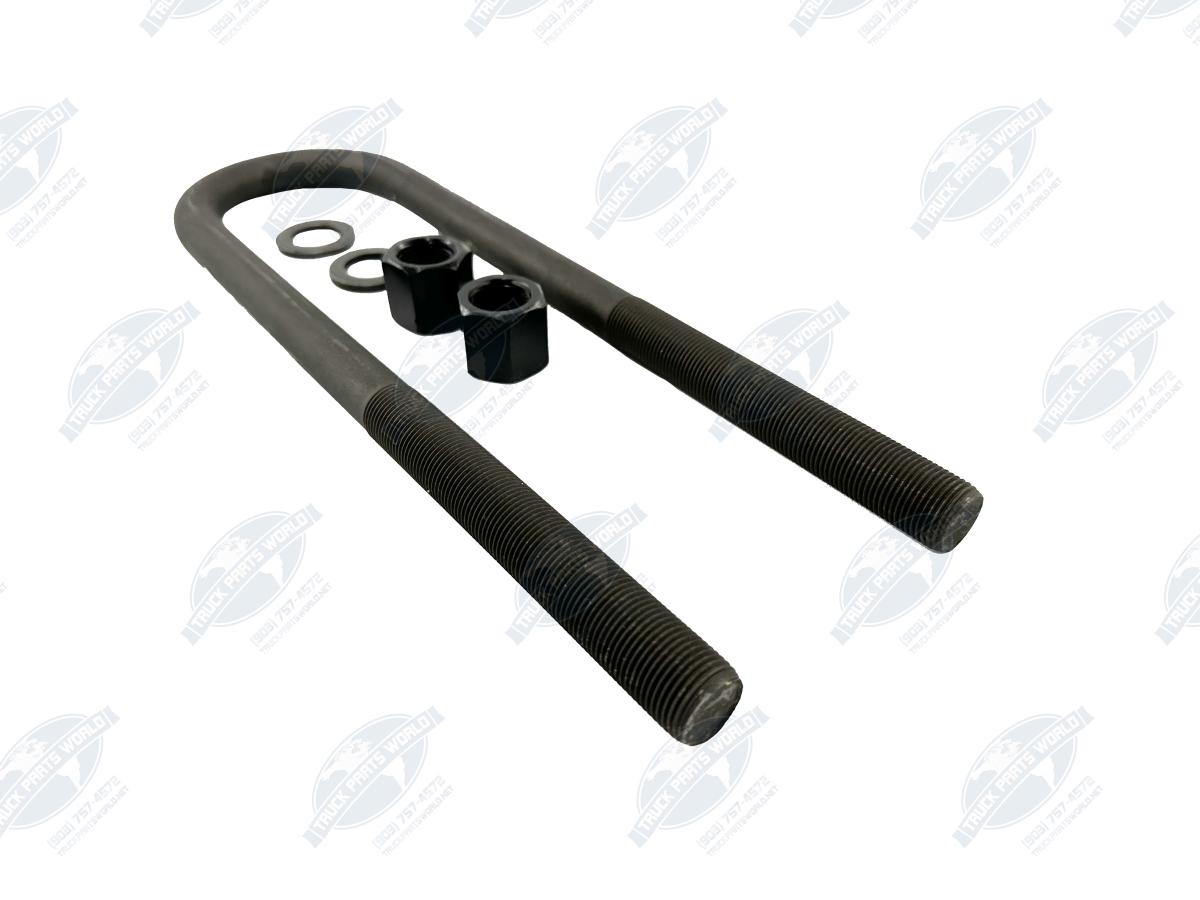

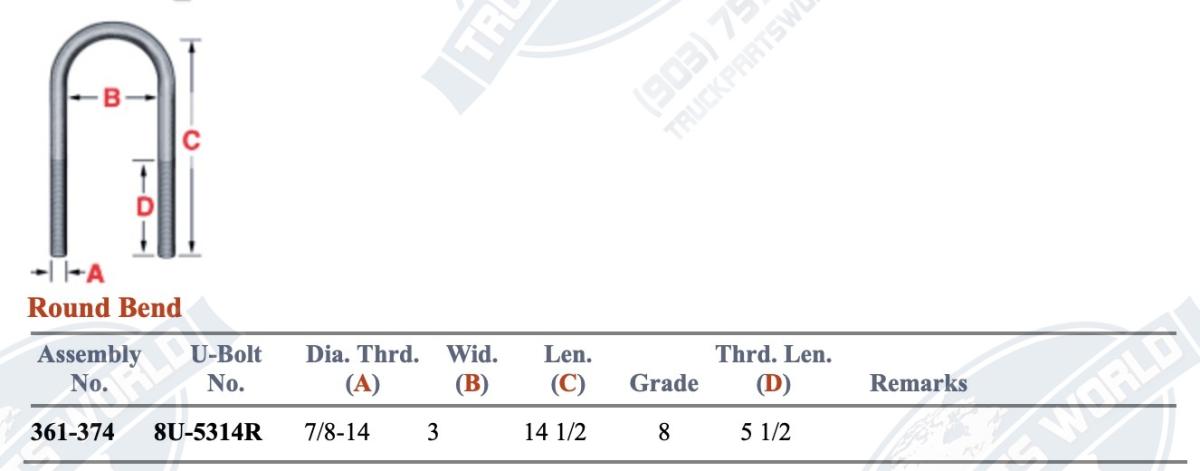

| Bend Type | Round Bend |
|---|---|

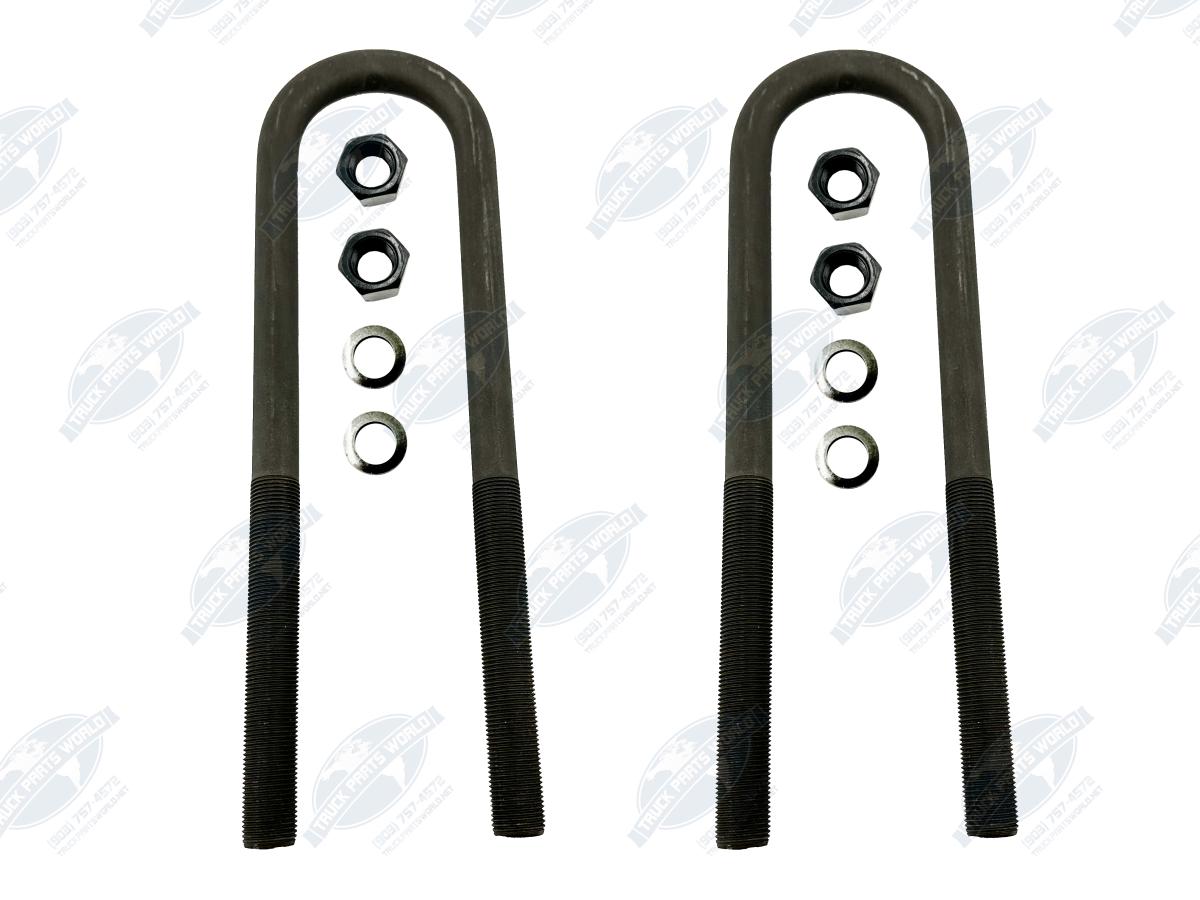

| Thread Diameter (A) | 7/8" - 14 (Fine Thread) |
| Inside Width (B) | 3-1/16" |
| Inside Length (C) | 14-1/2" |
| Bolt Grade | Grade 8 |
| Hardware | Includes Washers & Nuts |
This item is featured in the following suspension schematics:

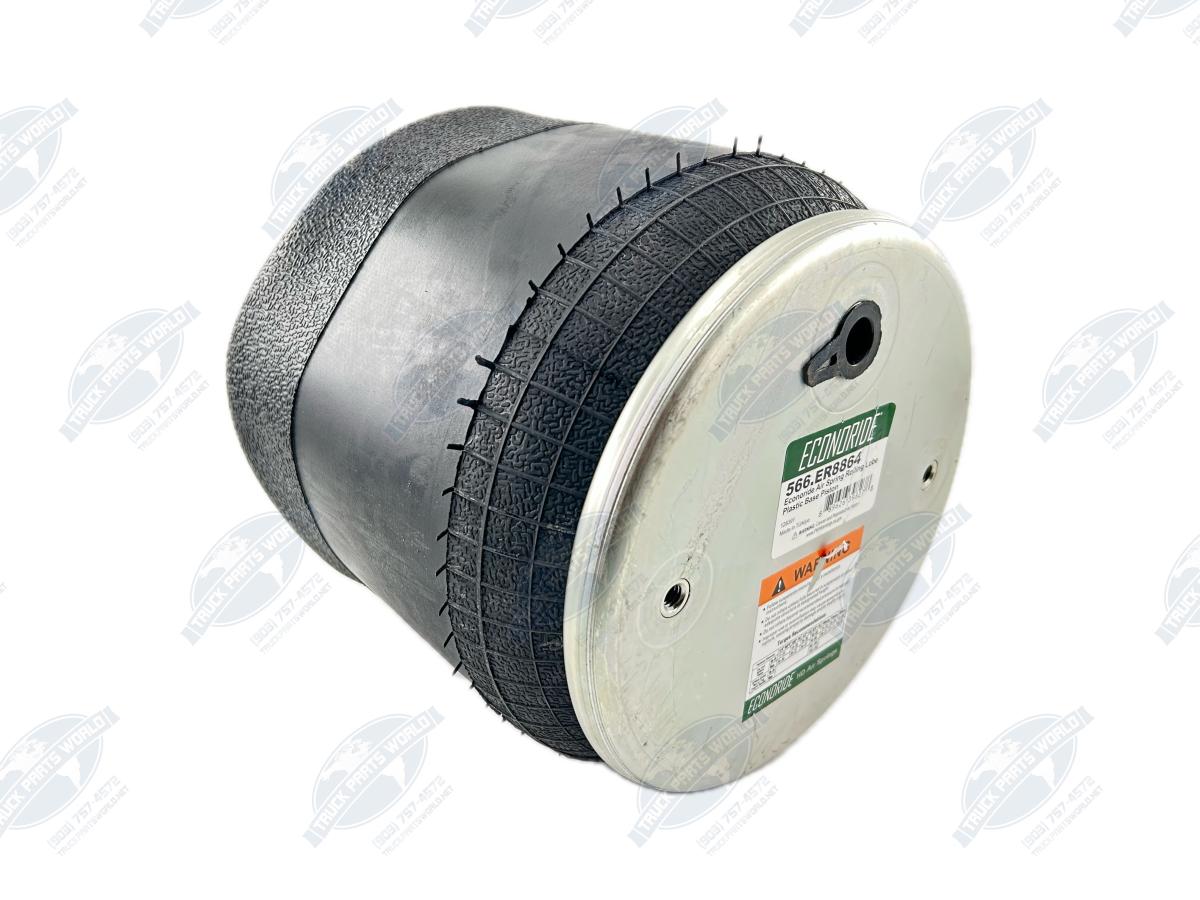

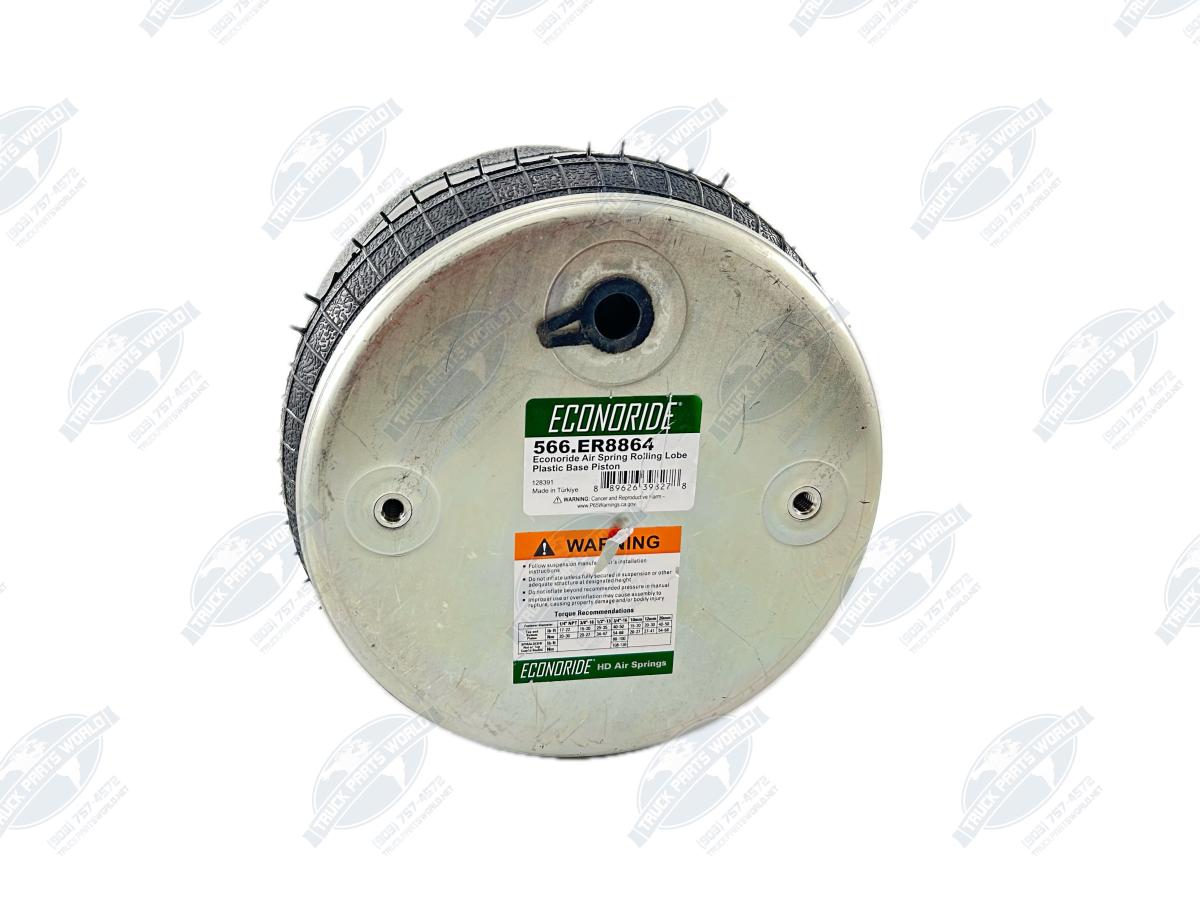

| Air Spring Part | 566.ER8864 (Qty: 1) |
|---|---|

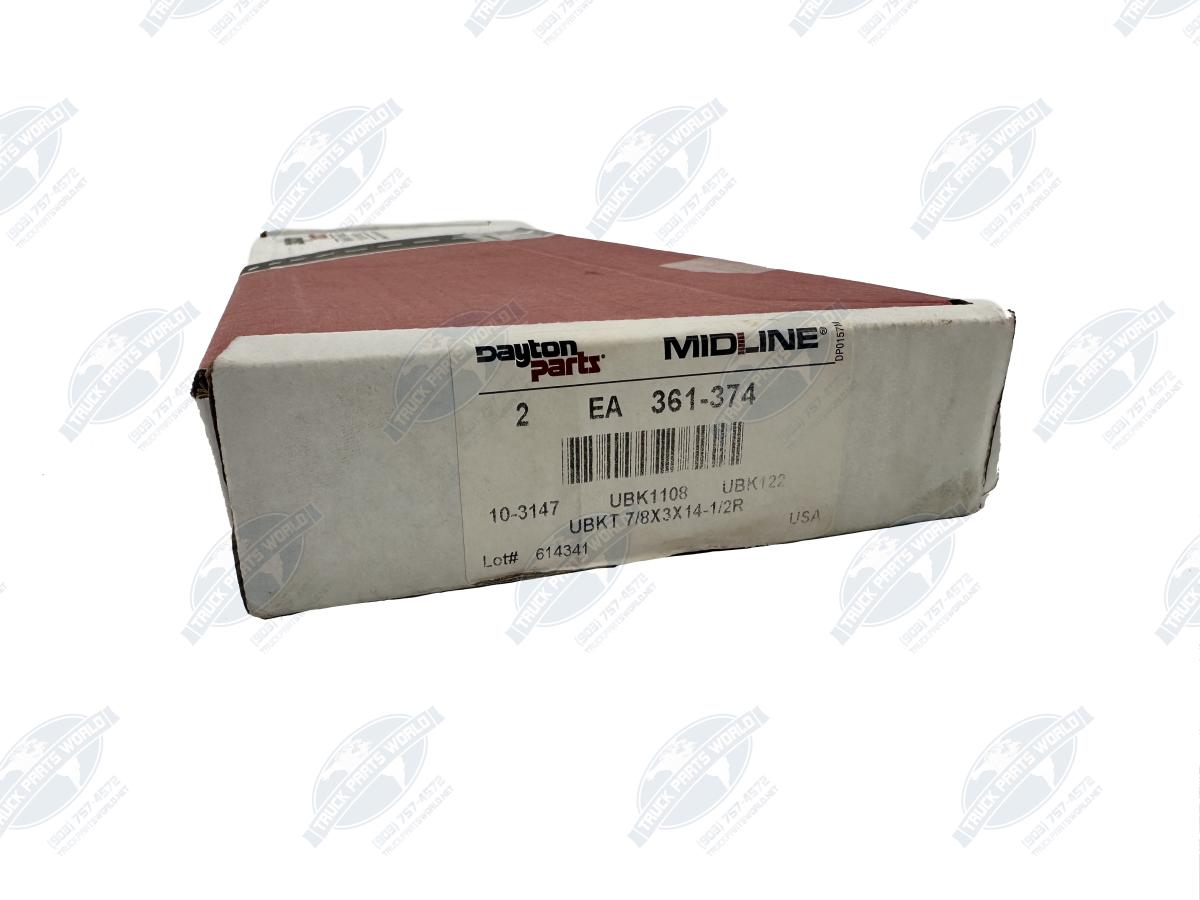

| U-Bolt Part | 361-374 (Qty: 2) |
| Stud Part | MPB7546 (Qty: 1) |

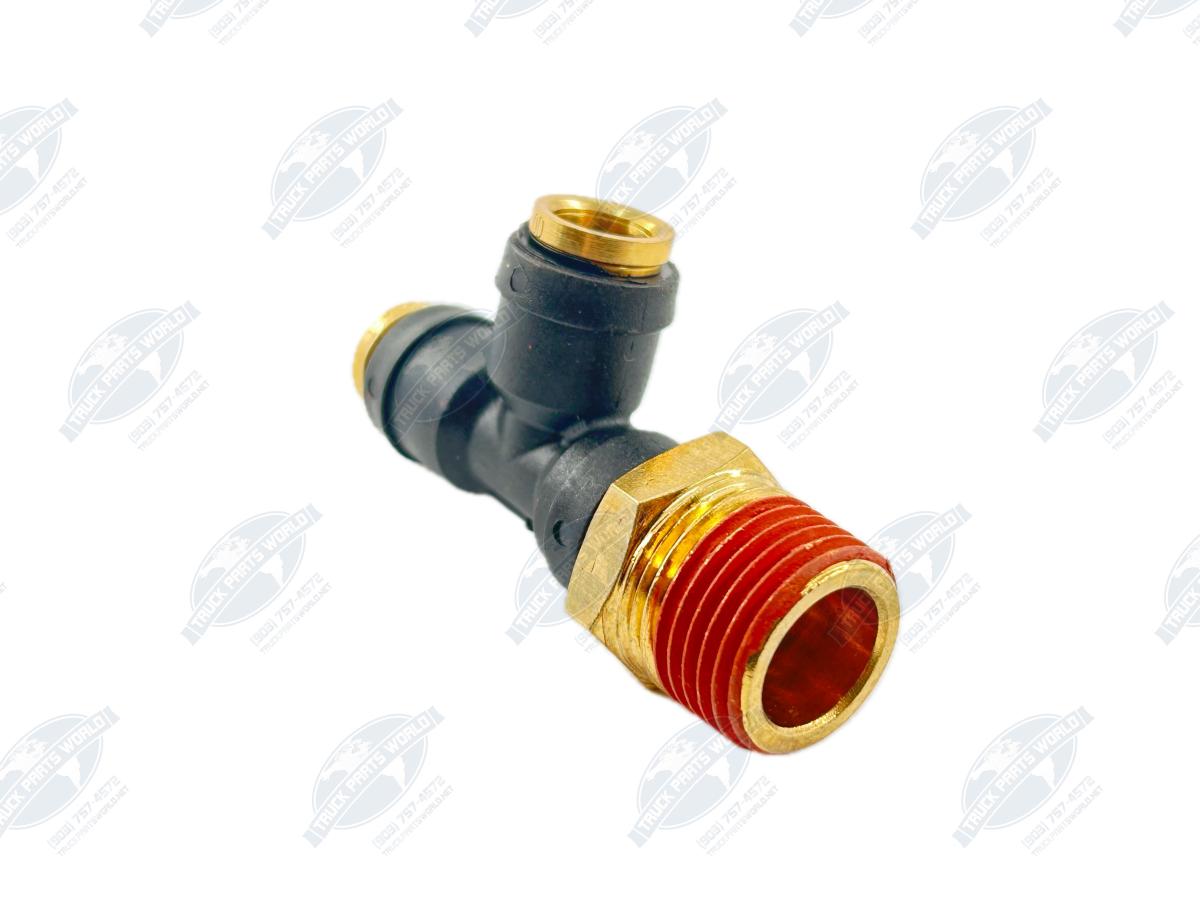

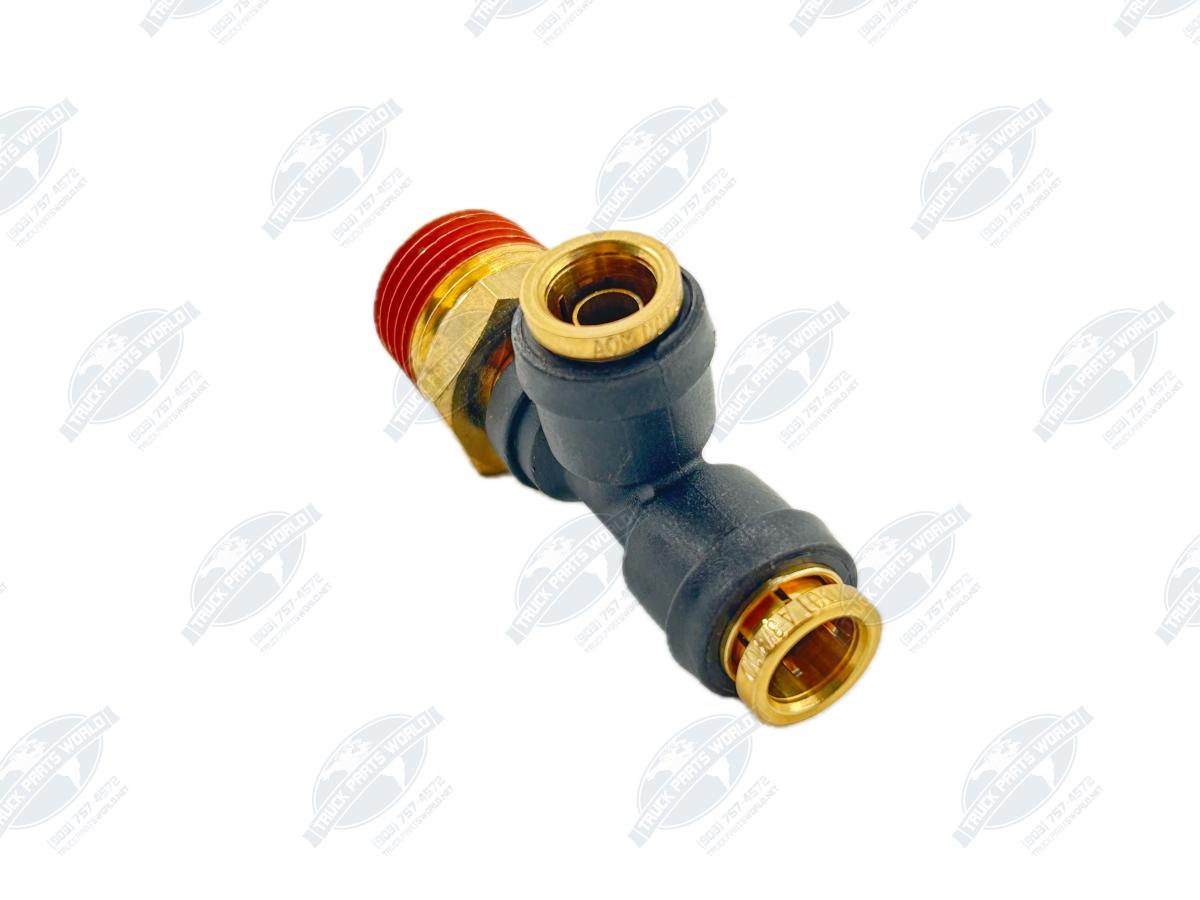

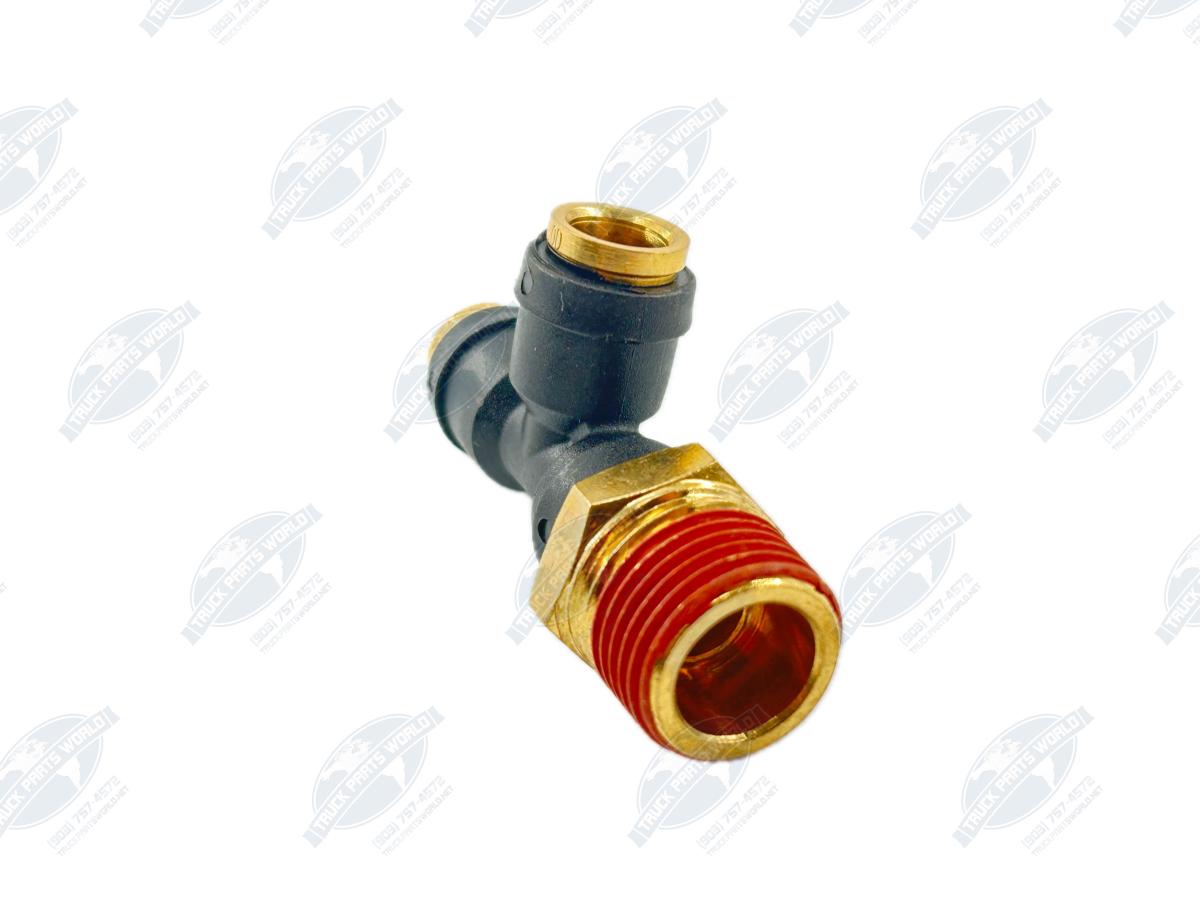

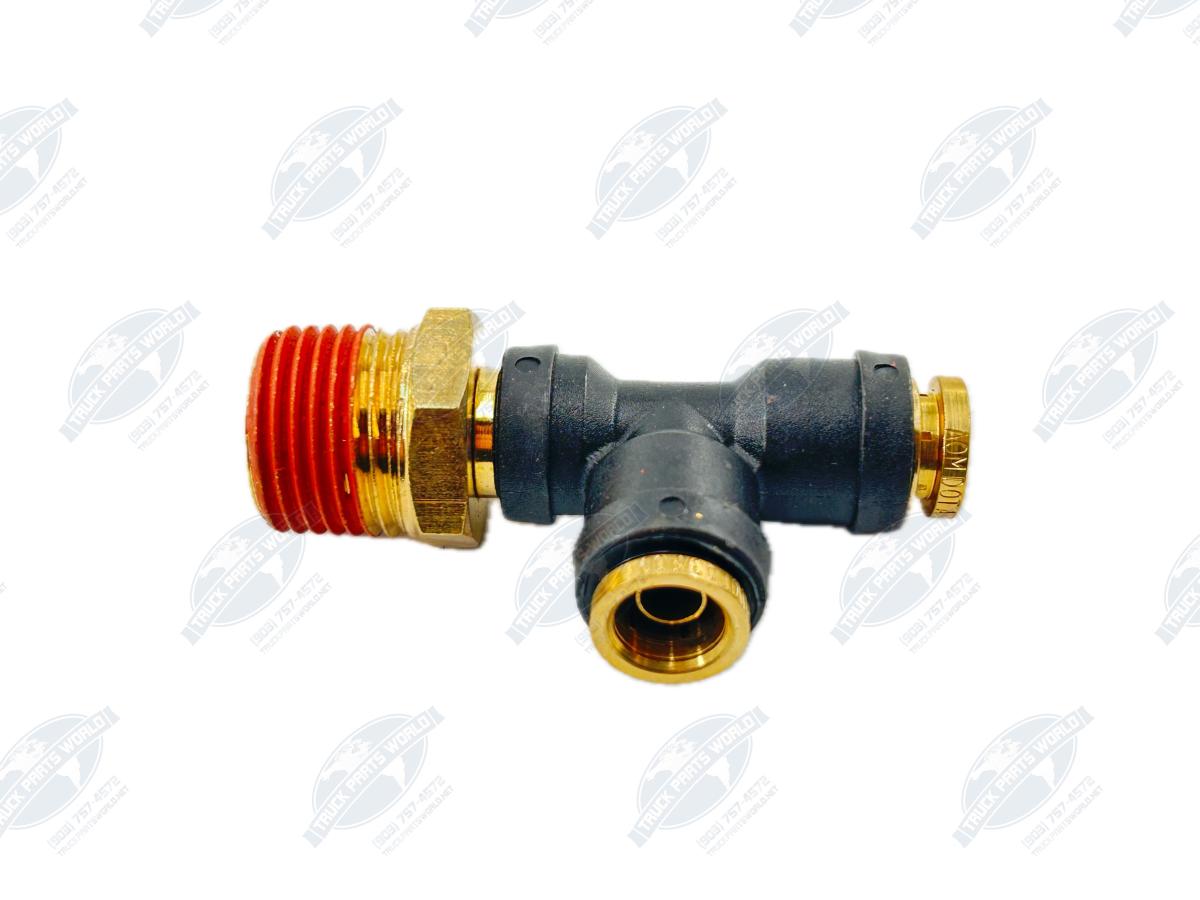

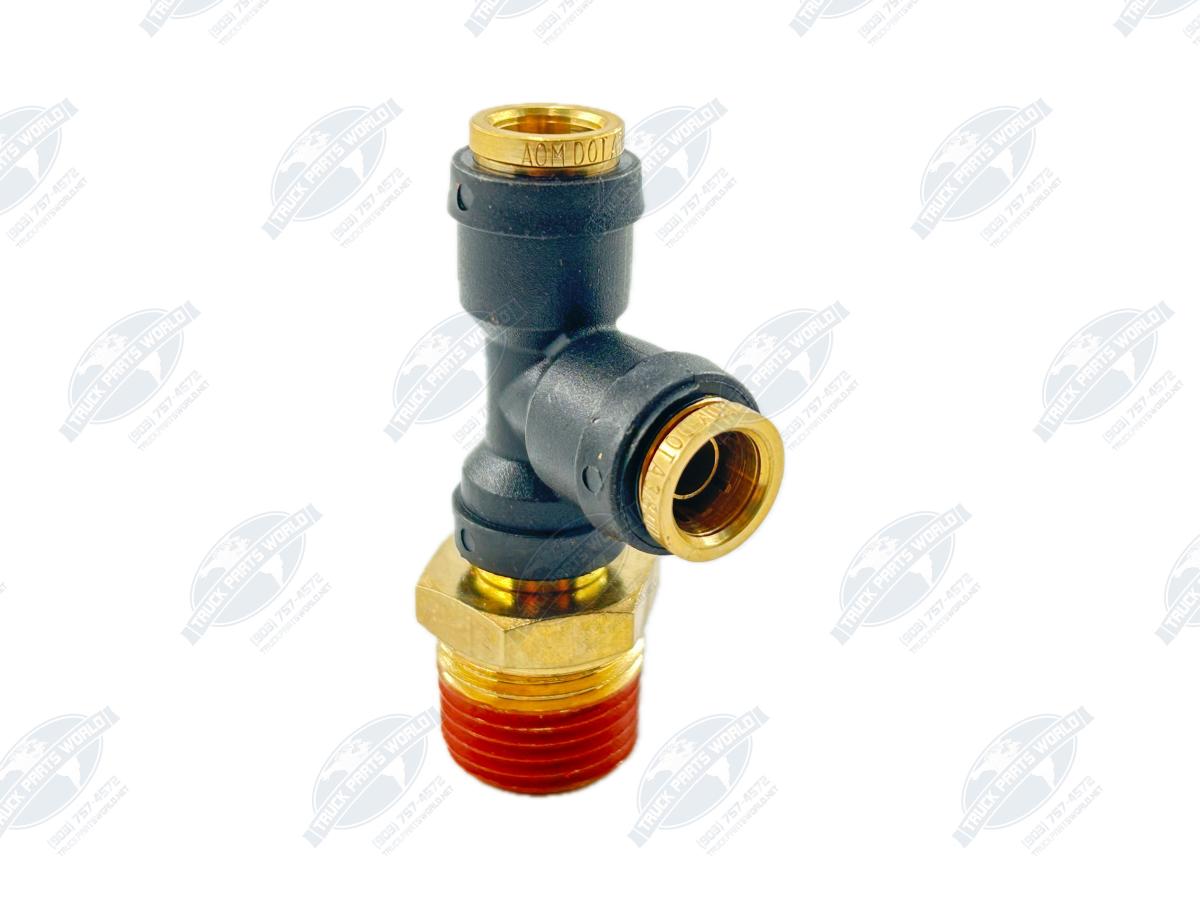

| Fitting Part | 177.12C716D (Qty: 1) |
| Application | Kenworth, Peterbilt |
FITMENT CHECK:
Please verify dimensions for both the Air Spring (Top/Bottom plate) and U-Bolts (3-1/16" Width) before ordering to ensure proper fitment.
Firestone 8864, W01-358-8864
Goodyear 1R12-1097
Contitech 9 10-19 P 898
Automann 1DK23L
