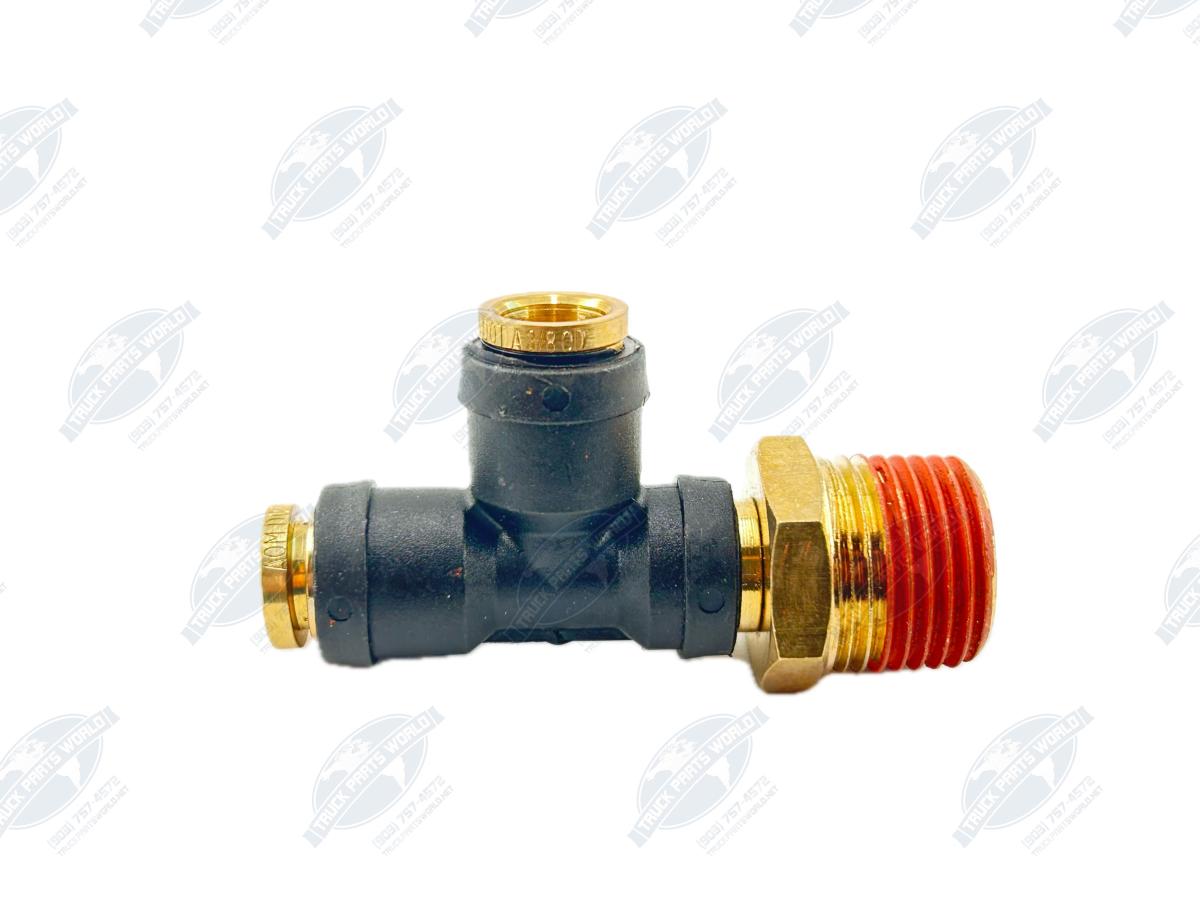

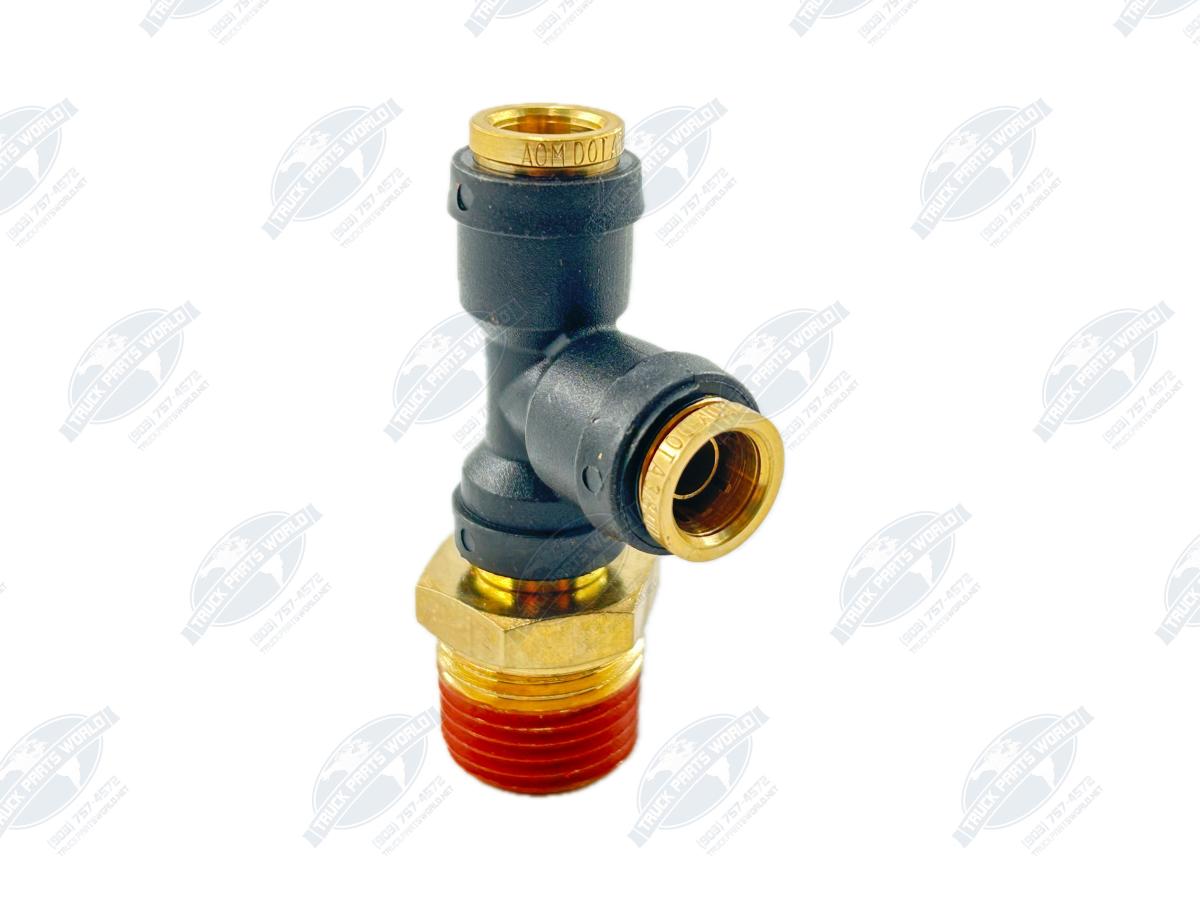

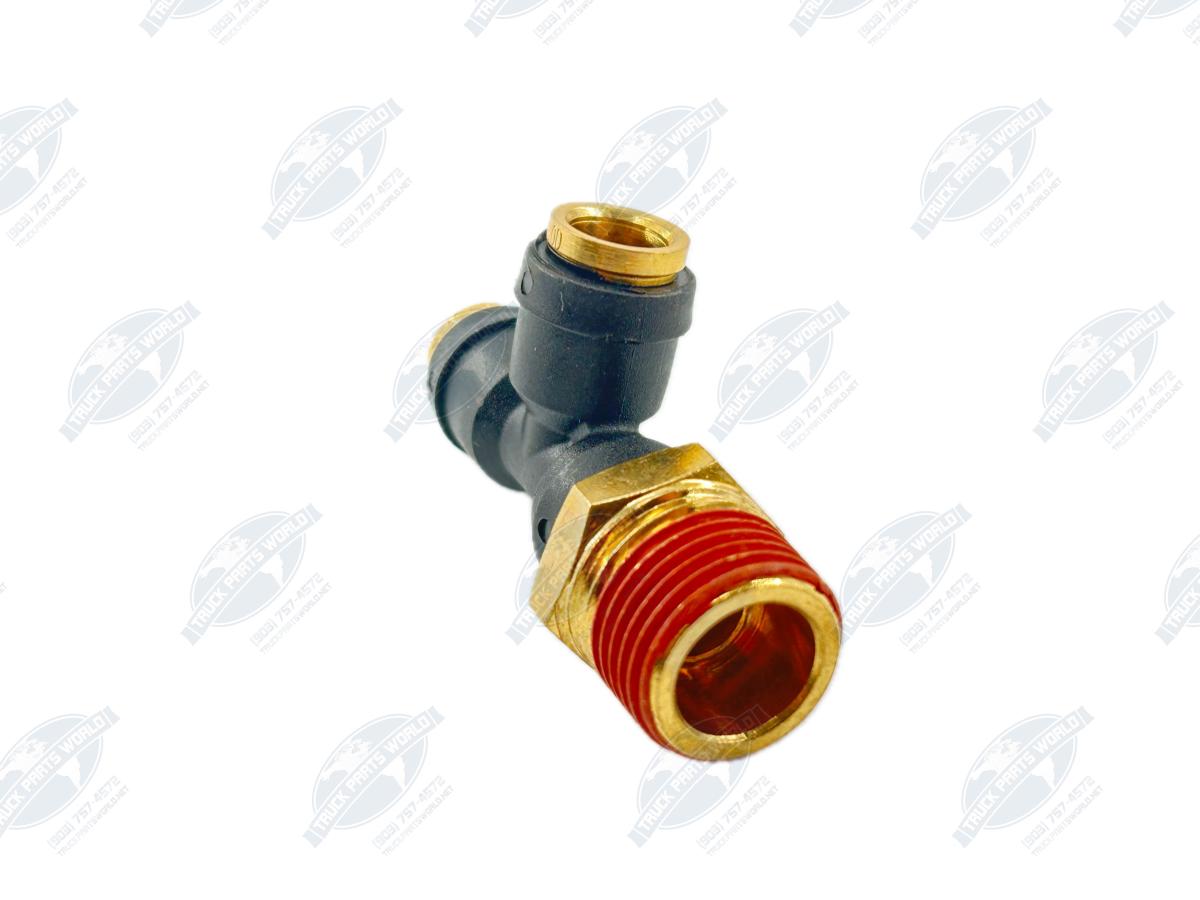

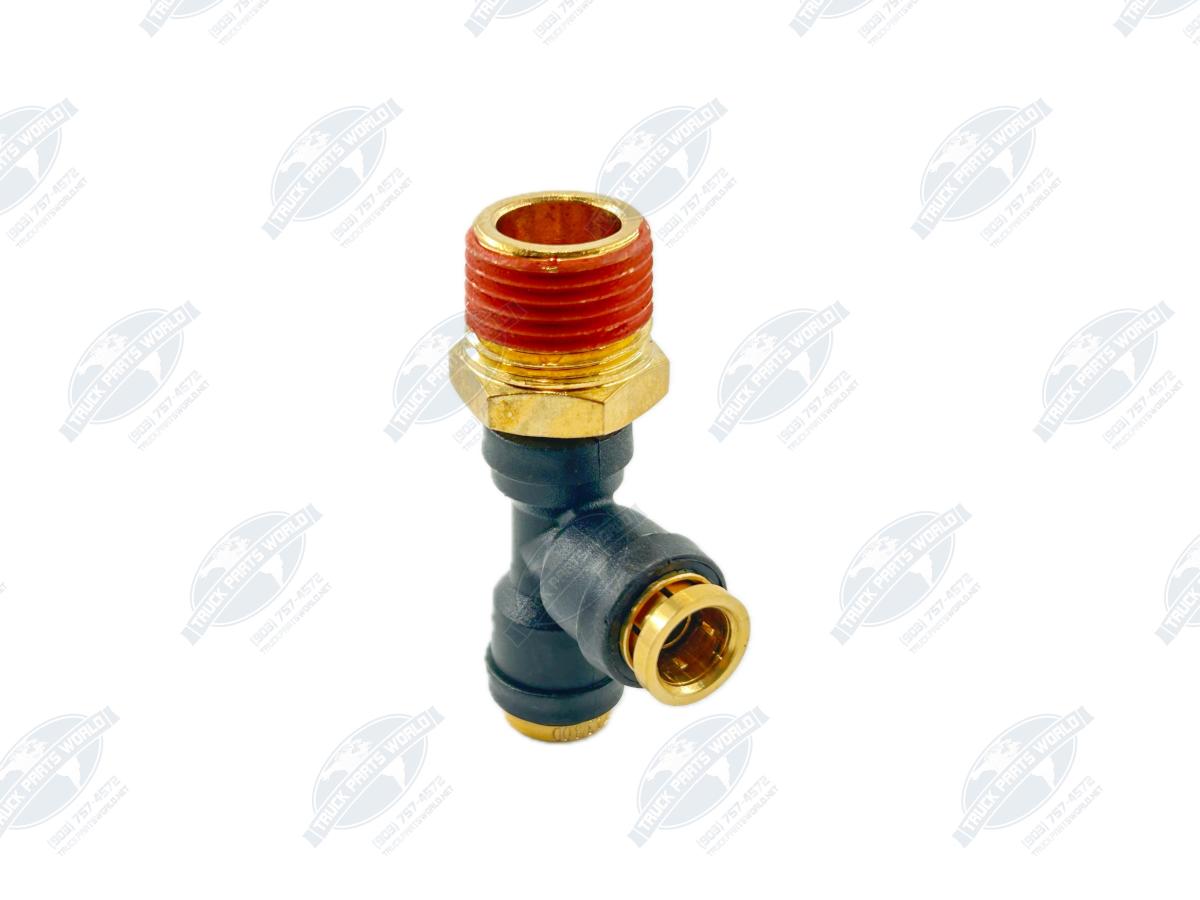

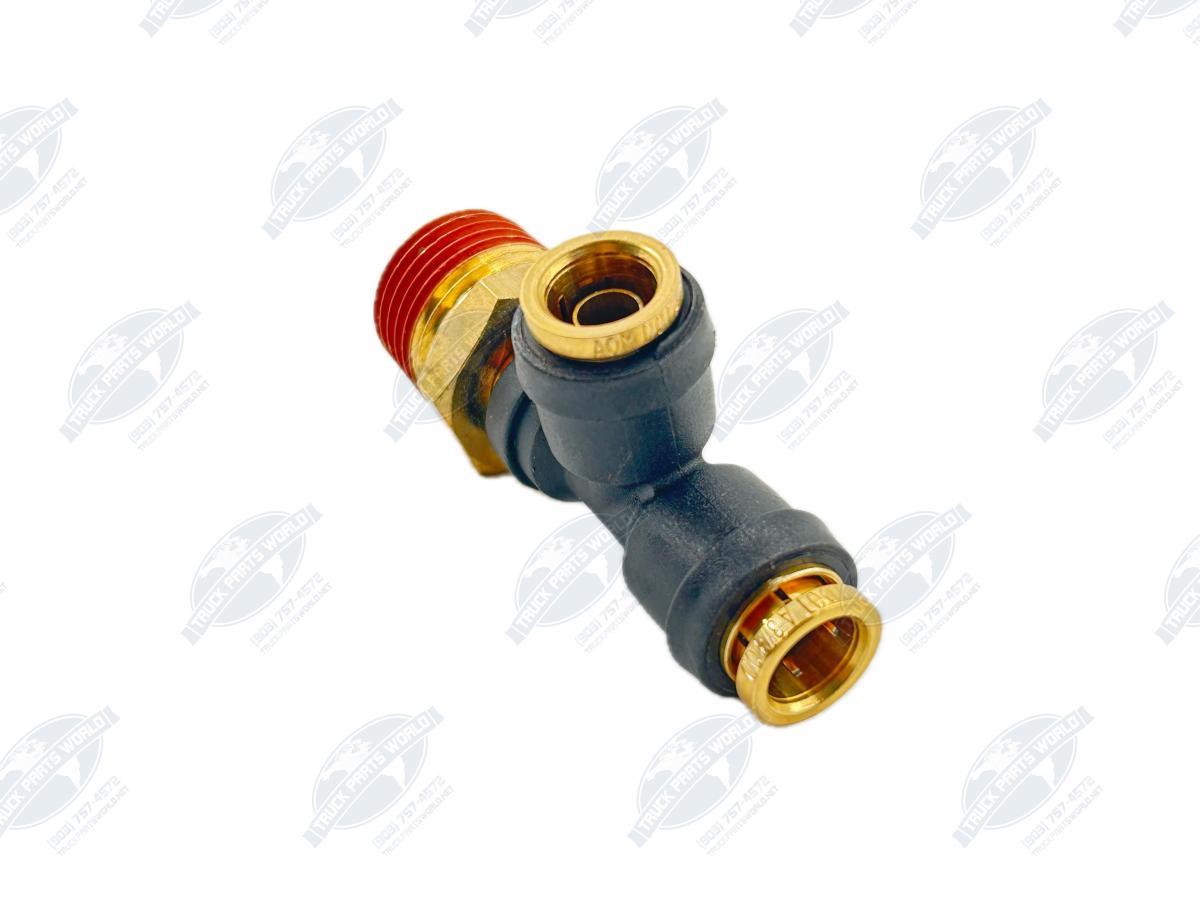

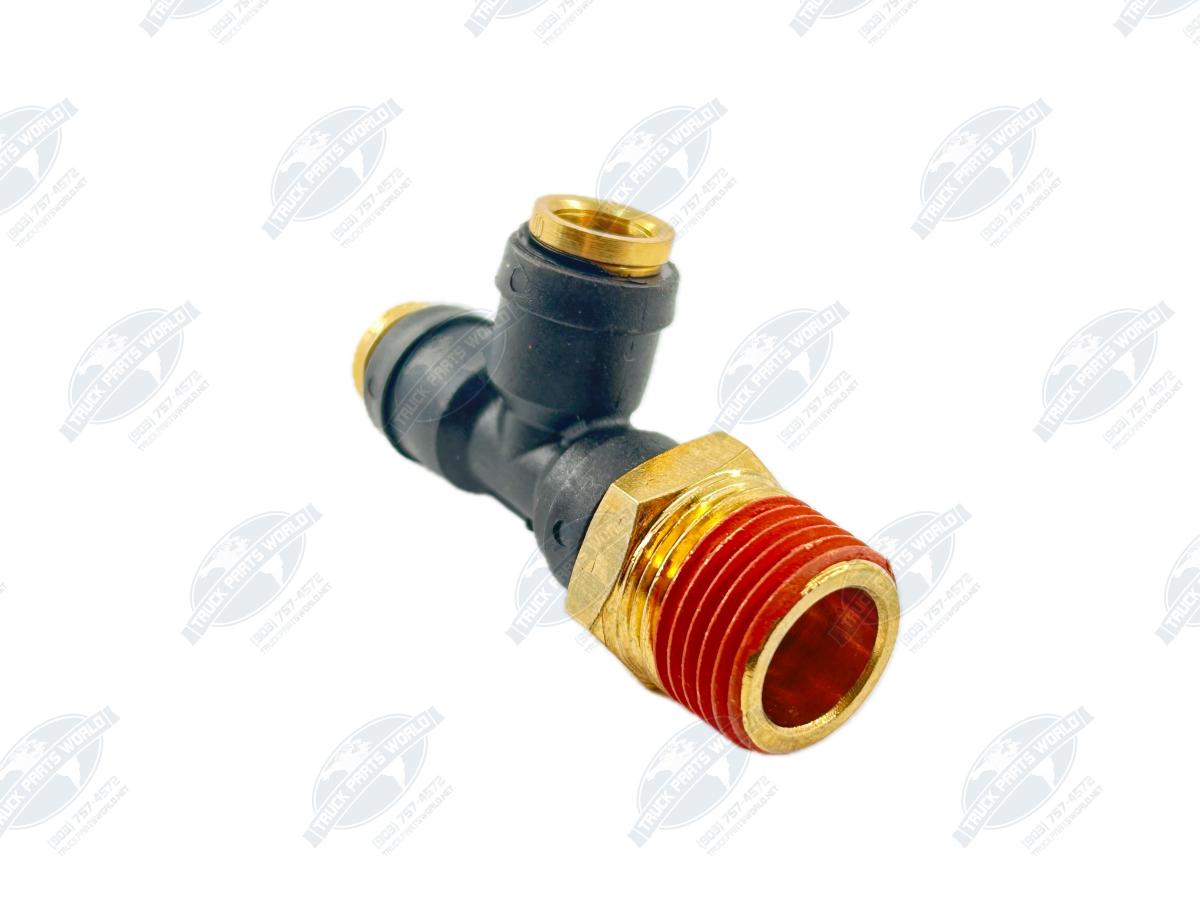

This is an Automann brand Push-Lock/Push-to-Connect Swivel Male Run Tee air brake fitting. Designed for heavy-duty commercial vehicles, it provides a reliable, secure connection between two air lines and a threaded pipe port.
DOT Approved: Meets all Department of Transportation requirements for air brake systems, ensuring safety and compliance.
Swivel Functionality (SWL): The male NPT thread base allows for easy installation and final positioning without loosening the seal.
Durable Construction: Features a lightweight Composite Body for corrosion resistance and a secure Brass Collet for maximum tube retention.
Quick Installation: The push-to-connect design allows for fast, tool-free assembly—just push the air line in until it seats.
| Attribute | Value |
| Manufacturer | Automann |
| Part Number (MPN) | 177.12C716D |
| Type | PLC SWL Male Run Tee |
| Connection Style | Push-Lock / Push-to-Connect |
| Tube OD (A) | 3/8" (9.5mm) |
| Tube OD (B) | 3/8" (9.5mm) |
| Male Pipe Thread | 1/2" NPT |
| Fitting Body Material | Composite |
| Collet Material | Brass |
| Tube Type Compatibility | Nylon/Polymer Air Brake Tubing |
This Automann part is commonly used as a replacement for the following competitor part numbers:
QL13716D
016404
S771PMT68
Ideal for applications in trucks, trailers, buses, and heavy equipment that require branching an existing 3/8" air line run to a new 1/2" NPT pipe connection point. Used extensively in air suspension, air accessory, and primary/secondary air brake circuits.
Ensure air pressure is fully relieved from the system.
Cut nylon tubing cleanly and squarely, removing any burrs.
Push the tubing firmly into the collet until it bottoms out against the internal seal.
Pull lightly on the tube to ensure it is securely locked by the collet.
Note: Do not use sealant on the Push-Lock tube connection. Use an approved thread sealant on the 1/2" NPT connection only.
