Peterbilt Air Leaf Kit: 2x Castings 03-01654 + 2x Firestone 9069 Air Bags

This is for a Heavy Duty Suspension Repair Kit designed for Peterbilt Rear Air Leaf suspensions. This kit includes quantities of 2 for all major components, including Genuine Firestone Air Springs, making it ideal for servicing two wheel ends.

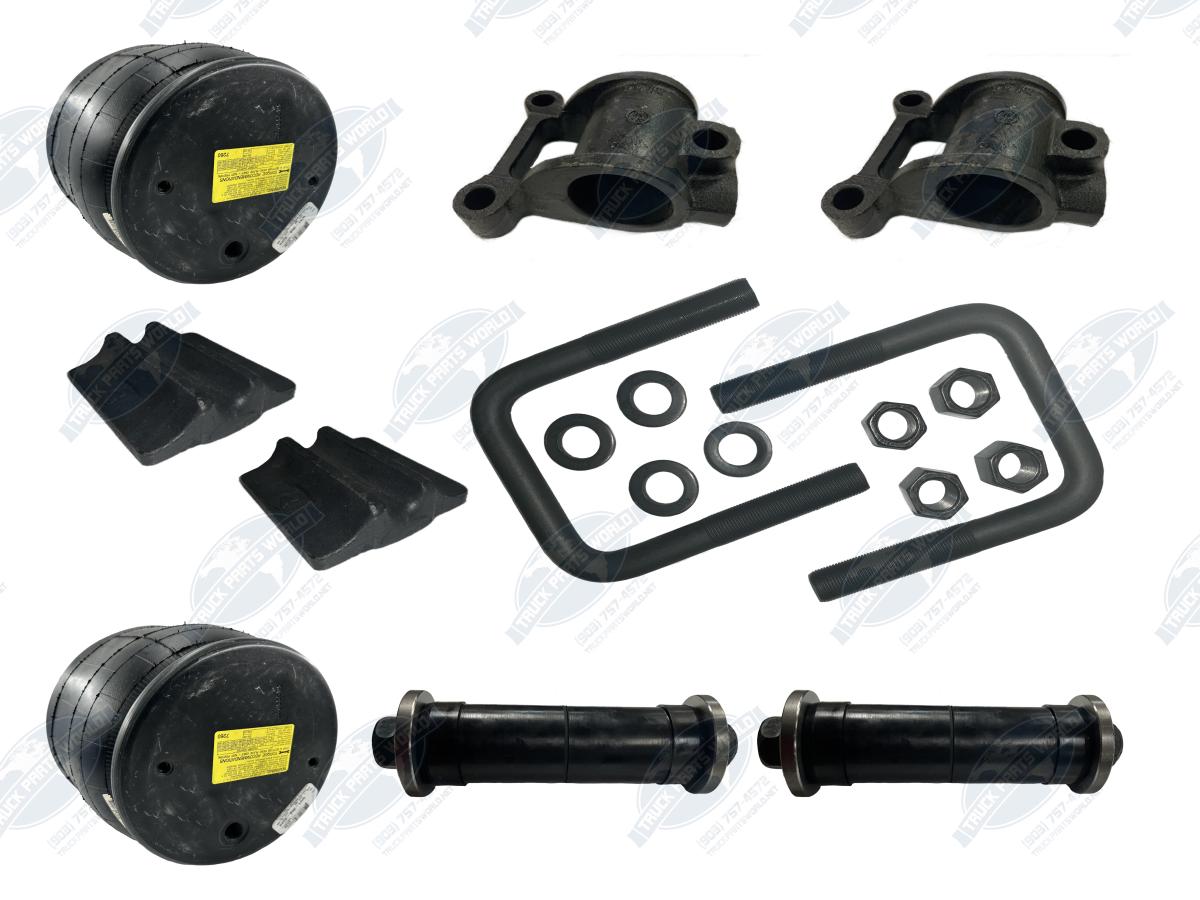

Kit Contents: You will receive 2 Firestone Air Springs, 2 Air Leaf Castings, 2 Top Plates (Saddles), 2 Spring Eye Bushing Kits, and a total of 2 U-Bolts (with nuts and washers).

All components are premium aftermarket replacements designed to meet or exceed OEM specifications for fit, form, and function.

Component Details

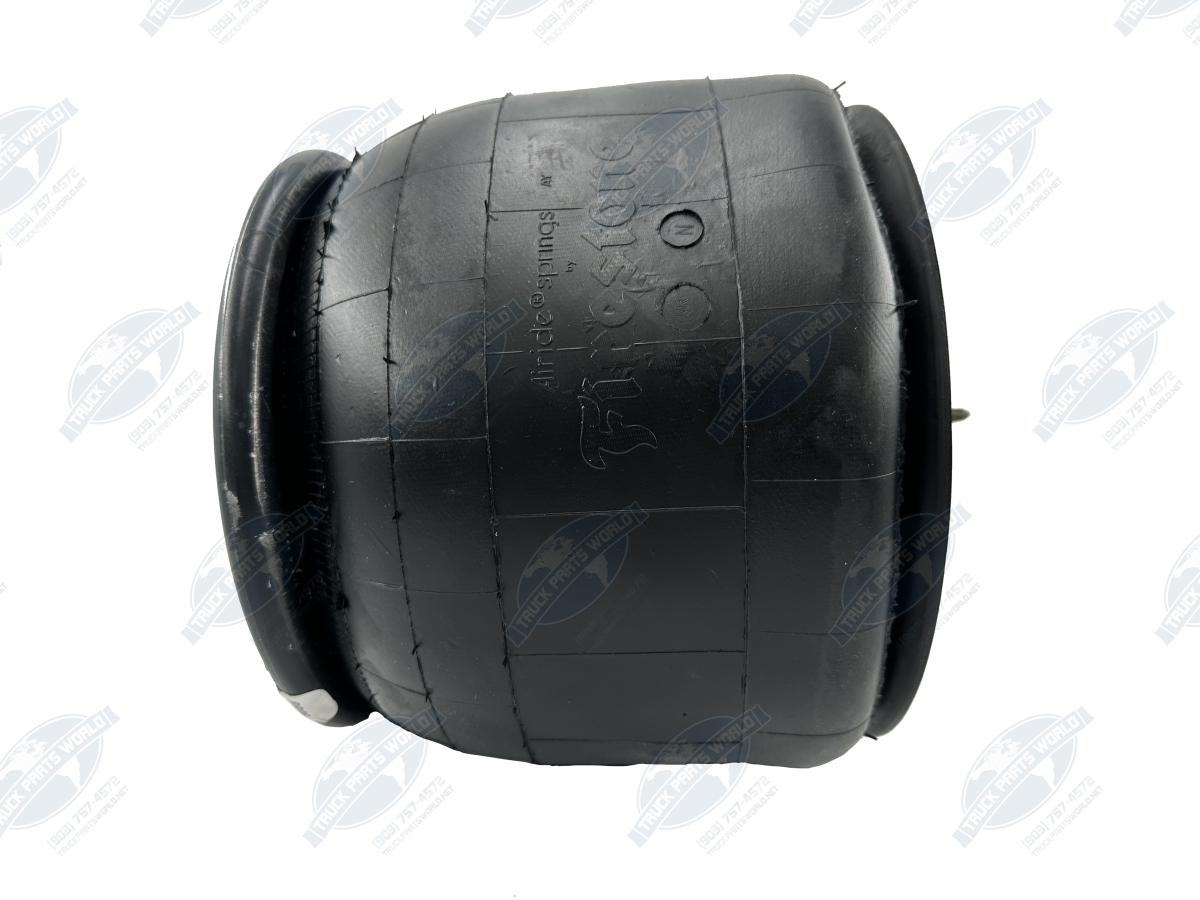

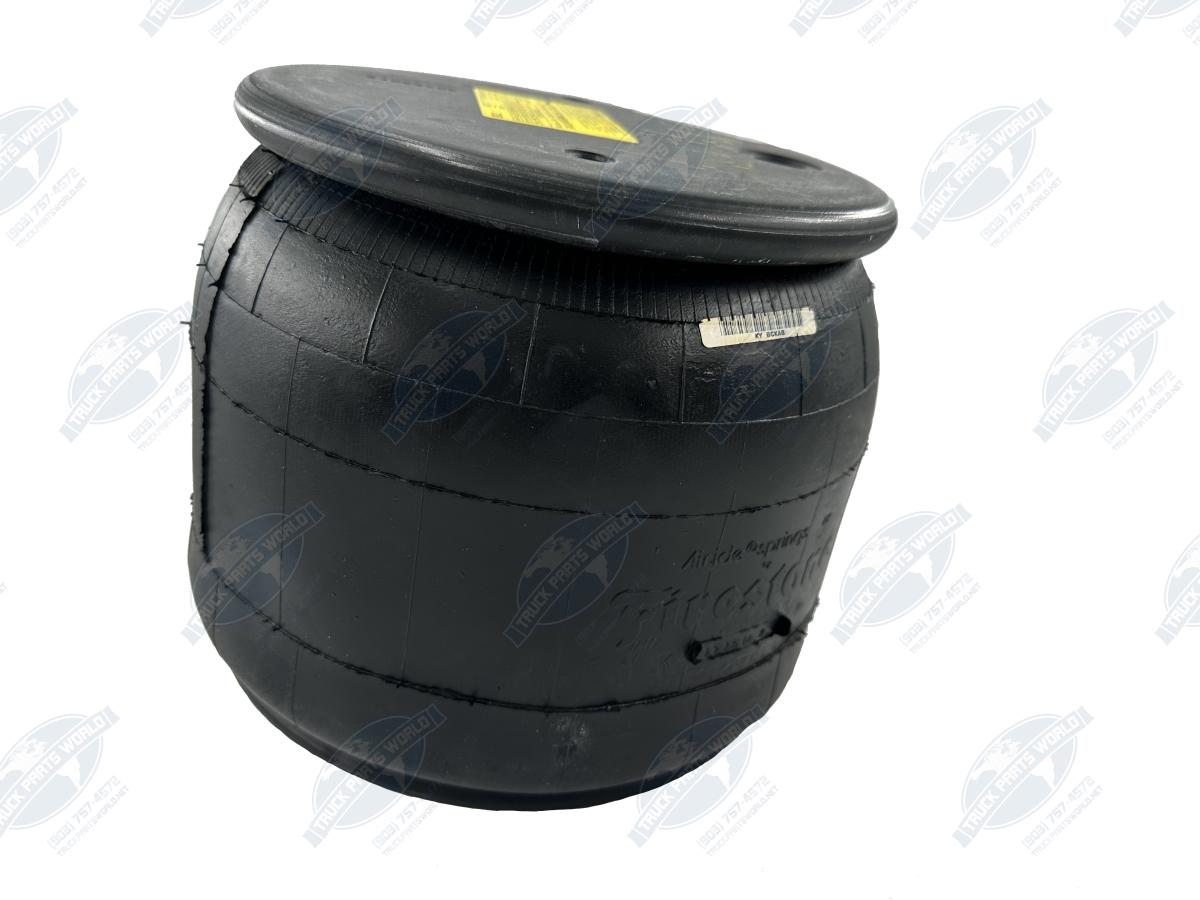

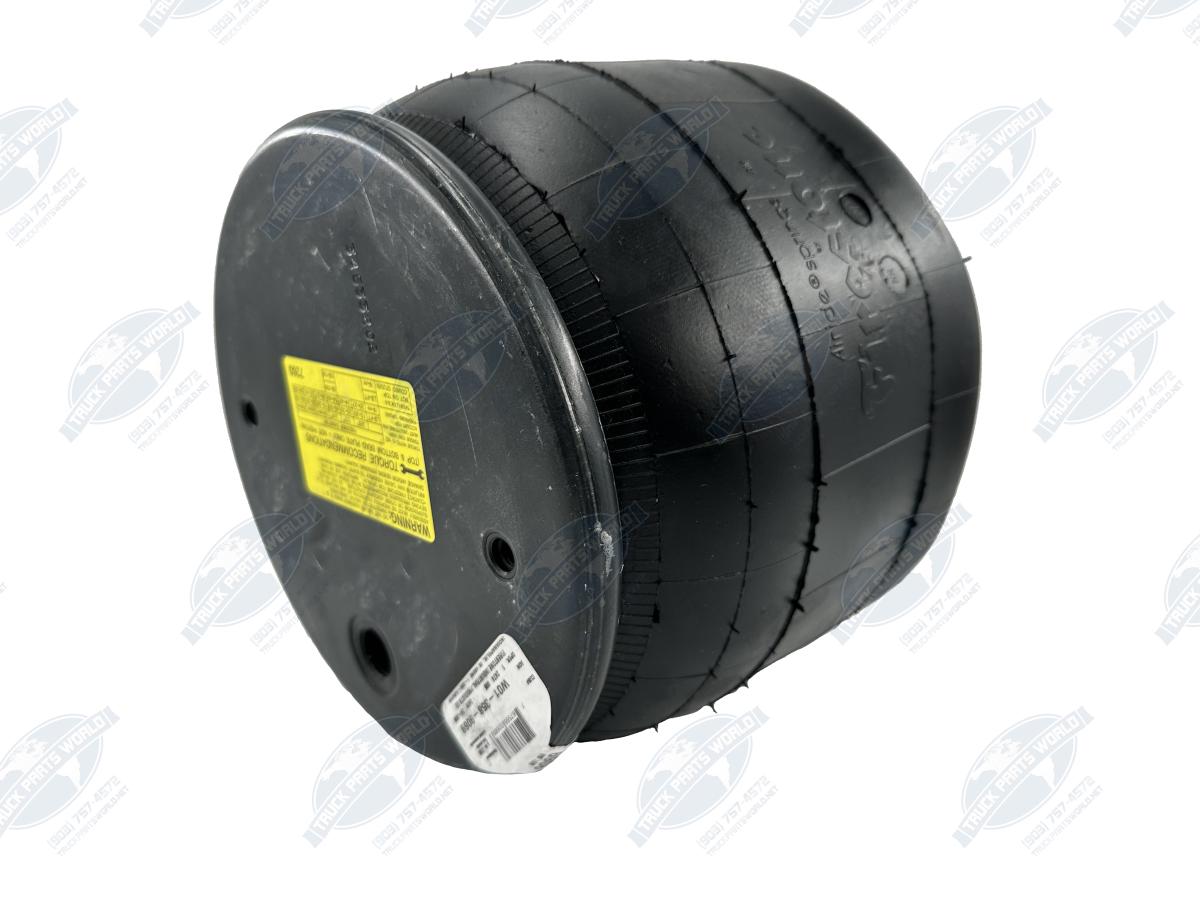

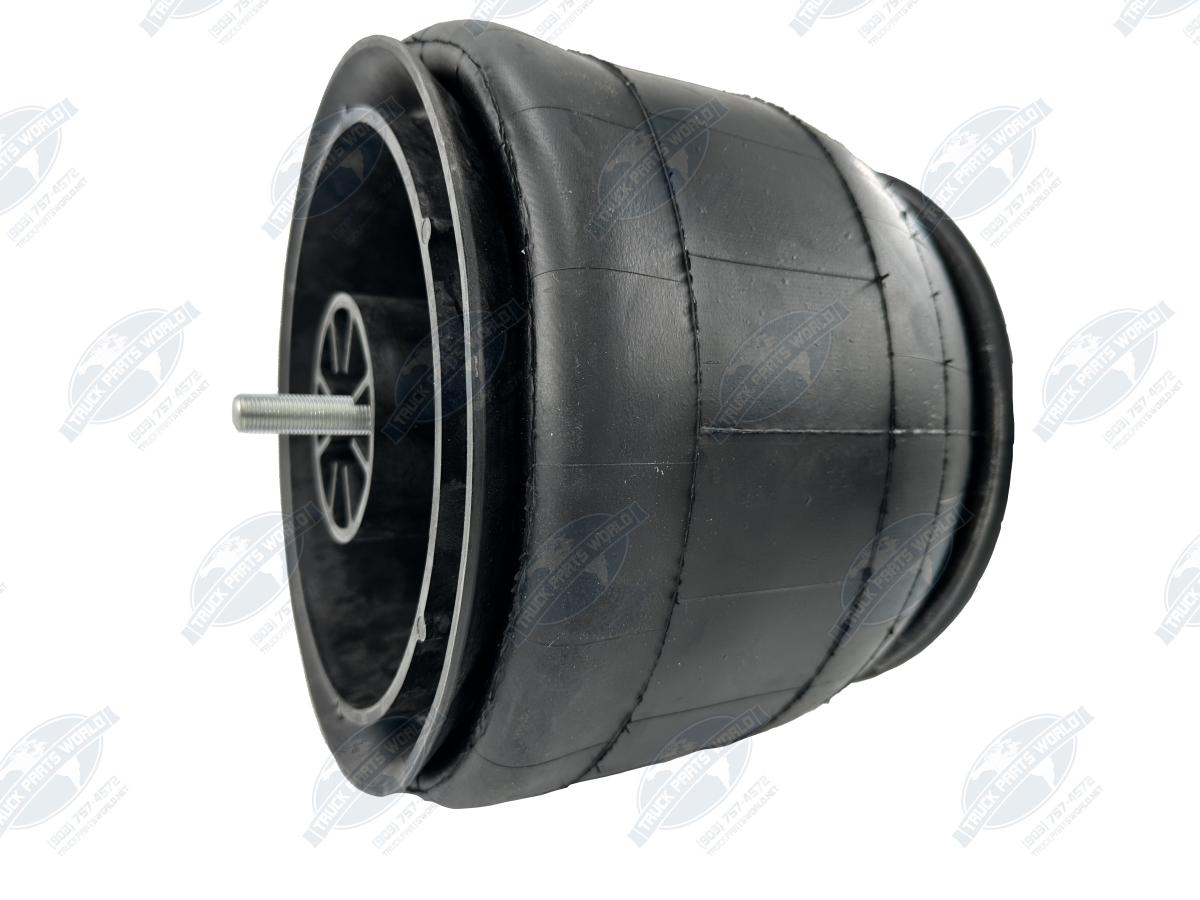

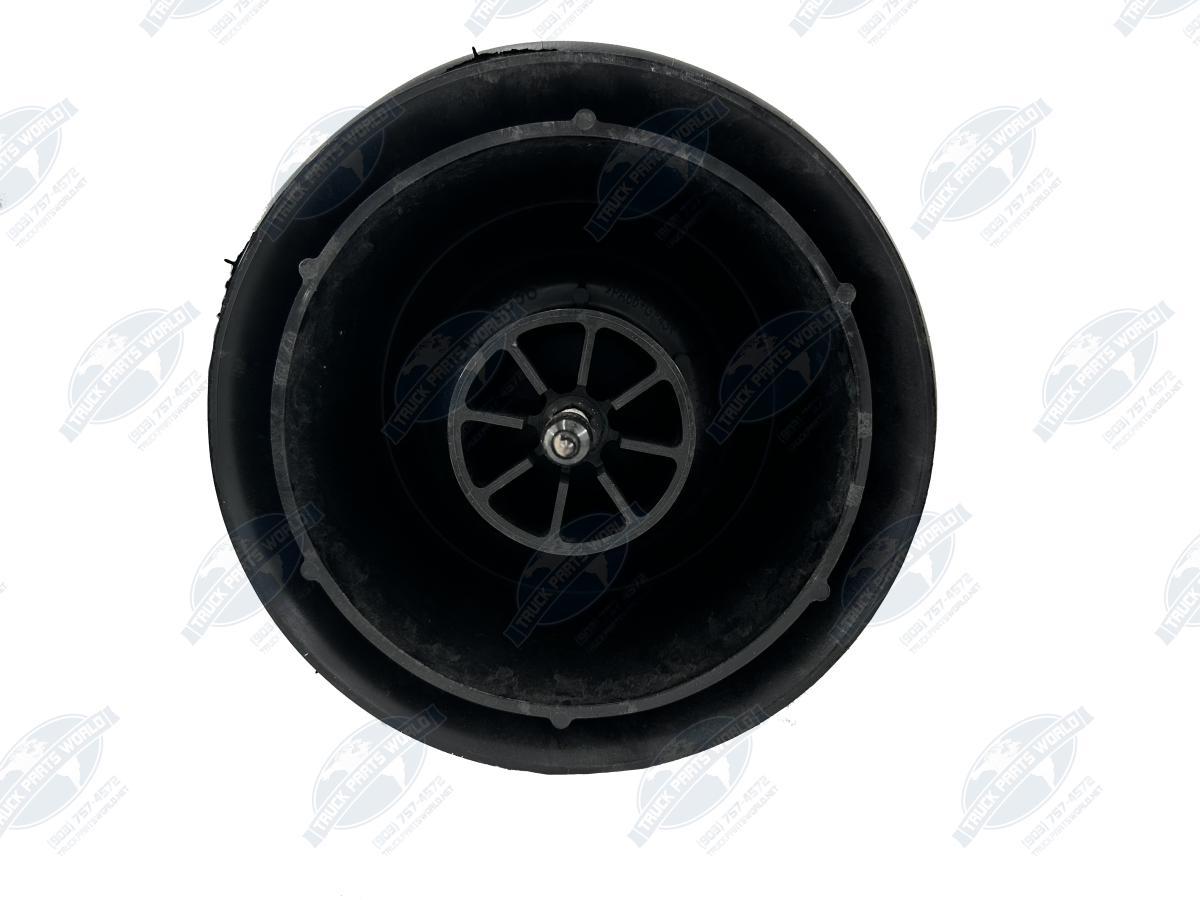

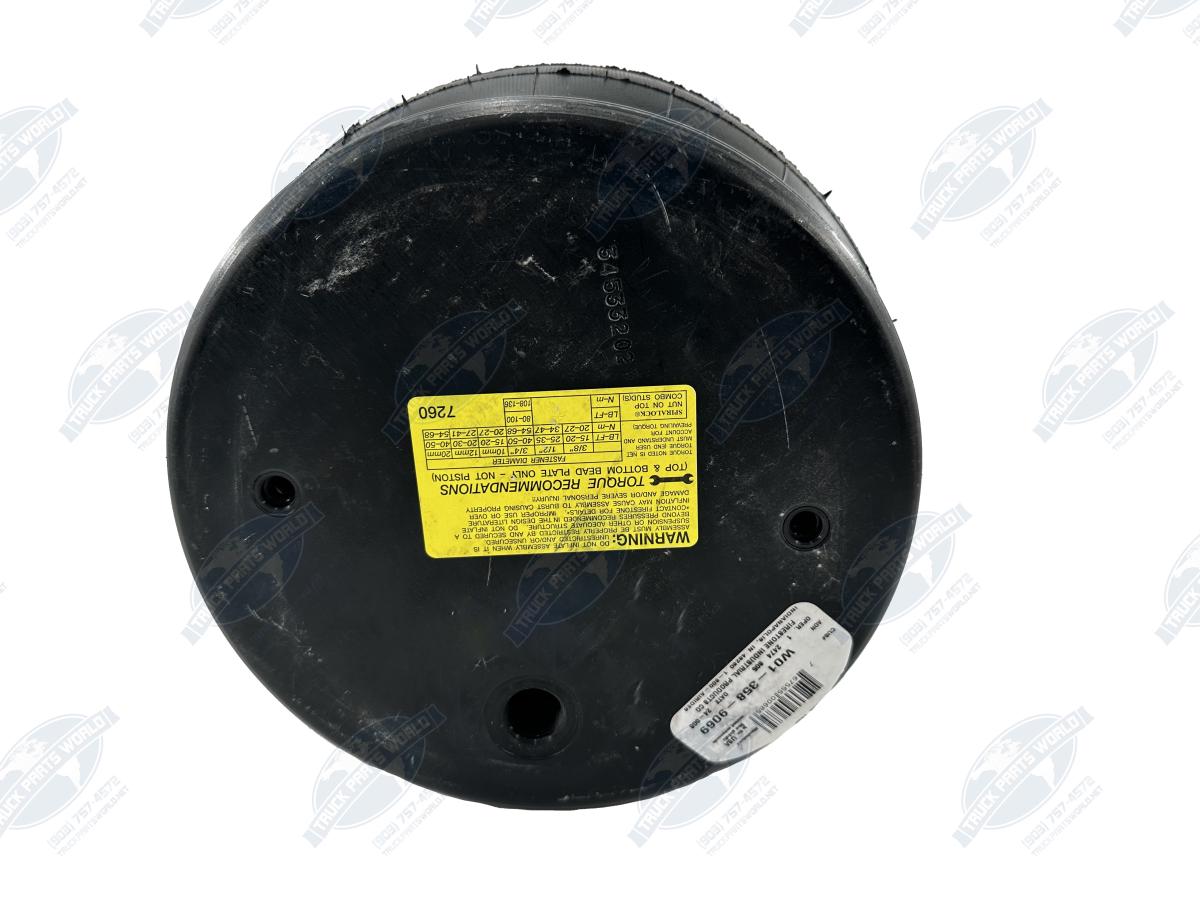

2x Firestone Air Springs (9069)

• Part Number: 352-9069 (W01-358-9069).
• Type: Rolling Lobe with Plastic Piston.
• Specs: 9" Top Plate (3 Bolt), 9.55" Bottom Plate (1 Bolt), Max Height 18".
• Replaces: Peterbilt 03-01649, 03-02456, 03-07112; Goodyear 1R12-069.
• Feature: Durable construction made from quality materials to ensure reliable performance and long service life.

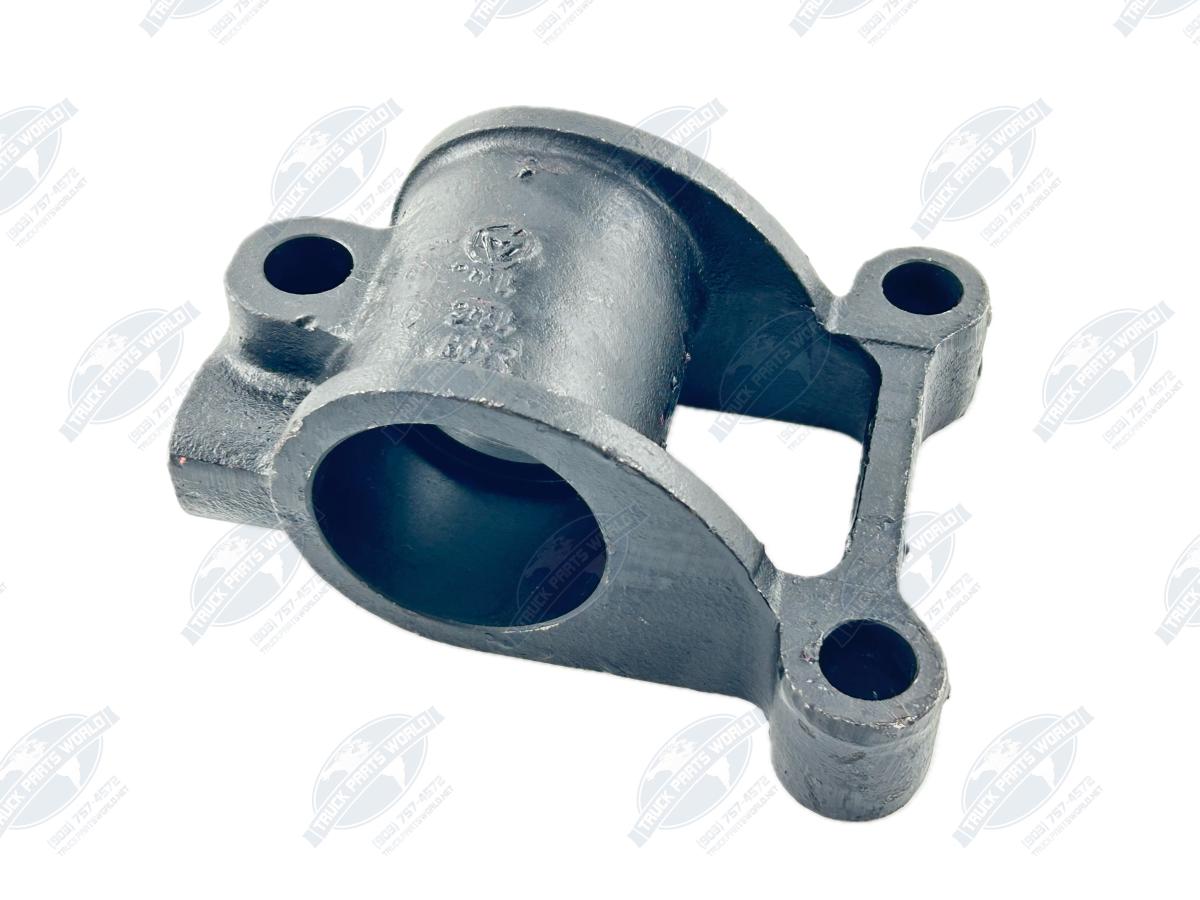

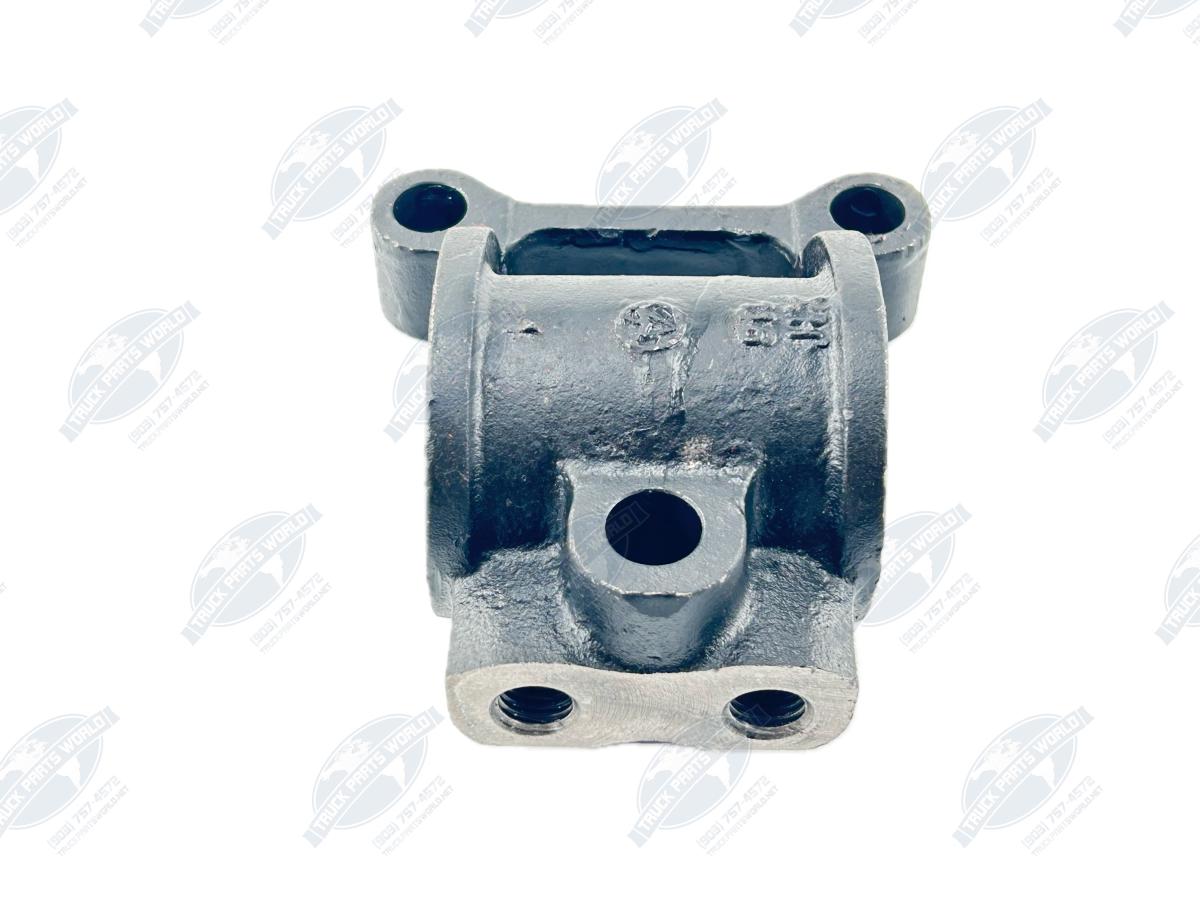

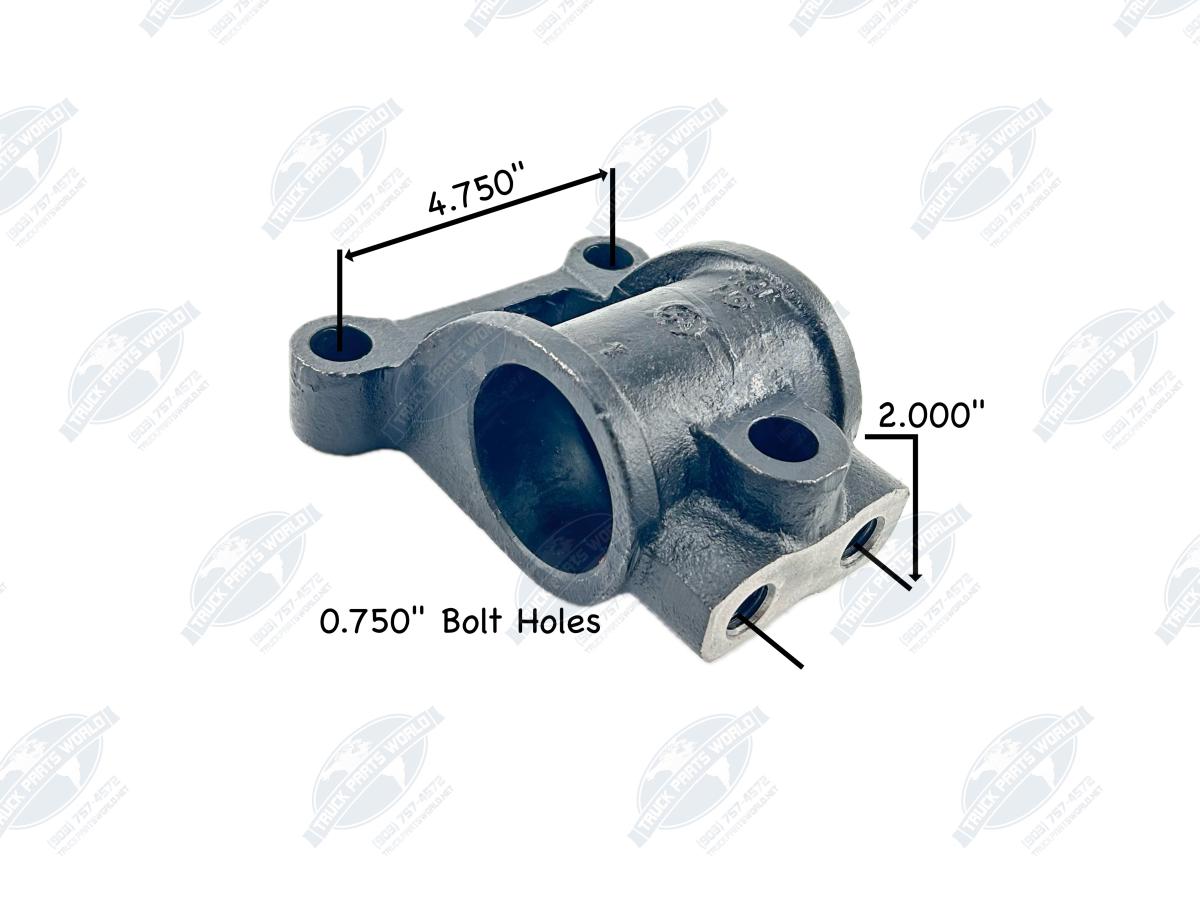

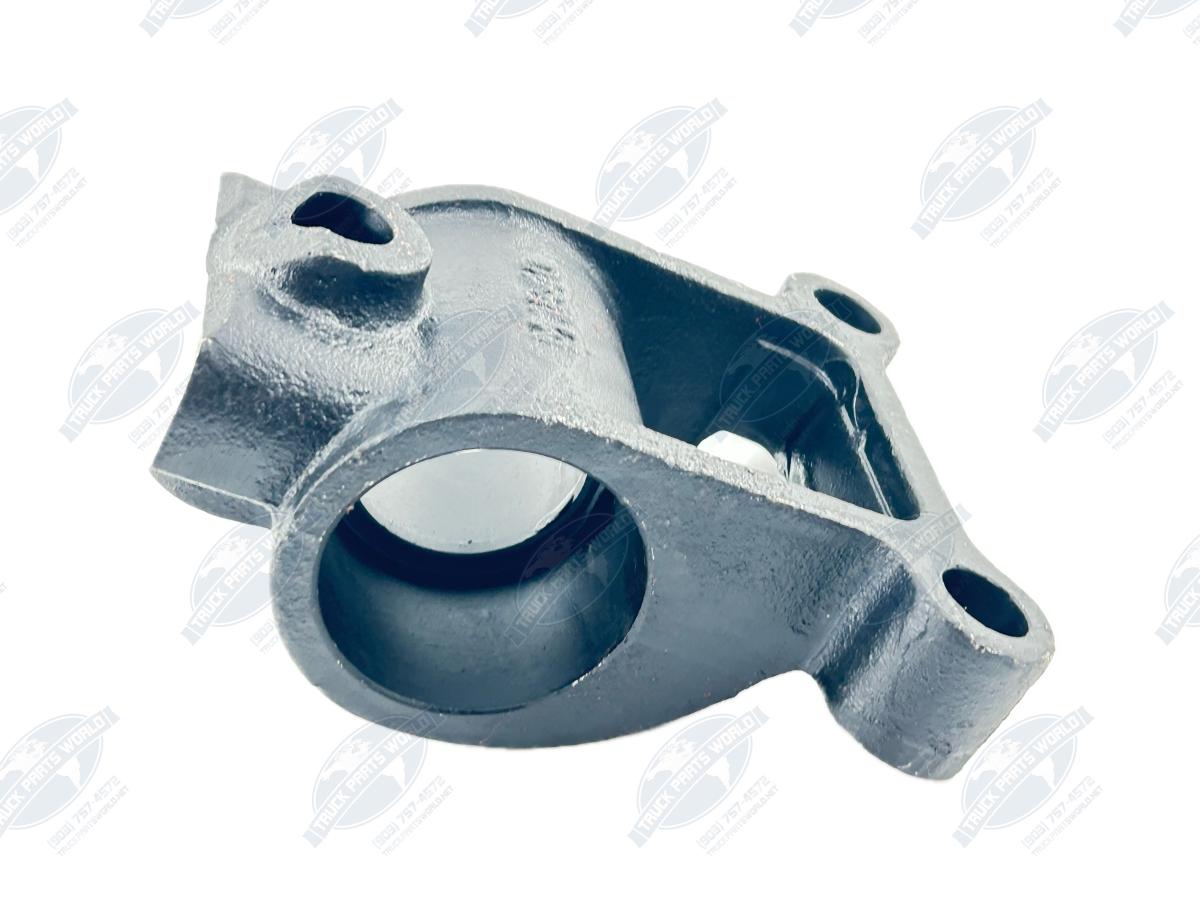

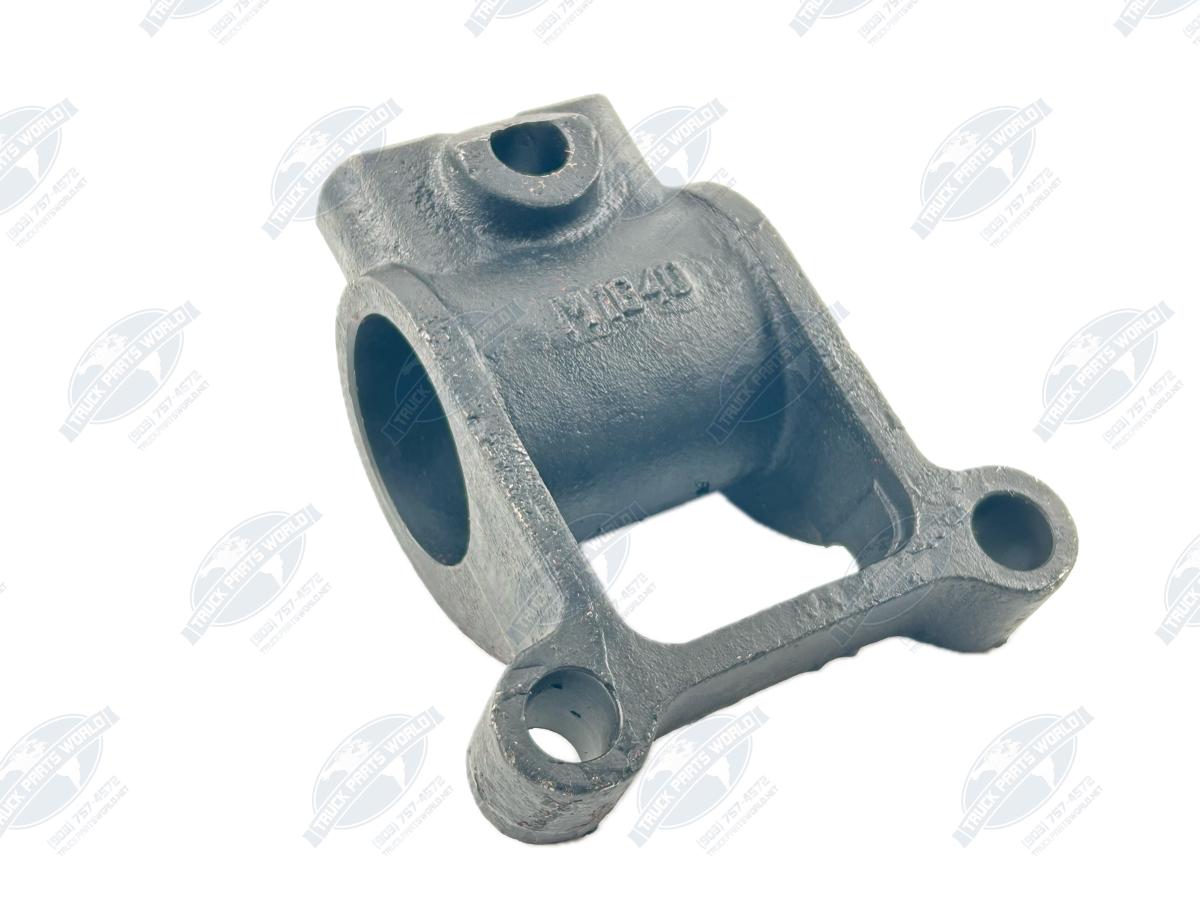

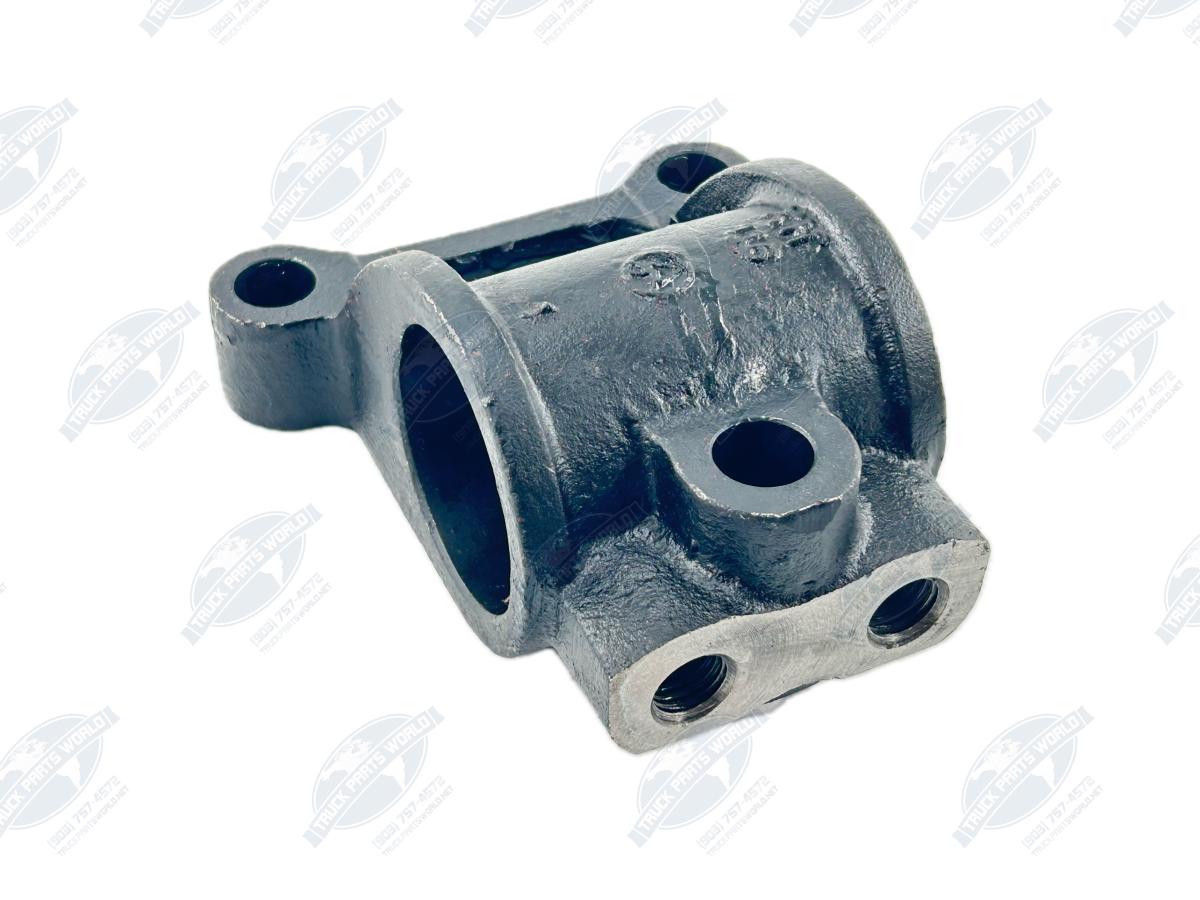

2x Air Leaf Castings (338-1224)

• Description: Premium Air Leaf Casting / Spring Seat.
• Application: Peterbilt Rear Air Leaf.
• Replaces: Peterbilt 03-01654, 301654; Euclid E11749; Midland CS71459.

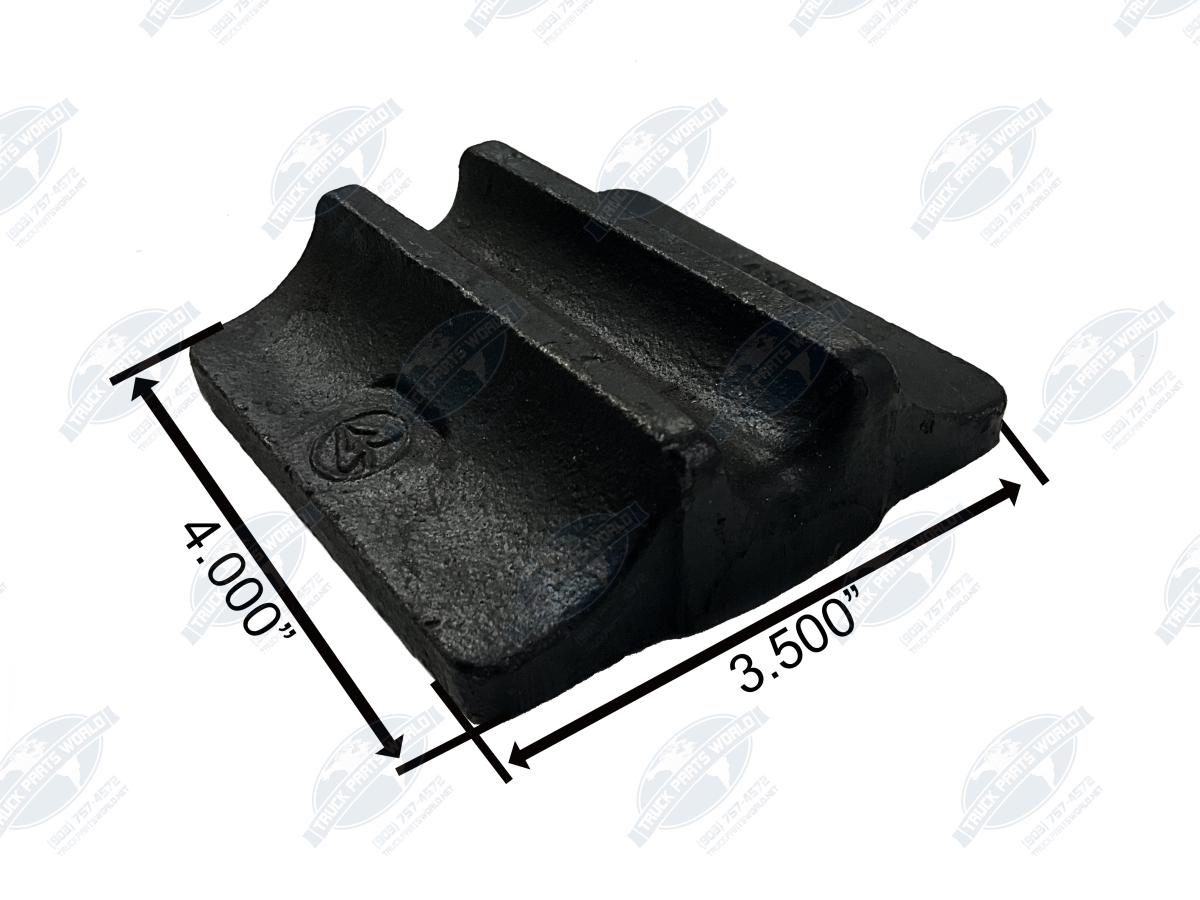

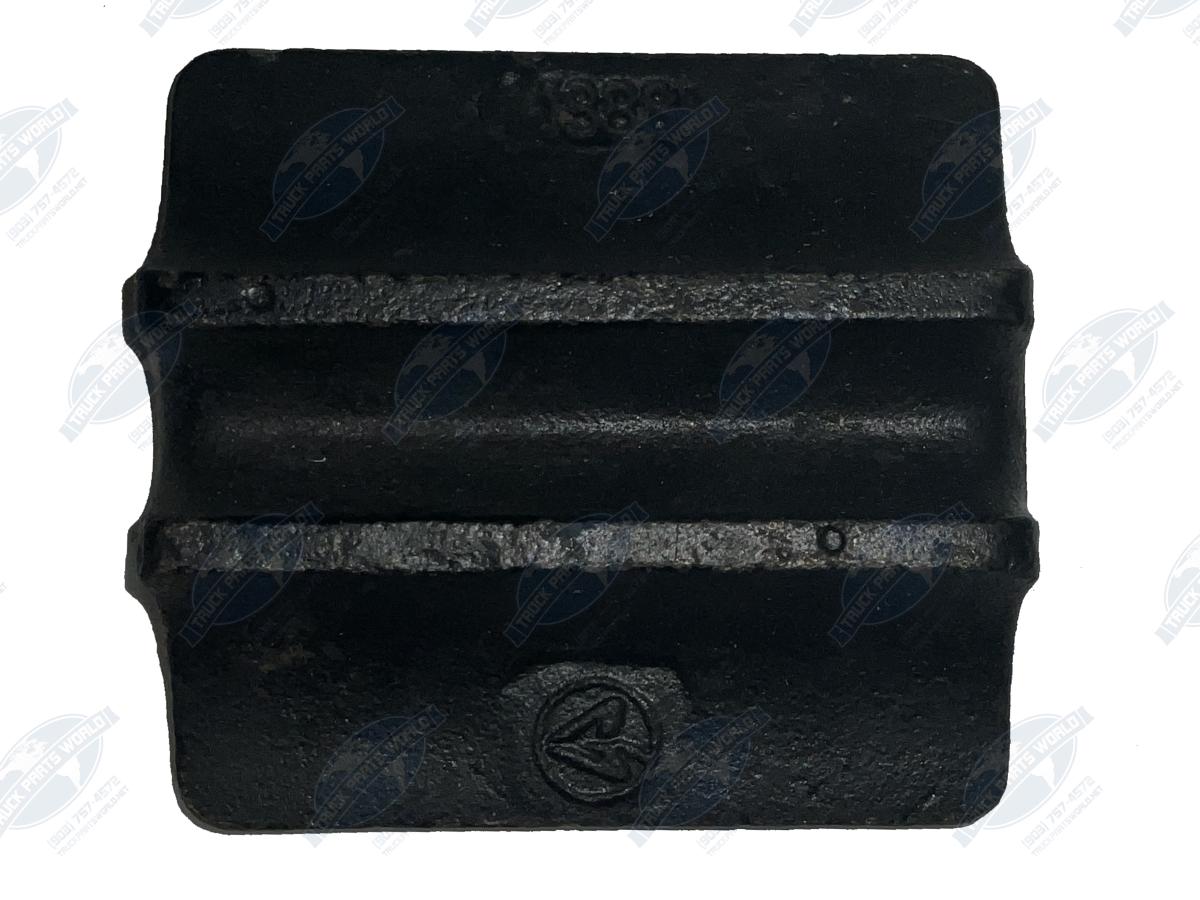

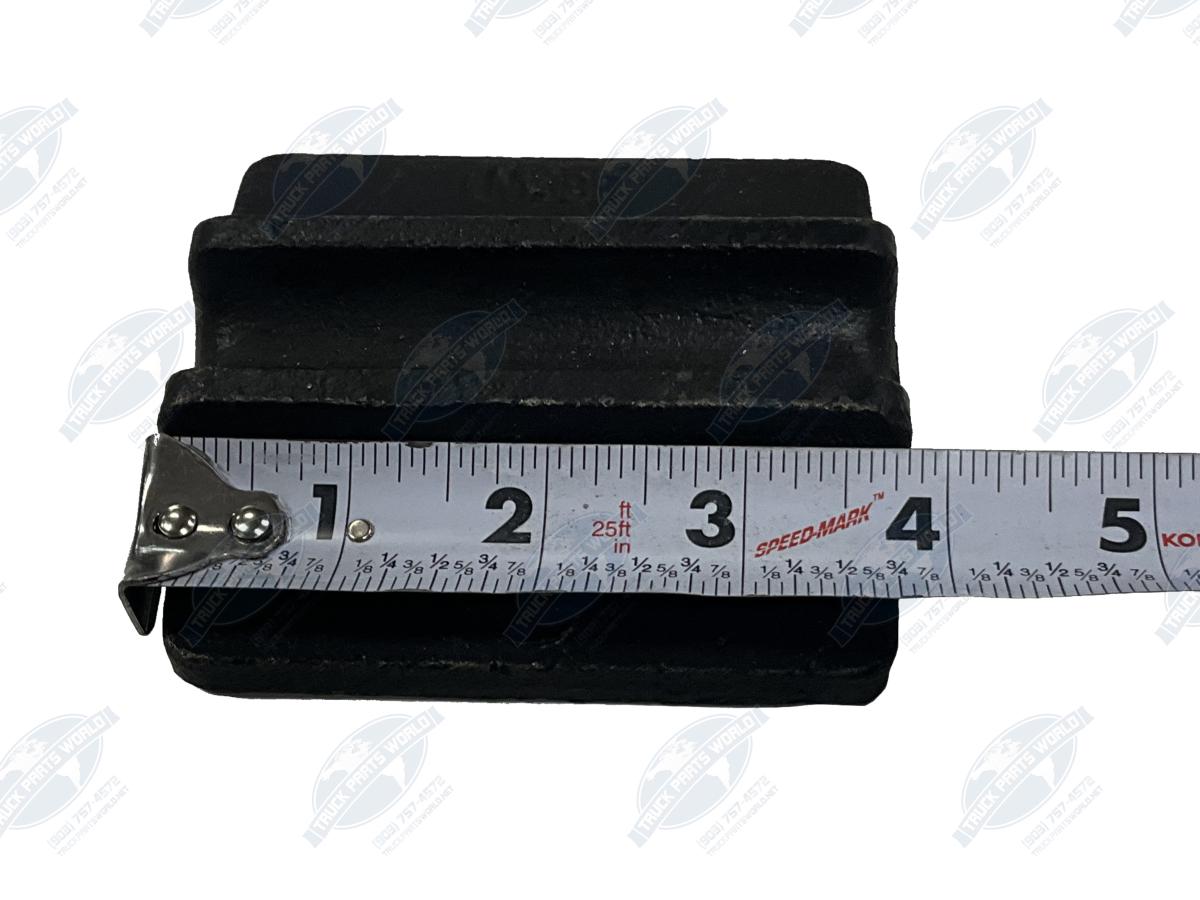

2x Top Plates / Saddles (338-725)

• Description: U-Bolt Saddle / Top Plate.
• Replaces: Peterbilt 03-01657, 03-07865; Meritor R304782; Euclid E4782.

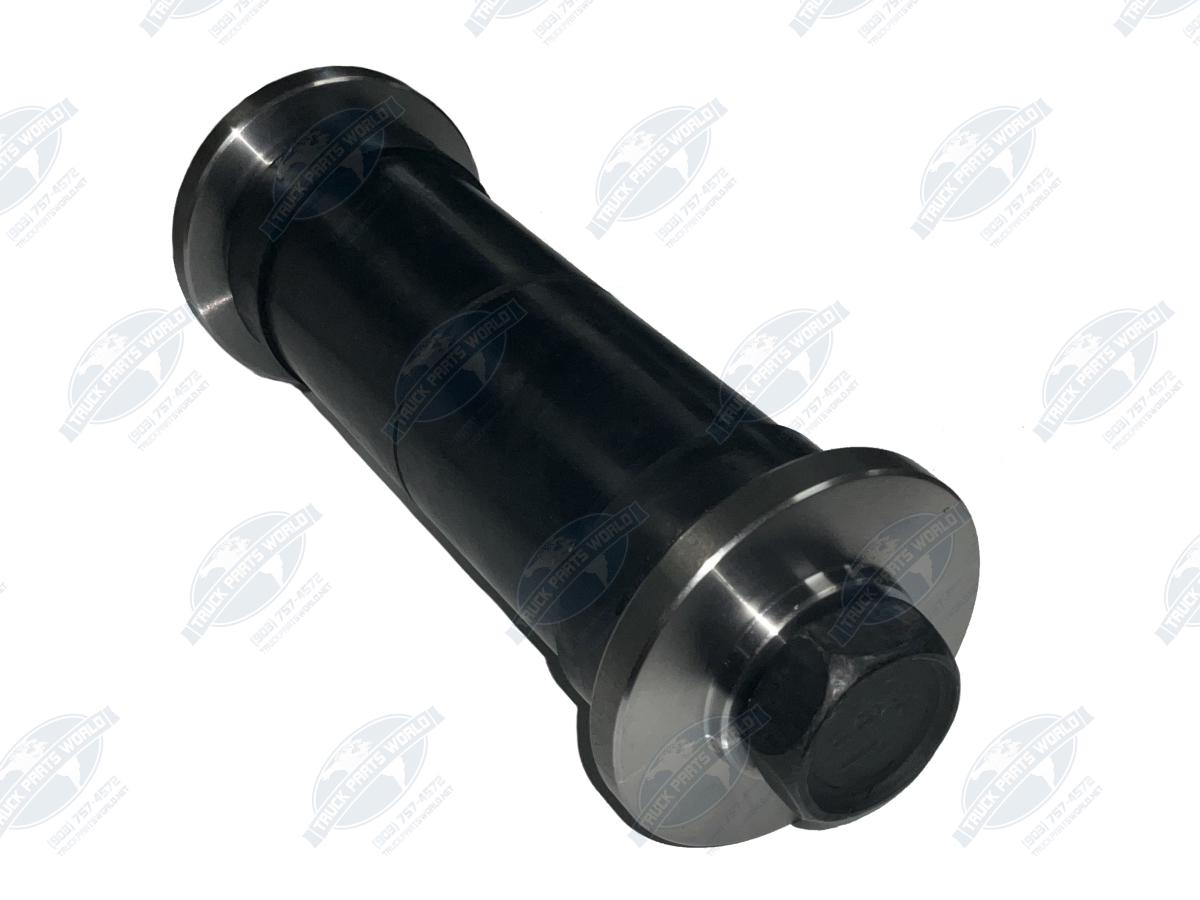

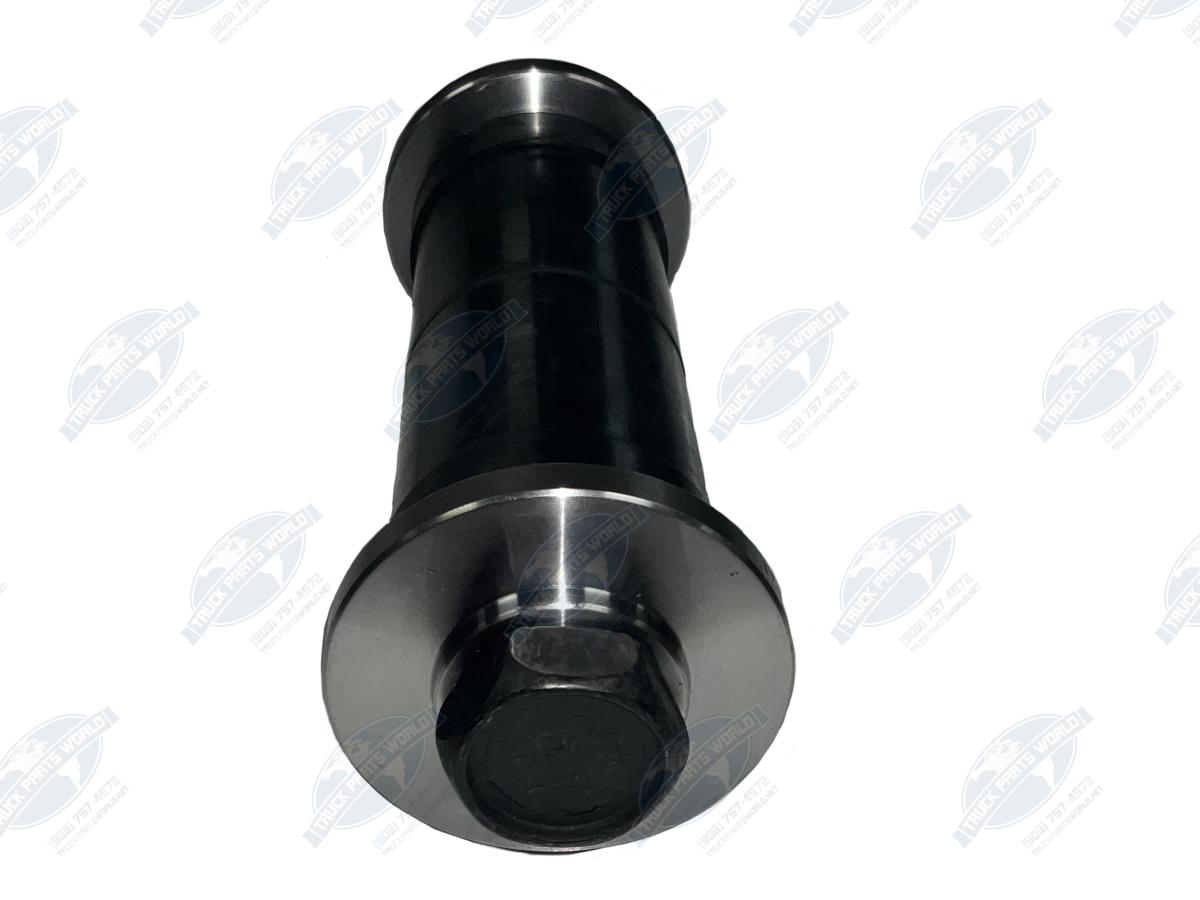

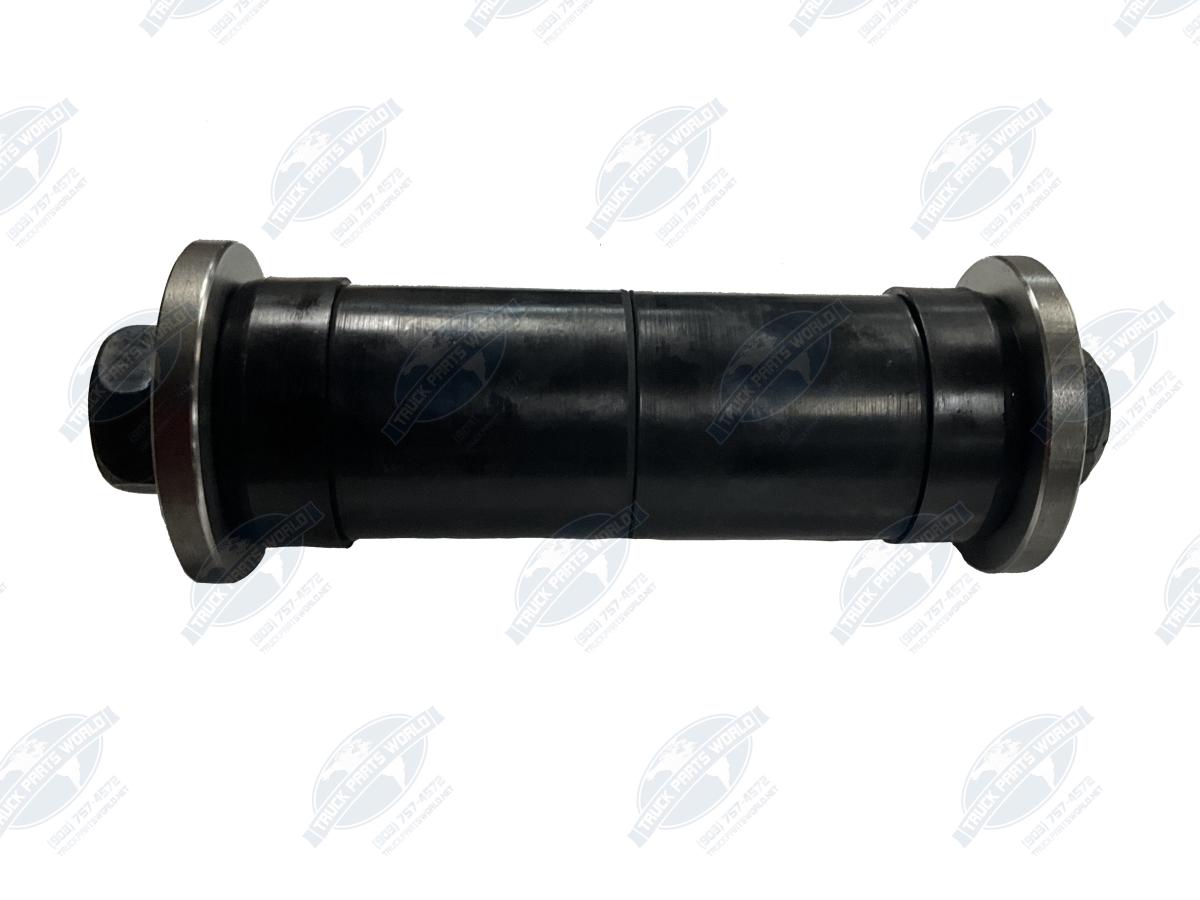

2x Spring Eye Bushing Kits (334-460)

• Description: Rubber Bushing Assembly for Air Leaf Springs.
• Replaces: Peterbilt 03AL1; Euclid E4773; Meritor R304773.

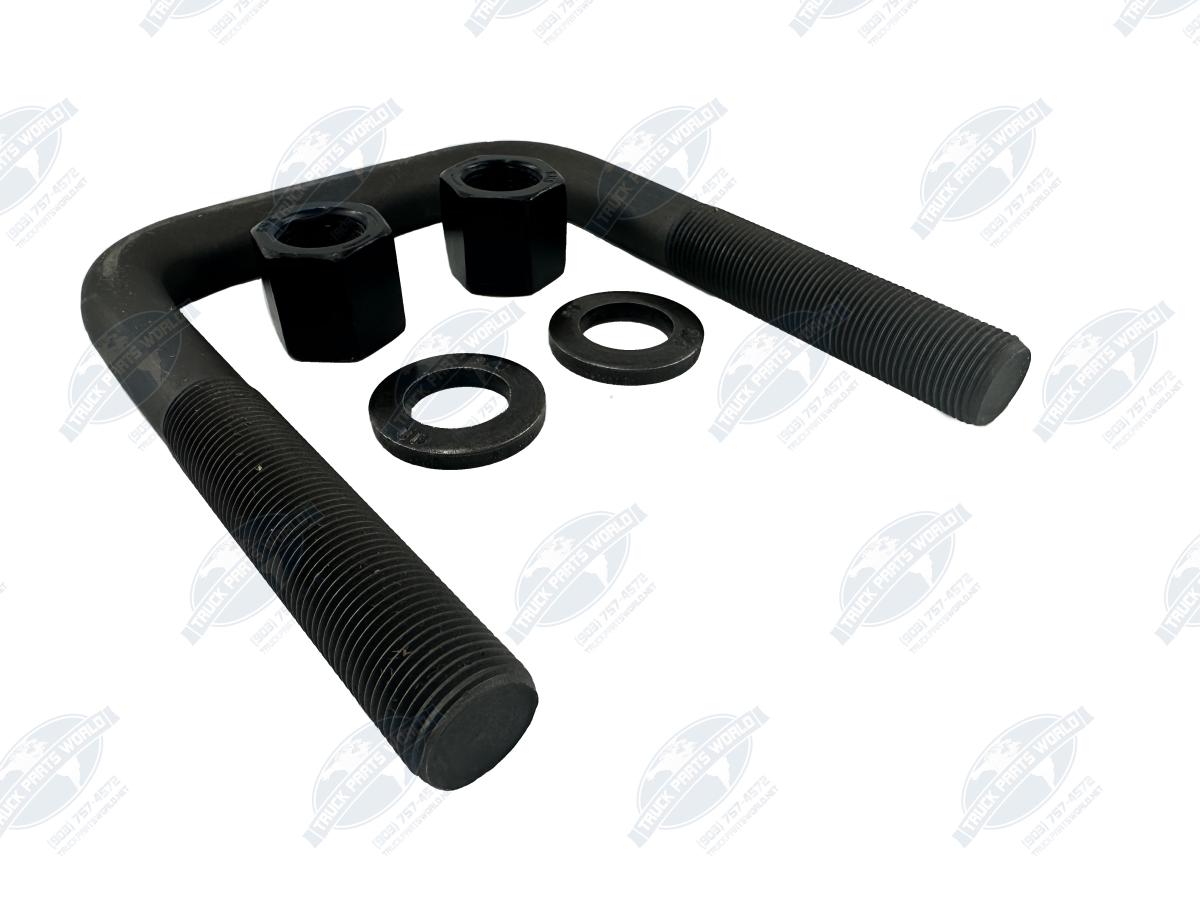

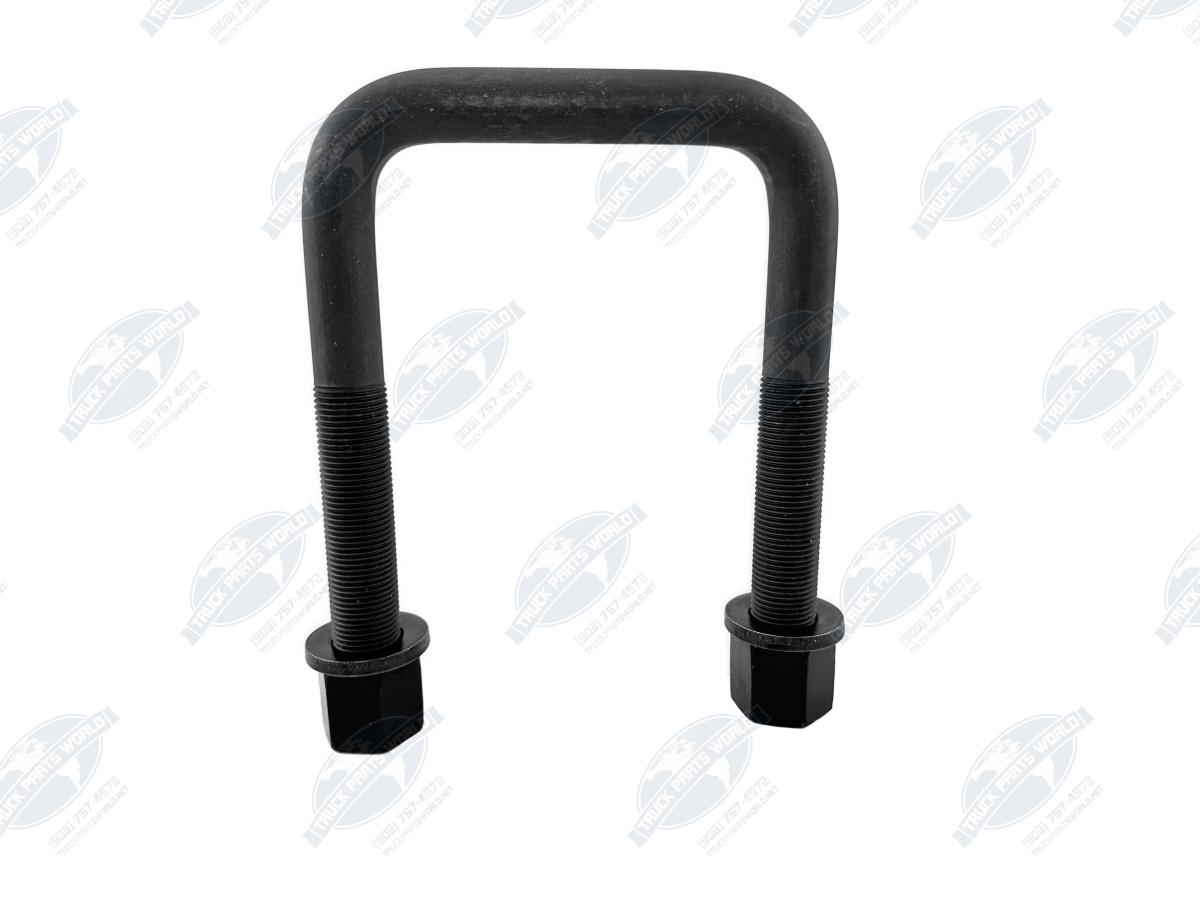

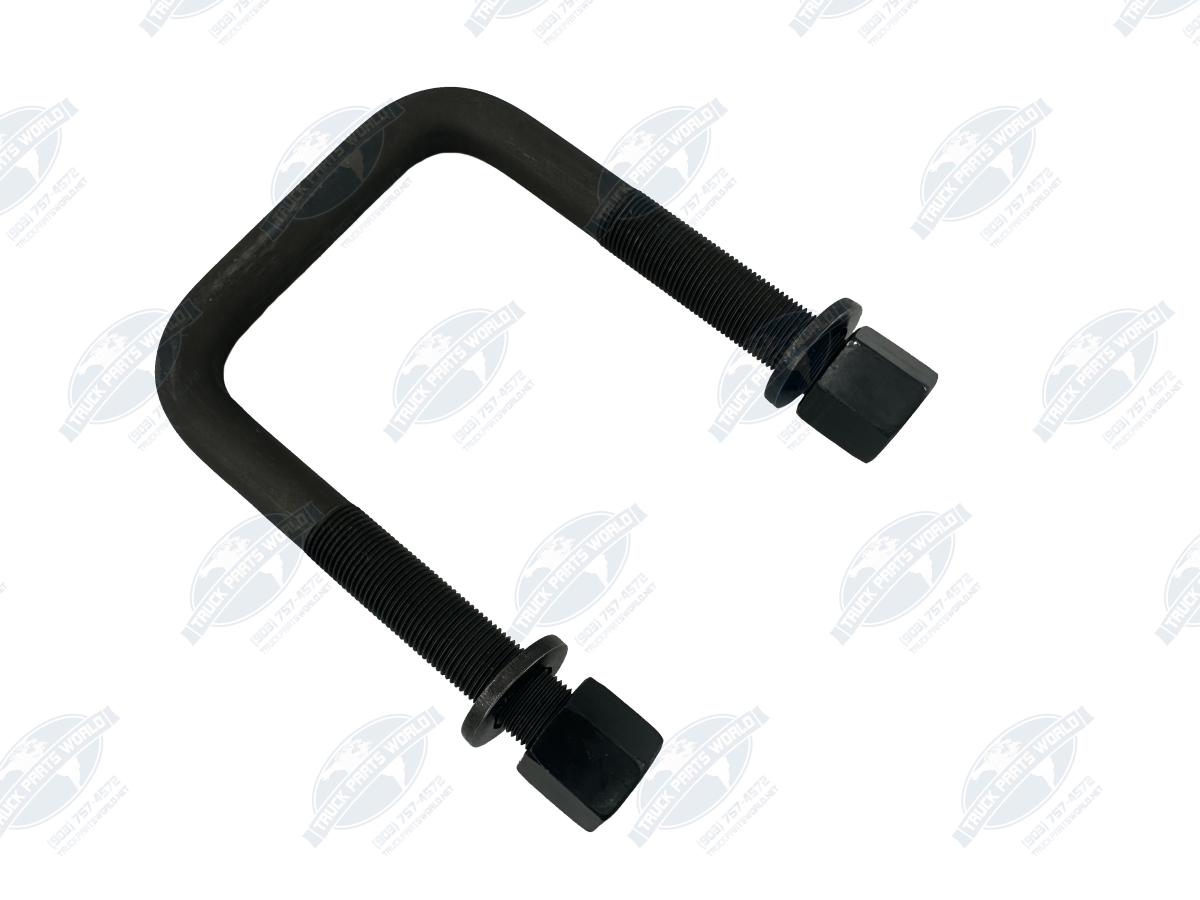

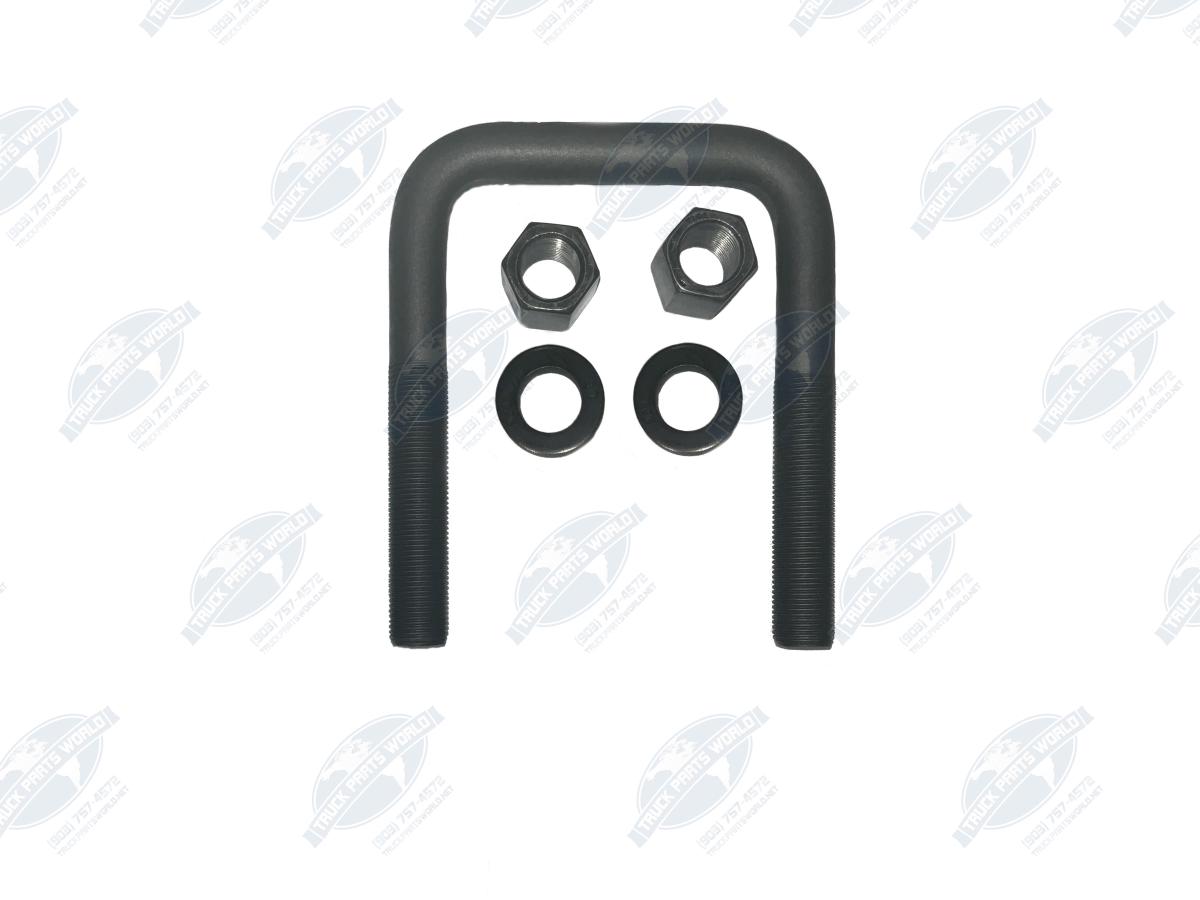

2x U-Bolts (Part of Kit 361-161)

• Total Quantity: 2 U-Bolts, 2 Nuts, 2 Washers.
• Dimensions: 3/4" Dia x 4" Width x 5-3/4" Length.
• Type: Square Bend, Grade 8 High Strength.
• Replaces: Peterbilt 0301661; Euclid E4783; Leland SB1664.

Kit Summary

APPLICATION CHECK:

Designed specifically for Peterbilt Rear Air Leaf Suspensions. Please verify casting numbers (03-01654) before ordering.

Schematics

Featured in Peterbilt Rear Air Leaf Suspension diagrams.
