Peterbilt Air Leaf Kit: 4 Castings 03-01654 + 4 Firestone 9069 Air Bags + U-Bolt

This is for a complete Heavy Duty Suspension Overhaul Kit designed for Peterbilt Rear Air Leaf suspensions. This "Master Kit" includes quantities of 4 for all major components, including Genuine Firestone Air Springs, making it ideal for servicing a complete Tandem Axle setup.

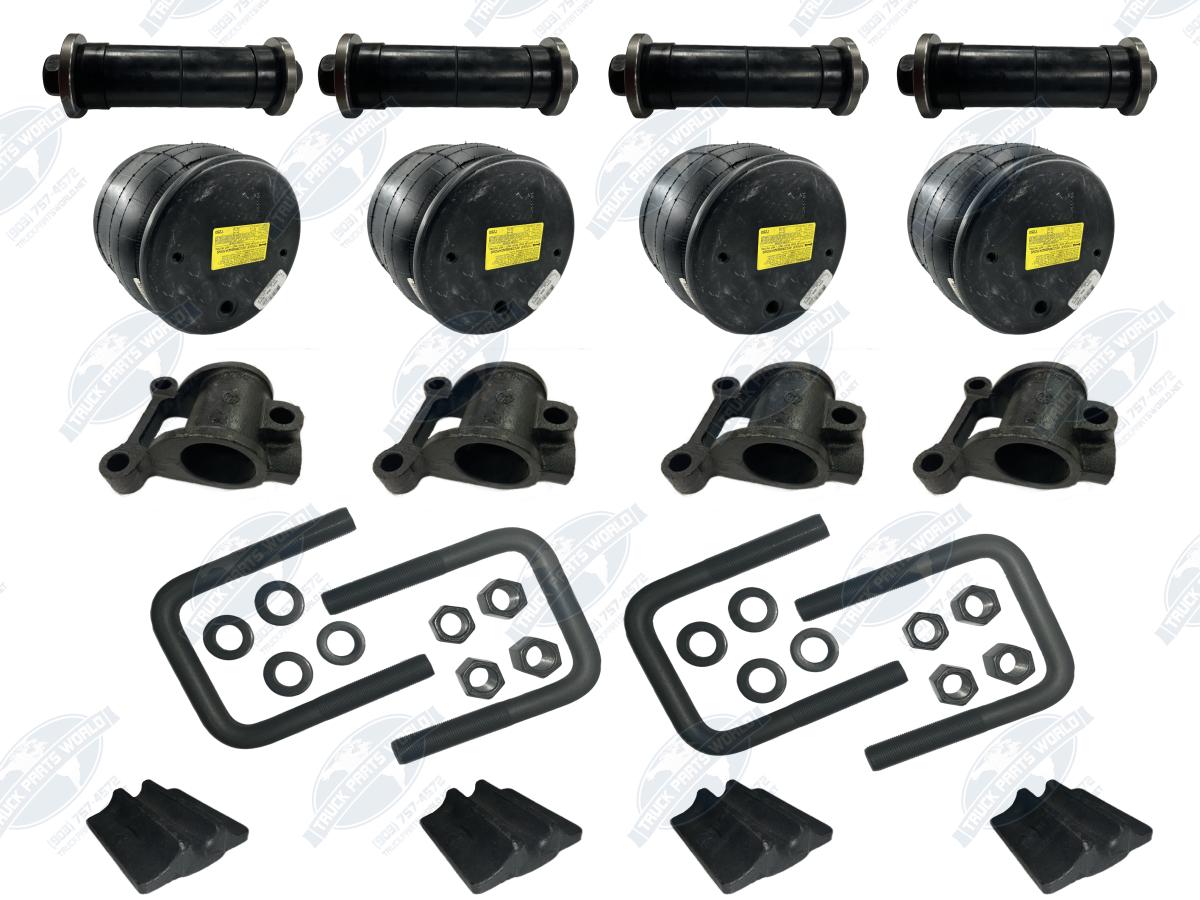

Kit Contents: You will receive 4 Firestone Air Springs, 4 Air Leaf Castings, 4 Top Plates (Saddles), 4 Spring Eye Bushing Kits, and 4 U-Bolts (with nuts and washers).

All components are designed to meet or exceed OEM specifications for fit, form, and function.

Component Details

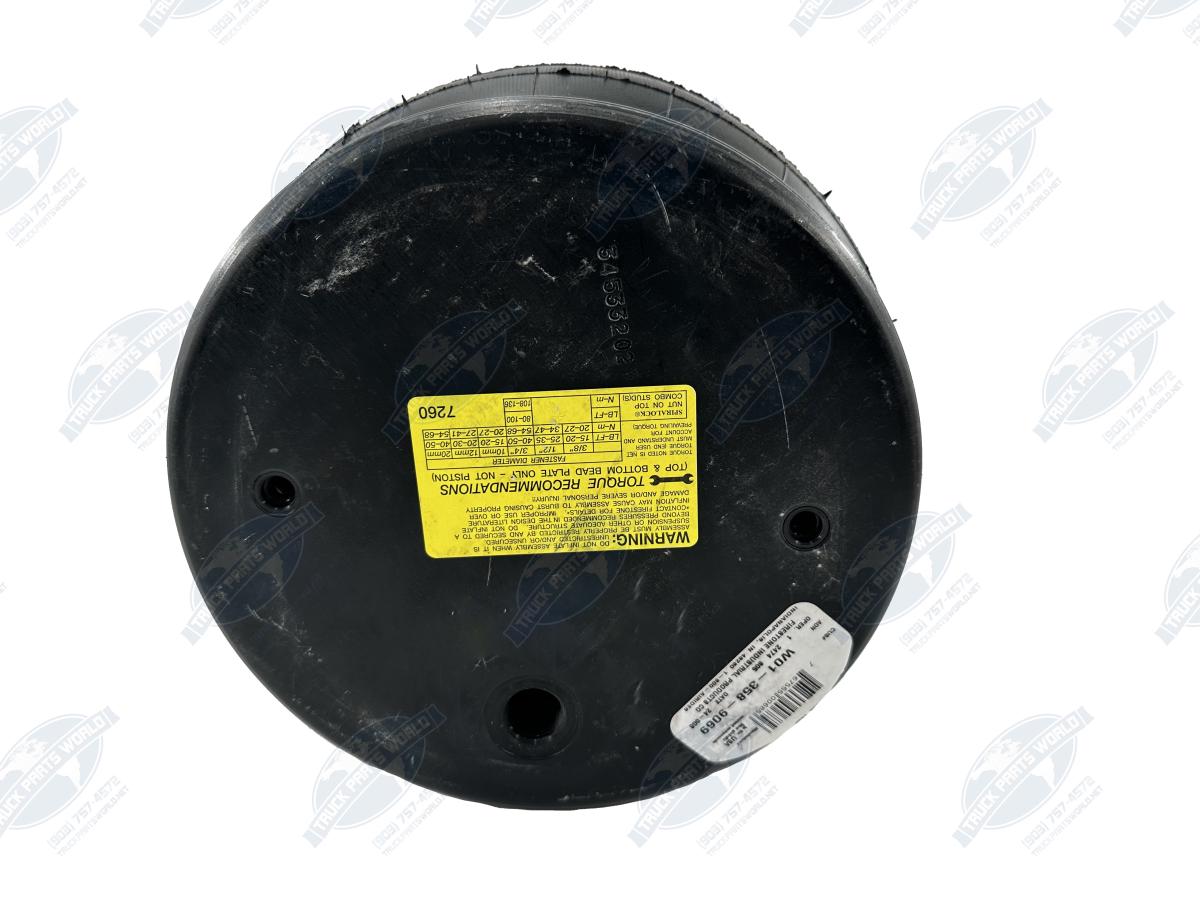

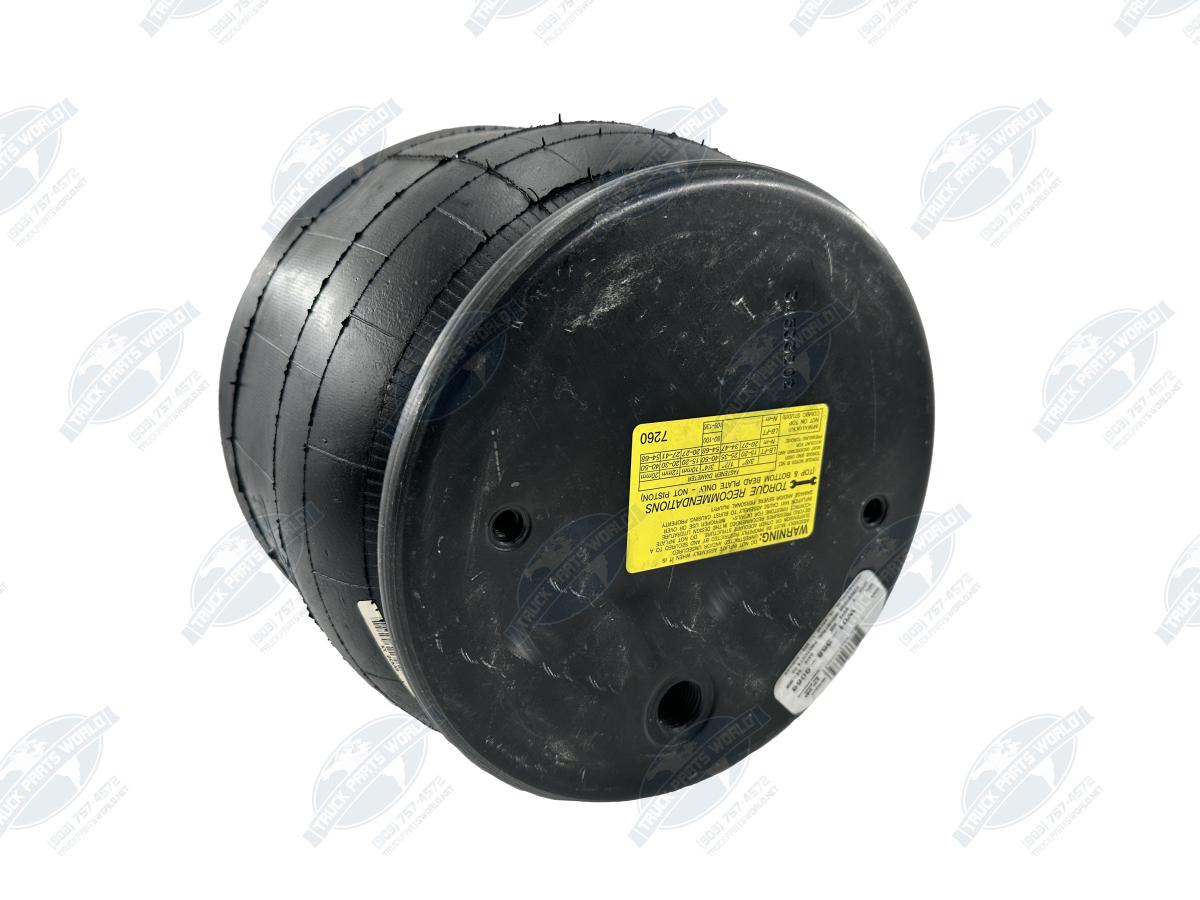

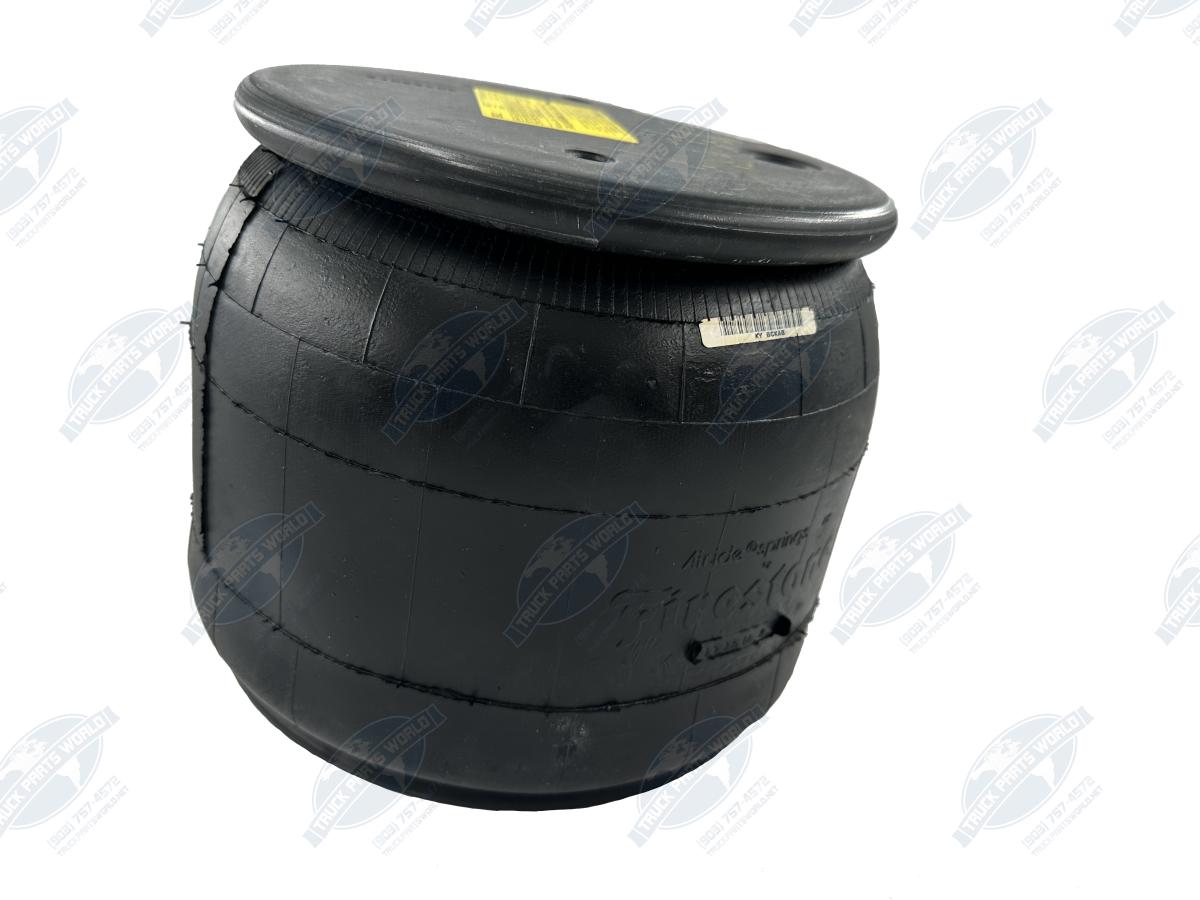

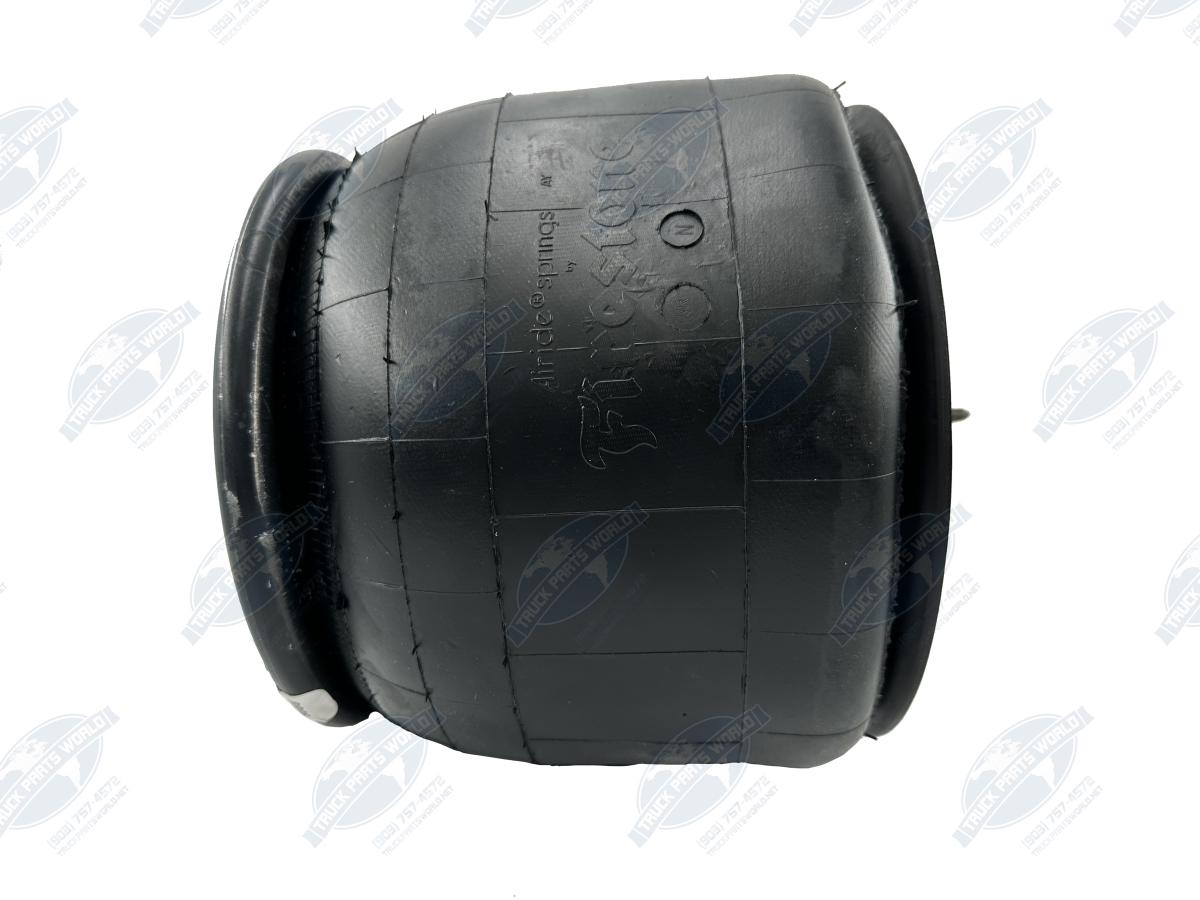

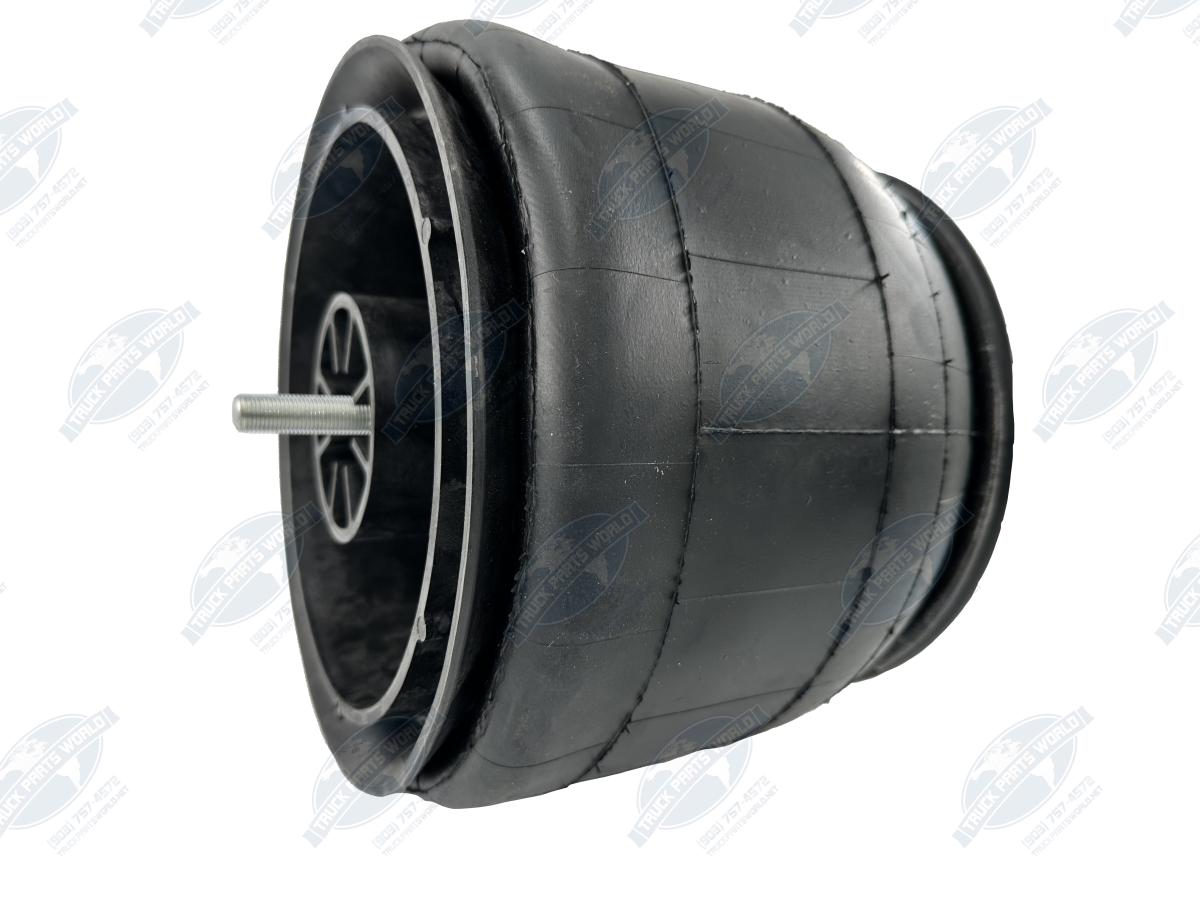

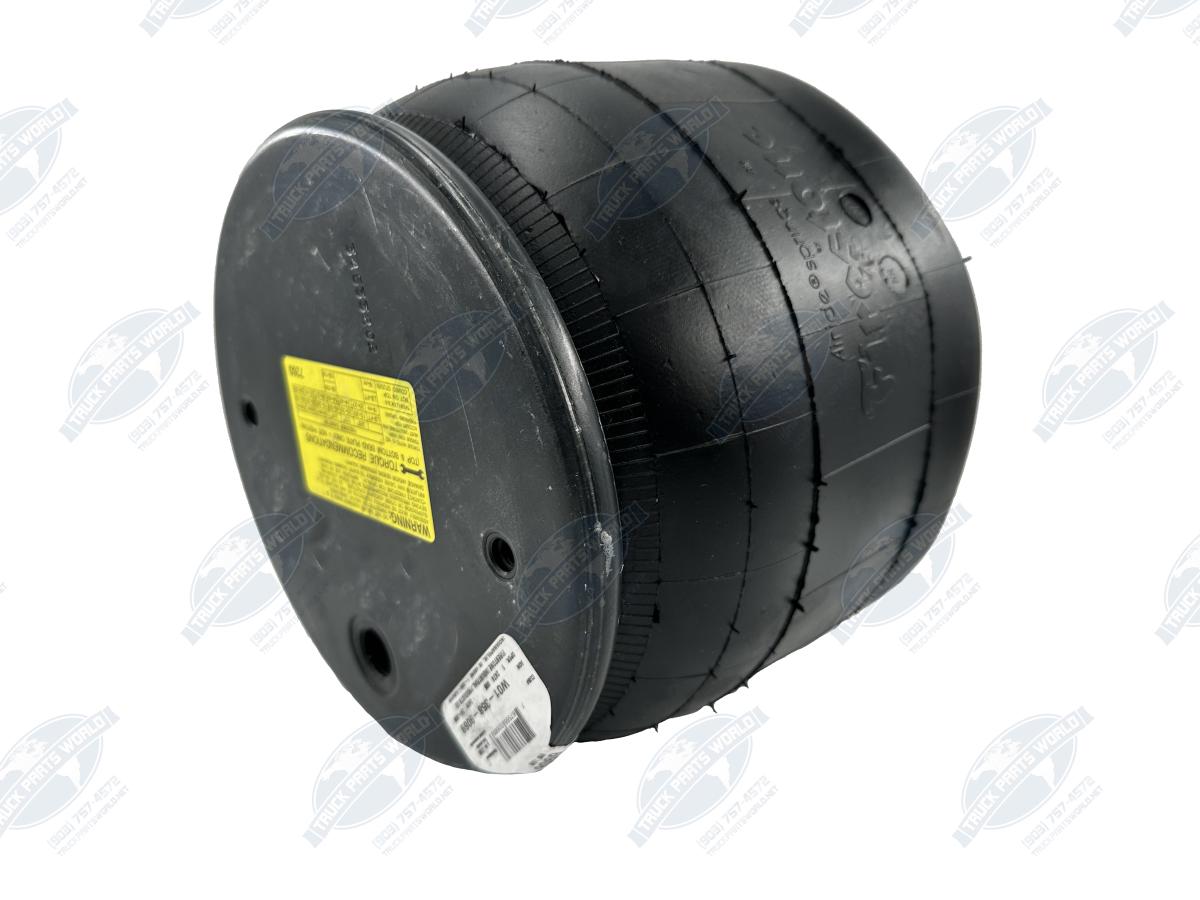

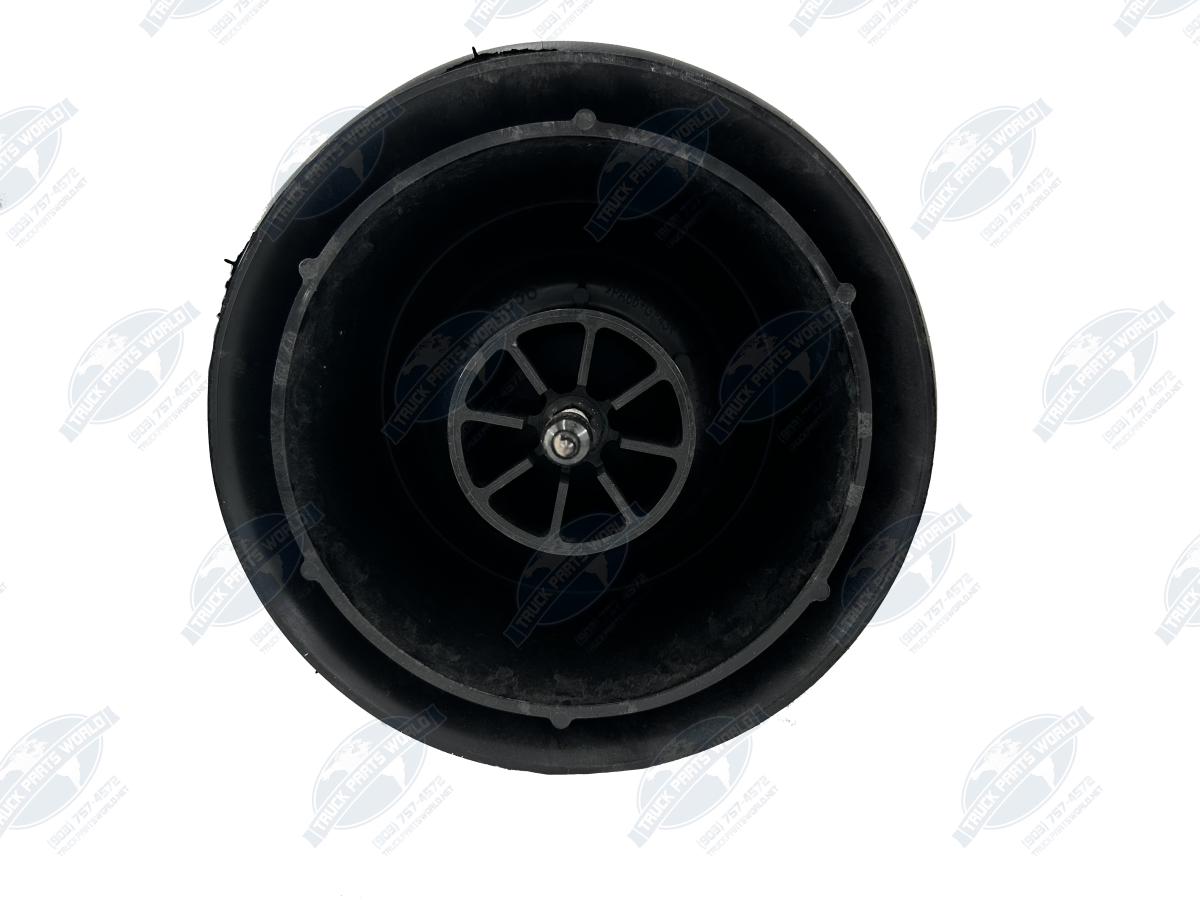

4x Firestone Air Springs (9069)

• Part Number: 352-9069 (W01-358-9069).
• Type: Rolling Lobe with Plastic Piston.
• Specs: 9" Top Plate (3 Bolt), 9.55" Bottom Plate (1 Bolt), Max Height 18".
• Replaces: Peterbilt 03-01649, 03-02456, 03-07112; Goodyear 1R12-069.
• Feature: Durable construction made from quality materials to ensure reliable performance and long service life.

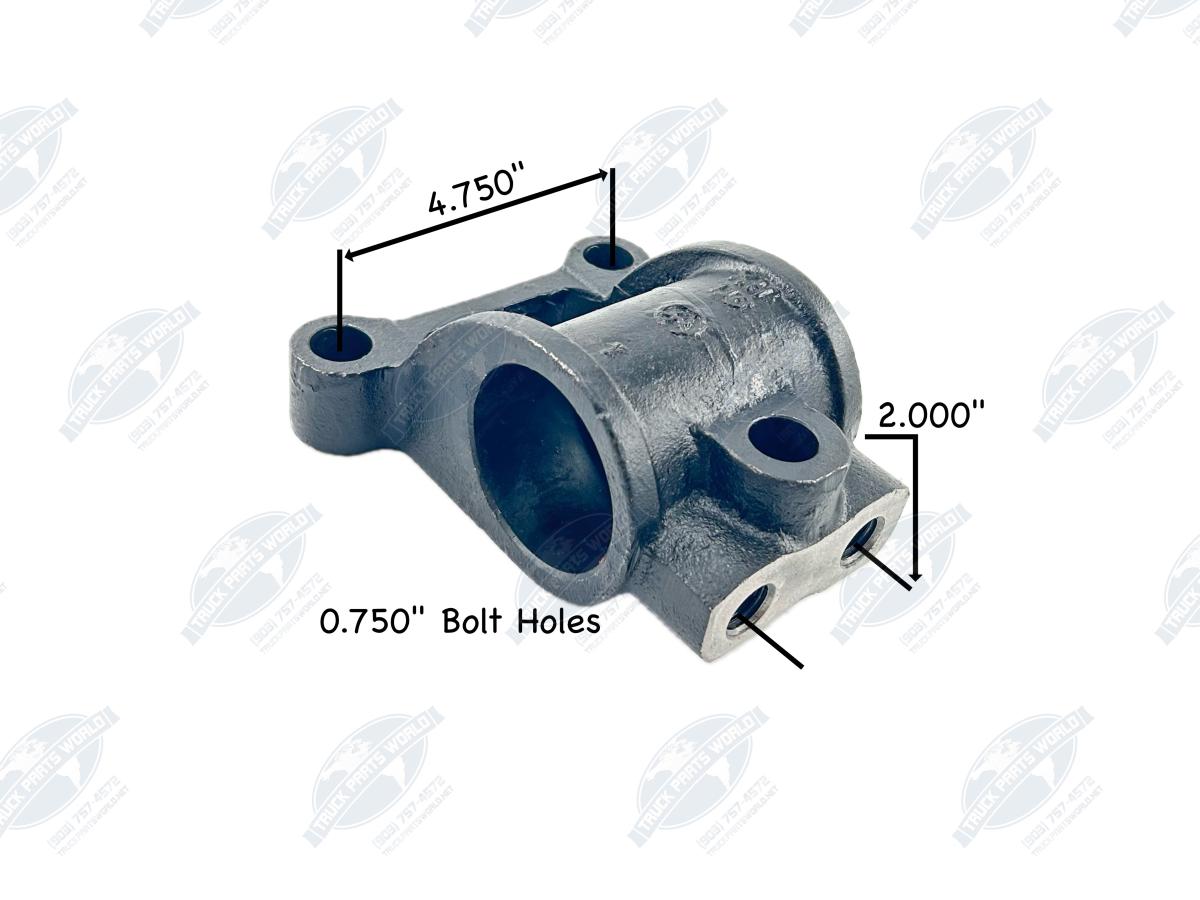

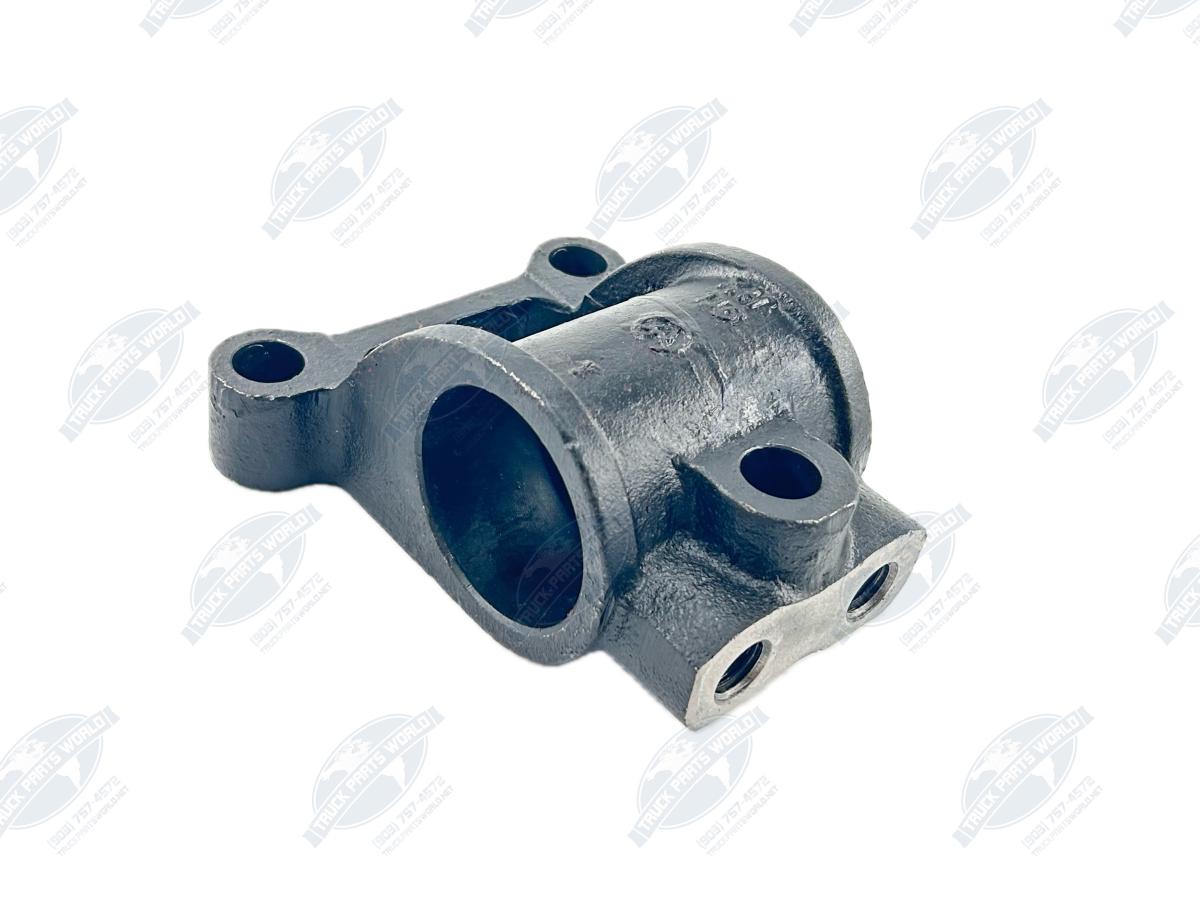

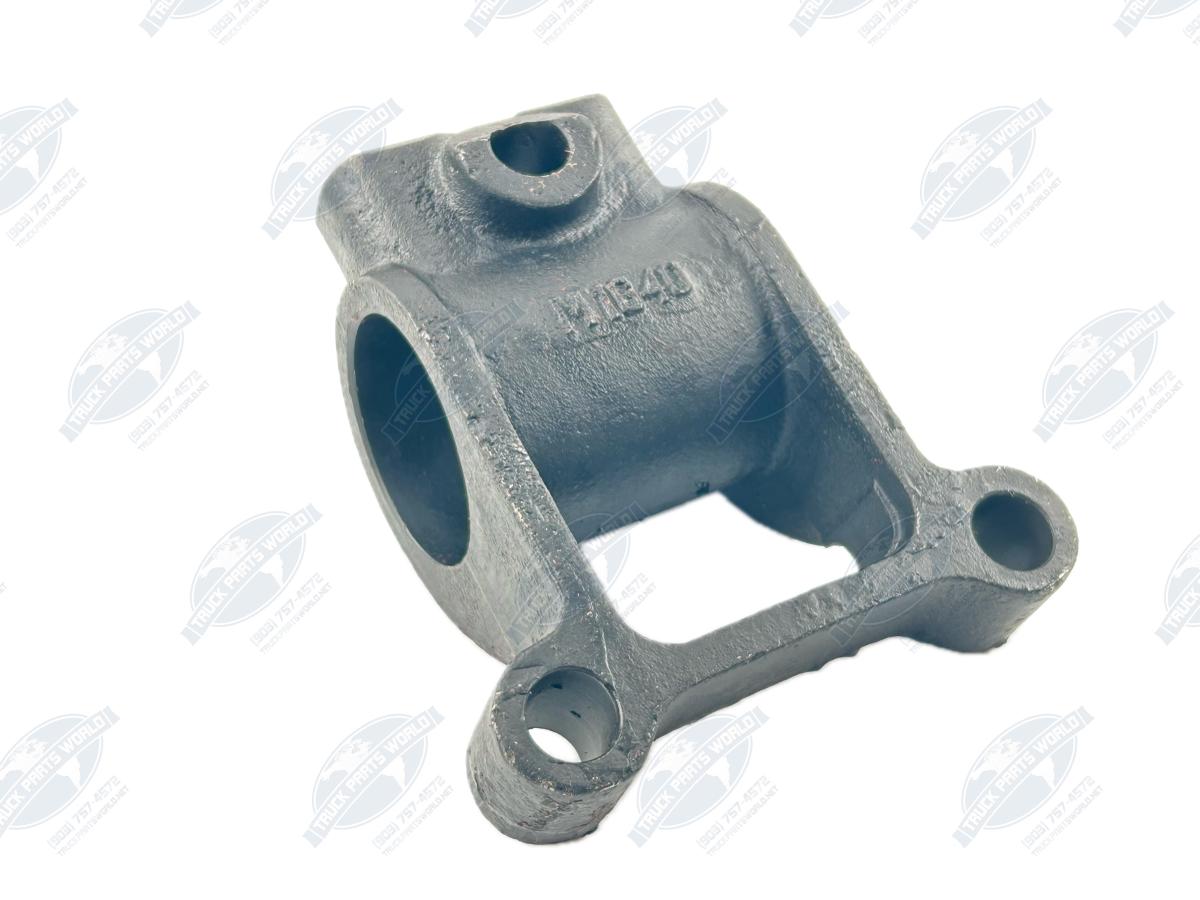

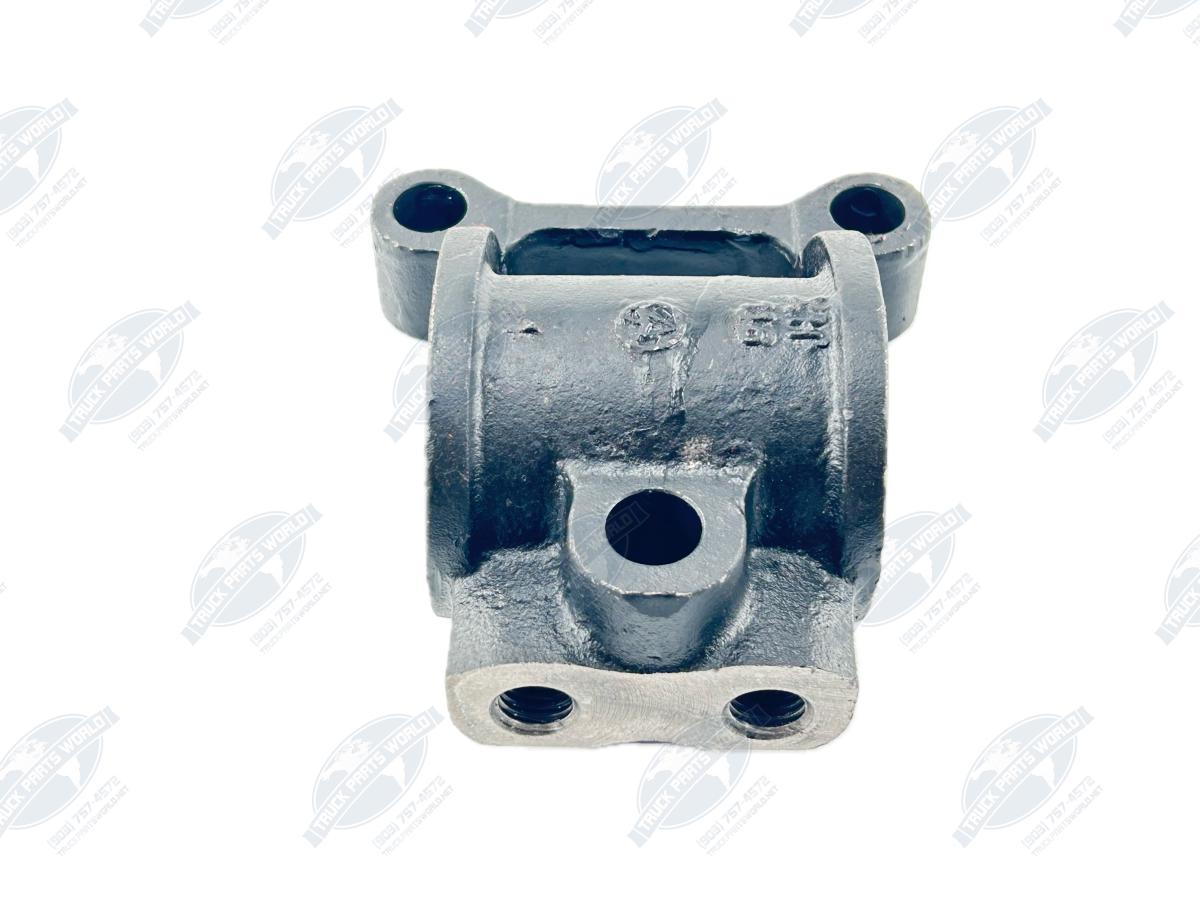

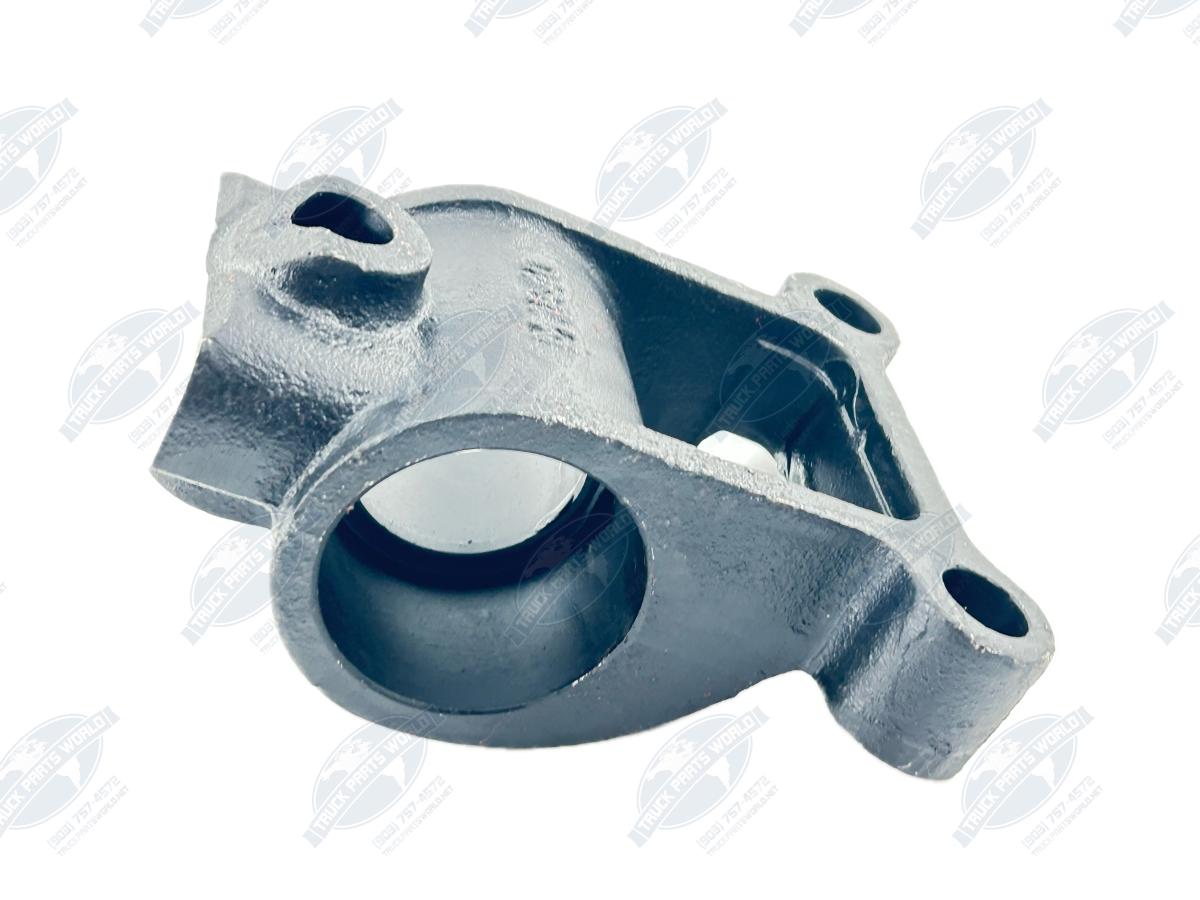

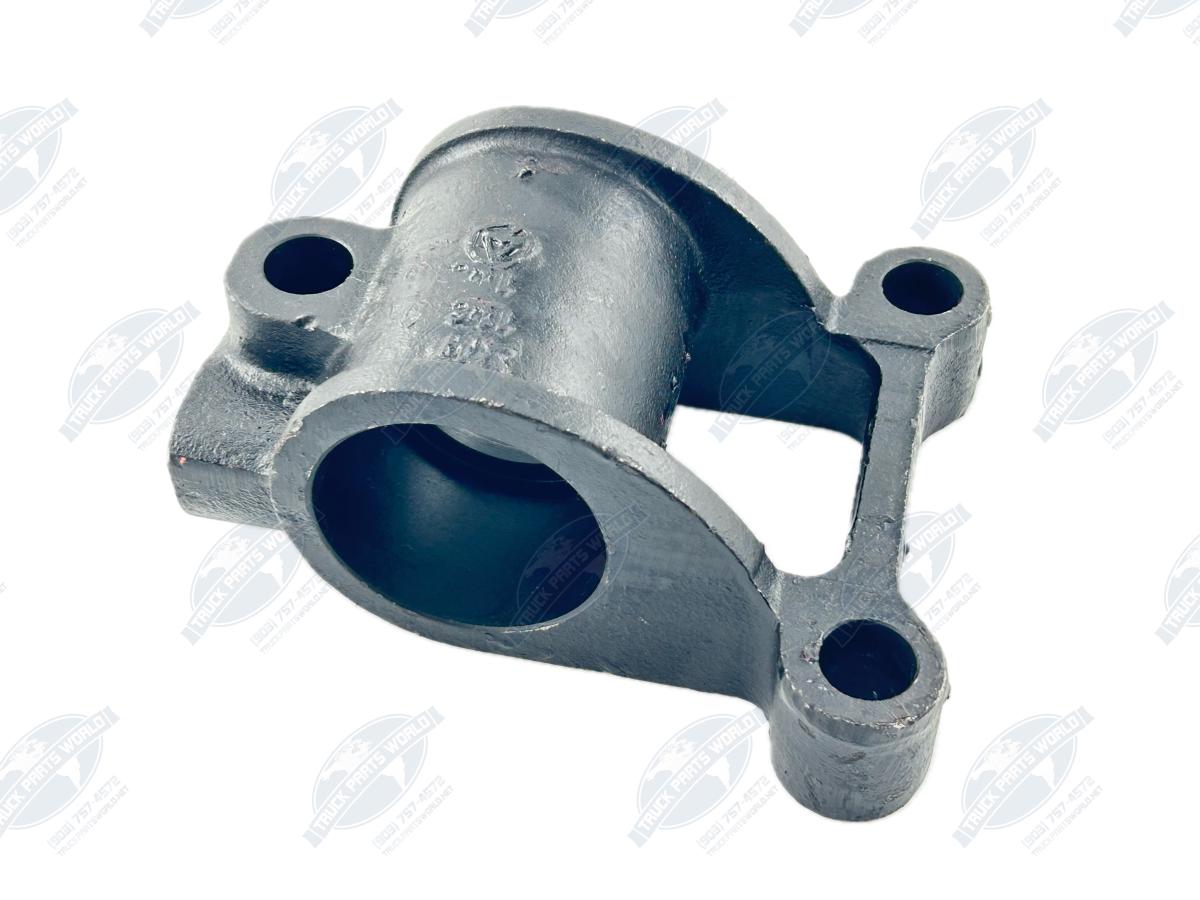

4x Air Leaf Castings (338-1224)

• Description: Premium Air Leaf Casting / Spring Seat.
• Application: Peterbilt Rear Air Leaf.
• Replaces: Peterbilt 03-01654, 301654; Euclid E11749; Midland CS71459.

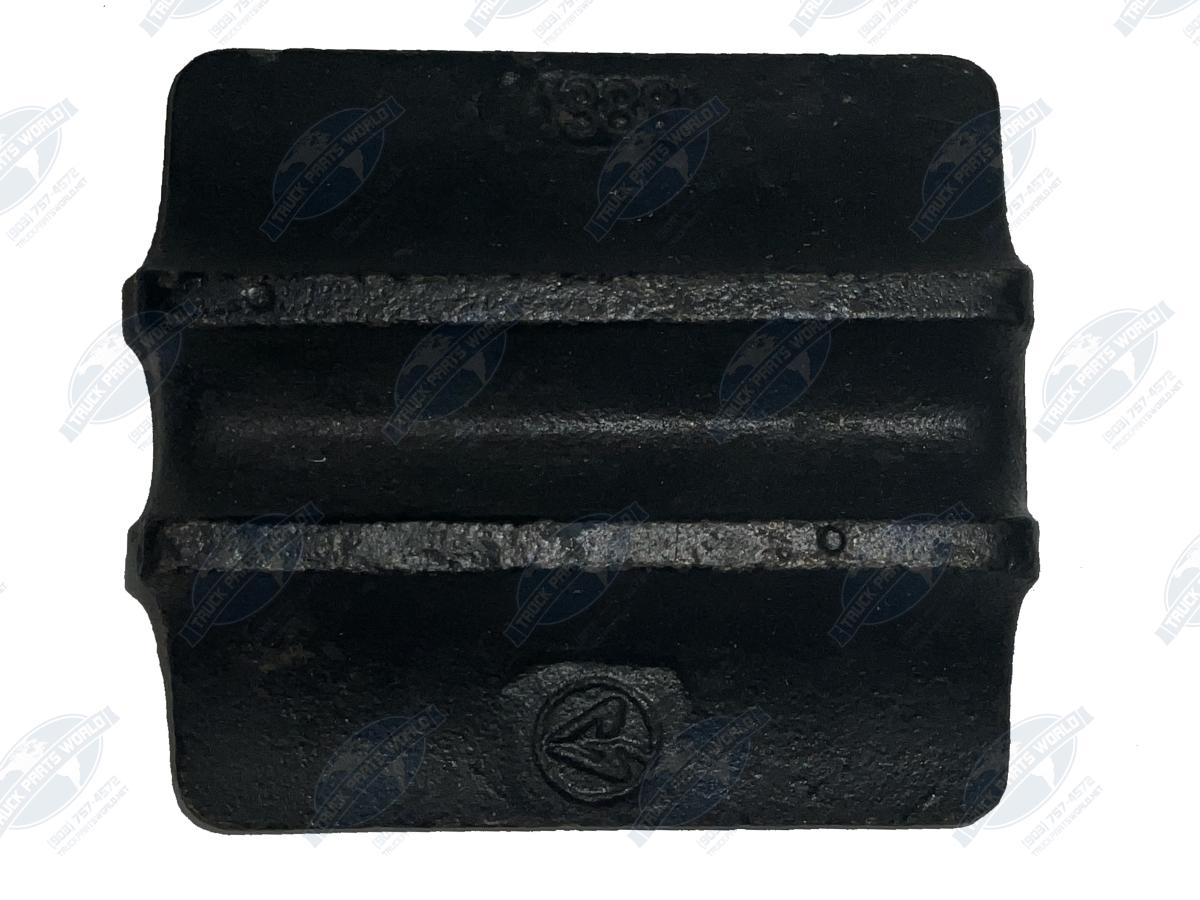

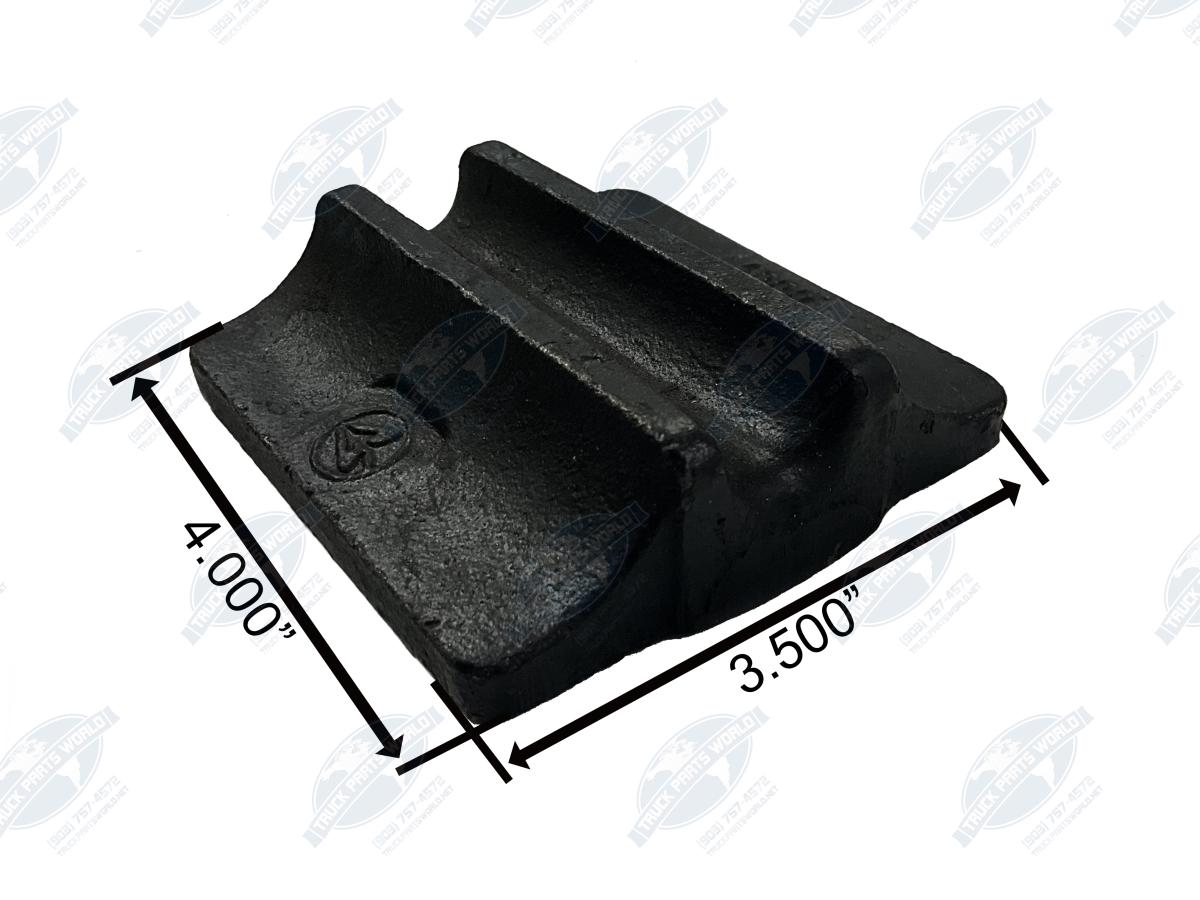

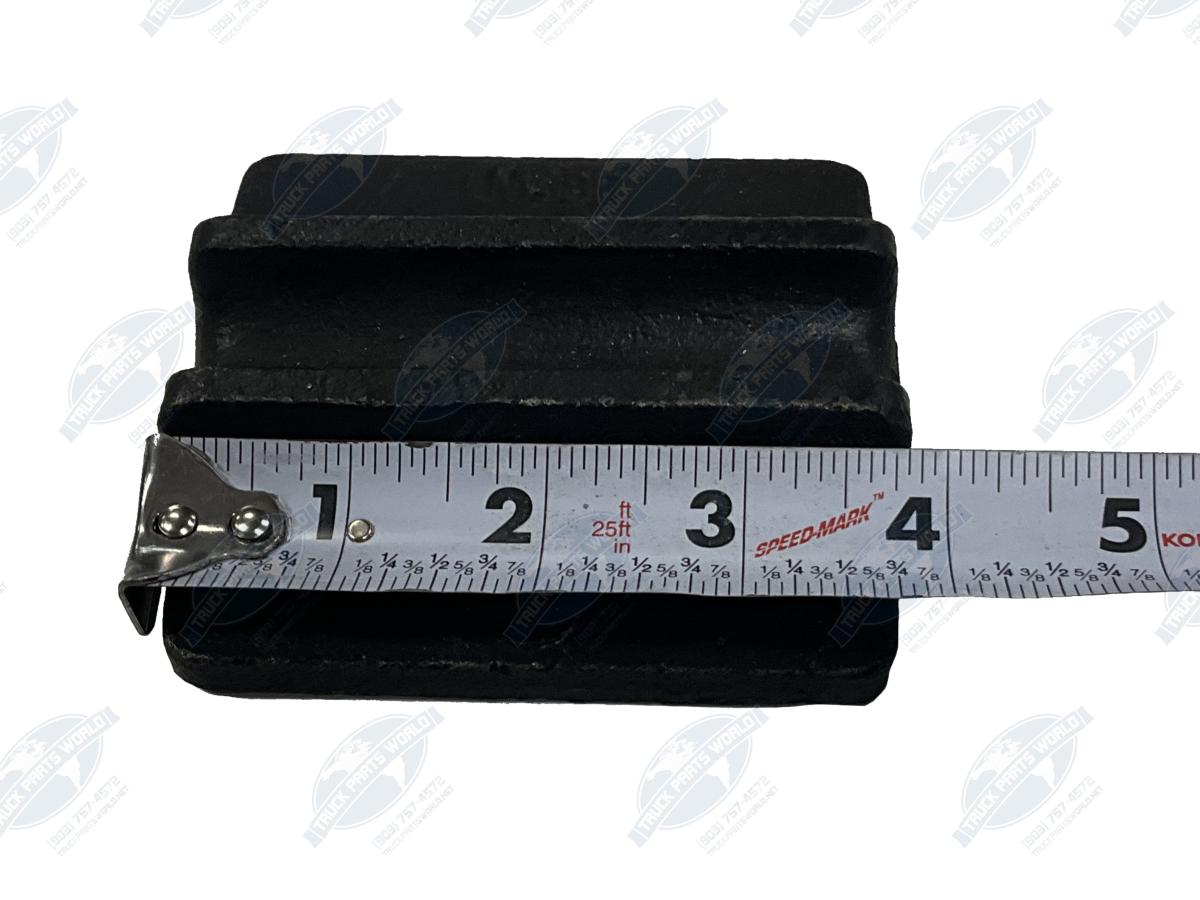

4x Top Plates / Saddles (338-725)

• Description: U-Bolt Saddle / Top Plate.
• Replaces: Peterbilt 03-01657, 03-07865; Meritor R304782; Euclid E4782.

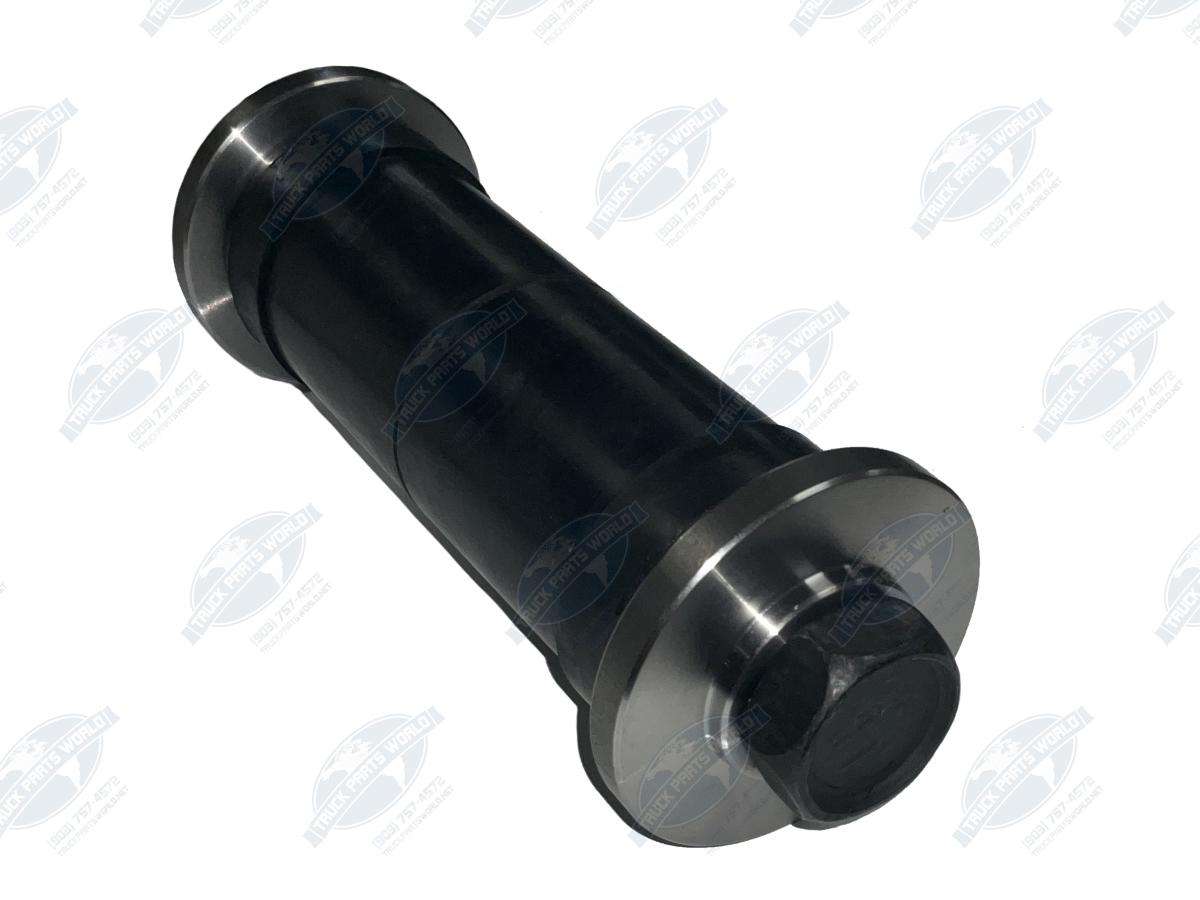

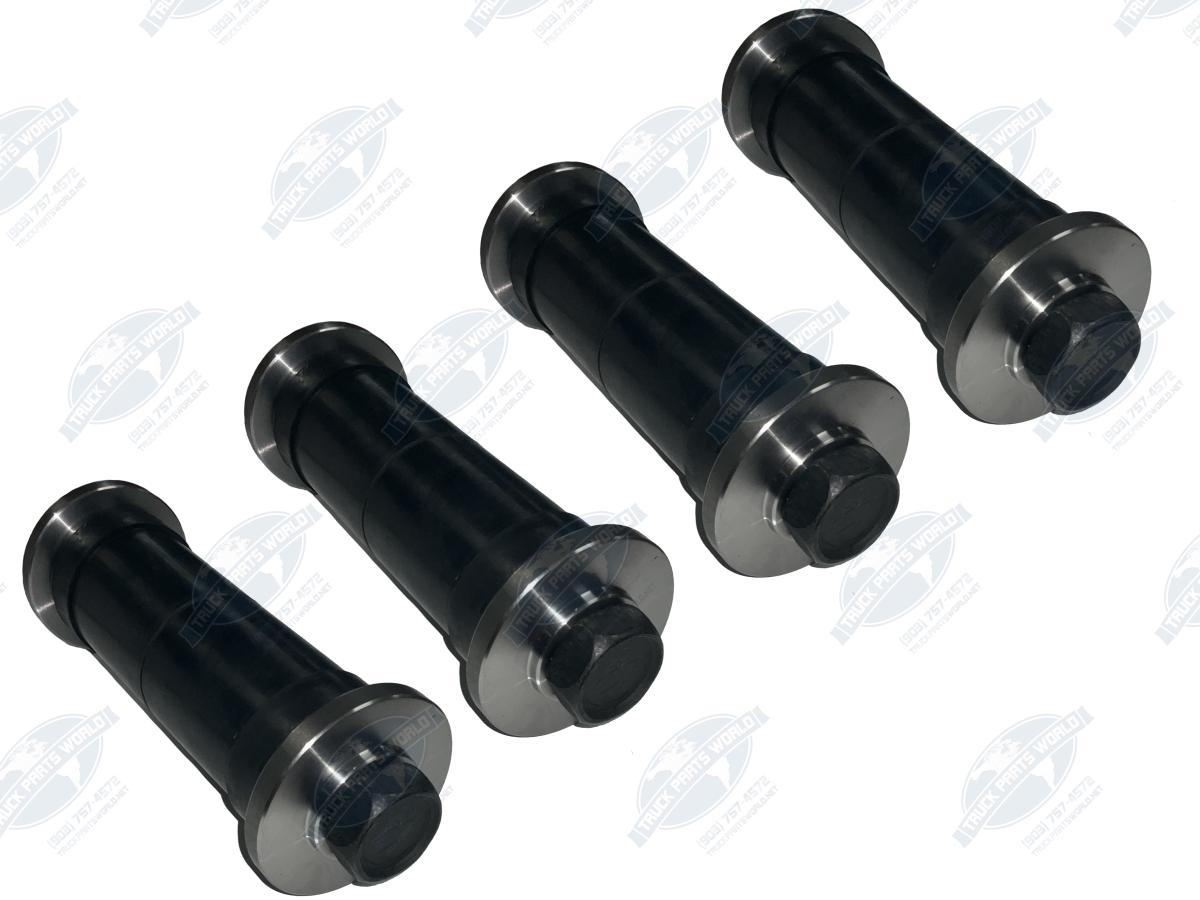

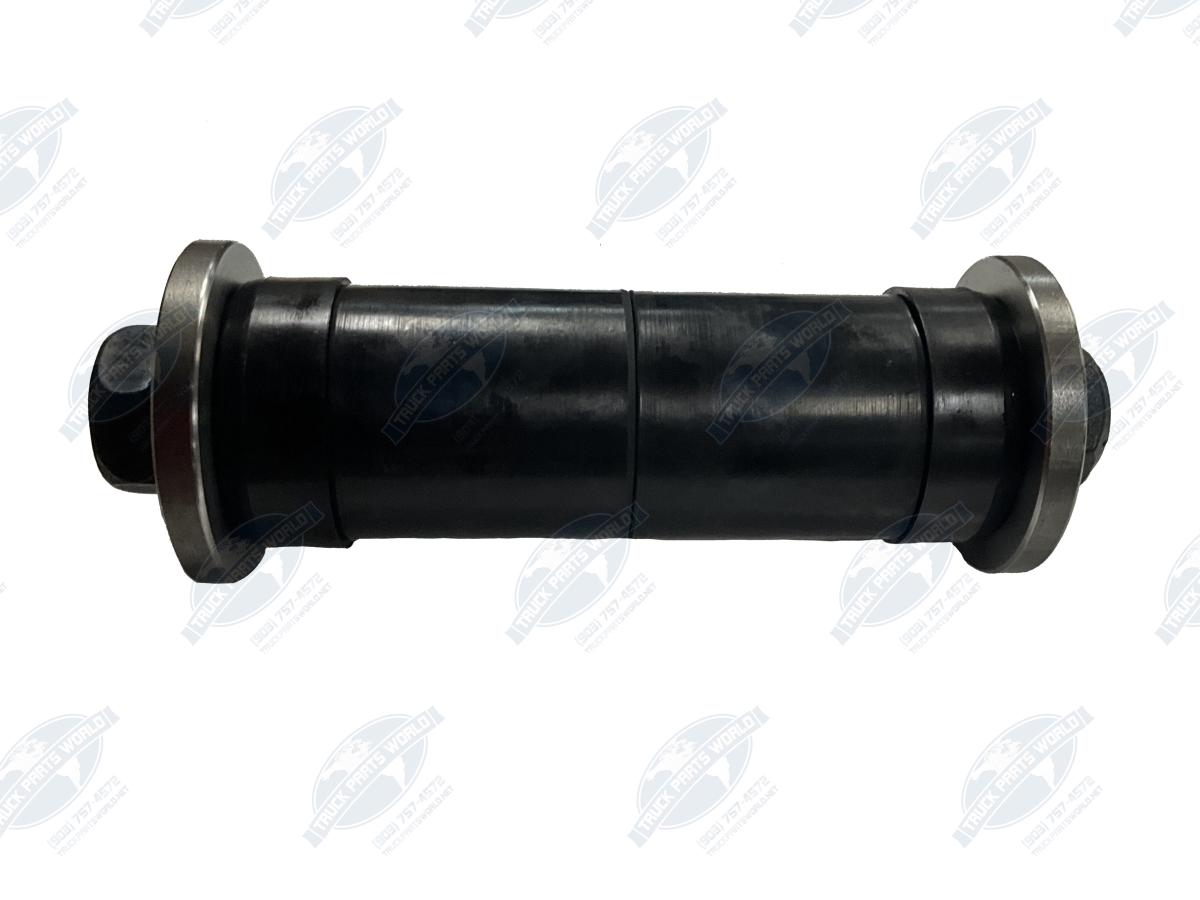

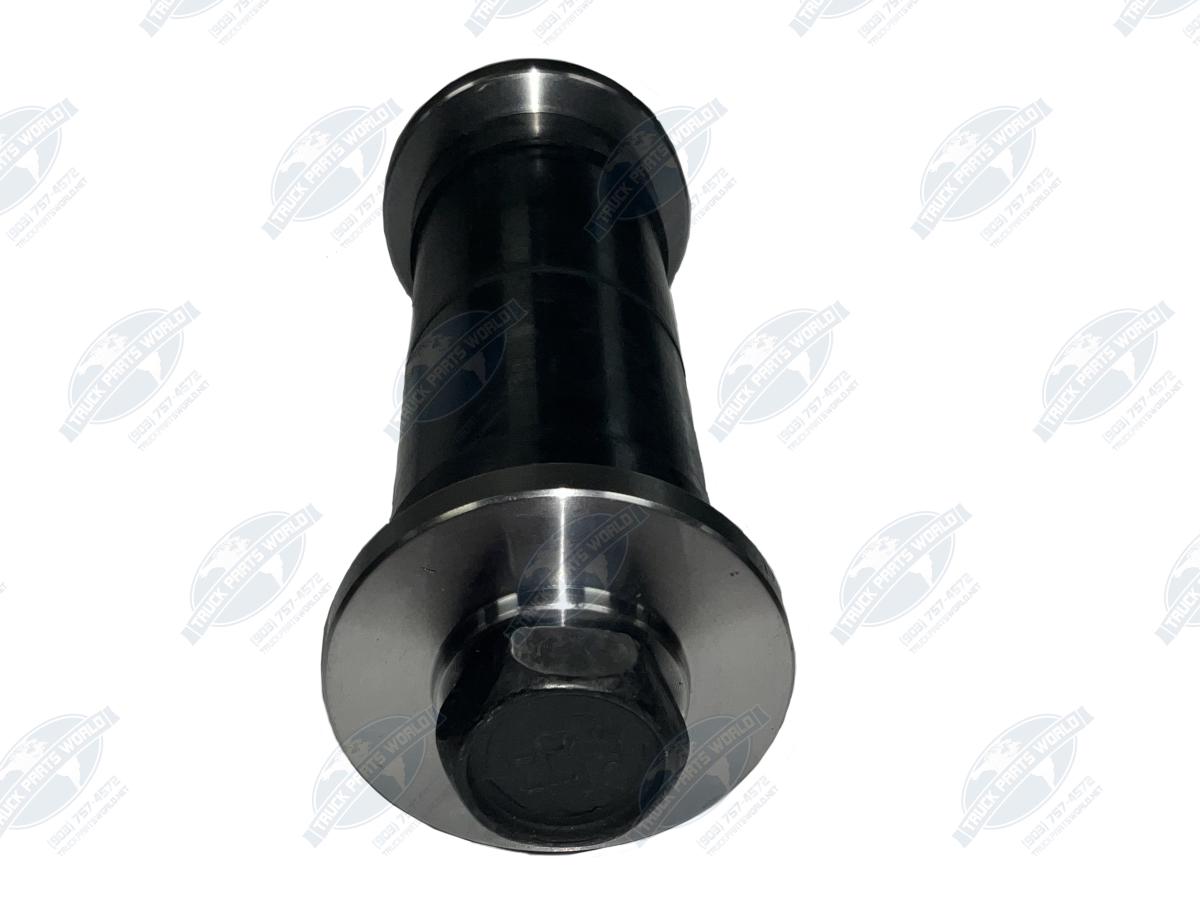

4x Spring Eye Bushing Kits (334-460)

• Description: Rubber Bushing Assembly for Air Leaf Springs.
• Replaces: Peterbilt 03AL1; Euclid E4773; Meritor R304773.

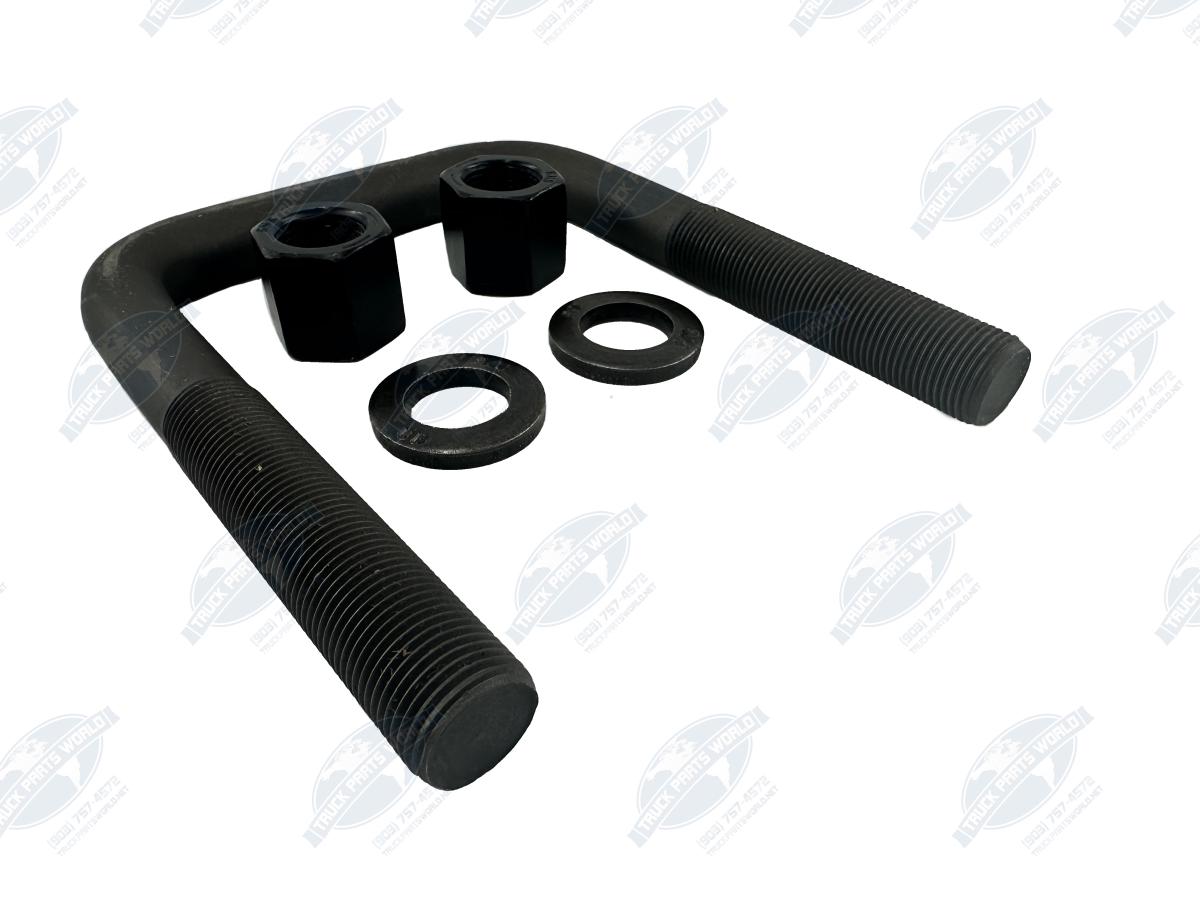

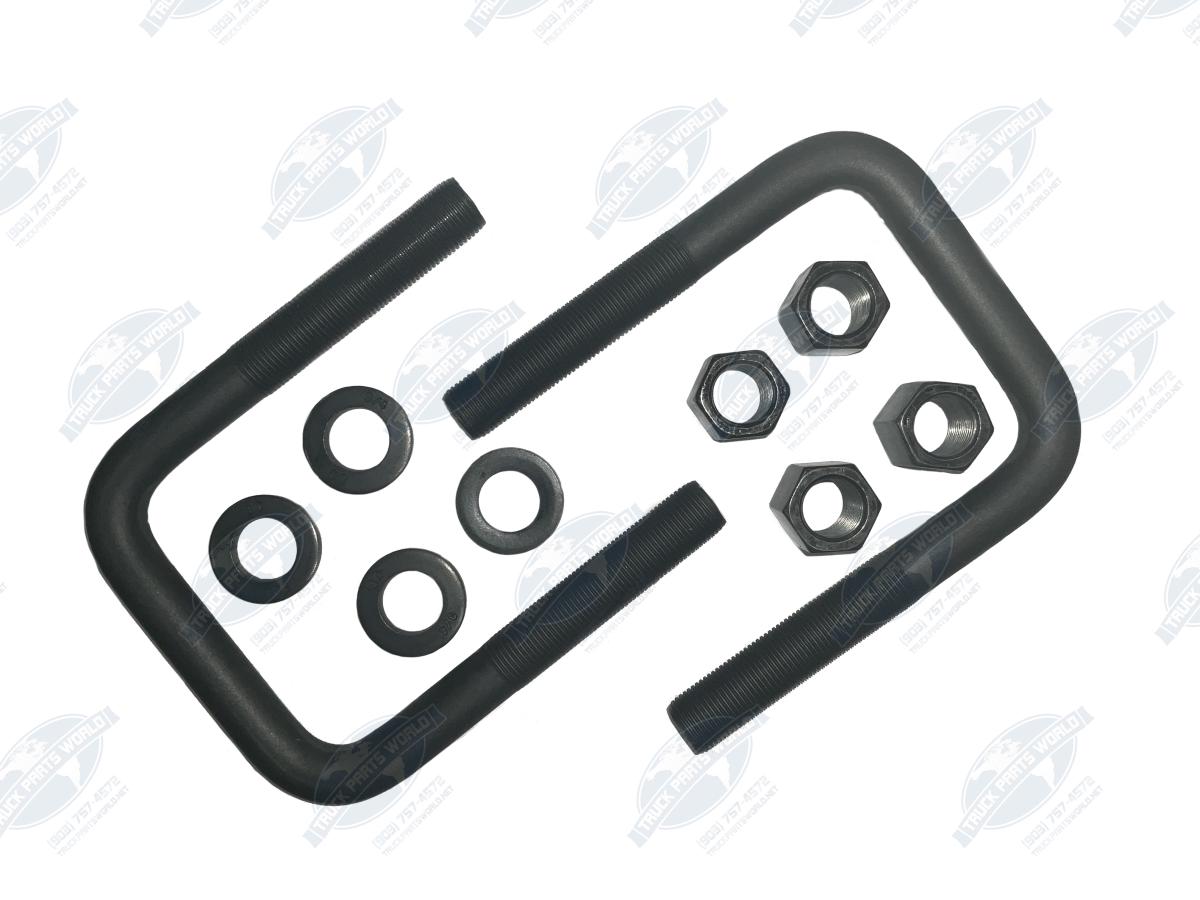

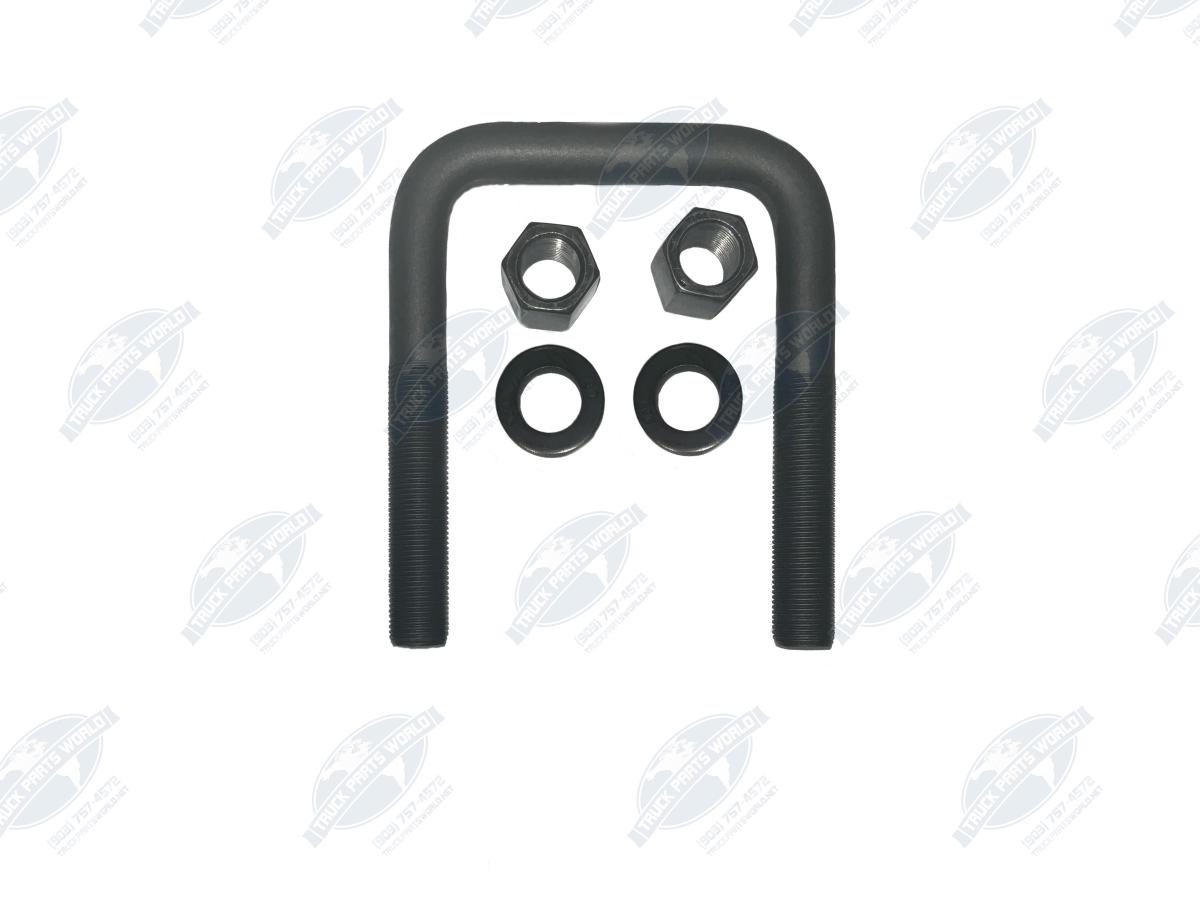

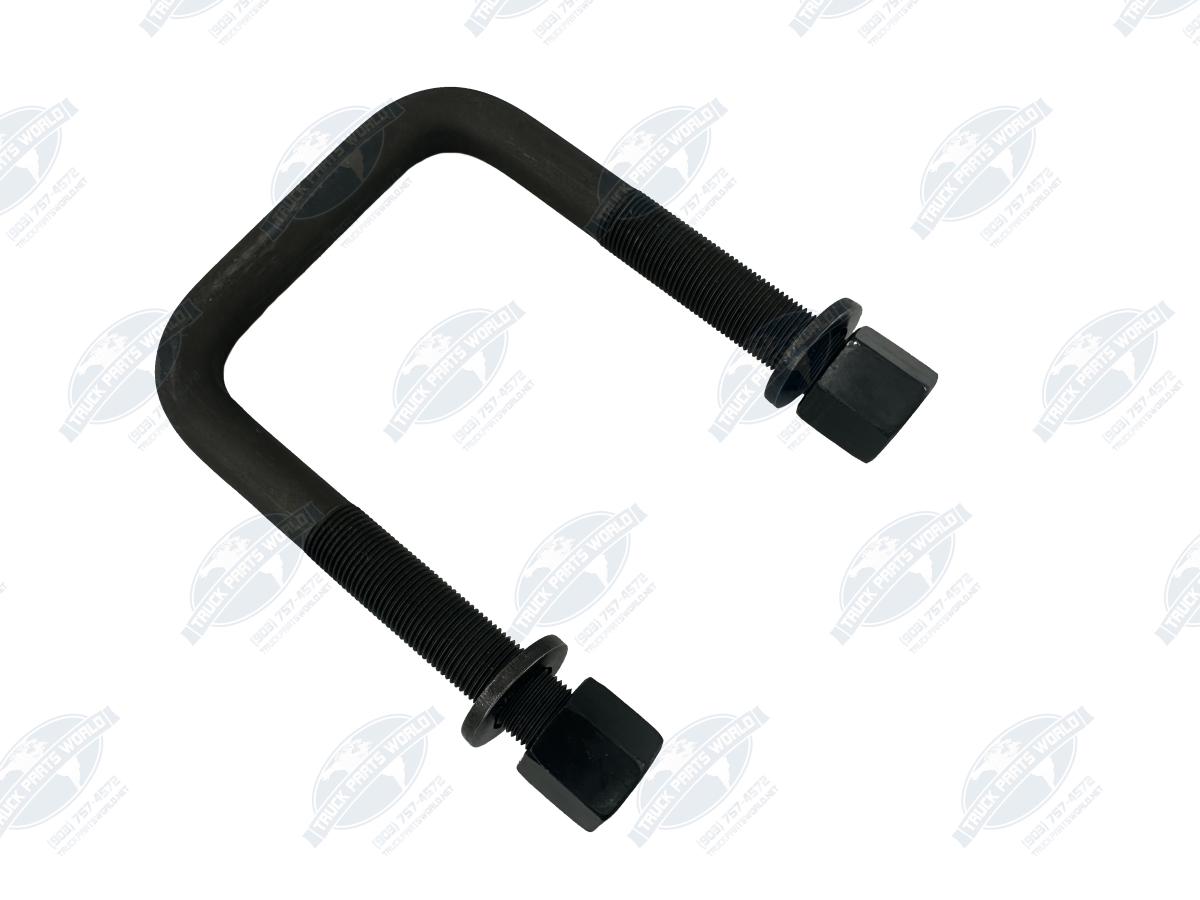

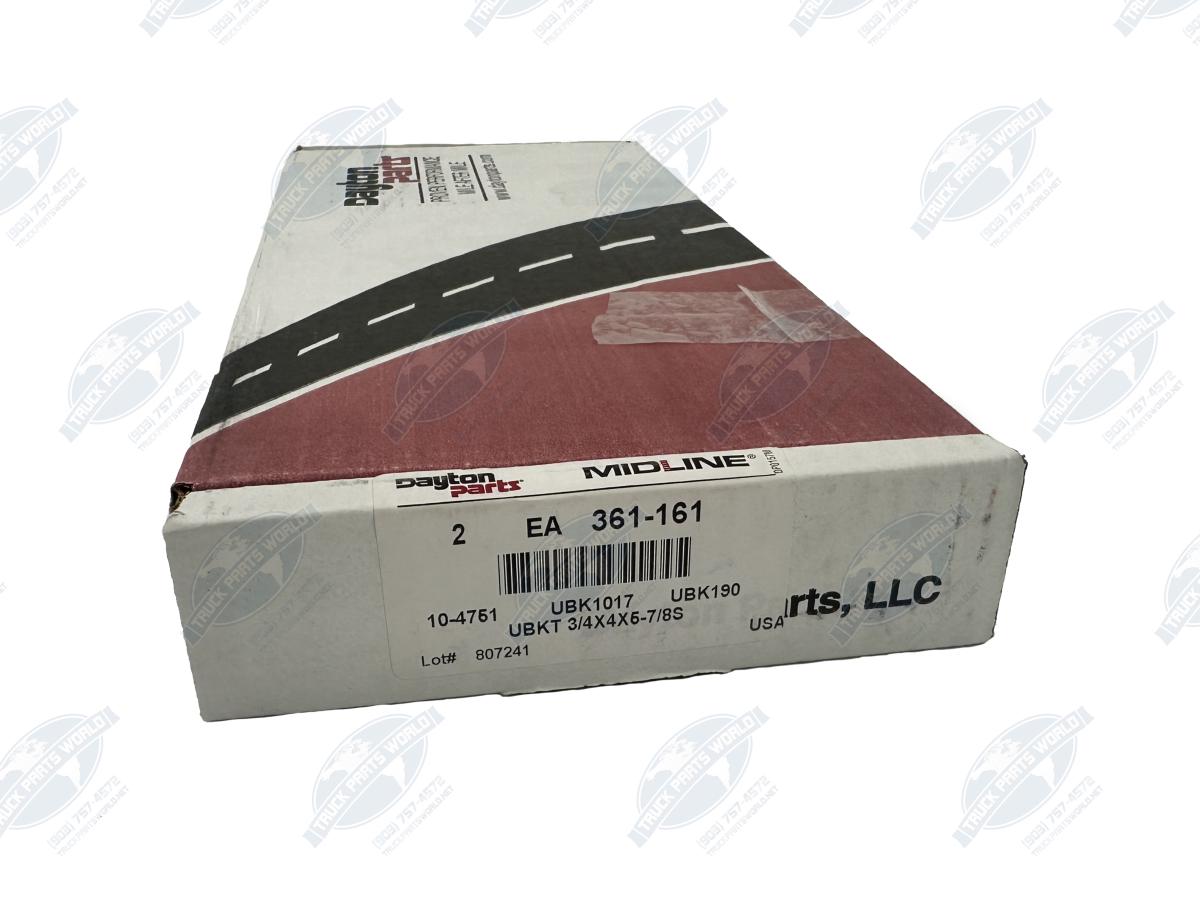

4x U-Bolts (Part of Kit 361-161)

• Total Quantity: 4 U-Bolts, 4 Nuts, 4 Washers.
• Dimensions: 3/4" Dia x 4" Width x 5-3/4" Length.
• Type: Square Bend, Grade 8 High Strength.
• Replaces: Peterbilt 0301661; Euclid E4783; Leland SB1664.

Kit Summary

APPLICATION CHECK:

Designed specifically for Peterbilt Rear Air Leaf Suspensions. Please verify casting numbers (03-01654) before ordering.

Schematics

Featured in Peterbilt Rear Air Leaf Suspension diagrams.
