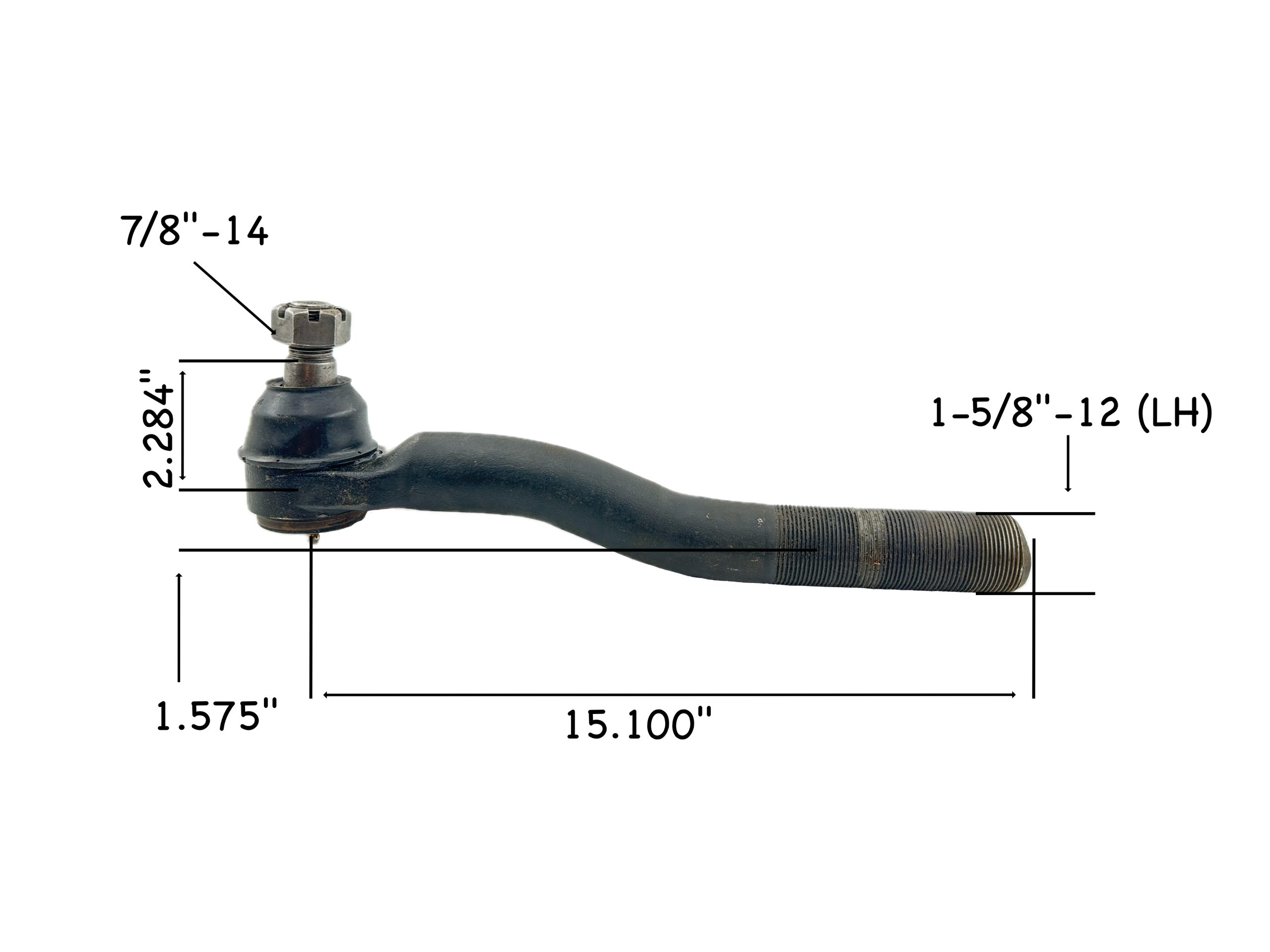

| Attribute | Value |
|---|---|
| Rod OD (A) | 1-5/8” |
| Type | 4 |
| Thread Pitch & Direction | 12 (LH) |
| Center to End (B) | 15.100” |
| Height of Taper (C) | 2.284” |
| Taper Minor Dia. (D) | 0.975” |
| Taper Major Dia. (E) | 1.100” |
| Taper Length (F) | 1.122” |
| Stud Thread (G) | 7/8”-14 |
| Drop (H) | 1.575” |
