Automann MHS117 Shim Bar Pin – 1/16″ Alignment Shim Overview

$4.66

SKU: MHS117 Categories: , , Brand:

Description

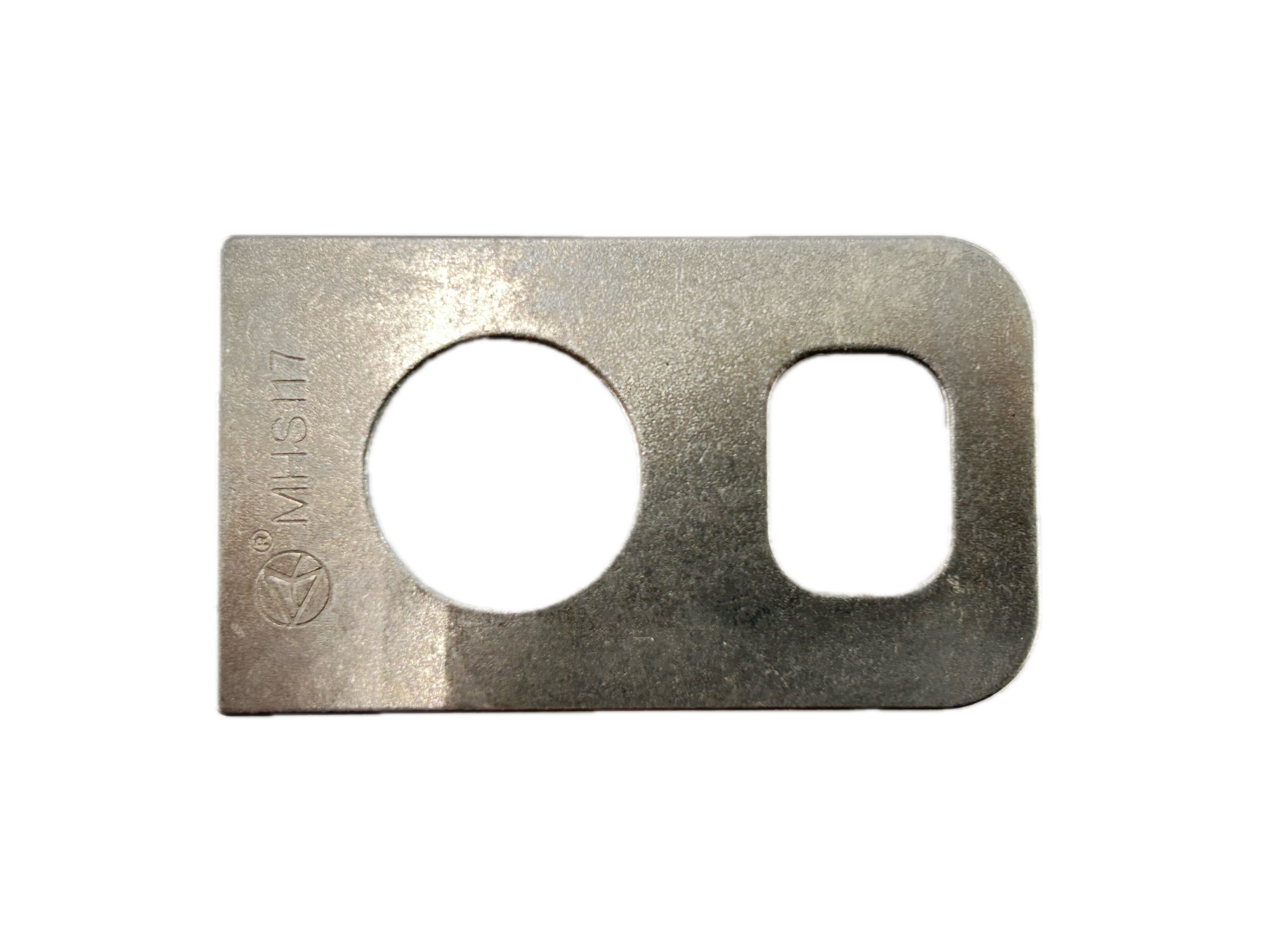

The Automann MHS117 Shim Bar Pin is a precision-engineered alignment shim, measuring 1/16″ in thickness, designed for bar pin suspension bushings. It provides the exact clearance needed to maintain proper suspension geometry and minimize premature wear.

Key Features

  • Part Number: MHS117 (also listed as FXMHS117 in some inventories)

  • Thickness: 1/16″ (≈1.59 mm) shim bar pin for accurate alignment

  • Brand: Automann, known for ISO 9001:2015‑certified quality and OE‑level performance

  • Ideal For: Suspension bar‑pin end bushings — helps eliminate excessive play and improves alignment

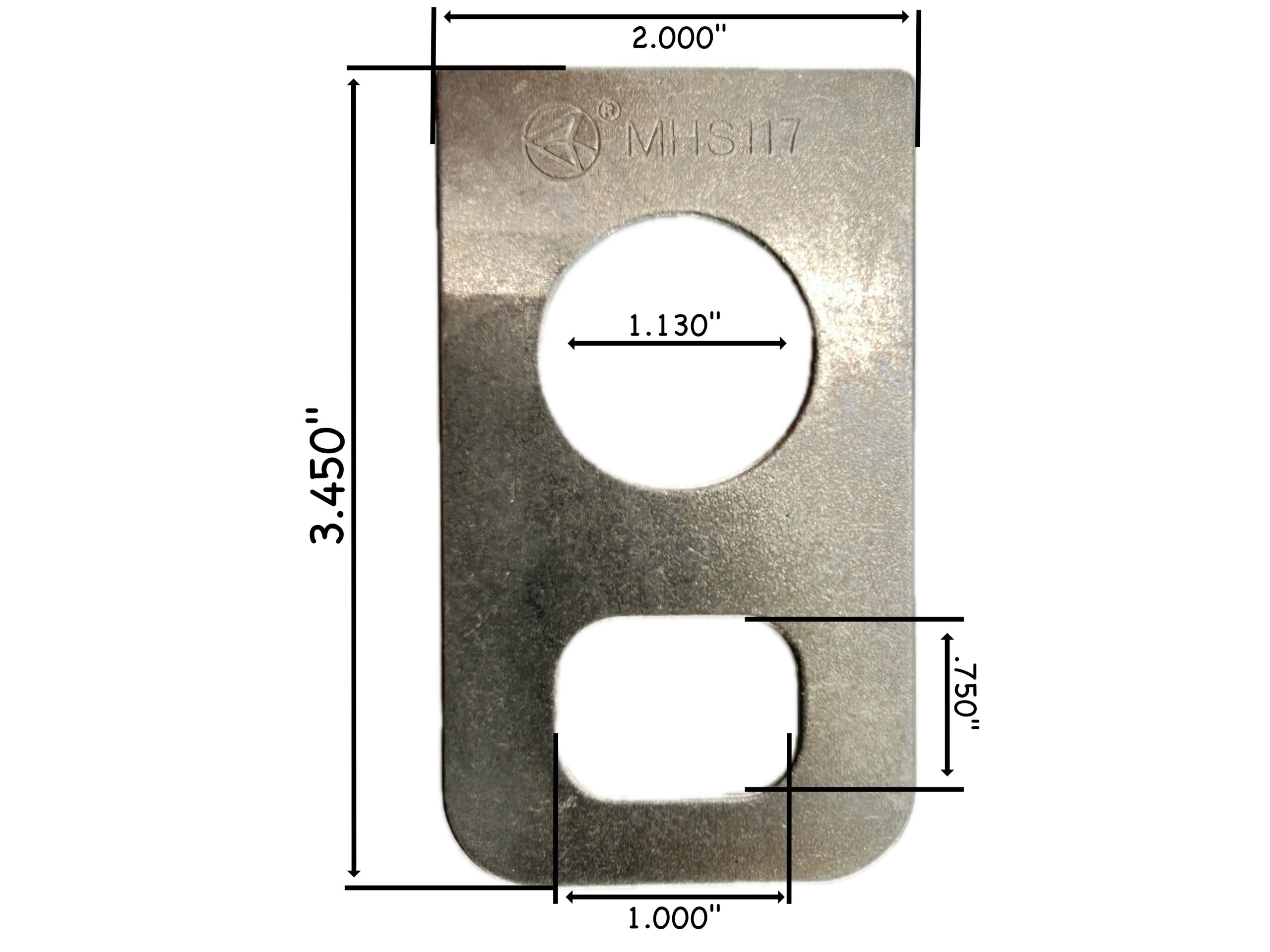

Specs & Dimensions

Attribute Dimension
Shim Thickness 1/16″ (~1.59 mm)
Weight approx. 0.09 lbs
Pack Dimensions 4.25 × 2.23 × 0.85 in
SKU/UPC MHS117 / 889626164255 (some sources)

Cross‑Reference & Kit Info

  • FXMHS117 – Alternate listing commonly used by distributors

  • Included in Automann Kit MHS113, which bundles four MHS115, two MHS117, and four MHS119 shims—ideal for comprehensive bar‑pin rebuilds

Applications

Typically used in Hendrickson-style bar-pin suspension systems and other heavy-duty trucks/trailers requiring precise shim spacing. Compatible with a wide array of industry-standard bushings and alignment setups.

Why Choose Automann MHS117?

  • OEM-Level Reliability: Meets or exceeds original equipment specifications

  • Precision Fit: Strict 1/16″ thickness ensures accurate suspension alignment

  • Economical & Convenient: Often bundled in kits or sold individually

  • Wide Distributor Support: Easy to find under both MHS117 and FXMHS117 listings
