Automann 170.1053 – 2.5″ Glycerin-Filled Pressure Gauge 0–160 PSI

$31.76

SKU: 170.1053 Category: Tags: Brand:

Description

Boost your heavy-duty vehicle monitoring with the Automann 170.1053, a durable 2.5″ glycerin-filled pressure gaugedesigned for accuracy and longevity.

🔧 Key Features:

  • 2.5″ (63 mm) stainless bezel gauge — ideal for dash or panel installation

  • 0–160 PSI pressure range — suitable for air, hydraulic, or industrial applications

  • Glycerin-filled housing minimizes needle vibration and protects internal components

  • Bottom-mounted 1/4″ NPT brass connection for secure and leak-resistant fittings

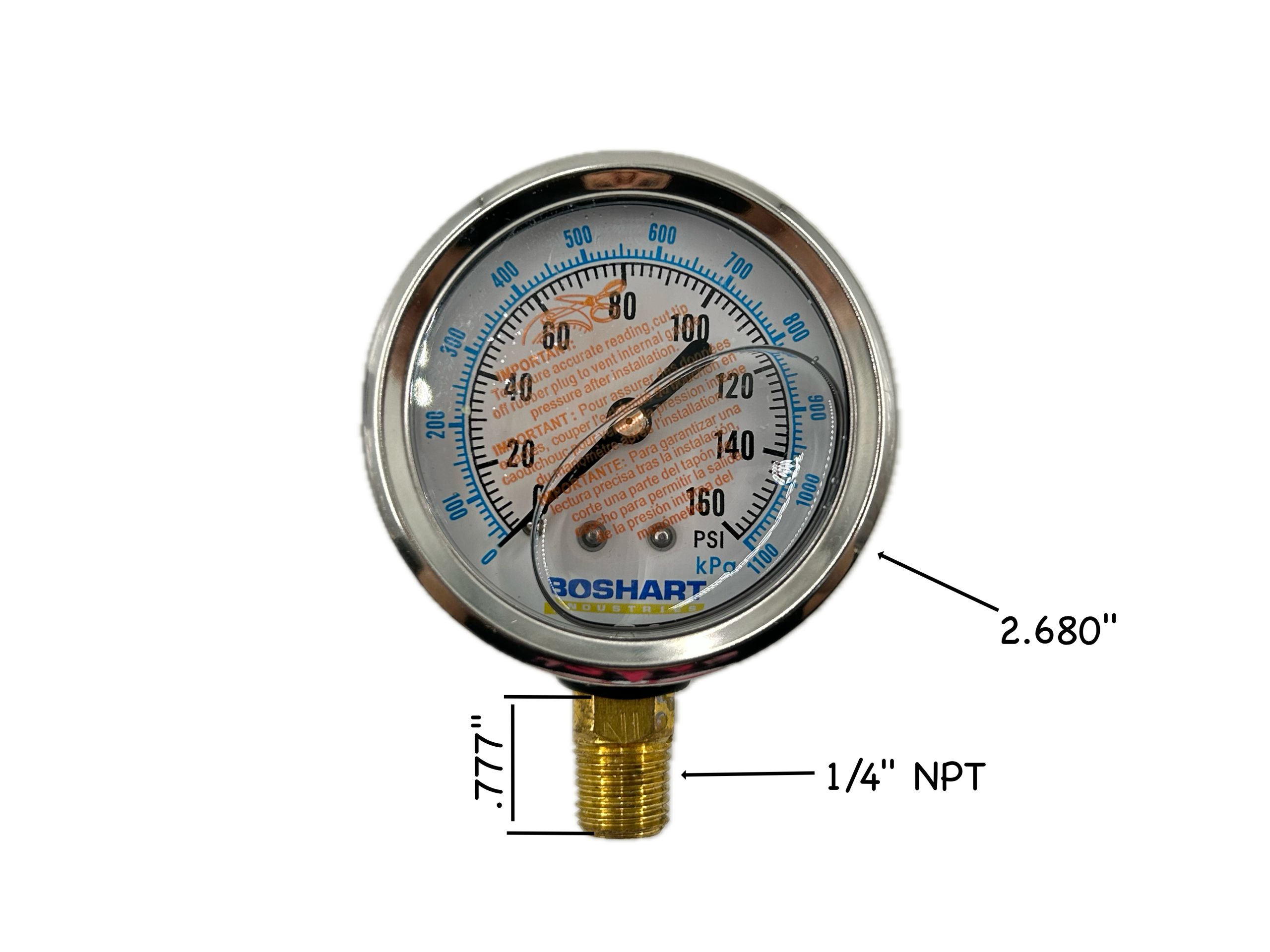

⚙️ Technical Specifications:

Specification Details
Mounting 1/4″ NPT, bottom
Case Size 2.5″ diameter
Pressure Range 0–160 PSI
Fluid Fill Glycerin (vibration dampening)
Shipping Dimensions Approx. 3″ × 3″ × 1.25″
Weight ~0.46 lb (~0.21 kg)

✅ Benefits:

  • Reliable accuracy – glycerin helps stabilize the gauge needle, reducing reading errors

  • Build-to-last – the robust casing protects against shocks and corrosion

  • Versatile design – compatible with a wide range of air and hydraulic systems

🔄 Cross-Reference Numbers:

Common OEM equivalents you can substitute include:

  • 80‑L25BM16, 80L25BM16

  • PG25‑160‑GNL, PG25160GNL

  • R986071

🛠️ Typical Applications:

This gauge works well in:

  • Class 8 trucks and trailers

  • RV air systems

  • Industrial air compressors and hydraulic machinery
