Description

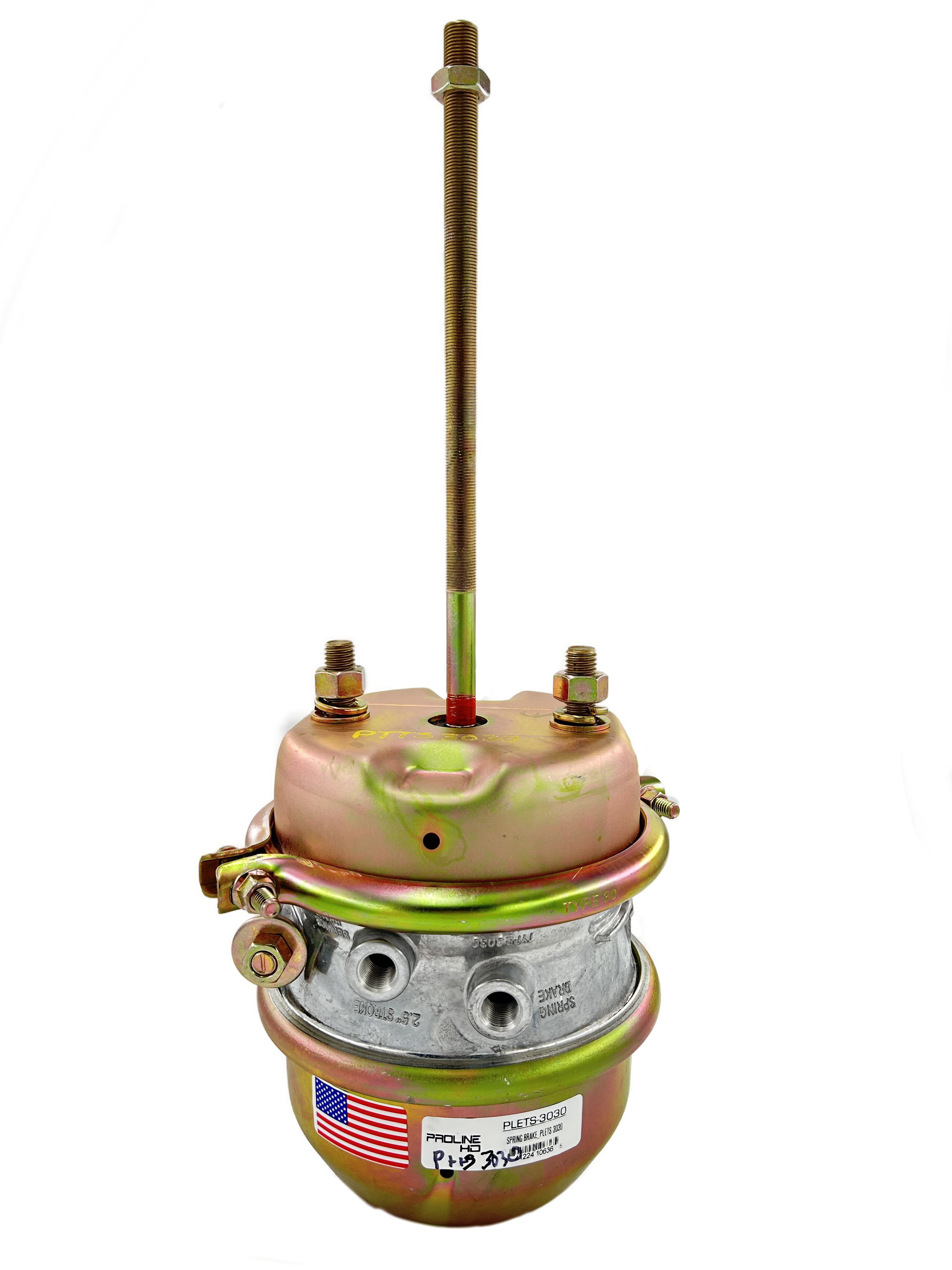

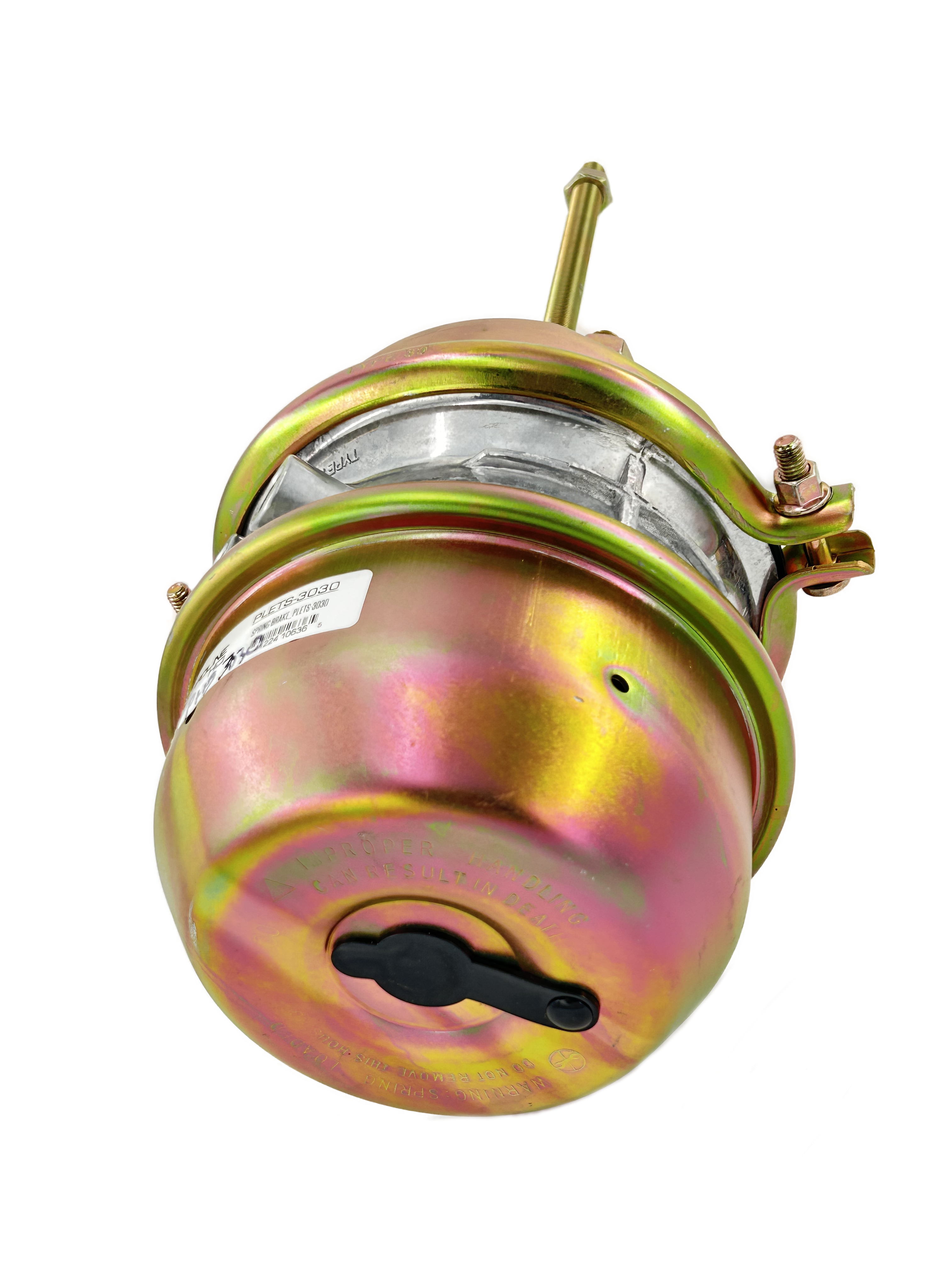

This listing is for 1 air brake chambers, each measuring 2.5 inches or 64mm in size and sealed for optimal performance. The brand of these chambers is Proline and they come with a 1-year warranty for added peace of mind. The manufacturer part number for these chambers is 2 x PTTS3030. Ideal for use in commercial trucks, these brake chambers are a reliable choice for anyone in need of brake parts and accessories.

• This item includes 2 x Air Brake Chamber – BC-3030STD
• Actuator Type Size: 3030 Standard
• Stroke Type: Standard
• Available Stroke: 2-1/2″, 64mm
• Length from mounting bracket to the end of Spring Housing: 9″, 229mm
• Length of Piggyback: 6-13/16″, 173mm
• Dimension at rolled Spring Housing flange: 8-5/16″, 211mm
