Description
- M30 X 1.5, LH Thread, 4-7/8in120mm C to End
Small Dia. .94in Large Dia. 1.126in 1.10in Taper Length
VF8.2 and VF12 Axles

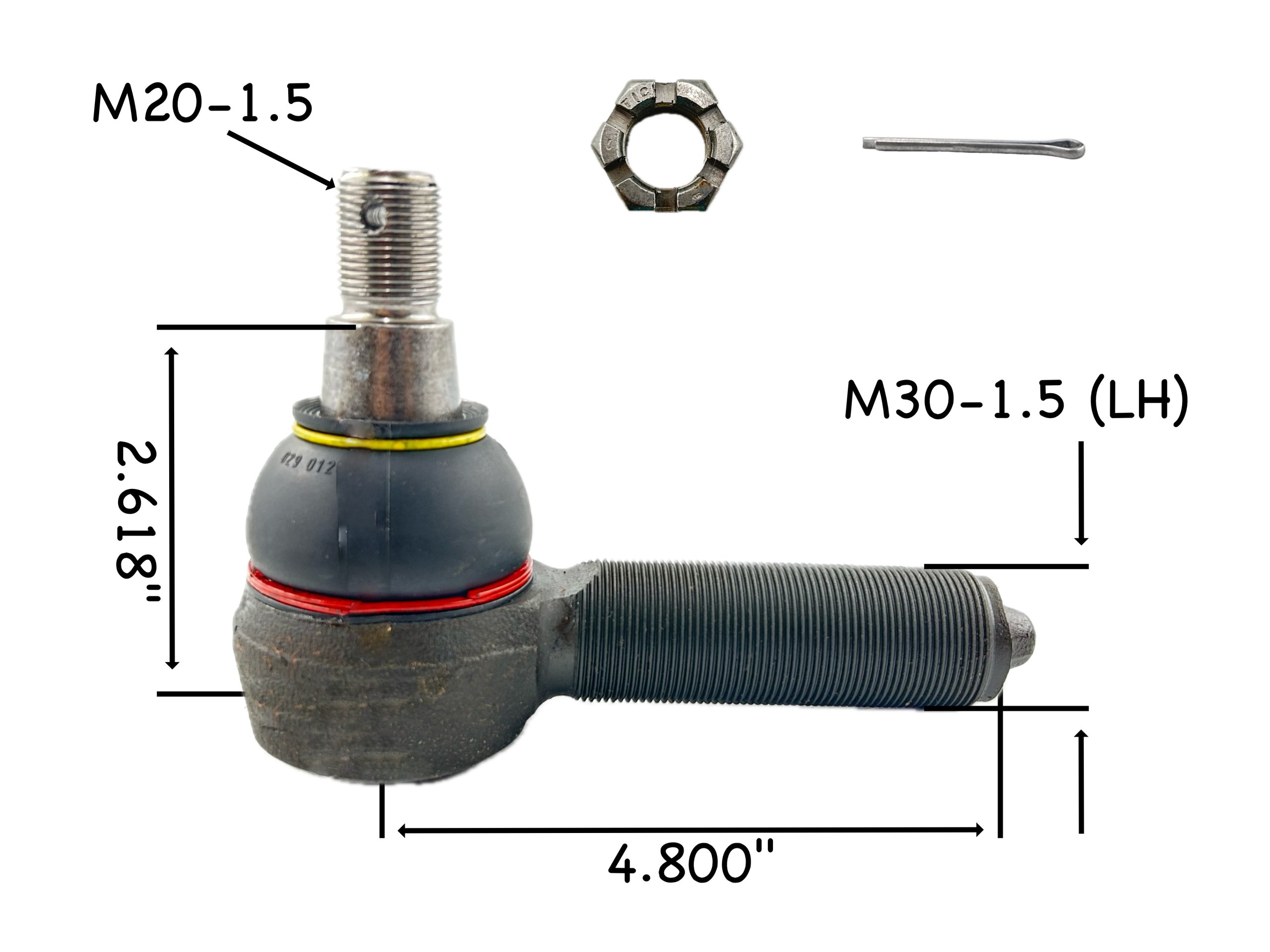

| Attribute | Value |
|---|---|
| Applications | Volvo |
| Rod OD (A) | M30 |
| Type | 1 |
| Thread Pitch & Direction | 1.5 (LH) |
| Center to End (B) | 4.800” |
| Height of Taper (C) | 2.618” |
| Taper Minor Dia. (D) | 0.940” |
| Taper Major Dia. (E) | 1.126” |
| Taper Length (F) | 1.100” |
| Stud Thread (G) | M20-1.5 |
| Drop (H) | N/A |
