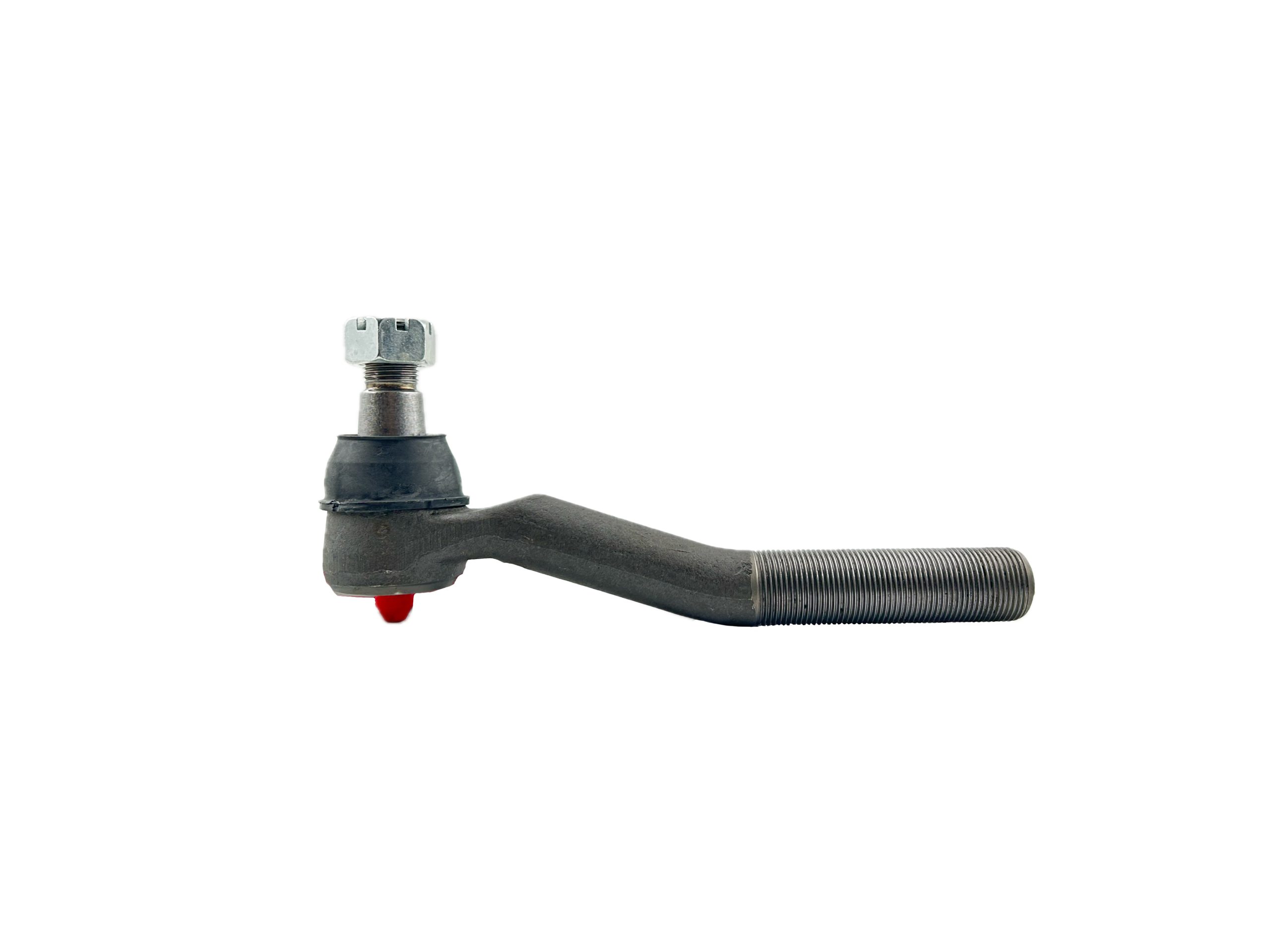

310-592 Tie Rod End

310-592 Tie Rod End - Image 2

310-592 Tie Rod End

$92.03

SKU: 310-592 Categories: Rod End OD - 1-1/4"-12, Steering, Tie Rod Ends, Type 4 - Dropped Tags: 118433 2604283C91 462.ES2238R 607-338-22-10 6073382 6073382210 60961138 66645002 666452 88936107 A3144Q1136 A3144R1136 A6073382210 ES800420 ES9138R L20LV8014A14 L20LV8014A15 P607-338-22-10 P6073382210 R230138 TRE9000R Brand: Dayton

Description

Tie Rod End

Attribute	Value
Applications	Freightliner
Rod OD (A)	1-1/4”
Type	4
Thread Pitch & Direction	12 (RH)
Center to End (B)	10.320”
Height of Taper (C)	2.224”
Taper Minor Dia. (D)	0.967”
Taper Major Dia. (E)	1.102”
Taper Length (F)	1.080”
Stud Thread (G)	7/8”-14
Drop (H)	1.043”
