Description

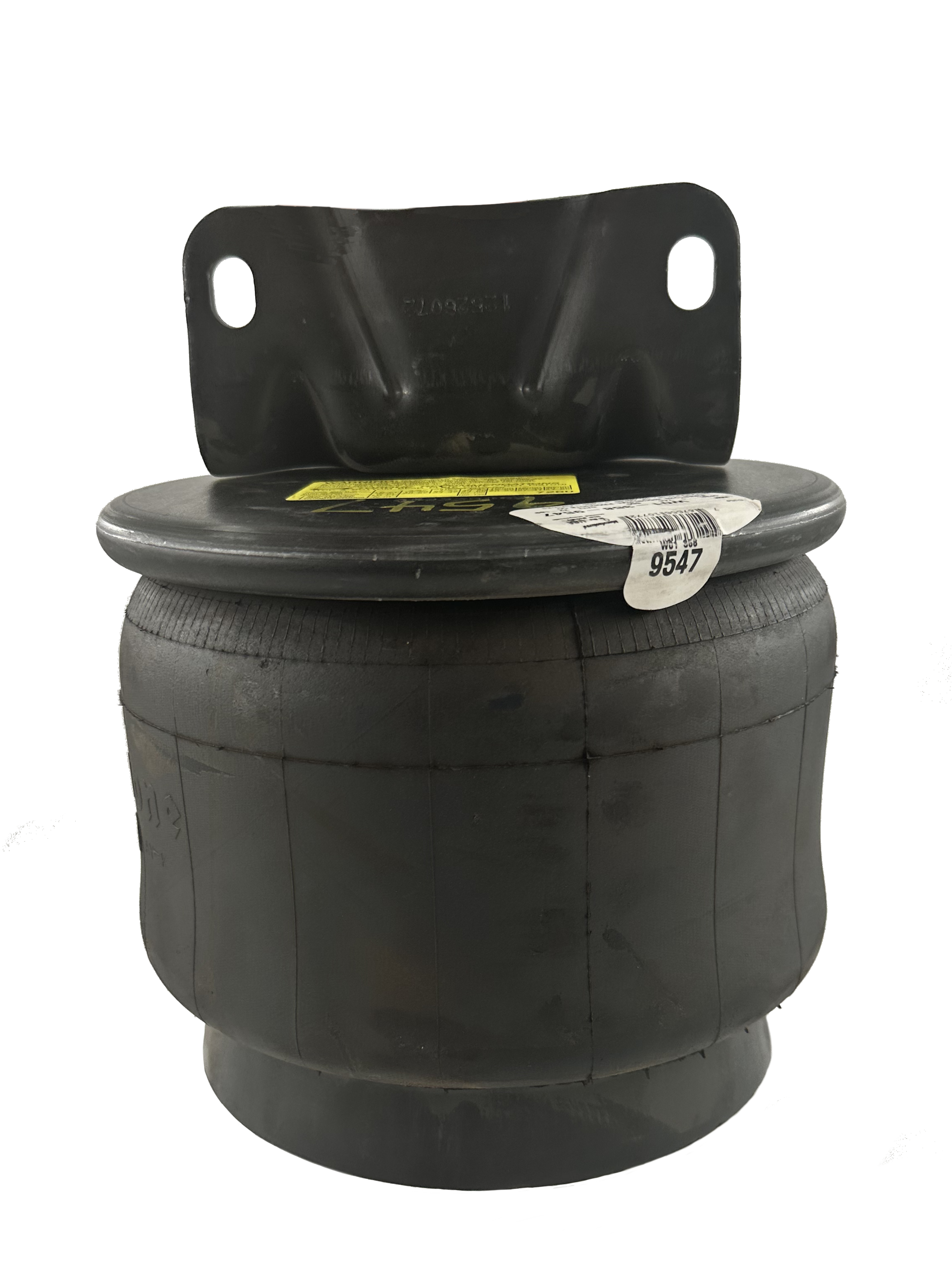

This high-quality Firestone air spring with the manufacturer part number 9547 is a reliable replacement for your Kenworth C81-1004 Airglide 400. It comes with a 1-year warranty and is compatible with various cross references such as W01-544-9547, W013589547, and W015449547. The air spring is designed for optimal performance and durability, ensuring a smooth ride for your commercial truck. Whether you’re a professional truck mechanic or a DIY enthusiast, this Firestone air spring is a great choice for your suspension and steering needs. It is easy to install and provides reliable support for your truck’s weight. Don’t miss out on this opportunity to upgrade your vehicle’s suspension system.
| Automann Bellows# | 1DK20G |
| Firestone Bellows# | 1T15LA-(1), 1T15KW-(1) |
| Goodyear Bellows# | 566-22-3-021 |
| Contitech Bellows# | 9 9-9 |
| Triangle Bellows# | 6397 |
| Load (Lbs) @80 PSI | 5100 |
| Load (Lbs) @100 PSI | 6400 |
| Natural Freq. (CPM) | 103 |
| Design Height (In) | 7.00 |
| Bottom Plate Type | Plastic |
| Top Plate Hole/Stud Qty | 1 |
| Top Plate Dia. (A) | 9.00 |
| Top Plate C to C Dia. (B) | N/A |
| Bottom Plate Hole/Stud Qty | 1 |
| Bottom Plate Dia. (C) | 8.19 |
| Bottom Plate C to C Dia. (D) | N/A |
| Bottom Part # | |
| Bumper | No |
| Bracket | |
| Min. Height | 3.90 |
| Max. Dia. | 11.40 |
