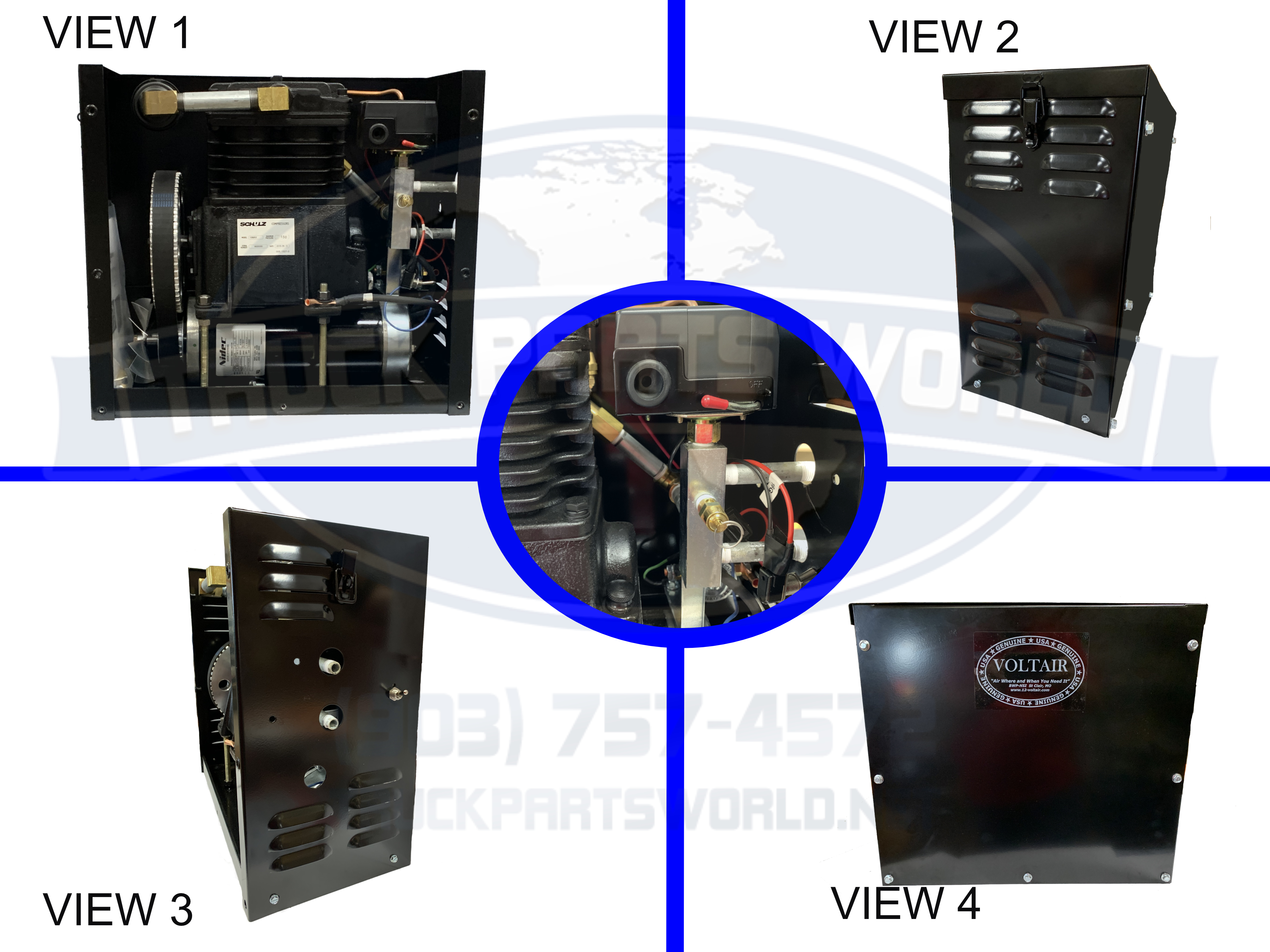

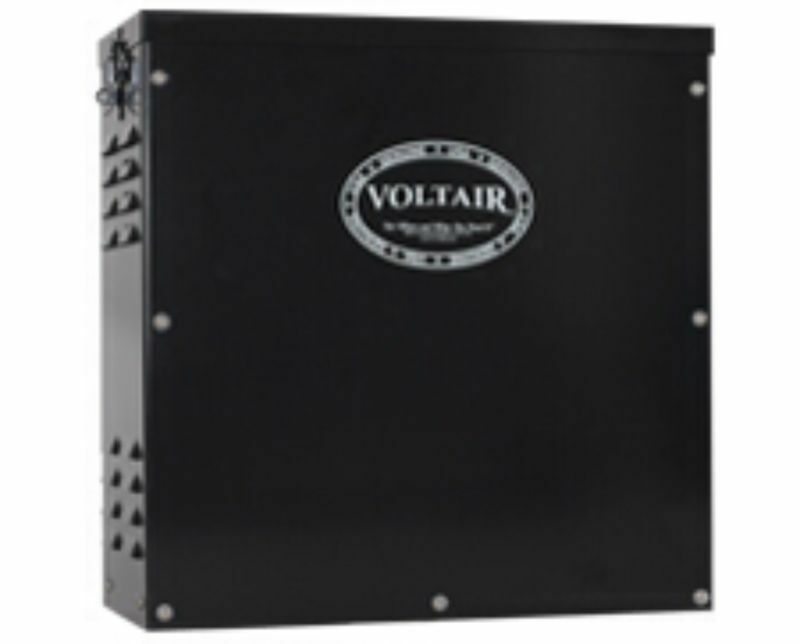

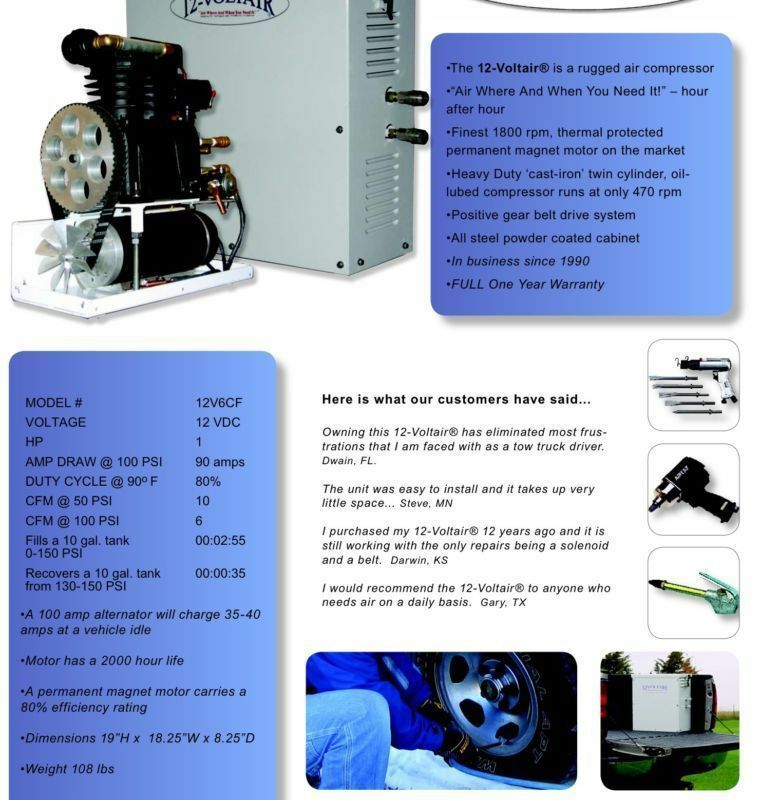

The 12-Voltair® is a rugged air compressor
•“Air Where And When You Need It!” – hour
after hour
•Finest 1800 rpm, thermal protected
permanent magnet motor on the market

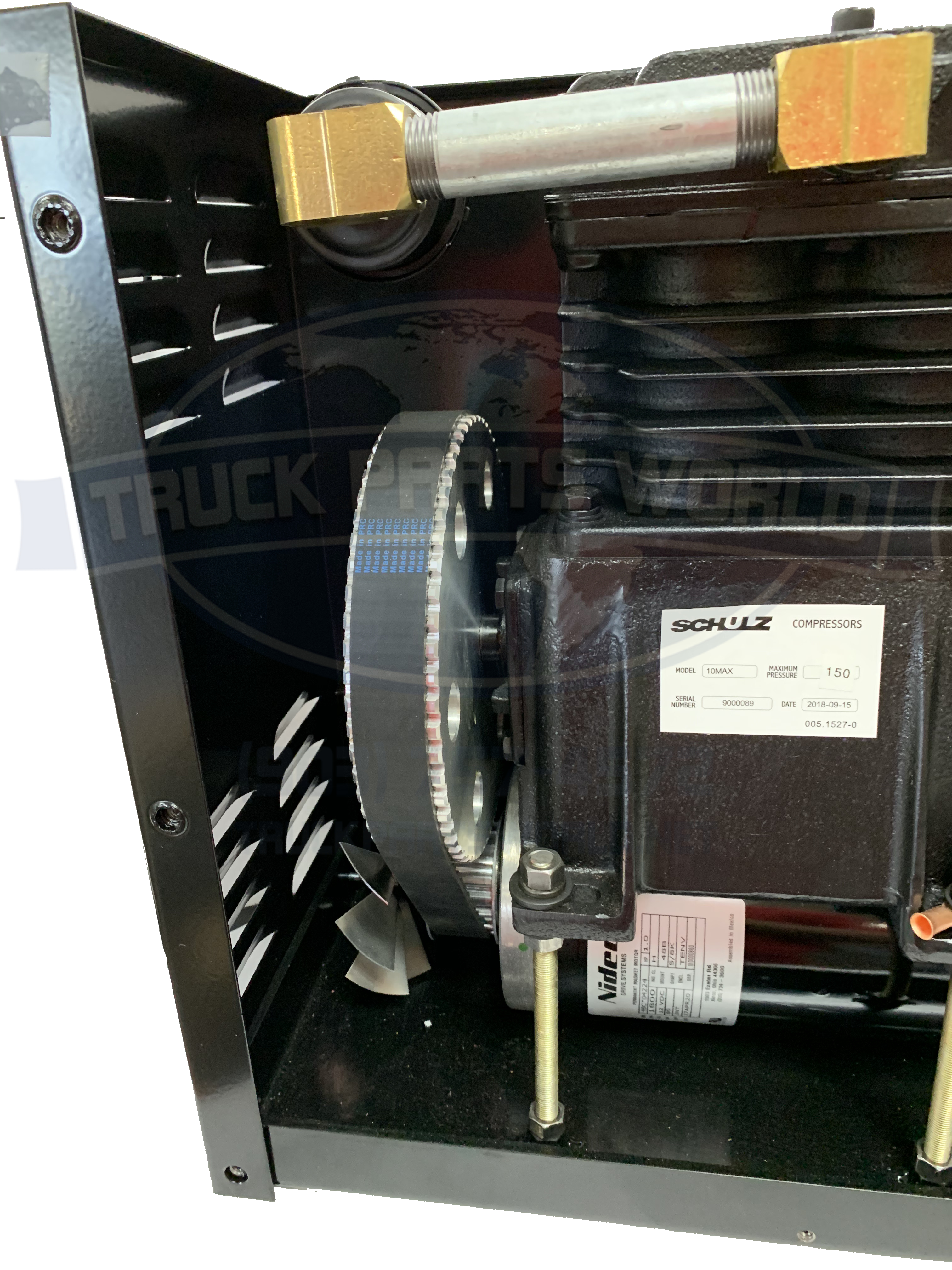

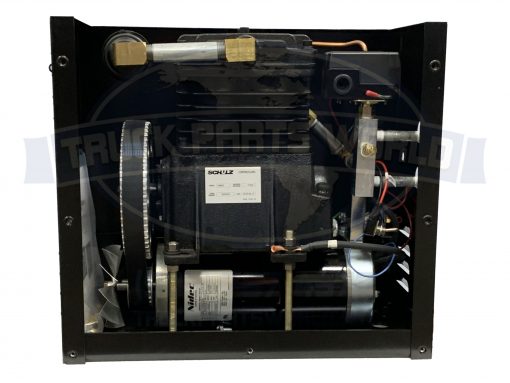

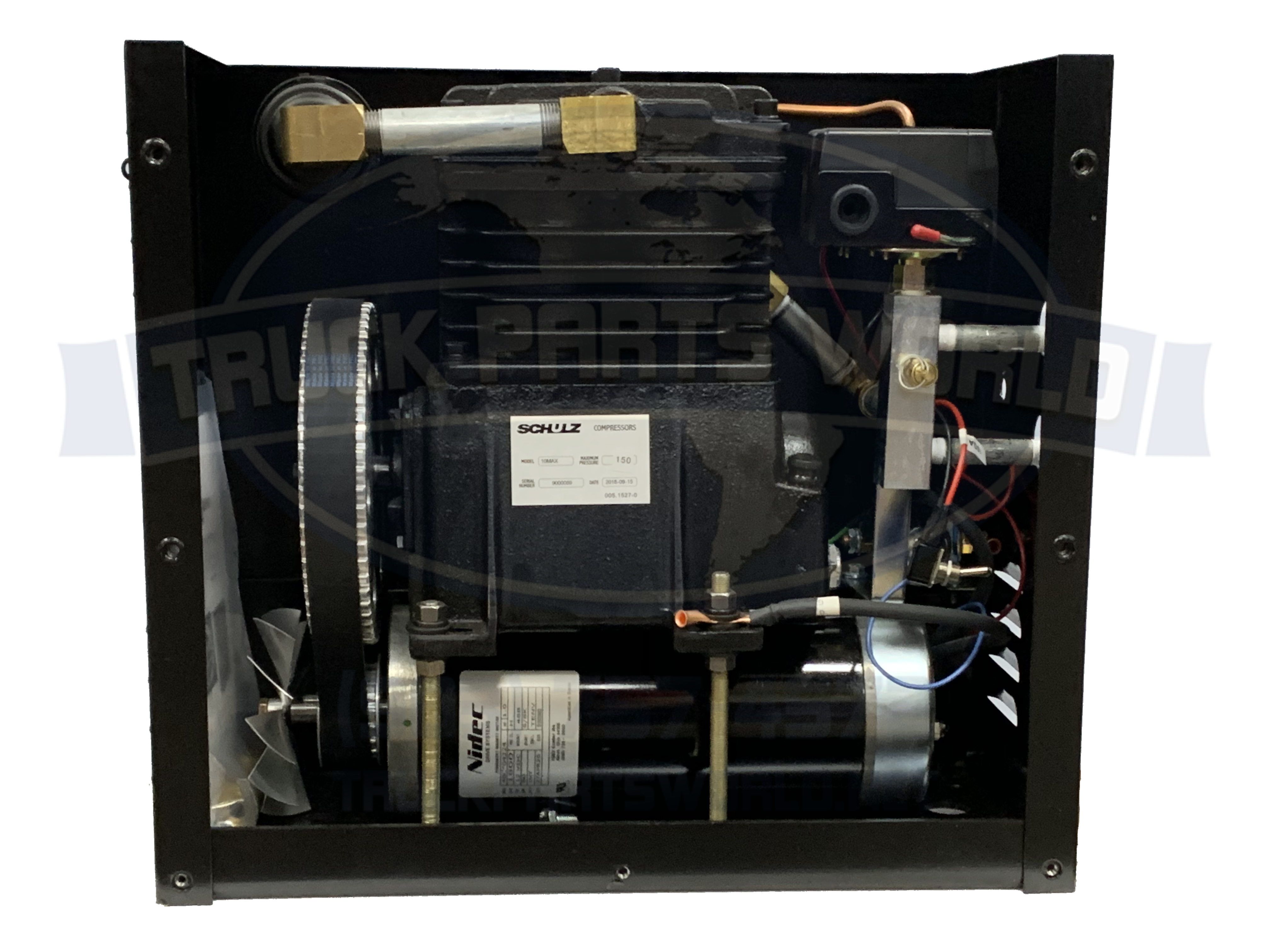

•Heavy Duty ‘cast-iron’ twin cylinder, oillubed
compressor runs at only 470 rpm
•Positive gear belt drive system
•All steel powder coated cabinet
•In business since 1990
•FULL One Year WarrantyIf you have any questions you can contact us at 1-800-749-4572 between 8am and 5pm Central time or come by at 5765 E Loop 281, Longview, TX 75602. We have been serving the after market trucking industry since 1987.MODEL # 12V6CF
VOLTAGE 12 VDC
HP 1
AMP DRAW @ 100 PSI 90 amps
DUTY CYCLE @ 90o F 80%
CFM @ 50 PSI 10
CFM @ 100 PSI 6
Fills a 10 gal. tank
0-150 PSI
00:02:55
Recovers a 10 gal. tank
from 130-150 PSI
00:00:35
•A 100 amp alternator will charge 35-40
amps at a vehicle idle
•Motor has a 2000 hour life
•A permanent magnet motor carries a
80% efficiency rating

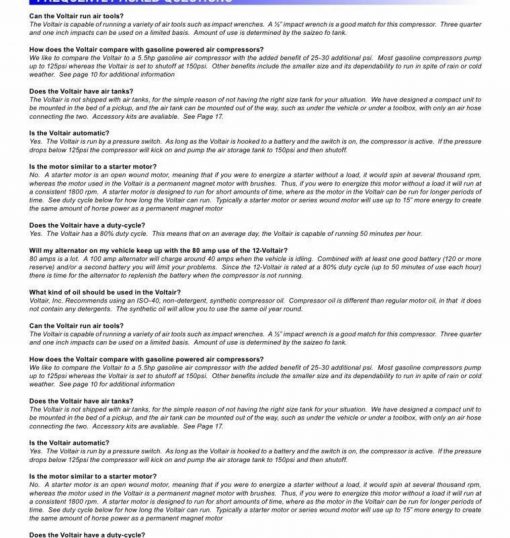

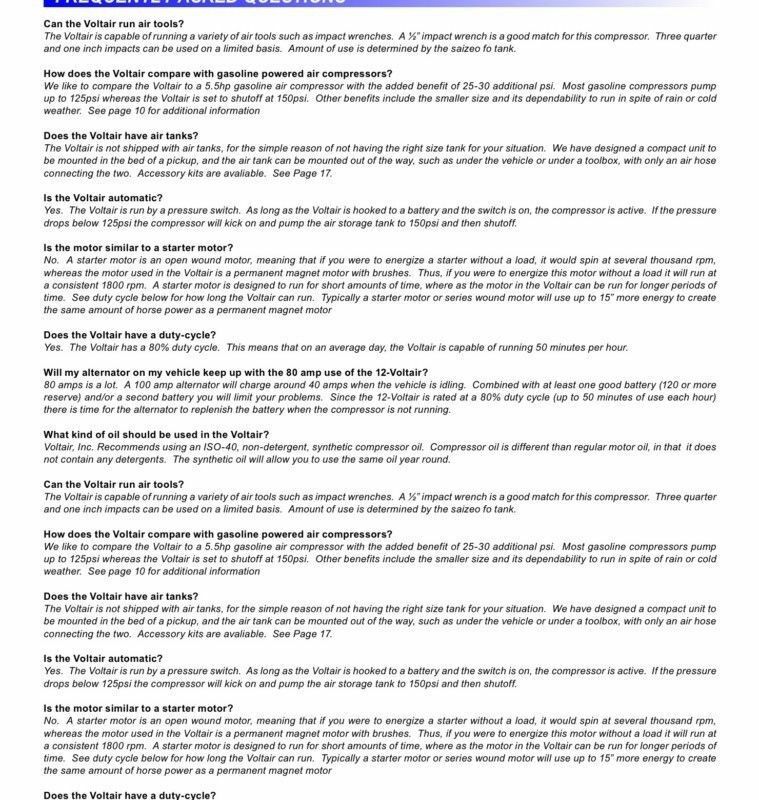

•Dimensions 19”H x 18.25”W x 8.25”DOwner’s ManualSales BrochureFAQTroubleshooting GuideWire DiagramHere is what there customers have to say.
Owning this 12-Voltair® has eliminated most frustrations
that I am faced with as a tow truck driver.

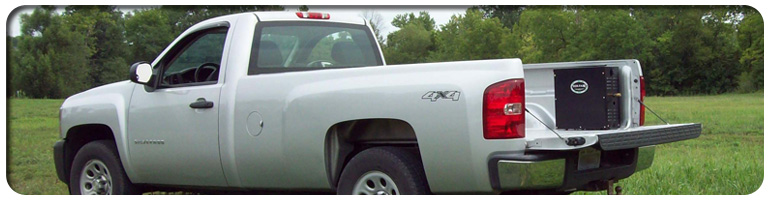

Dwain, FL.The unit was easy to install and it takes up very
little space… Steve, MNI purchased my 12-Voltair® 12 years ago and it is
still working with the only repairs being a solenoid
and a belt. Darwin, KSI would recommend the 12-Voltair® to anyone who
needs air on a daily basis. Gary, TX
