Automann M1500 Side Bar / Shackle

$26.67

SKU: M1500 Categories: , , Tags: Brand:

Description

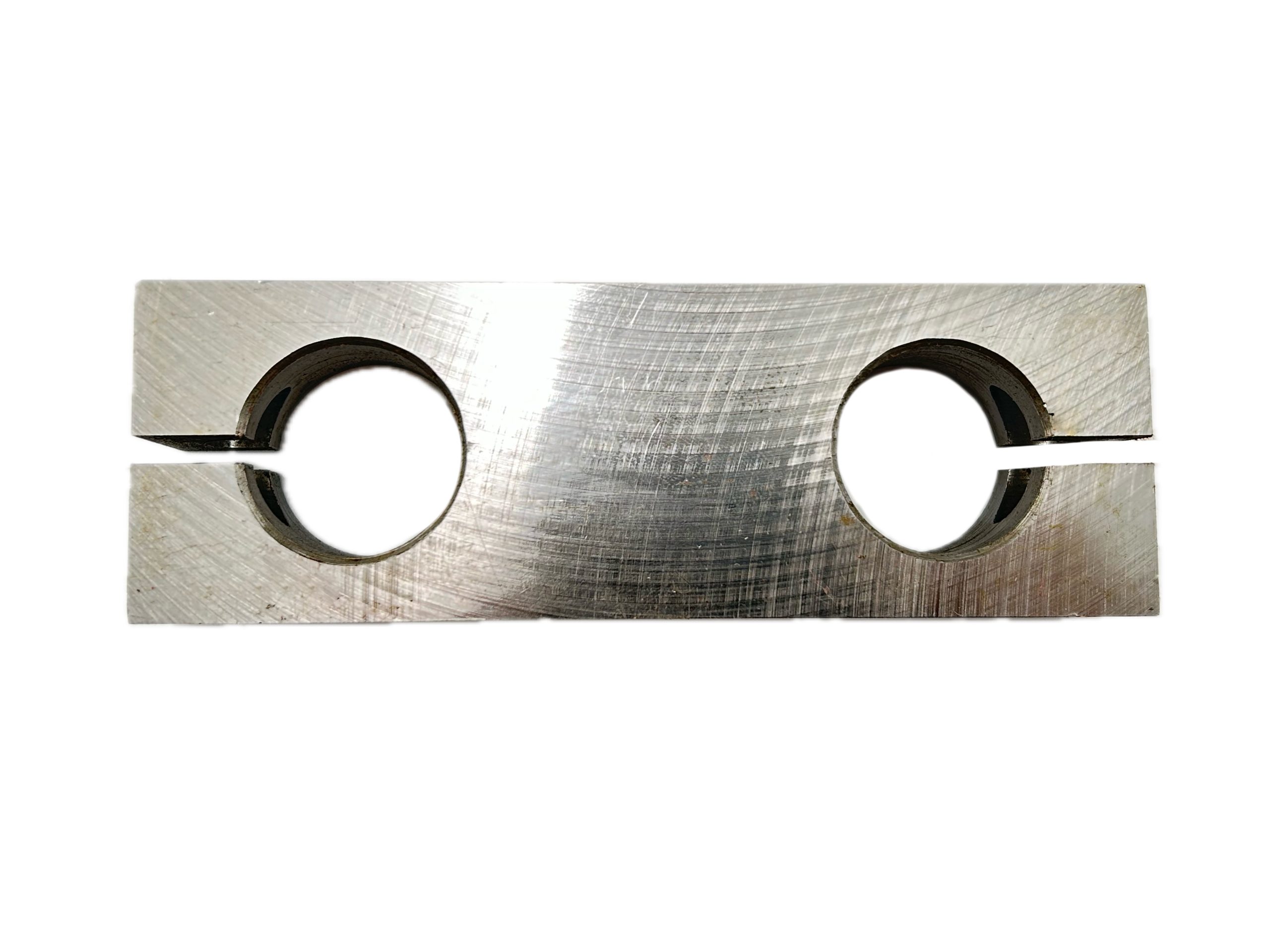

The Automann M1500 side bar (also known as a spring shackle) is a vital suspension component for heavy-duty trucks—especially Peterbilt models. Built from durable steel, it ensures smooth axle movement and proper alignment under load, critical for safety and performance.

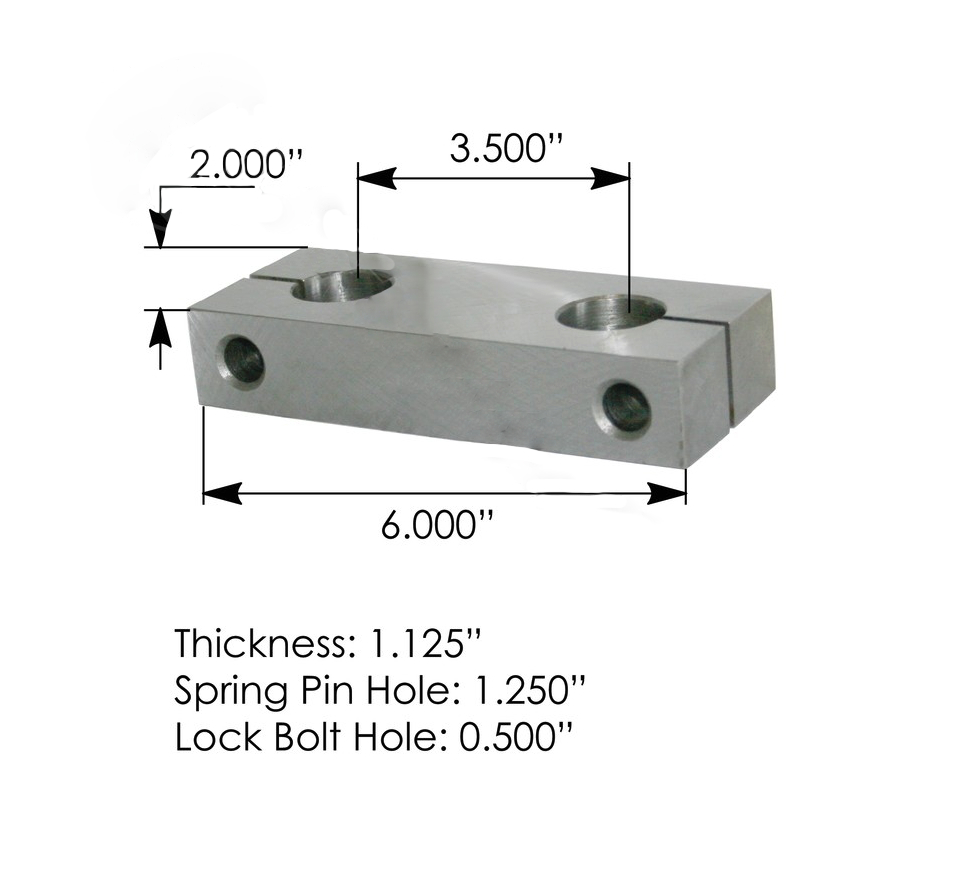

📐 Exact Dimensions

  • Overall Length (A): 6.000 in

  • Width (B): 2.000 in

  • Center-to-Center (eye-to-eye, C): 3.500 in

  • Height (D): 1.125 in

  • Eye/Bushing Inner Hole (E): 1.250 in ID

  • Lock Hole (F): 0.500 in

  • These precision measurements make the M1500 a direct fit for many Peterbilt models with corresponding leaf spring configurations.

🔁 Cross-Reference Part Numbers

  • Automann: M1500

  • ATRO: SK75‑10200

  • ATMM1500

  • Peterbilt: 02‑01784, 02‑01783

  • Dayton: 330‑186 

  • Paccar: 16537AA

✅ Features & Benefits

  • Heavy-Duty Steel Construction: Designed for durability in rugged conditions.

  • OEM Precision Fit: Adheres to exact Peterbilt and Paccar specifications to ensure correct alignment and safe suspension travel.

  • Easy Installation: Drop-in replacement—no modifications required.

  • Reliability: Consistent performance dive after drive, reducing downtime and maintenance.

⚙️ Applications

  • Specifically engineered for:

    • Peterbilt standard-leaf spring suspensions

    • Trucks requiring a 3.5″ C‑to‑C shackle eye alignment

  • Ideal replacement for worn or damaged shackles—restoring factory suspension function.

🌟 Why the Automann M1500?

  • Trusted OEM-grade quality: Meets or exceeds factory specifications.

  • Broad cross-referencing makes fitment easy: Compatible with multiple brands and part numbers.

  • Enhanced safety and ride control: Precise fitment helps maintain proper ride height and direction under load.
