Description

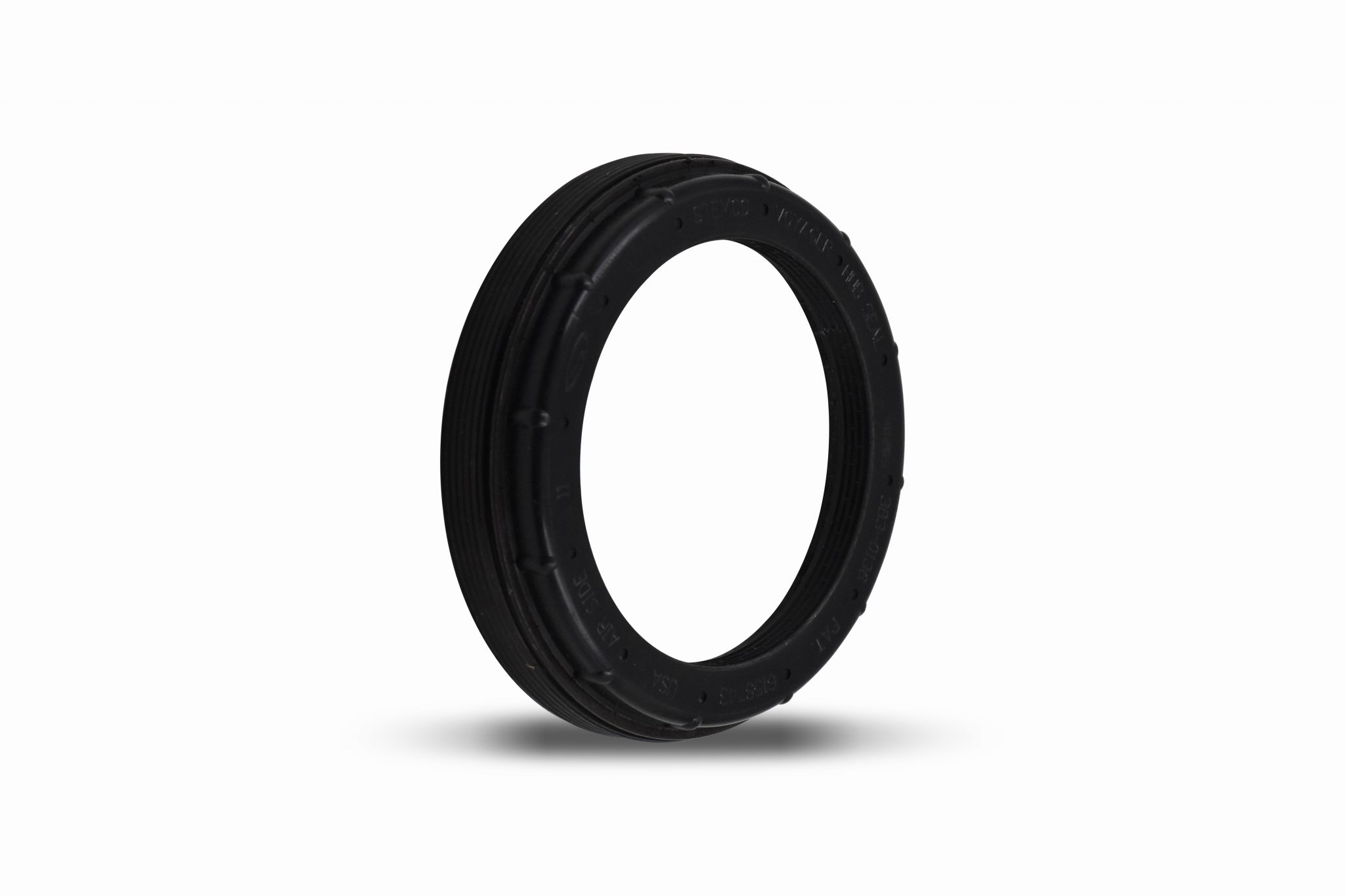

The Stemco 383‑0136 is a high-quality Voyager® drive axle wheel oil seal, engineered for rugged, heavy-duty applications. It provides exceptional protection against contaminants and ensures a secure, leak-free seal in demanding environments

• Seal Type: L1, precision-engineered for secure fit and longevity

• Width: 0.932 in (approx. 23.7 mm)

• Bore Diameter: 4.840 in (approx. 122.9 mm)

• Shoulder Outer Diameter (Spindle): 3.500 in (88.9 mm)

• Specifically designed for heavy-duty steering axles rated 12,000–14,600 lb, such as Meritor and OEM variants

382-8036, 383-8139, A1205B2264, A1205E2475, A1205G631, A1205L1338, A1205N1912, A1205U2491, A1205W1375, 100858201, 100858401, 370001A, 380001A, 6638S, 9339S, 35059, 35062, 35102, 3942006, 20437527, 3096224, 15663537, 940010010, 940010014, 940010021, 940010029, 940010039, 9400103604, D0HZ1190B, D1HA1190AA, D1HZ1190A, D5HZ1190B, E2HT1190AA, E3HZ1190B, E6HZ1190D, E7HT1190AA, E7HZ1190A, E8HS1190CA, F0HT1190AA, MER0136, MER0236, 10045885, CR35058, BRS161, HDRRA20629, 10S35000T
