Product Detail

Stemco 383‑0171 Voyager® Wheel Oil Seal – Heavy‑Duty Drive Axles

$71.45

SKU: 383-0171 Categories: ,

Description

Product Overview

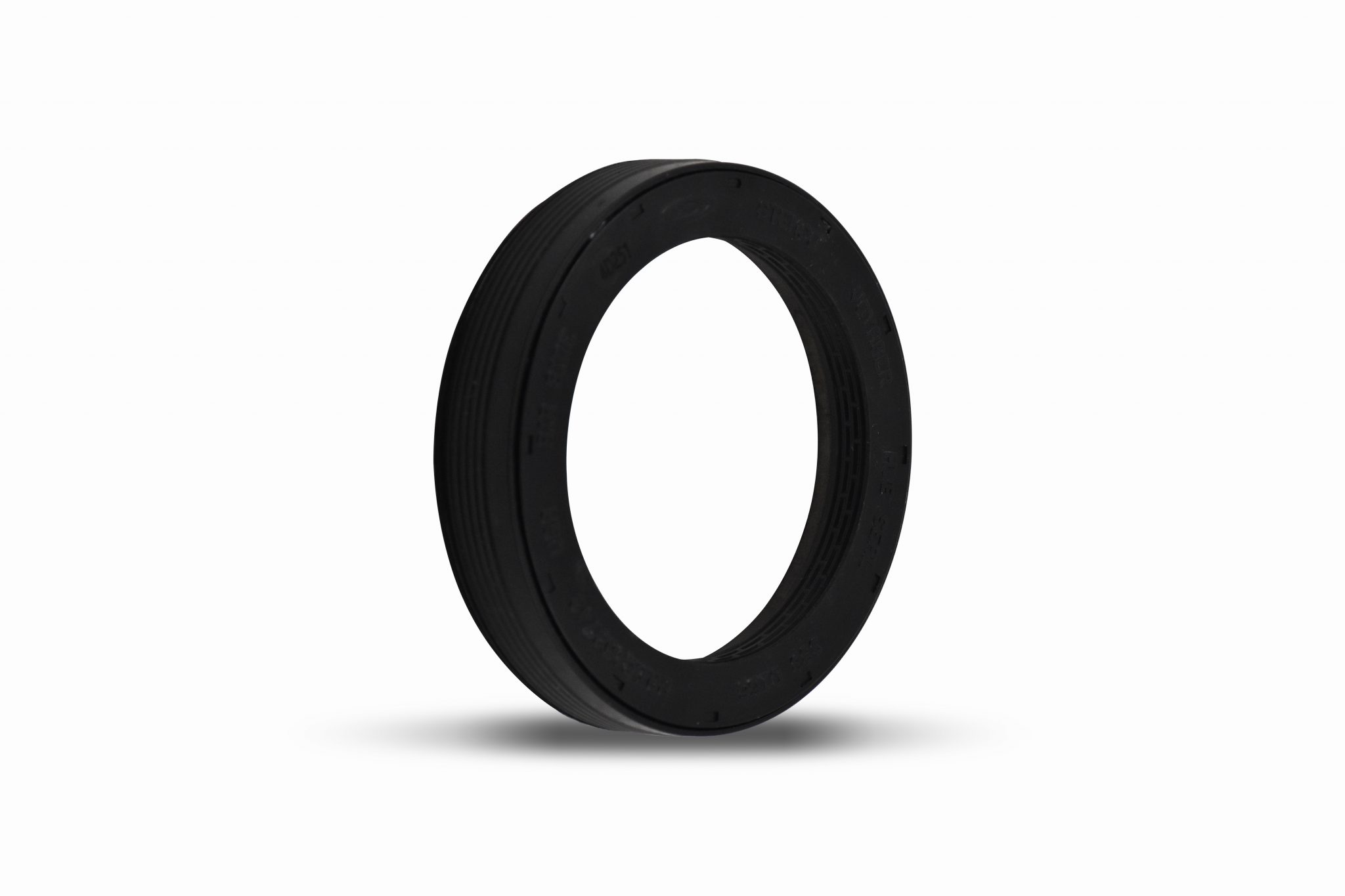

The Stemco 383‑0171 Voyager® wheel seal is a premium drive‑axle oil seal designed for front axles on commercial trucks and trailers. Built for 12,000 lb axles — common on Meritor, Eaton, Ford, Freightliner, Kenworth, Western Star, Navistar, Peterbilt, and GM/Volvo vehicles — this seal delivers robust performance and long-lasting reliability Precise Dimensions & Specs

  • Bore (Hub) Diameter: 5.000 in

  • Spindle Shoulder Outer Diameter: 3.625 in

  • Seal Width (Thickness): 0.82 in

  • Bearing Guide: 570‑0019

  • Installation Tool Body: 551‑0001

  • Recommended Installer Head: 551‑5403

Inner / Outer Bearing Compatibility

  • Inner Bearing Cup / Cone: HM212011 / HM212047

  • Outer Bearing Cup / Cone: 45220 / 45282

  • Cross‑Reference Numbers
    Known interchange part numbers include:

  • National 370011A

  • OEM 36357

  • GMC/Volvo 15519908

  • SKF 39977 & 39988

  • Boss Seals B370033 & B39988

  • Triseal 65294W

  • Mechanex/Barrier HS39977

UPC & Packaging Details

  • UPC: 703832180772

  • Sold individually — prices vary by distributor.

Applications & Benefits

  • Suited for front hubs requiring a 5″ bore seal on 3.625″ shoulders

  • Provides superior oil retention and contamination resistance

  • Voyager® unitized design includes bonded rubber OD/ID for easy, square installation

  • Can be installed using standard Stemco hub-install tools for quick maintenance
